Sonifex RB-DS2R Remote Switch Panel For RB-DS2
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

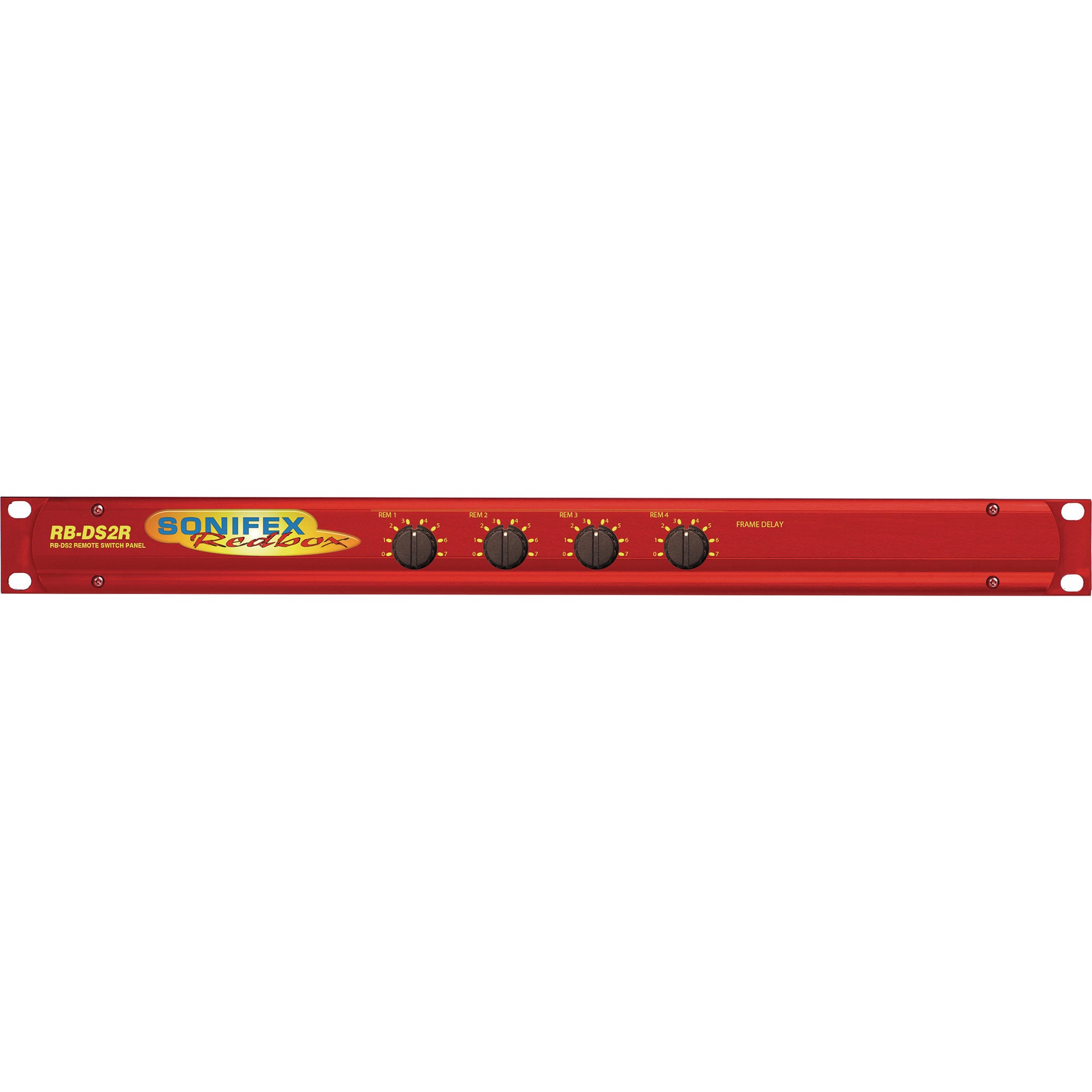

The RB-DS2R is a remote panel for controlling up to 4 separate RB-DS2 units from a single 1U 19" rack-mount panel.
The unit has 4 rotary switches, each with 8 available selections numbered 0 to 7, used for selecting the delay time in frames. On the rear of the unit are 4 x 15-way D-type connectors used for connecting directly to the remote input of 4 x RB-DS2 units. The RB-DS2R is a passive unit, i.e. there is no power supply.
| Rear Panel Connections | |
| Remote I/O Port | 4 x 15-way ÔDÕ-type socket, 8 GPI outputs |
| Front Panel Controls | |
| Selector Switches | 4 x 8 way rotary selectors |
| Dimensions(Raw) | 48cm (W) x 10.8cm (D) x 4.2cm (H) (1U) 19Ó (W) x 4.3Ó (D) x 1.7Ó (H) (1U) |
| Dimensions (Boxed) | 58.5cm (W) x 22.5cm (D) x 7cm (H) (1U) 23Ó (W) x 8.9Ó (D) x 2.8Ó (H) (1U) |
| Weight | Nett: 1.2kg Gross: 1.6kg Nett: 2.6lbs Gross: 3.5lbs |
The RB-DS2R is a remote panel for controlling up to 4 separate RB-DS2 units from a single 1U 19" rack-mount panel.
The unit has 4 rotary switches, each with 8 available selections numbered 0 to 7, used for selecting the delay time in frames. On the rear of the unit are 4 x 15-way D-type connectors used for connecting directly to the remote input of 4 x RB-DS2 units. The RB-DS2R is a passive unit, i.e. there is no power supply.
| Rear Panel Connections | |
| Remote I/O Port | 4 x 15-way ÔDÕ-type socket, 8 GPI outputs |
| Front Panel Controls | |
| Selector Switches | 4 x 8 way rotary selectors |
| Dimensions(Raw) | 48cm (W) x 10.8cm (D) x 4.2cm (H) (1U) 19Ó (W) x 4.3Ó (D) x 1.7Ó (H) (1U) |
| Dimensions (Boxed) | 58.5cm (W) x 22.5cm (D) x 7cm (H) (1U) 23Ó (W) x 8.9Ó (D) x 2.8Ó (H) (1U) |
| Weight | Nett: 1.2kg Gross: 1.6kg Nett: 2.6lbs Gross: 3.5lbs |
