Description
The RB-SM2 is a dual version of the RB-SM1, consisting of two independent converters which will produce two fully buffered and balanced mono line outputs from two stereo inputs. All connections are on the rear panel. The XLR-3 inputs are electronically balanced with an impedance of 20kΩ bridging.... Read MoreOur Price: $537.00
Free Shipping (Continental US)
Suggested Accessories
Description

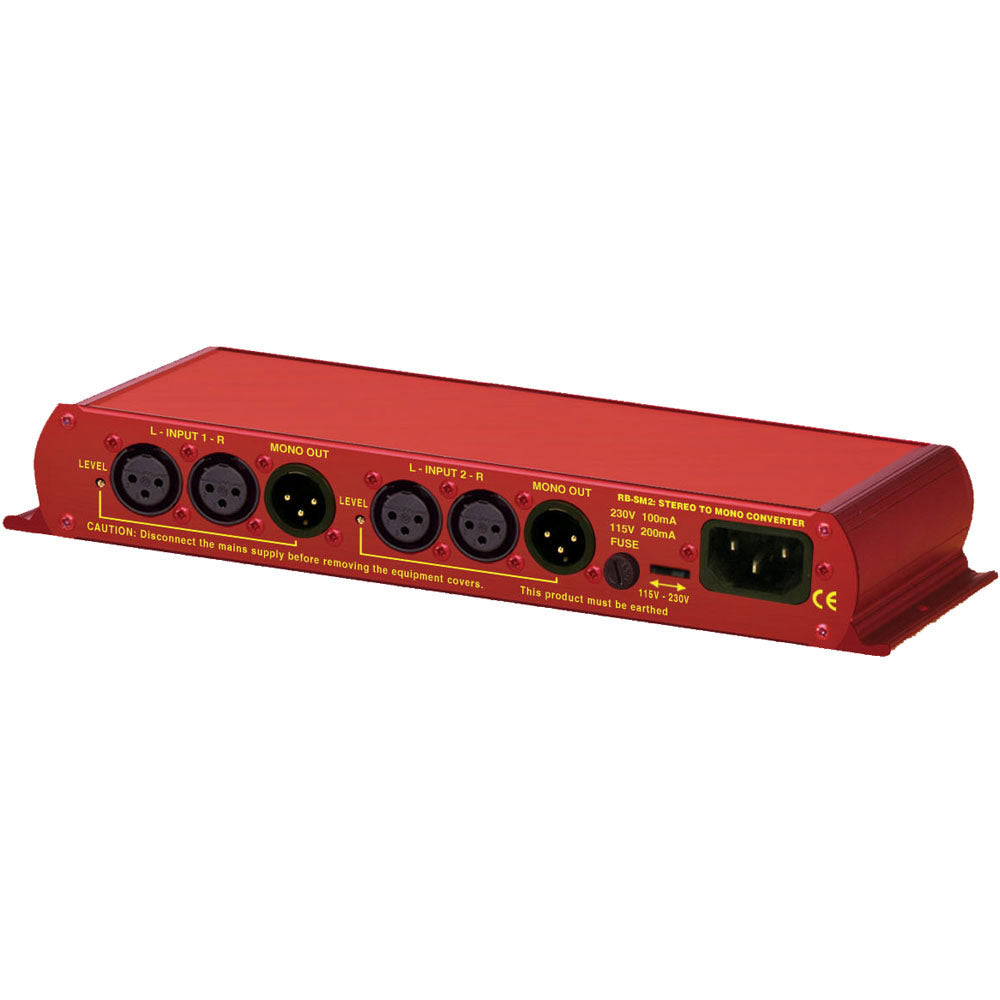

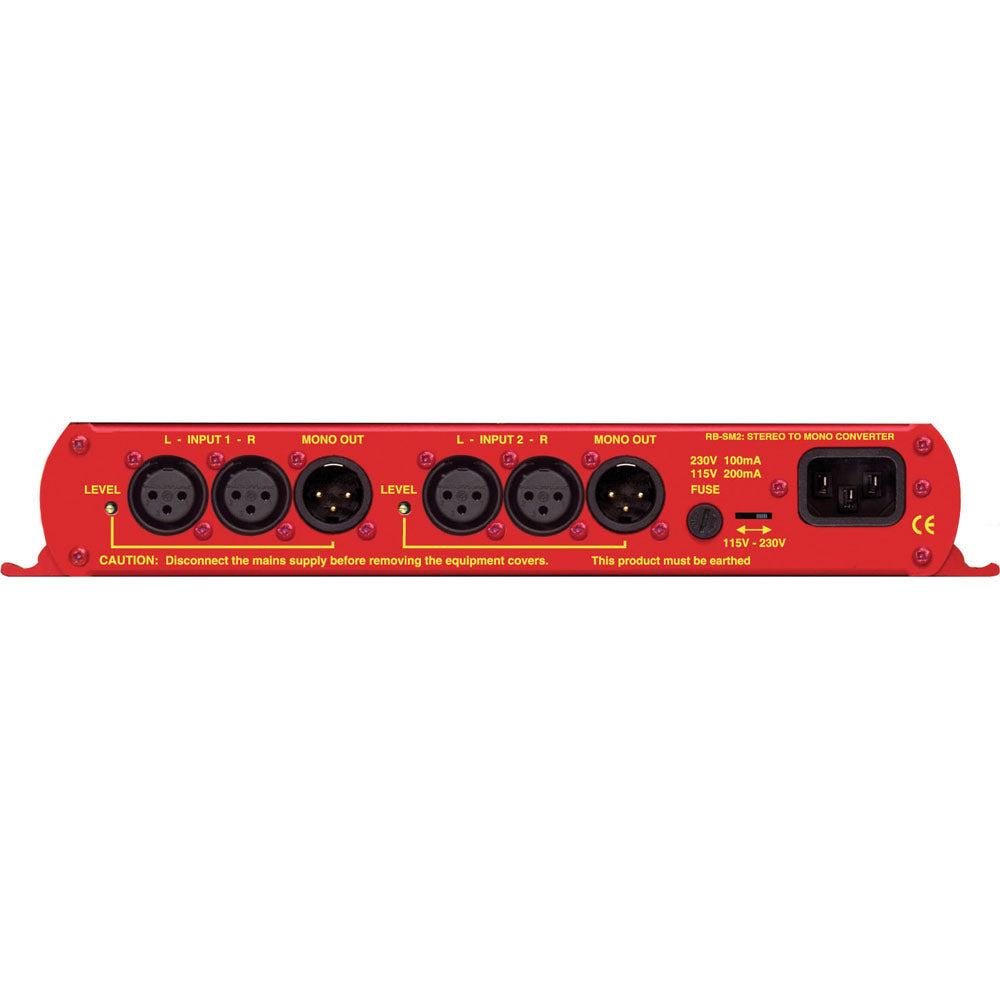

The RB-SM2 is a dual version of the RB-SM1, consisting of two independent converters which will produce two fully buffered and balanced mono line outputs from two stereo inputs. All connections are on the rear panel. The XLR-3 inputs are electronically balanced with an impedance of 20kΩ bridging. These can be wired unbalanced to accept an output from domestic equipment. The XLR-3 line outputs are electronically balanced with an output impedance of <50Ω. The outputs can be wired unbalanced by grounding the non-phase signal, allowing you to feed both balanced and unbalanced equipment. Output gain adjustment using pre-set potentiometers for both converters allows a normalised mono output from domestic stereo equipment. The potentiometers are accessible through the rear panel.
More +
Product Specs
Maximum Input Level | +28dBu |
Maximum Output Level | +28dBu |
Input Impedance | >20kΩ balanced bridging |
Output Impedance | <50Ω balanced |
Frequency Response | 20Hz to 20kHz ±0.1dB (600Ω load, ref 1kHz) |
Gain Range | Adjust -8dB to +18dB gain, ref. 0dB input on L and R |
Common Mode Rejection | >66dB typically |
Distortion | 0.01% THD @ 1kHz, ref +8dBu output |
Noise | -100dB, unity gain, ref +8dBu output |
Connections | |
Inputs | 4 x XLR 3 pin female (Balanced, can be unbalanced) |
Outputs | 2 x XLR 3 pin male (Balanced, can be unbalanced) |
Mains Input | Filtered IEC, switchable 110-120V, or 220-240V, fused, 6W max |
Fuse Rating | Anti-surge fuse 100mA 20 x 5mm (230VAC) Anti-surge fuse 250mA 20 x 5mm (115VAC) |
Equipment Type | |
RB-SM2 | Dual stereo to mono converter |
Physical Specification | |
Dimensions (Raw) | 28cm (W) x 10.8cm (D) x 4.2cm (H) (1U) 11” (W) x 4.3” (D) x 1.7” (H) (1U) |
Dimensions (Boxed) | 36cm (W) x 20.5cm (D) x 6cm (H) 14.2” (W) x 8” (D) x 2.4” (H) |
Weight | Nett: 1.05kg Gross: 1.50kg Nett: 2.3lbs Gross: 3.3lbs |
