Sonifex RM-2S10 Reference Monitor, 2 LED Meters & 10 Stereo Channel Inputs

Sale price$3,838.00
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

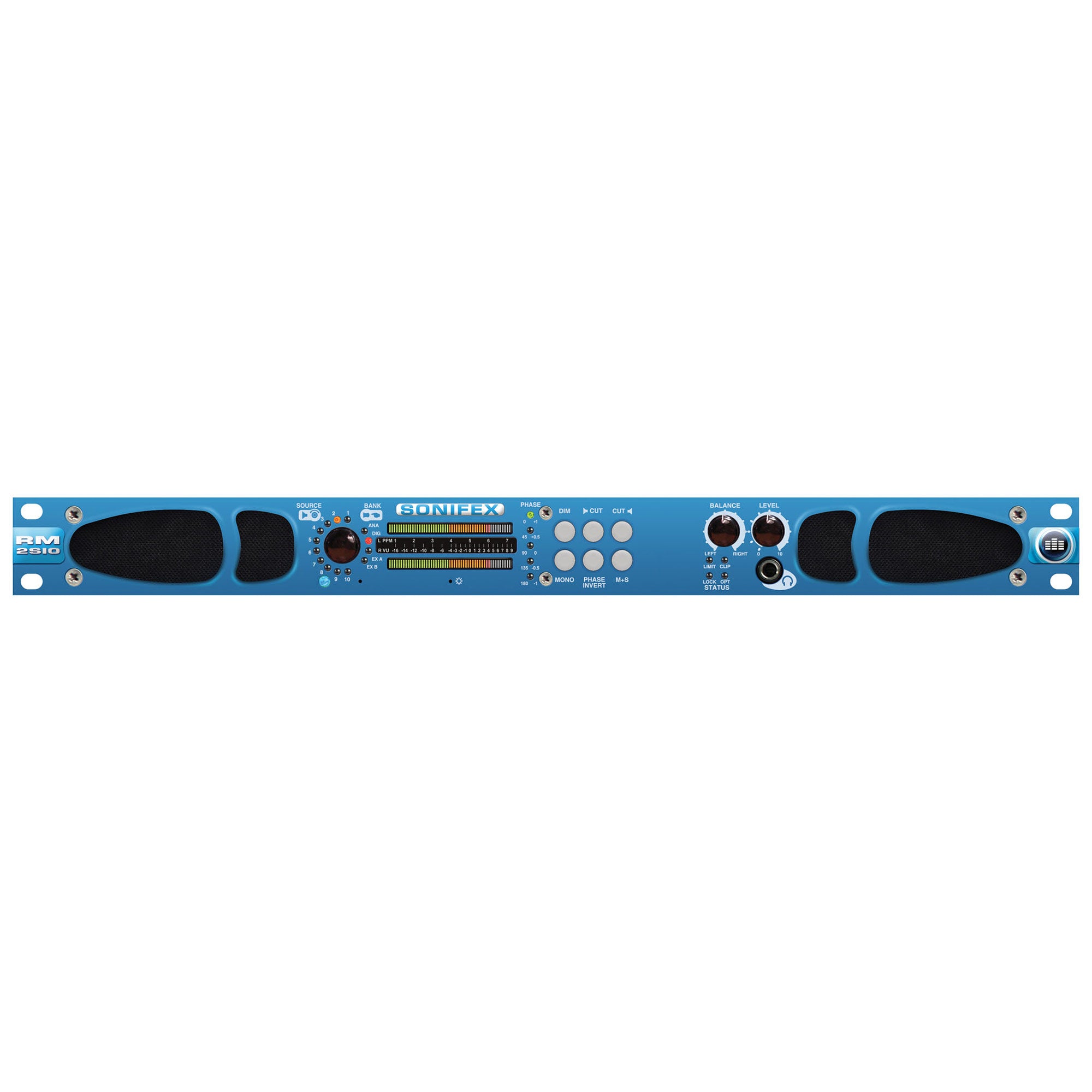

    The RM-2S10 is a 1U rack-mount unit offering quality loudspeaker monitoring and accurate, high-resolution metering of up to twenty both analogue and digital stereo audio sources and more with the addition of optional expansion cards. Sources may be in any mixture of analogue and AES/EBU digital formats, with sample rates up to 192kHz accepted.

    The RM-2S10 has 10 separate analogue and digital inputs. Analogue inputs can be balanced or unbalanced in any combination. The digital inputs have switchable AES/EBU termination for (close-range) bridging operation and there is extra global input gain available for both analogue and digital low-level sources.

    Sources (and additional banks of sources, if fitted) are selected via a front panel rotary encoder, with clear LED indication of the current selection. On the RM-2S10, the Source LEDs also act as signal present indicators. A pair of line-level audio outputs, configurable as analogue or AES/EBU digital, follow the selected source at either a fixed level or one mirroring the loudspeaker volume.

    The level of the chosen source is displayed on a pair of bright, multicoloured 53-segment bargraph meters, with a choice of seven accurately modelled scales/responses to suit different applications and local preferences. Clear scale labels are provided for you to chose the scale displayed and the meter brightness can be adjusted from the front panel. A separate phase meter indicates channel correlation or phase error conditions. On the rear panel, open-collector alarm outputs provide hardware indication of sustained underlevel, overlevel, phase errors and digital source lock.

    Six illuminated pushbuttons provide access to a range of audio ‘modifiers’ – instant dimming of the volume, individual muting of each audio channel, stereo-to-mono conversion, phase inversion and Middle+Side transcoding. On the rear panel, logic-level inputs allow direct remote access to the DIM and MUTE functions.

    The three-way loudspeaker system is fed via a DSP-based active crossover and a trio of highly efficient Class-D amplifiers. Careful attention to driver selection, materials and case design, plus active DSP equalisation, has ensured a flat response and outstanding reproduction from such a shallow unit. A protective limiter prevents damage to the loudspeakers under overload conditions and the front-panel headphone socket automatically mutes the internal loudspeakers when a plug is inserted. A Balance control allows you to alter the stereo imaging of the left and right channels.

    A further five-band parametric equaliser can be accessed for room-equalisation purposes via Sonifex SCi Windows-based remote control software. Source selection, status monitoring and unit ID functions, plus firmware updates to add extra functionality, are all accessible remotely via both USB and RS232 connections in conjunction with Sonifex SCi software. The open control protocol also allows operation with terminal programs or customised applications.

    An optional addition to the RM-2S10 is an HD video input expansion card, allowing multiple AES groups embedded within an HD-SDI or SD-SDI signal to be de-embedded and monitored (RM-HD1). The RM-2S10 unit operate from global mains voltages (85-264V AC, 47-63Hz) without adjustment.

    This product has settings that can be adjusted using the Sonifex SCi (Serial Control Interface) software.

    Inputs
    Audio Inputs10 x stereo analogue plus 10 x stereo AES/ EBU digital
    Max level (0dB input gain)+18dBu (analogue)/0dBFS (digital)
    CMRR>60dB typical
    Input Impedance20k? (analogue) 110? (digital with termination switchable)
    AES/EBU Sample Rate32 to 192kHz, converted internally to 48kHz
    Input Gain0, +6, +12 or +18dB digital gain (switchable)
    SelectionFront panel rotary control with indicator LEDs
    Line Level Outputs
    Audio Outputs1 x stereo analogue or AES/EBU digital (switchable)
    Gain re Selected InputUnity or variable, following volume control (switchable)
    Maximum Output Level+18dBu (analogue)/0dBFS (digital)
    Output Impedance<50? (analogue)/110? (digital)
    AES/EBU Sample Rate48kHz
    Distortion<0.02% (1kHz, +8dBu output)
    Noise-84dB RMS, unity gain ref +8dBu output
    Frequency Response20Hz-20kHz +0/-0.5dB
    CrosstalkAnalogue I/O, ref 0dBu
    1kHz input<-90dB
    10kHz input<-85dB
    Audio Modifiers
    Modifier SelectionIlluminated front panel pushbuttons
    DIMReduces speaker audio level by 10dB
    CUT L / CUT RMutes left/right speaker audio
    MONOCombines left and right audio inputs
    PHASE INVERTInverts phase of right audio input
    M+SConverts stereo input to Middle (sum) and Side (difference) signals
    User-Variable Equalisation
    TypeParametric
    BandsFive
    Centre Frequency200Hz to 18kHz
    Bandwidth0.25 to 2 octaves
    Boost/Cut±12dB
    ProgrammingVia USB/serial control port
    Amplifier/Loudspeakers
    ConfigurationThree-way with stereo mid/ high-frequency drivers / mono low-frequency driver
    Power Output2 x 5W (HF) + 20W (LF) with protective limiter
    Crossover500Hz (3rd order Butterworth)
    Distortion (HF Outputs)< 0.05% (1kHz, 3W output)
    Distortion (LF Output)< 0.05% (100Hz, 6W output)
    NoiseMore than 80dB below full output
    VolumeMute to full volume via front panel rotary control
    Balance Trim±6dB via front panel rotary control
    Peak Acoustic Level102dB SPL @ 2ft
    Level Metering
    Number2 x 26-segment tri-colour LED bargraphs
    Characteristics
    Selectable by switch from1. Dual BBC PPM + standard VU
    2. BBC PPM
    3. EBU PPM
    4. Nordic PPM
    5. AES/EBU digital PPM
    6. DIN PPM
    7. Standard VU
    8. Extended VU
    BallisticsAccording to selected characteristic
    Line-Up LevelAccording to selected characteristic
    Phase Metering
    Type5-segment, indication at 0, 45, 90, 135 and 180 degrees
    Remote Control
    USBSlave device, 19200 baud
    SerialRS232, 19200 baud, 3-wire connection
    Alarm Outputs1. Audio underlevel/fail (latching)
    2. Audio overlevel (latching)
    3. Sustained phase error (latching)
    4. AES/EBU input unlock (non-latching)
    Open-collector outputs rated at 30V, 50mA maximum
    Output low/conducting in normal condition (no alarm)
    Control Inputs1. Mute audio
    2. Dim audio
    3. Alarm reset
    Pull-to-ground to activate inputs
    Status Indicators
    LIMITIndicates loudspeaker protection limiter is active.
    CLIPIndicates internal digital clipping due to overlevel.
    LOCKIndicates lock achieved on selected digital input(s).
    OPTFor future use.

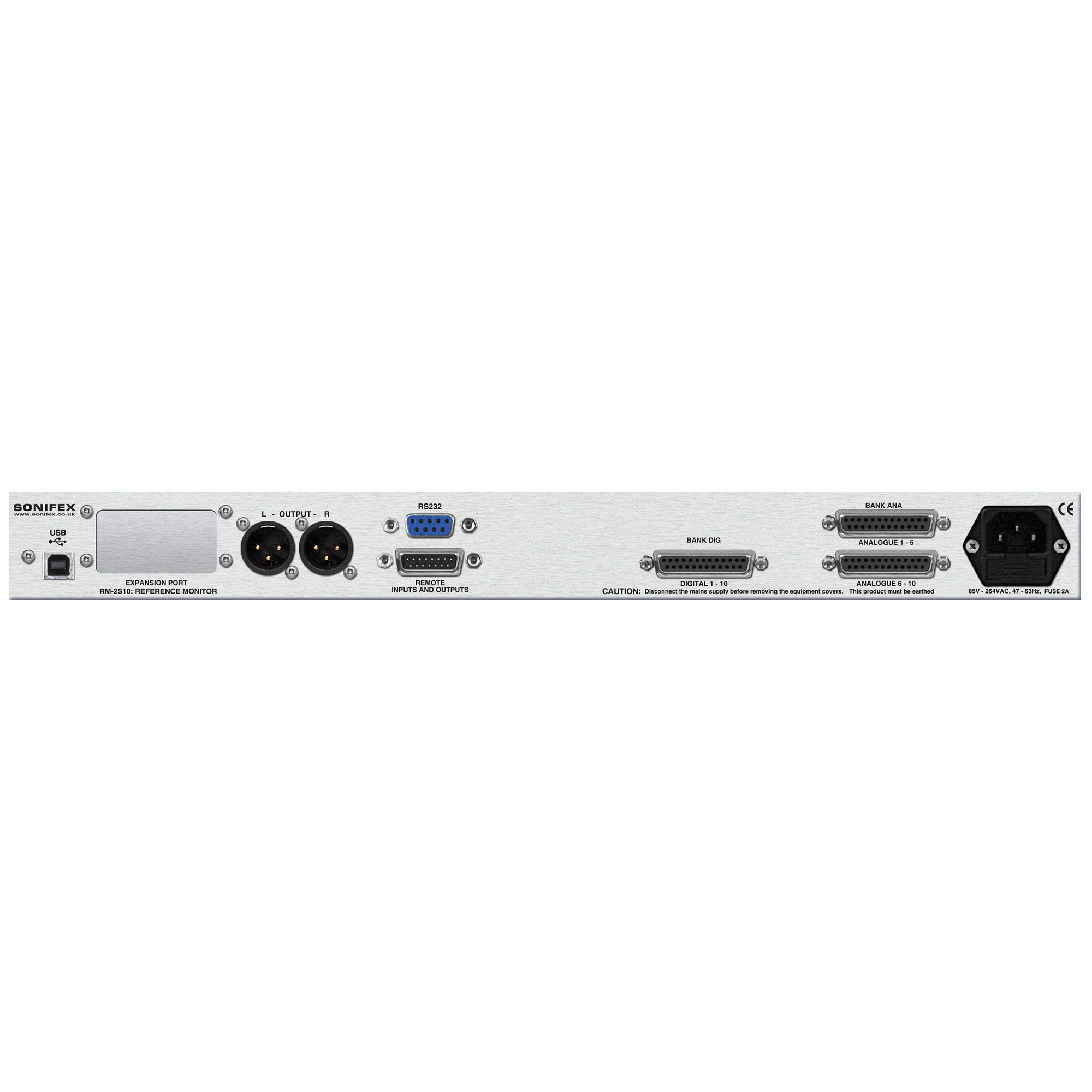

    Connectors
    Audio Inputs3 x D-type 25-pin female (balanced, may be unbalanced)
    Audio Outputs2 x XLR 3-pin male (balanced, may be unbalanced)
    Headphones1/4Ó (6.35mm) A-gauge 3-pole stereo jack socket
    USBType B socket
    SerialD-sub 9-pin female
    Remote I/OD-sub 15-pin male
    Mains InputFiltered 3-pin IEC male, continuously rated 85 - 264VAC, 47 - 63Hz, fused, 60W peak, 30W average
    Fuse RatingAnti-surge fuse 2A 20 x 5mm
    Physical Specification
    Dimensions (Raw)48cm (W) x 30.5cm (D) x 4.4cm (H) (1U)
    19Ó (W) x 12Ó (D) x 1.73Ó (H) (1U)
    Dimensions (Boxed)57cm (W) x 52cm (D) x15cm (H)
    22.4Ó (W) x 20.5Ó (D) x 5.9Ó (H)
    WeightNett: 4.5kg Gross: 6kg
    Nett: 10lb Gross: 13.2lb

    The RM-2S10 is a 1U rack-mount unit offering quality loudspeaker monitoring and accurate, high-resolution metering of up to twenty both analogue and digital stereo audio sources and more with the addition of optional expansion cards. Sources may be in any mixture of analogue and AES/EBU digital formats, with sample rates up to 192kHz accepted.

    The RM-2S10 has 10 separate analogue and digital inputs. Analogue inputs can be balanced or unbalanced in any combination. The digital inputs have switchable AES/EBU termination for (close-range) bridging operation and there is extra global input gain available for both analogue and digital low-level sources.

    Sources (and additional banks of sources, if fitted) are selected via a front panel rotary encoder, with clear LED indication of the current selection. On the RM-2S10, the Source LEDs also act as signal present indicators. A pair of line-level audio outputs, configurable as analogue or AES/EBU digital, follow the selected source at either a fixed level or one mirroring the loudspeaker volume.

    The level of the chosen source is displayed on a pair of bright, multicoloured 53-segment bargraph meters, with a choice of seven accurately modelled scales/responses to suit different applications and local preferences. Clear scale labels are provided for you to chose the scale displayed and the meter brightness can be adjusted from the front panel. A separate phase meter indicates channel correlation or phase error conditions. On the rear panel, open-collector alarm outputs provide hardware indication of sustained underlevel, overlevel, phase errors and digital source lock.

    Six illuminated pushbuttons provide access to a range of audio ‘modifiers’ – instant dimming of the volume, individual muting of each audio channel, stereo-to-mono conversion, phase inversion and Middle+Side transcoding. On the rear panel, logic-level inputs allow direct remote access to the DIM and MUTE functions.

    The three-way loudspeaker system is fed via a DSP-based active crossover and a trio of highly efficient Class-D amplifiers. Careful attention to driver selection, materials and case design, plus active DSP equalisation, has ensured a flat response and outstanding reproduction from such a shallow unit. A protective limiter prevents damage to the loudspeakers under overload conditions and the front-panel headphone socket automatically mutes the internal loudspeakers when a plug is inserted. A Balance control allows you to alter the stereo imaging of the left and right channels.

    A further five-band parametric equaliser can be accessed for room-equalisation purposes via Sonifex SCi Windows-based remote control software. Source selection, status monitoring and unit ID functions, plus firmware updates to add extra functionality, are all accessible remotely via both USB and RS232 connections in conjunction with Sonifex SCi software. The open control protocol also allows operation with terminal programs or customised applications.

    An optional addition to the RM-2S10 is an HD video input expansion card, allowing multiple AES groups embedded within an HD-SDI or SD-SDI signal to be de-embedded and monitored (RM-HD1). The RM-2S10 unit operate from global mains voltages (85-264V AC, 47-63Hz) without adjustment.

    This product has settings that can be adjusted using the Sonifex SCi (Serial Control Interface) software.

    Inputs
    Audio Inputs10 x stereo analogue plus 10 x stereo AES/ EBU digital
    Max level (0dB input gain)+18dBu (analogue)/0dBFS (digital)
    CMRR>60dB typical
    Input Impedance20k? (analogue) 110? (digital with termination switchable)
    AES/EBU Sample Rate32 to 192kHz, converted internally to 48kHz
    Input Gain0, +6, +12 or +18dB digital gain (switchable)
    SelectionFront panel rotary control with indicator LEDs
    Line Level Outputs
    Audio Outputs1 x stereo analogue or AES/EBU digital (switchable)
    Gain re Selected InputUnity or variable, following volume control (switchable)
    Maximum Output Level+18dBu (analogue)/0dBFS (digital)
    Output Impedance<50? (analogue)/110? (digital)
    AES/EBU Sample Rate48kHz
    Distortion<0.02% (1kHz, +8dBu output)
    Noise-84dB RMS, unity gain ref +8dBu output
    Frequency Response20Hz-20kHz +0/-0.5dB
    CrosstalkAnalogue I/O, ref 0dBu
    1kHz input<-90dB
    10kHz input<-85dB
    Audio Modifiers
    Modifier SelectionIlluminated front panel pushbuttons
    DIMReduces speaker audio level by 10dB
    CUT L / CUT RMutes left/right speaker audio
    MONOCombines left and right audio inputs
    PHASE INVERTInverts phase of right audio input
    M+SConverts stereo input to Middle (sum) and Side (difference) signals
    User-Variable Equalisation
    TypeParametric
    BandsFive
    Centre Frequency200Hz to 18kHz
    Bandwidth0.25 to 2 octaves
    Boost/Cut±12dB
    ProgrammingVia USB/serial control port
    Amplifier/Loudspeakers
    ConfigurationThree-way with stereo mid/ high-frequency drivers / mono low-frequency driver
    Power Output2 x 5W (HF) + 20W (LF) with protective limiter
    Crossover500Hz (3rd order Butterworth)
    Distortion (HF Outputs)< 0.05% (1kHz, 3W output)
    Distortion (LF Output)< 0.05% (100Hz, 6W output)
    NoiseMore than 80dB below full output
    VolumeMute to full volume via front panel rotary control
    Balance Trim±6dB via front panel rotary control
    Peak Acoustic Level102dB SPL @ 2ft
    Level Metering
    Number2 x 26-segment tri-colour LED bargraphs
    Characteristics
    Selectable by switch from1. Dual BBC PPM + standard VU
    2. BBC PPM
    3. EBU PPM
    4. Nordic PPM
    5. AES/EBU digital PPM
    6. DIN PPM
    7. Standard VU
    8. Extended VU
    BallisticsAccording to selected characteristic
    Line-Up LevelAccording to selected characteristic
    Phase Metering
    Type5-segment, indication at 0, 45, 90, 135 and 180 degrees
    Remote Control
    USBSlave device, 19200 baud
    SerialRS232, 19200 baud, 3-wire connection
    Alarm Outputs1. Audio underlevel/fail (latching)
    2. Audio overlevel (latching)
    3. Sustained phase error (latching)
    4. AES/EBU input unlock (non-latching)
    Open-collector outputs rated at 30V, 50mA maximum
    Output low/conducting in normal condition (no alarm)
    Control Inputs1. Mute audio
    2. Dim audio
    3. Alarm reset
    Pull-to-ground to activate inputs
    Status Indicators
    LIMITIndicates loudspeaker protection limiter is active.
    CLIPIndicates internal digital clipping due to overlevel.
    LOCKIndicates lock achieved on selected digital input(s).
    OPTFor future use.
    Connectors
    Audio Inputs3 x D-type 25-pin female (balanced, may be unbalanced)
    Audio Outputs2 x XLR 3-pin male (balanced, may be unbalanced)
    Headphones1/4Ó (6.35mm) A-gauge 3-pole stereo jack socket
    USBType B socket
    SerialD-sub 9-pin female
    Remote I/OD-sub 15-pin male
    Mains InputFiltered 3-pin IEC male, continuously rated 85 - 264VAC, 47 - 63Hz, fused, 60W peak, 30W average
    Fuse RatingAnti-surge fuse 2A 20 x 5mm
    Physical Specification
    Dimensions (Raw)48cm (W) x 30.5cm (D) x 4.4cm (H) (1U)
    19Ó (W) x 12Ó (D) x 1.73Ó (H) (1U)
    Dimensions (Boxed)57cm (W) x 52cm (D) x15cm (H)
    22.4Ó (W) x 20.5Ó (D) x 5.9Ó (H)
    WeightNett: 4.5kg Gross: 6kg
    Nett: 10lb Gross: 13.2lb
