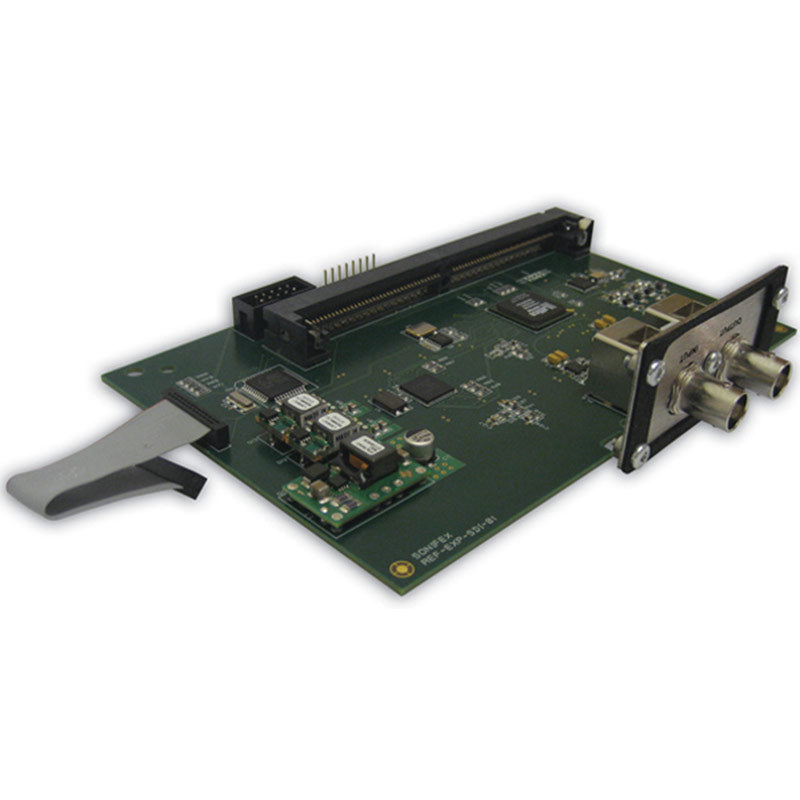

Sonifex RM-HD1 3G/HD/SD-SDI Expansion Card For Reference Monitors

Sale price$1,861.00
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    This expansion board allows the monitoring of embedded non-encoded linear PCM audio channels within an 3G/HD/SD-SDI video signal.

    The RM-HD1 card can be used with the RM-2S4, RM-2S10 and RM-4C8 monitors.

    The expansion board can extract any selected AES/EBU audio group (4 channels) from the video signal and pass them to the main Reference Monitor unit for monitoring. Any group can be selected and can also be optionally delayed by up to ~300ms by using the Sonifex SCi remote control software. All channels in the selected group can be monitored visually and 2 channels can be selected to be monitored on the speakers (for the RM-2S4 and RM-2S10, stereo pairs are selected; the RM-4C8 allows any 2 channels to be monitored). The input is auto-sensing for either SD, HD or single link 3G input formats and the extraction of embedded audio complies with SMPTE-272 (SD) and SMPTE-299 (HD/3G).

    The SDI input is equalized, internally re-clocked and re-transmitted to provide a re-clocked output to pass to external equipment such as another reference monitor.

    SDI Specification
    SDI Input1 x BNC, 3G/HD/SD-SDI
    SDI Outputs1 x BNC, 3G/HD/SD-SDI, Re-clocked
    Impedance75?
    Output Alignment Jitter<0.2UI
    Output Level800mV +/- 10%
    Return Loss<15dB at 1500MHz
    SDI Supported Standards270Mbps, SMPTE-259M-C (SD)
    1.485 or 1.4835Gbps, SMPTE-292M (HD)
    2.97 or 2.967Gbps, SMPTE-424M (3G)
    Supported Video Formats525/59.94 (SMPTE-125M)
    625/50 (ITU-R BT.656)
    720p/23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (SMPTE-296M)
    1035i/59.94, 60 (SMPTE-260M)
    1080i/50, 59.94, 60 (SMPTE-274M)
    1080p/23.98, 24, 25, 50, 59.94, 60 (SMPTE-274M)
    1080pSF/23.98, 24, 25, 29.97, 30 (RP-211)
    1080i/50 (SMPTE-295M)
    1080p/50 (SMPTE-295M)
    Embedded Audio48kHz, synchronous (HD asynchronous)
    SMPTE-272M-ABC
    SMPTE-299M
    Physical Specification
    Dimensions (Raw)15cm (W) x 11.5cm (D) x 3.1cm (H)
    5.9Ó (W) x 4.5Ó (D*) x 1.2Ó (H) (1U)
    Dimensions (Boxed)25cm (W) x 20cm (D) x 10cm (H)
    9.8Ó (W) x 7.9Ó (D*) x 3.9Ó (H) (1U)
    Weight (RM-HD1)Nett: 0.13kg Gross: 0.4kg
    Nett: 0.3lb Gross: 0.9lb

    This expansion board allows the monitoring of embedded non-encoded linear PCM audio channels within an 3G/HD/SD-SDI video signal.

    The RM-HD1 card can be used with the RM-2S4, RM-2S10 and RM-4C8 monitors.

    The expansion board can extract any selected AES/EBU audio group (4 channels) from the video signal and pass them to the main Reference Monitor unit for monitoring. Any group can be selected and can also be optionally delayed by up to ~300ms by using the Sonifex SCi remote control software. All channels in the selected group can be monitored visually and 2 channels can be selected to be monitored on the speakers (for the RM-2S4 and RM-2S10, stereo pairs are selected; the RM-4C8 allows any 2 channels to be monitored). The input is auto-sensing for either SD, HD or single link 3G input formats and the extraction of embedded audio complies with SMPTE-272 (SD) and SMPTE-299 (HD/3G).

    The SDI input is equalized, internally re-clocked and re-transmitted to provide a re-clocked output to pass to external equipment such as another reference monitor.

    SDI Specification
    SDI Input1 x BNC, 3G/HD/SD-SDI
    SDI Outputs1 x BNC, 3G/HD/SD-SDI, Re-clocked
    Impedance75?
    Output Alignment Jitter<0.2UI
    Output Level800mV +/- 10%
    Return Loss<15dB at 1500MHz
    SDI Supported Standards270Mbps, SMPTE-259M-C (SD)
    1.485 or 1.4835Gbps, SMPTE-292M (HD)
    2.97 or 2.967Gbps, SMPTE-424M (3G)
    Supported Video Formats525/59.94 (SMPTE-125M)
    625/50 (ITU-R BT.656)
    720p/23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (SMPTE-296M)
    1035i/59.94, 60 (SMPTE-260M)
    1080i/50, 59.94, 60 (SMPTE-274M)
    1080p/23.98, 24, 25, 50, 59.94, 60 (SMPTE-274M)
    1080pSF/23.98, 24, 25, 29.97, 30 (RP-211)
    1080i/50 (SMPTE-295M)
    1080p/50 (SMPTE-295M)
    Embedded Audio48kHz, synchronous (HD asynchronous)
    SMPTE-272M-ABC
    SMPTE-299M
    Physical Specification
    Dimensions (Raw)15cm (W) x 11.5cm (D) x 3.1cm (H)
    5.9Ó (W) x 4.5Ó (D*) x 1.2Ó (H) (1U)
    Dimensions (Boxed)25cm (W) x 20cm (D) x 10cm (H)
    9.8Ó (W) x 7.9Ó (D*) x 3.9Ó (H) (1U)
    Weight (RM-HD1)Nett: 0.13kg Gross: 0.4kg
    Nett: 0.3lb Gross: 0.9lb
