DALE SKU # SONN-AVBTB

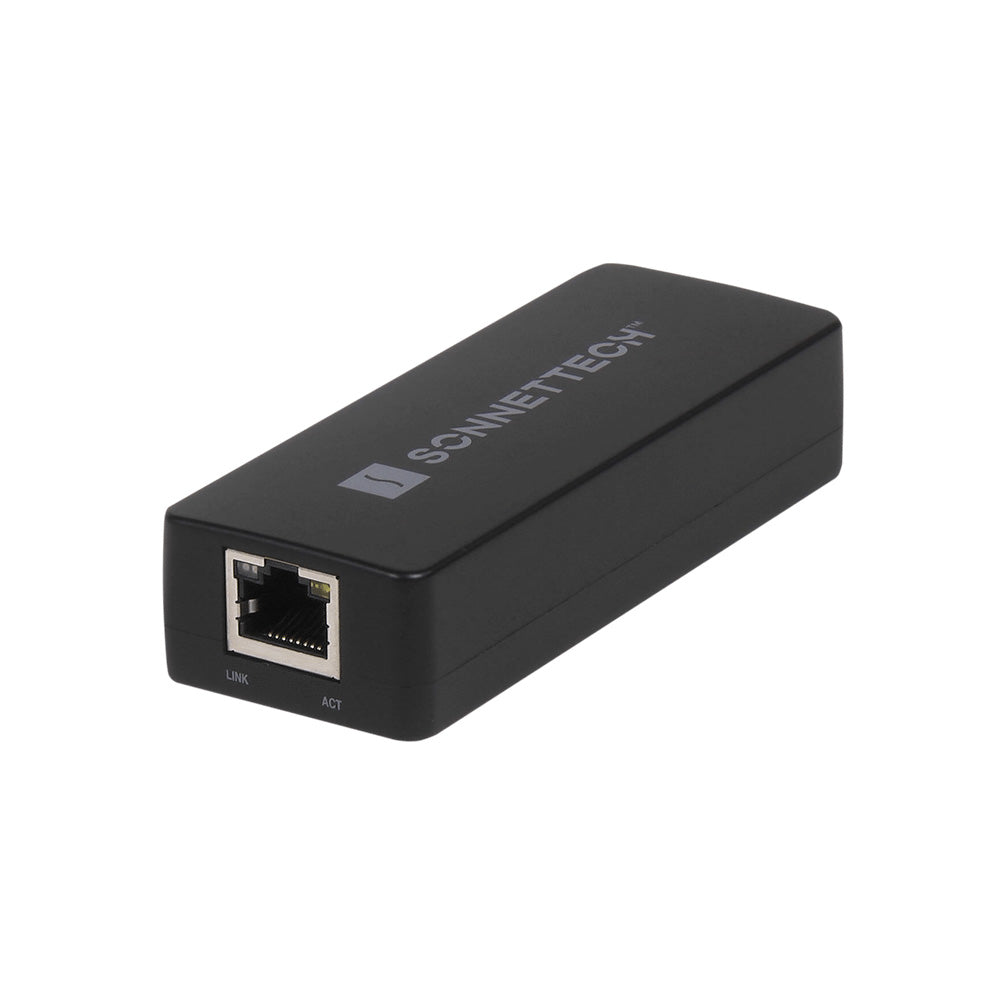

Sonnet AVB-TB - AVB to Thunderbolt 3 Adapter

Sale price$164.99
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

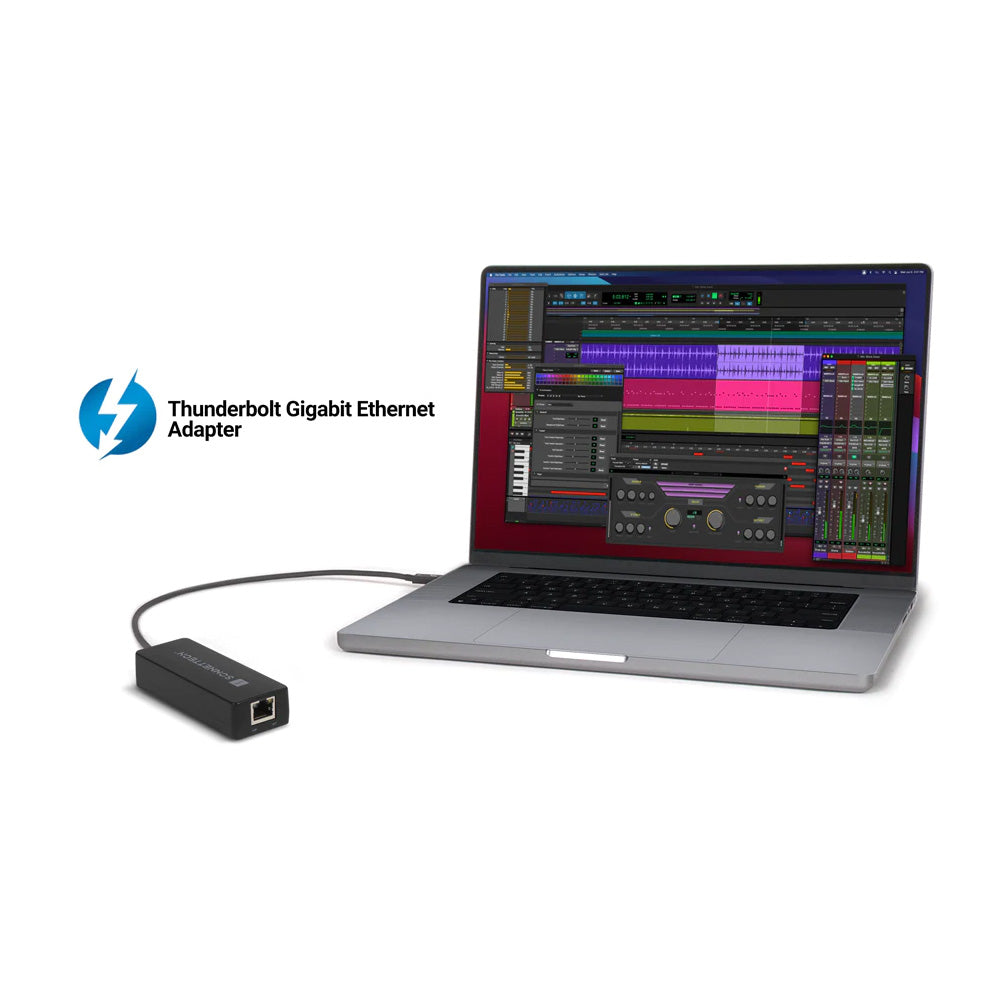

    The Avid® Pro Tools | Carbon audio interface for music production has been described as a creative game changer; its innovative use of eight onboard HDX processors and a custom FPGA enable you to track and monitor with near-zero latency when using AAX DSP plug-ins. Because Carbon connects to your Mac® over Ethernet using a proprietary version of AVB (Audio Video Bridging, aka IEEE 802.1), you'll have to use an AVB capable Thunderbolt™ Gigabit Ethernet adapter if your computer doesn't have onboard Ethernet. The Avid Qualified Sonnet Thunderbolt AVB adapter is your single-adapter solution for connecting your Mac with Thunderbolt 4 or Thunderbolt 3 ports to the Carbon interface.

    Features:

    • Avid Qualified
    • AVB Compliant
    • 40Gbps Thunderbolt Interface
    • Pocketable
    • Bus-Powered, Energy Efficient
    • Easy Setup
    • Apple M1 Series Compatible
    • Intel Mac Compatible
    • Includes 0.5-meter Thunderbolt cable and ThunderLok 3 Thunderbolt connector retainer clip
    • 2-year Product Warranty
    • Free Lifetime Customer Technical Support
    • Designed in the USA

    Avid-Compliant Ethernet Adapter – Connect to Other Devices On a Network
    Beyond its support for the Pro Tools | Carbon interface, the Sonnet Thunderbolt AVB Adapter enables you to add your Mac as an endpoint in an AVB network and connect to other devices such as audio interfaces, mixers, plug-in processors, personal monitor stations, stage boxes, speakers, speaker processors, and others. Audio Video Bridging support makes the adapter perfect for use in pro audio and video applications where synchronization of data streams is critical.

    Simple Setup – Drivers and Configuration App Built Into macOS
    The basic drivers that support the Sonnet Thunderbolt Adapter are included in macOS®. Basic configuration takes place in Network control panel, while configuration for use in AVB applications is handled in the Audio MIDI Setup application and control software.

    Compatibility
    Mac Compatibility Mac¨ (M series)
    Mac (Intel¨) with Thunderbolt 3 ports
    macOS¨ 10.12.6+
    macOS Ventura compatible
    Pro Tools Carbon Compatibility See Avid support page for supported Mac computers
    MILAN Compatibility Compatible with MILAN-Certified products (such as L'Acoustics P1)
    Dante Compatibility Compatible with Dante-enabled devices
    Hardware
    Part Number AVB-TB
    Warranty 2-year
    Form Factor Thunderbolt Ethernet adapter
    External Connectors One Thunderbolt port
    One RJ45 port
    GbE Controller Broadcom BCM57762
    Bus Interface 40Gbps Thunderbolt
    Network Support 1000BASE-T, 100BASE-TX
    Packets Maximum packet size: 9000 bytes
    Data Rates Supported 1Gb/s, 100Mb/s
    Advanced Features Audio Video Bridging (AVB) protocols over Ethernet compliant with IEEE 802.AS, 1588-2008, P802.1Qat, and P802.1Qav
    Energy-Efficient Ethernet (IEEE 802.3az)
    Virtual LAN (VLAN) support - IEEE 802.1q VLAN
    Wake-on-LAN (WOL) support
    Stateless Oflloads TCP, UDP and IPv4 checksum offloading
    TSO (TCP Segmentation Offload, AKA Large Send Offload)
    LRO (Large Receive Offload)
    RSS (Receiver Side Scaling)
    AVDECC Compliant Yes
    Operating Temperature 0¼C to 35¼C (32¼F to 95¼F)
    Dimensions (WxDxH) 5 x 3.9 x 0.8 in. (38.1 x 98.4 x 20.6 mm)
    Weight Adapter: 0.20 lbs (0.09 kg)
    Complete Package: 0.40 lbs (0.18 kg)
    Compliance RoHS 3 (Directive 2015/863)
    IEC62368-1 and IEC62368-2 Safety
    Package Contents Sonnet Thunderbolt AVB Adapter
    0.5-meter Thunderbolt cable
    ThunderLok 3 Thunderbolt connector retainer clip(1)
