Sonnet DM-MOD-ZM - DuoModo xMac Mini Module with SSD Storage Dock
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

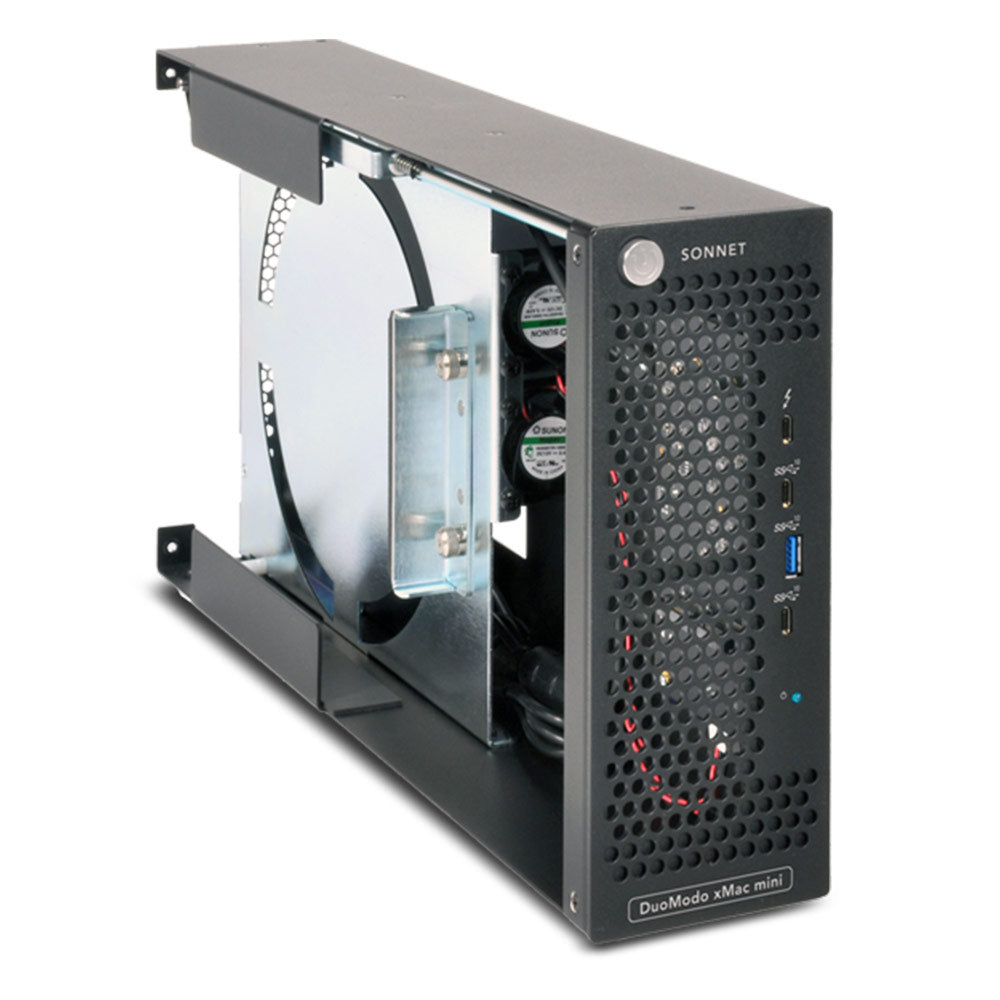

The DuoModo™ xMac™ mini Module is the ultimate Mac mini® upgrade. The module provides secure computer mounting in a DuoModo desktop or rackmount enclosure. It includes a built-in 40Gbps Thunderbolt™ 3 storage dock that adds NVMe storage expansion capability and additional ports for connecting peripherals.
Front Panel Connectivity: 40Gbps Thunderbolt and 10Gbps USB ports
The front panel features one passthrough 40Gbps Thunderbolt 3 port and three 10Gbps USB ports (two Type-C, one Type A) for connecting peripherals.
Versatile Internal Expansion: M.2 SSD Storage + Internal USB Type A Port
On top of the dock are two M.2 NVMe SSD sockets for one or two M.2 2280 NVMe PCIe SSDs (sold separately). The dock also features an internal USB Type A port that's perfect for connecting an iLok USB-A, thumb drive, or bus-powered USB storage drive.
Quiet Operation
The DuoModo xMac mini Module includes a temperature controlled, variable-speed fans that automatically and quietly provide cooling for the Thunderbolt 3 dock, any installed SSDs, and the module's power adapter.
Features:
Add a Mac mini
- Securely Holds an Intel® or M1/M2 series Mac mini in Horizontal or Vertical Orientation
- Open Access to the Computer's Ports in Back
- Rugged Steel Frame Protects Installed Mac mini
Built-in Thunderbolt Dock with SSD Sockets and Front Panel Ports
Four Front Panel Ports
- One Thunderbolt 3 (40Gbps) Port
- Two USB 3.2 (10Gbps) Type-C Ports
- One USB 3.2 (10Gbps) Type A Port
Internal Connections
- Two M.2 NVMe SSD Sockets – Add up to 16TB (SSDs sold separately)
- One Internal USB 3.2 (10Gbps) Type A Port
- Internal Thunderbolt 3 (40Gbps) Port Connects Dock to the Mac mini
Internal USB Type A Port
- Internal USB Type A Port Included for Securely Connecting an iLok USB-A, Thumb Drive, or Bus-powered USB Storage Drive
Quiet Fan
- Temperature-controlled, Variable-speed Fan Offers Quiet Operation
Why Sonnet?
- 2-year Product Warranty
- Free Lifetime Customer Technical Support
- Designed and Made In the USA
| Compatibility | |
| Mac Compatibility | Mac mini¨ (M2/M2 Pro) macOS¨ 13 Mac mini (M1) macOS1 - macOS 13 Mac mini (2018) - Last version with Intel¨ CPU macOS 10.14.6 - macOS 13 Mac mini (Late 2014) with an Apple Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter plus a Thunderbolt 2 cable (both sold separately) macOS 10.12.6 - macOS 12 Mac mini (Late 2012) with an Apple Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter plus a Thunderbolt 2 cable (both sold separately) macOS 10.12.6 - macOS 10.15.7 |
| Hardware | |
| Part Number | DM-MOD-ZM |
| Warranty | 2-year |
| Form Factor | Expansion system module |
| Front Panel Connectors | One Thunderbolt (USB Type-C) port Two USB 3.2 (10Gbps) Type-C ports One USB 3.2 (10Gbps) Type A port |
| Internal Connectors | One Thunderbolt (USB Type-C) port to Mac mini One USB 3.2 (10Gbps) Type A port for thumb drive or dongle Two M-keyed (NVMe) M.2 sockets (each connected at PCIe x2) |
| SSDs(2) | One or two M.2 2280 NVMe PCIe SSDs (with or without heat sink) |
| Power Supply | Universal 96W, 100-240V AC, 50-60Hz C14-type power connector |
| Operating Temperature | 0¼C to 35¼C (32¼F to 95¼F) |
| Dimensions (WxDxH) | 3.3 x 16.4 x 8.5 in. (8.4 x 41.6 x 21.7 cm) |
| Weight | 4.95 lbs (2.25 kg) |
| Compliance | RoHS 3 (Directive 2015/863) IEC62368-1 and IEC62368-2 Safety |
| Package Contents | xMac mini Module Region-specific power cable for US, Australia, Europe, Japan, Switzerland, or UK 0.5-meter Thunderbolt 3 cable Documentation |
