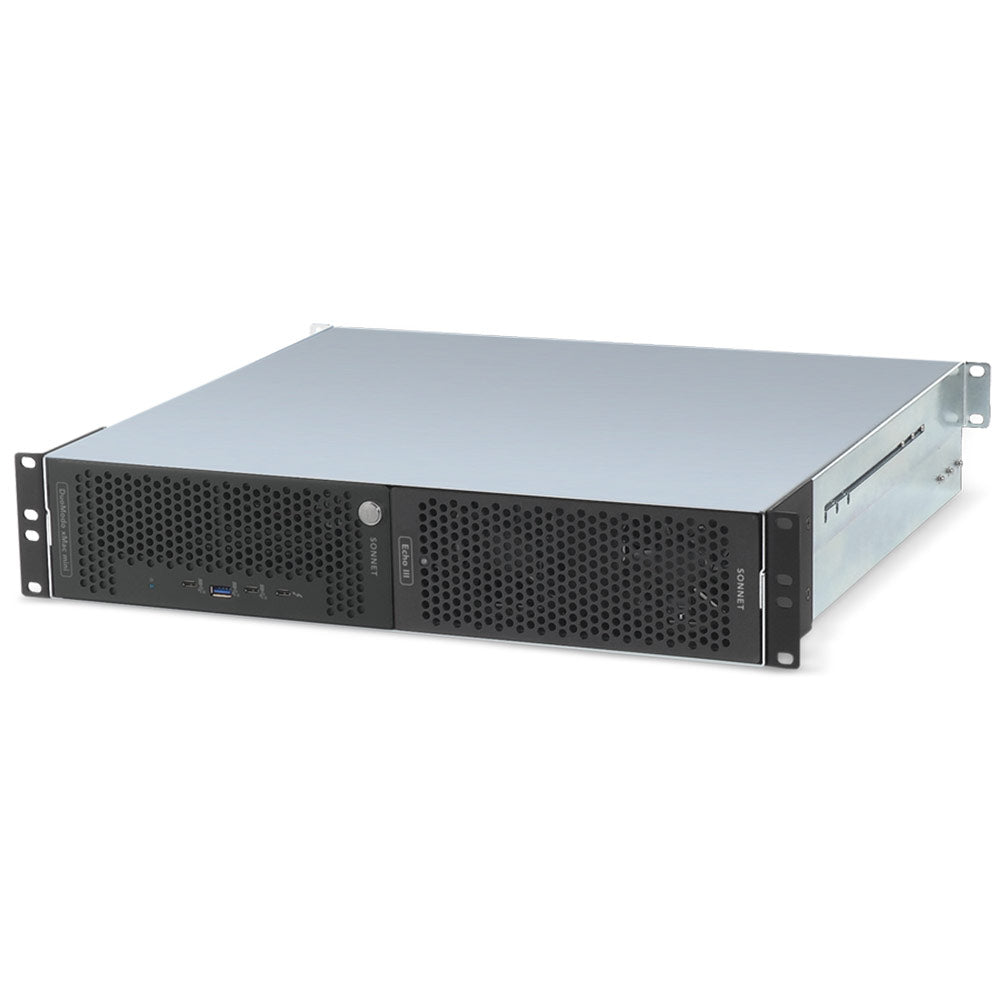

Sonnet DM-ZM-E3-R - DuoModo xMac Mini and Echo III Rackmount Solution
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Sonnet DM-ZM-E3-R - DuoModo xMac Mini and Echo III Rackmount Solution
Sale price$1,799.99
Description
The pre-configured DuoModo™ xMac™ mini/Echo™ III Rackmount System integrates a Dual-Module Rackmount Enclosure with one xMac mini module and one Echo III module.
Features:
System Configuration
- For Intel® or M1/M2 series Mac mini®
Dual-Module Rackmount Enclosure
- Dual-module 2U Rackmount Enclosure
- Rugged Steel Construction
- Same Enclosure Used in Echo III Rackmount
- 19 inches Wide x 16.5 inches Deep x 3.5 inches High
- Included Rack Rails Support Installation in Racks 16-24" Deep
xMac mini Module
- Securely Holds an Intel or M1/M2 series Mac mini (sold separately) in a Rugged Steel Frame
- Open Access to the Computer's Ports in Back
- Built-in Thunderbolt™ 3 Dock
- Four Front Panel Ports Include One Thunderbolt 3 (40Gbps) Port, Two USB 3.2 (10Gbps) Type-C Ports, and One USB 3.2 (10Gbps) Type A Port
- Two Internal M.2 NVMe SSD Sockets – Add up to 16TB (SSDs sold separately)
- One Internal USB 3.2 (10Gbps) Type A port (for Securely Connecting an iLok USB-A, Thumb Drive, or Bus-powered USB Storage Drive)
- Internal Thunderbolt 3 (40Gbps) Port Connects Dock to the Mac mini
- Temperature-controlled, Variable-Speed Fan Offers Quiet Operation
- Power Cable Included
- Thunderbolt 3 (40Gbps) Cable Included
Echo III Module
- Three Versatile PCIe Slots
- One x16 plus Two x8 PCIe Slots
- Supports Three Full-height, Full-length Thunderbolt-compatible, non-GPU PCIe Cards
- AVID QUALIFIED – Supports up to Three Avid Pro Tools | HDX PCIe Cards
- Built-in 400W Power Supply with 75W Auxiliary Power Connector
- Powers On and Off Automatically with Connected Computer
- Dual Temperature-controlled, Variable-speed Noctua fans rated at 17 dbA
- Two Thunderbolt 3 Ports
- 40Gbps Thunderbolt 3 Interface Offers 2750 MB/s of PCIe Bandwidth to the Installed PCIe Cards
- Power Cable Included
- Thunderbolt 3 (40Gbps) Cable Included
- ThunderLok 3 Thunderbolt Connector Retainer Clip Included
Why Sonnet?
- 2-year Product Warranty
- Free Lifetime Customer Technical Support
- Designed and Made in the USA
| Hardware | |
| Part Number | DM-ZM-E3-R |
| Warranty | 2-year |
| Form Factor | 2U rackmount expansion system |
| Dimensions (WxDxH) | 19 x 16.5 x 3.5 in (48.3 x 41.9 x 8.9 cm) |
| Weight | 24 lbs (10.9 kg) |
| Compliance | RoHS 3 (Directive 2015/863) IEC62368-1 and IEC62368-2 Safety |
| Package Contents | Dual-Module Rackmount Enclosure xMac mini Module Echo III Module Region-specific power cable x2 (for US, Australia, Europe, Japan, Switzerland, or UK) 0.5-meter Thunderbolt cable x2 ThunderLok 3 Thunderbolt connector retainer clip Extension rails for rack depth 16-24 inches Documentation |
