Description
The best portable, mini desktop and all-in-one computers feature powerful CPUs and include high-performance Thunderbolt™ ports to support peripherals. But they lack the PCIe expansion slots creative pros need to install specialty adapter cards that enable their workflows by adding video and audio... Read MoreOur Price: $1,199.99
Free Shipping (Continental US)
Suggested Accessories
Description
The best portable, mini desktop and all-in-one computers feature powerful CPUs and include high-performance Thunderbolt™ ports to support peripherals. But they lack the PCIe expansion slots creative pros need to install specialty adapter cards that enable their workflows by adding video and audio inputs, transcoding data, and connecting to high-speed shared storage and networks. Sonnet has a Thunderbolt solution — the Echo™ III Rackmount — a professional Thunderbolt to PCIe card expansion system. Via a single cable, connect three (up to) full-length (12.28 inches long) PCIe cards at the same time to your Mac®, Windows®, or Linux® computer with Thunderbolt 4 or Thunderbolt 3 ports.

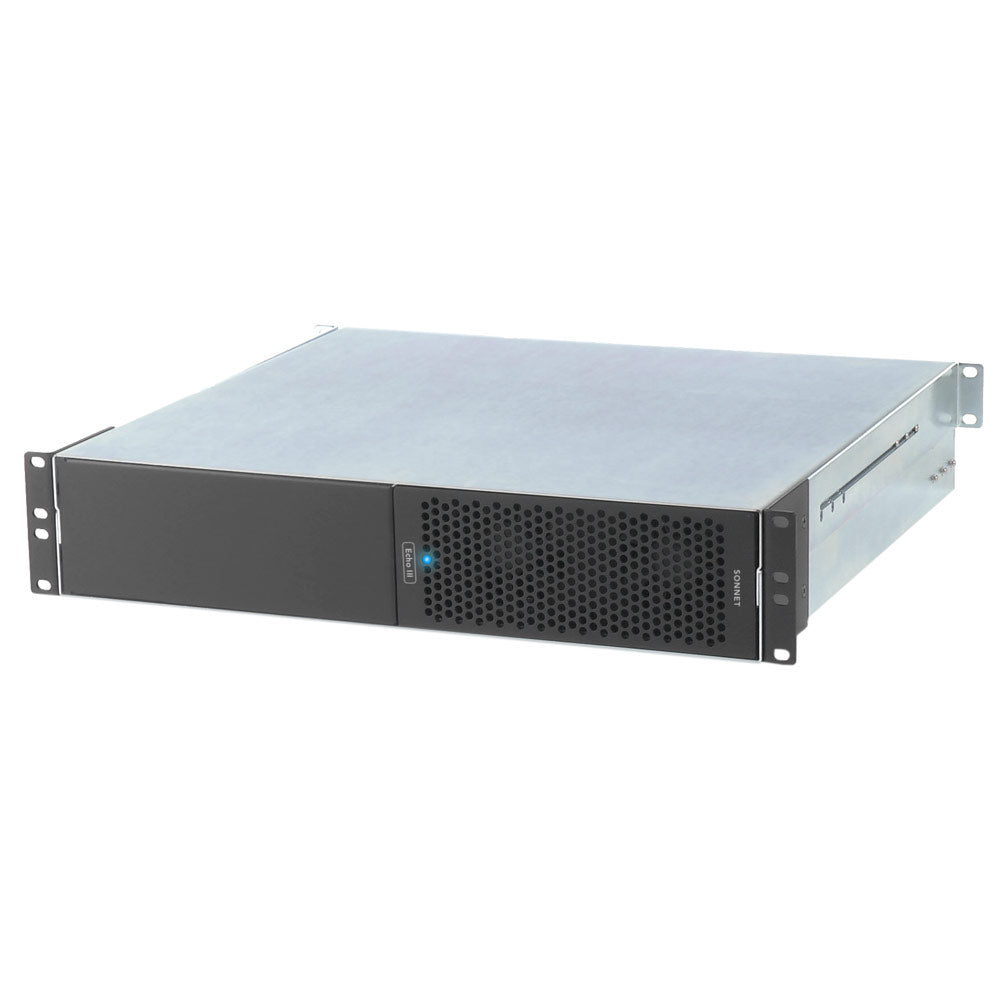

Echo III Rackmount
Echo III Rackmount supports every Thunderbolt compatible, non-GPU PCIe 4.0, 3.0, 2.0, and 1.1 card available including video capture and transcoding; audio DSP; 6Gb or 12Gb SAS or SATA host bus adapter; 10Gb or 25Gb Ethernet; SSD storage; and other specialty types to your system.
Features:
More +
Product Specs
Compatibility | |
Mac Compatibility | Mac (M series) with PCIe cards that have compatible drivers Mac (Intel®) with Thunderbolt 3 ports Mac (Intel) with a Thunderbolt 2 or Thunderbolt 1 port with an Apple Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter plus a Thunderbolt 2 cable (both sold separately) macOS® 10.12.6+ macOS Ventura compatible |
Windows Compatibility | Windows computer with Thunderbolt 4 or Thunderbolt 3(1) ports Windows 10 Windows 11 22H2 build 22621.819 and newer |
Linux Compatibility | Linux computer with Thunderbolt 4 or Thunderbolt 3 ports Linux Kernel 5.0+ |
PCIe Card Compatibility | For a list of compatible PCIe cards, visit Sonnet's website. |
Hardware | |
Part Number | ECHO-3R-TB3 |
Warranty | 2-year |
Form Factor | Thunderbolt rackmount enclosure |
External Connectors | Two Thunderbolt ports(2) Power (C14-type) |
Internal Connector | 6-pin Mini-Fit Jr (same type as on legacy Mac Pro motherboard; provides up to 75W of power for PCIe cards that require supplemental power) |
Expansion Slots (Facing Rear, Top to Bottom)(3) | One x8 mechanical (x8 electrical) PCIe 3.0 One x16 mechanical (x8 electrical) PCIe 3.0 One x8 mechanical (x4 electrical) PCIe 3.0 |
PCIe Cards Supported | Three full-length, full-height, single-width PCIe cards or One full-length, full-height, double-width PCIe card, plus one single-width card |
Power Supply | Universal 400W, 115-230V AC, 50-60Hz(4) |
Operating Temperature | 0ºC to 35ºC (32ºF to 95ºF) |
Dimensions (WxDxH) | 19 x 16.5 x 3.6 in. (48.3 x 41.9 x 9.1 cm) |
Weight | 23.15 lbs (10.50 kg) |
Compliance | RoHS 3 (Directive 2015/863) IEC62368-1 and IEC62368-2 Safety |
Package Contents | Echo III Rackmount System Region-specific power cable for US, Australia, Europe, Japan, Switzerland, or UK 6-pin PCIe auxiliary power cable Thunderbolt 3 cable(5) ThunderLok 3 Thunderbolt connector retainer clip(6) Extension rails for rack depth 16-24 inches Documentation |
