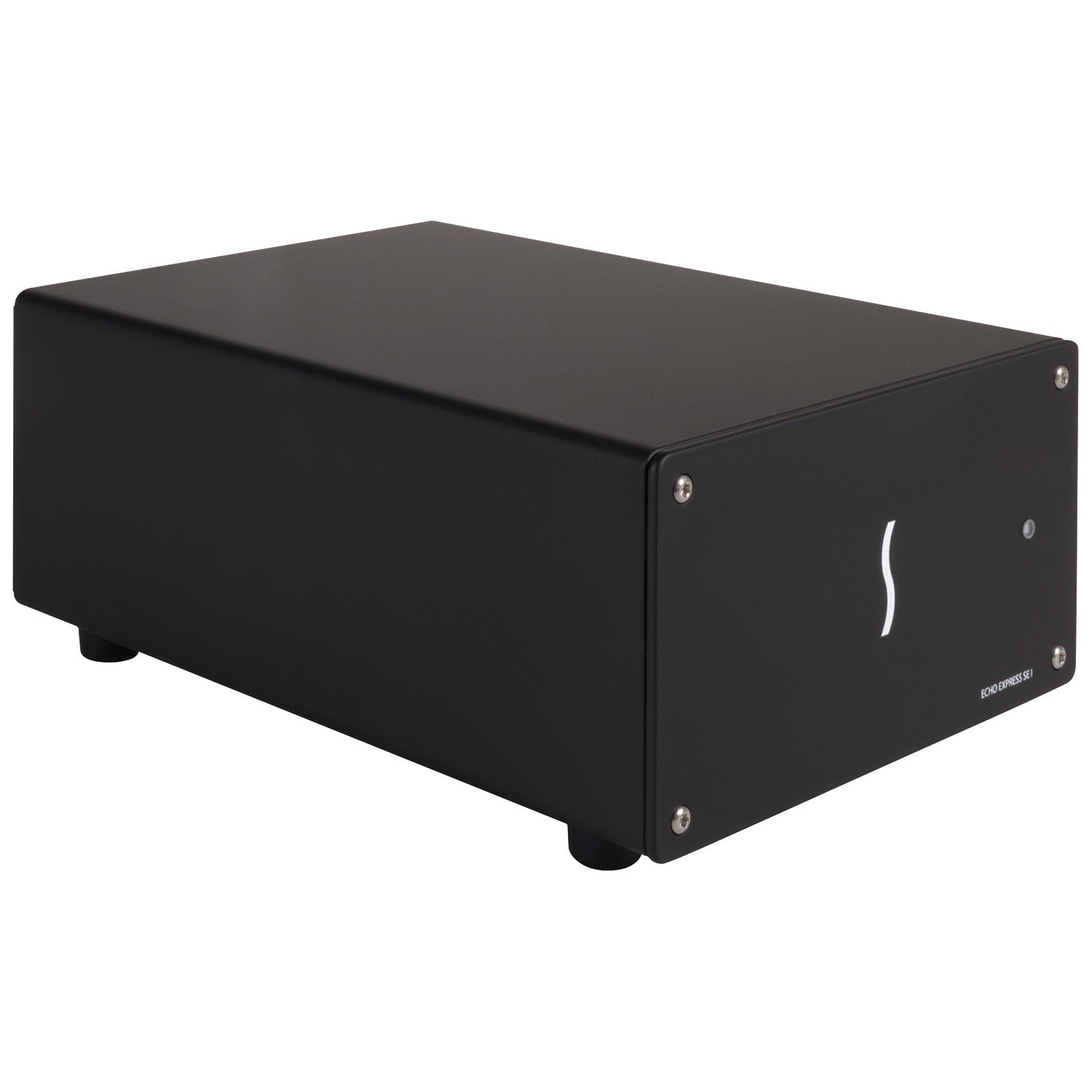

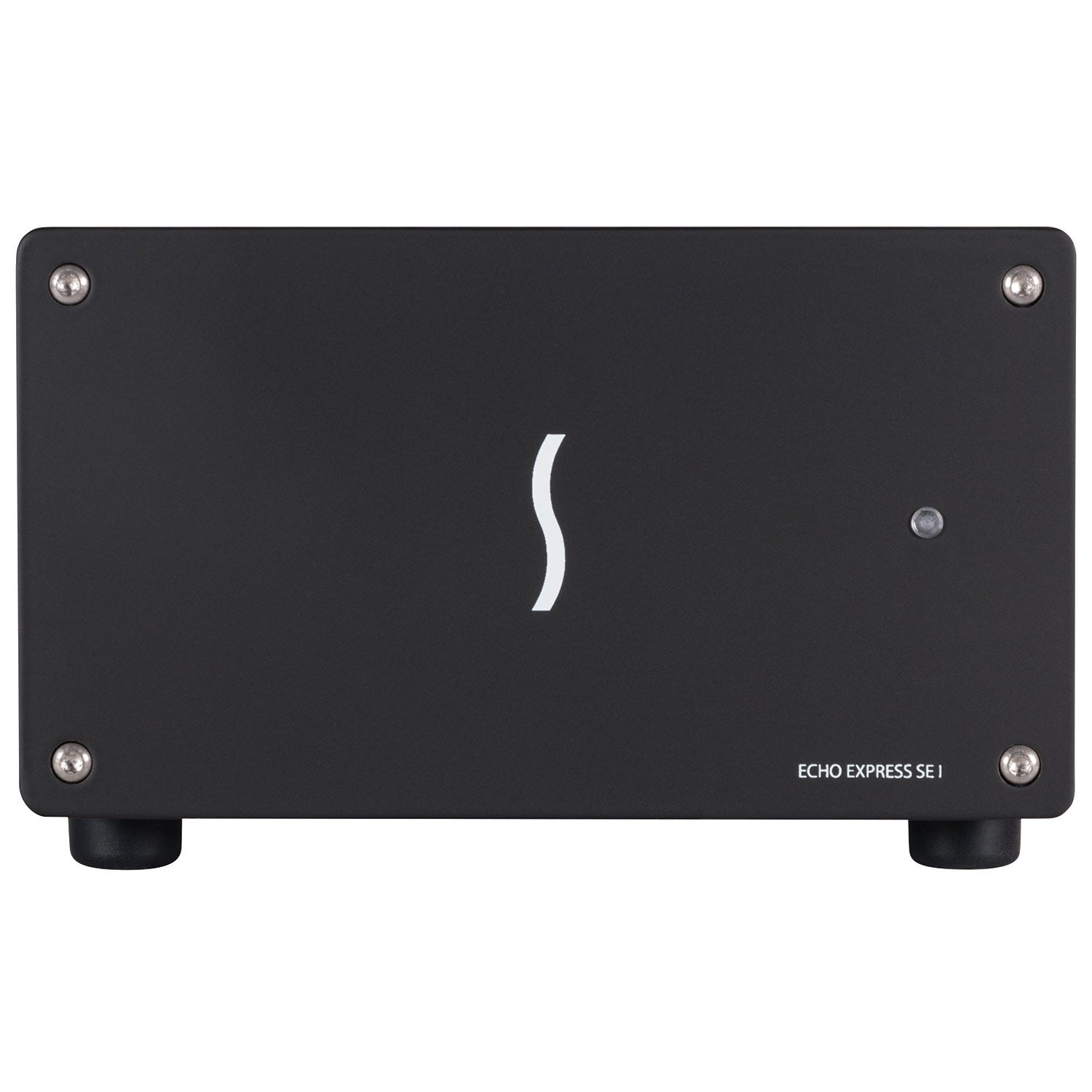

Sonnet ECHO-EXP-SE1-T3 Echo Express SE I - Thunderbolt 3 1-Slot PCIe/Daughter Card Expansion Chassis
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Are you in the market for a new computer? It's amazing how much processing power the latest Mac® and Windows®, and Linux® computers with Thunderbolt™ ports offer, but thinness comes with a cost—there's nowhere for you to install PCIe cards for the additional connectivity and processing capabilities beyond what's offered by a computer's standard ports. Sonnet's Echo™ Express SE I (Thunderbolt 3 Edition) is a compact, desktop Thunderbolt™ to PCIe card expansion system that enables you to connect a single PCIe card to any computer with Thunderbolt 3 or Thunderbolt 4 ports.
Echo Express SE I: Compact Desktop Expansion
Echo Express SE I provides a single PCIe card expansion slot in a compact and light enclosure.Designed to accommodate cards up to 7.75 inches long and measuring a compact 5.6 inches wide by 8.6 inches long by 3.5 inches tall, the Echo Express SE I has a small footprint, yet it is large enough to support nearly every Thunderbolt 3-compatible PCIe 3.0, PCIe 2.0, and PCIe 1.1 card available.
Features:
- For Computers with Thunderbolt 3 or Thunderbolt 4 Ports
- 40Gbps Thunderbolt Inerface
- One PCIe 3.0 x8 Slot + Space for Daughter Card
- Two Thunderbolt 3 Ports
- Remarkably Quiet
- Energy Savery Mode
- Rugged Aluminum Housing
- Power for Peripherals – 15W of Power to Connected Peripherals
- Includes 0.7-meter Thunderbolt 3 Cable (unlike other brand of cables, Sonnet's cable provides Thunderbolt 3's full 2750 MB/s bandwidth and supports up to 100W of power delivery)
- Includes Sonnet Designed ThunderLok 3 Connector Retainer Clip (prevents accidental cable disconnections)
- Mac, Windows, and Linux Compatible
- 2-year Product Warranty
- Free Lifetime Customer Technical Support
- Designed and Made in the USA
| Compatibility | |
| Mac Compatibility | Mac (M series) with PCIe cards that have compatible drivers Mac (Intel¨) with Thunderbolt 3 ports Mac (Intel) with a Thunderbolt 2 or Thunderbolt 1 port with an Apple Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter plus a Thunderbolt 2 cable (both sold separately) macOS¨ 10.12.6+ macOS Ventura compatible |
| Windows Compatibility | Windows computer with Thunderbolt 4 or Thunderbolt 3(1) ports Windows 11 and 10 |
| Linux Compatibility | Linux computer with Thunderbolt 4 or Thunderbolt 3 ports Linux Kernel 5.0+ |
| Hardware | |
| Part Number | ECHO-EXP-SE1-T3 |
| Warranty | 2-year |
| Form Factor | Thunderbolt desktop enclosure |
| External Connectors | Two Thunderbolt ports(2) 12V power port |
| Expansion Slot | One PCIe 3.0 slot x8 mechanical; x4 electrical (Thunderbolt 3 spec) |
| PCIe Cards Supported | One half-length (up to 7.75 inches long), single-width, full-height x8 PCIe card One daughter card |
| Power Adapter | Universal 60W, 100-240V, 50-60 Hz NRTL Certified |
| Operating Temperature | 0¼C to 35¼C (32¼F to 95¼F) |
| Dimensions (WxDxH) | 5.63 x 8.63 x 3.5 in. (14.29 x 22.01 x 8.85 cm) |
| Weight | 2.6 lbs. (1.18 kg) |
| Compliance | RoHS 3 (Directive 2015/863) IEC62368-1 and IEC62368-2 Safety |
| Package Contents | Echo Express SE I Desktop System Universal power adapter Region-specific power cable for US, Australia, Europe, Japan, Switzerland, or UK Thunderbolt 3 cable(3) ThunderLok 3 Thunderbolt connector retainer clip(4) Documentation |
Are you in the market for a new computer? It's amazing how much processing power the latest Mac® and Windows®, and Linux® computers with Thunderbolt™ ports offer, but thinness comes with a cost—there's nowhere for you to install PCIe cards for the additional connectivity and processing capabilities beyond what's offered by a computer's standard ports. Sonnet's Echo™ Express SE I (Thunderbolt 3 Edition) is a compact, desktop Thunderbolt™ to PCIe card expansion system that enables you to connect a single PCIe card to any computer with Thunderbolt 3 or Thunderbolt 4 ports.
Echo Express SE I: Compact Desktop Expansion
Echo Express SE I provides a single PCIe card expansion slot in a compact and light enclosure.Designed to accommodate cards up to 7.75 inches long and measuring a compact 5.6 inches wide by 8.6 inches long by 3.5 inches tall, the Echo Express SE I has a small footprint, yet it is large enough to support nearly every Thunderbolt 3-compatible PCIe 3.0, PCIe 2.0, and PCIe 1.1 card available.
Features:
- For Computers with Thunderbolt 3 or Thunderbolt 4 Ports
- 40Gbps Thunderbolt Inerface
- One PCIe 3.0 x8 Slot + Space for Daughter Card
- Two Thunderbolt 3 Ports
- Remarkably Quiet
- Energy Savery Mode
- Rugged Aluminum Housing
- Power for Peripherals – 15W of Power to Connected Peripherals
- Includes 0.7-meter Thunderbolt 3 Cable (unlike other brand of cables, Sonnet's cable provides Thunderbolt 3's full 2750 MB/s bandwidth and supports up to 100W of power delivery)
- Includes Sonnet Designed ThunderLok 3 Connector Retainer Clip (prevents accidental cable disconnections)
- Mac, Windows, and Linux Compatible
- 2-year Product Warranty
- Free Lifetime Customer Technical Support
- Designed and Made in the USA
| Compatibility | |
| Mac Compatibility | Mac (M series) with PCIe cards that have compatible drivers Mac (Intel¨) with Thunderbolt 3 ports Mac (Intel) with a Thunderbolt 2 or Thunderbolt 1 port with an Apple Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter plus a Thunderbolt 2 cable (both sold separately) macOS¨ 10.12.6+ macOS Ventura compatible |
| Windows Compatibility | Windows computer with Thunderbolt 4 or Thunderbolt 3(1) ports Windows 11 and 10 |
| Linux Compatibility | Linux computer with Thunderbolt 4 or Thunderbolt 3 ports Linux Kernel 5.0+ |
| Hardware | |
| Part Number | ECHO-EXP-SE1-T3 |
| Warranty | 2-year |
| Form Factor | Thunderbolt desktop enclosure |
| External Connectors | Two Thunderbolt ports(2) 12V power port |
| Expansion Slot | One PCIe 3.0 slot x8 mechanical; x4 electrical (Thunderbolt 3 spec) |
| PCIe Cards Supported | One half-length (up to 7.75 inches long), single-width, full-height x8 PCIe card One daughter card |
| Power Adapter | Universal 60W, 100-240V, 50-60 Hz NRTL Certified |
| Operating Temperature | 0¼C to 35¼C (32¼F to 95¼F) |
| Dimensions (WxDxH) | 5.63 x 8.63 x 3.5 in. (14.29 x 22.01 x 8.85 cm) |
| Weight | 2.6 lbs. (1.18 kg) |
| Compliance | RoHS 3 (Directive 2015/863) IEC62368-1 and IEC62368-2 Safety |
| Package Contents | Echo Express SE I Desktop System Universal power adapter Region-specific power cable for US, Australia, Europe, Japan, Switzerland, or UK Thunderbolt 3 cable(3) ThunderLok 3 Thunderbolt connector retainer clip(4) Documentation |
