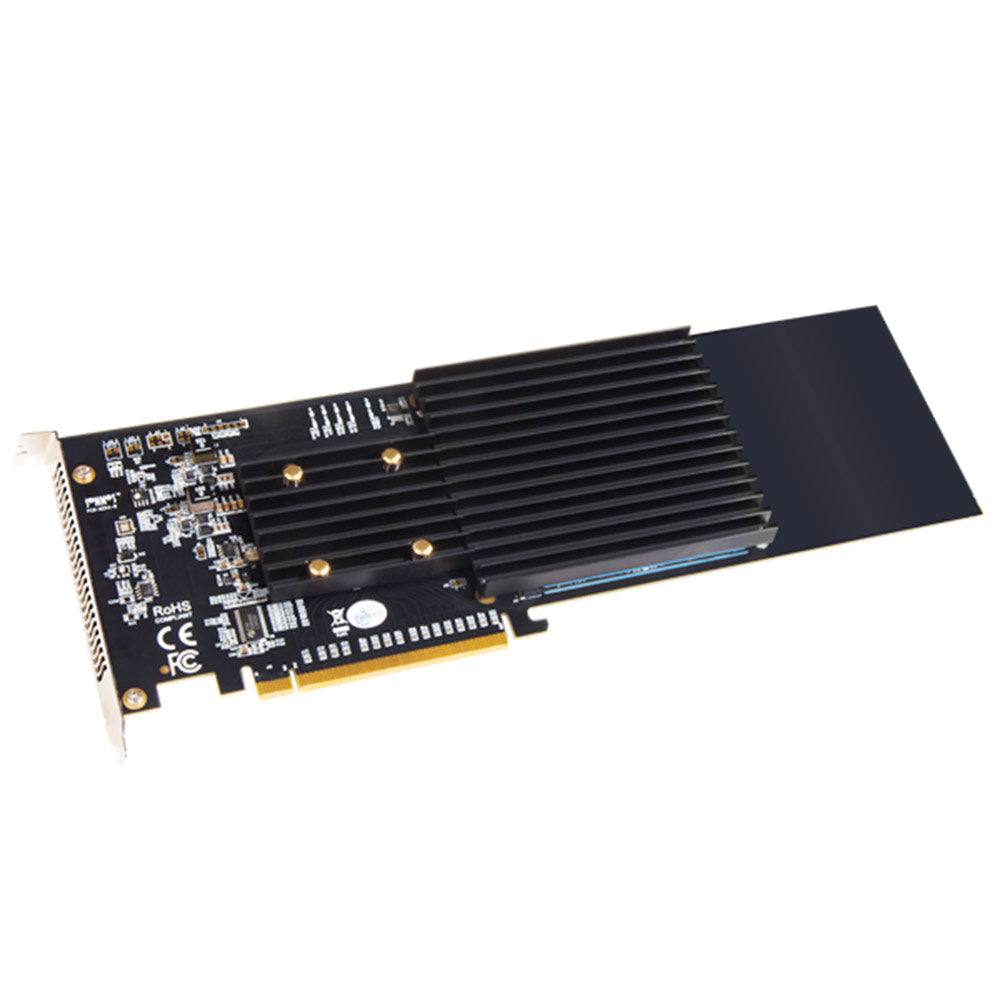

Sonnet FUS-SSD-4X4-E3S - M.2 4x4 Silent NVMe SSD Mount PCIe Card
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
If you need to add internal storage to your computer and ultra high-speed data transfers are critical to your work, you need an NVMe SSD-based upgrade. Individually, M.2 NVMe PCIe SSDs offer tremendous performance, but Sonnet's M.2 4x4 PCIe Card enables you to mount up to four of them into a single x16 card slot.
Use the Sonnet card for instant-access media storage or as a high-performance scratch disk in your Mac Pro® tower; Windows® or Linux® PC desktop or server; or Thunderbolt™ to PCIe card expansion system with an available x16 PCIe slot. Are you an Adobe After Effects user? Imagine being able to perform 4Kp60 work in 32-bit linear, or even 4Kp24 with high channel count EXRs (or effects in 8K) where your computer's onboard storage couldn't keep up! Legacy Mac® users can install macOS® on one SSD to create an incredibly fast boot drive and create a RAID 0 set with the other installed SSDs and still obtain blazing-fast performance. No matter how you use it, this card can transform the way you work.
Full Performance Design – Sonnet Advantages
Sonnet's M.2 4x4 PCIe card is a full-height, full-length PCIe 3.0 card with a 16-lane (x16) interface, designed to support full performance from four SSDs. Unlike similar adapter cards, the M.2 4x4:
- Features a 16-lane (x16) and devotes four lanes of PCIe 3.0 bandwidth to every SSD you install (instead of limiting the x4 bandwidth to two SSDs at a time)
- Is Mac, Windows®, and Linux® compatible
- Works with a wide variety of single- and double-sided M.2 PCIe SSDs
- Is self-contained and doesn't require a specific motherboard to operate or specific SSDs to support RAID features; no PCIe bifurcation required
Features:
- Compatible with 2019 Mac Pro
- Adds Ultra-Fast SSDs to Your System
- Achieve Sustained RAID 0 speeds up to 11,700 MB/s
- Great Way to Add Up to 32TB of M.2 SSD Storage to Computers with Thunderbolt
- macOS, Windows, and Linux RAID Support
- macOS Boot Support from Single (non-RAIDed) SSDs
- S.M.A.R.T. Support
- 2-year Product Warranty
- Free Lifetime Customer Technical Support
- Designed in the USA
| Compatibility | |
| Mac Compatibility | Mac Pro 8,1 (2023) Ð Use x16 PCIe slot for full performance Mac Pro 7,1 (2019) Ð Use x16 PCIe slot (slot 3, 4, or 5) for full performance Mac Pro 5,1(1) (Mid 2010 / Mid 2012) with available full-length x16 PCIe slot macOS 10.13.6+(2) macOS Ventura compatible |
| Windows Compatibility | Windows computer with available full-length, full-height x16 PCIe slot (PCIe bifurcation not required) Windows 11 and 10 |
| Linux Compatibility | Linux computer with available full-length, full-height x16 PCIe slot (PCIe bifurcation not required) Linux Kernel 5.0+ |
| Thunderbolt Compatibility | Mac (M1, M2, M1 Pro, M1 Max, M1 Ultra, and Intel¨) computer via a Thunderbolt PCIe card expansion system with available full-length x16 PCIe slot Windows computer via a Thunderbolt PCIe card expansion system with available full-length x16 PCIe slot Linux computer via a Thunderbolt PCIe card expansion system with available full-length x16 PCIe slot |
| M.2 NVMe SSDs Compatibility | For a list of compatible M.2 NVMe SSDs, see Sonnet's website for the most up to date info. |
| Hardware | |
| Part Number | FUS-SSD-4X4-E3S |
| Warranty | 2-year |
| Form Factor | Full-length, full-height computer card |
| Internal Connectors | Four M-keyed (NVMe) M.2 sockets |
| SSDs Supported | Single-sided and double-sided M.2 2280 NVMe PCIe SSDs |
| Boot Suppport | |
| macOS | Only from a single SSD (not RAIDed) Mac Pro 5,1 or Mac Pro 7,1 Any Thunderbolt Mac |
| Windows, Linux | No |
| RAID Support | macOS(7), Windows, Linux RAID 0, 1, or 5 (Stripe, Mirror, or Parity) |
| NVME Support | Yes |
| S.M.A.R.T. Status Data Reporting Support | Yes |
| RoHS Compliant | Yes |
| Package Contents | Sonnet M.2 4x4 PCIe Card Thermal transfer pads SSD mounting screws Documentation |
