DALE SKU # SONN-G10E2XE3

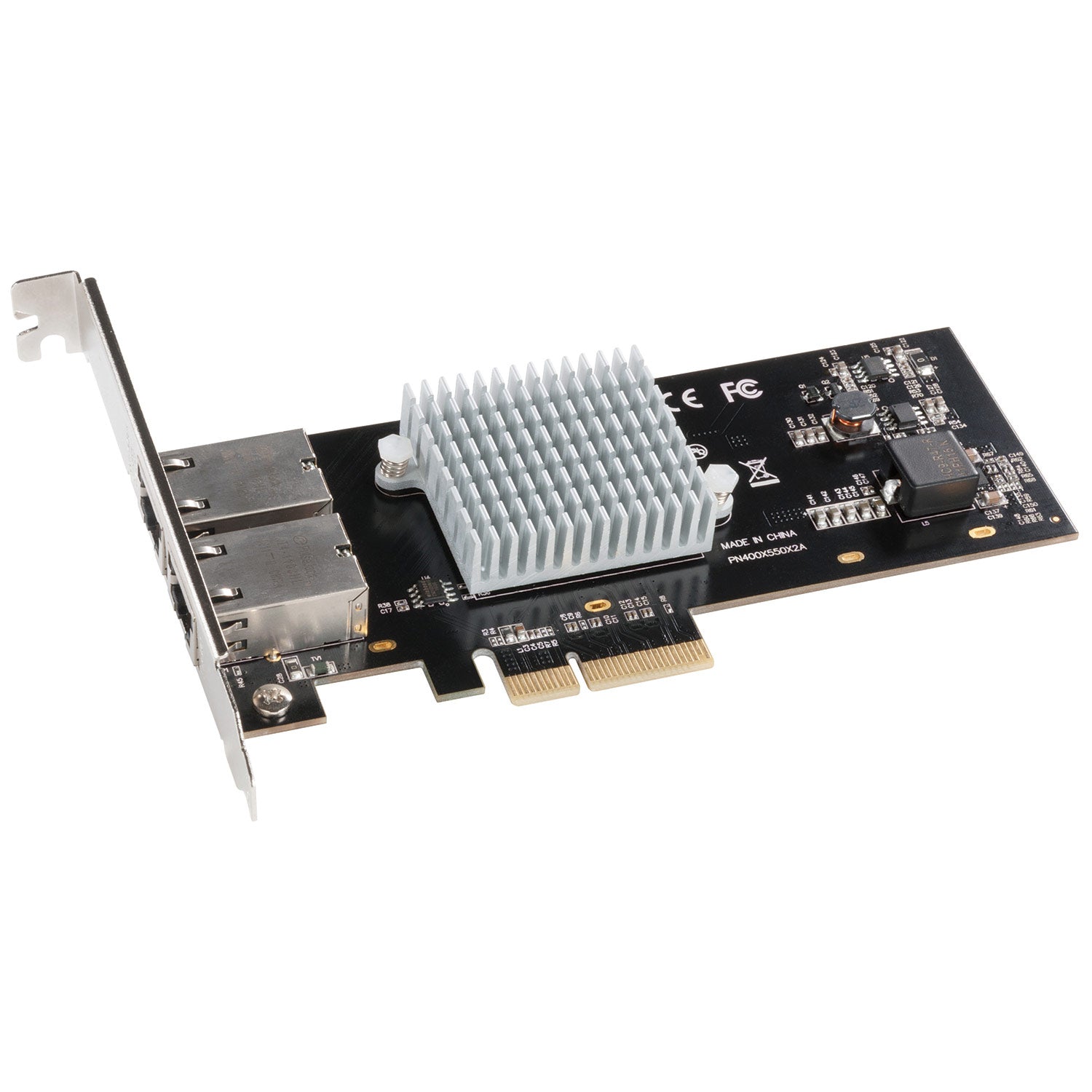

Sonnet G10E-2X-E3 - Twin10G Presto 10GbE 10GBASE-T Dual-Port 10GBASE-T Ethernet PCIe Card

Sale price$274.99
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    With creative pros' increasing demand for greater data transfer speeds and more bandwidth over shared networks, it's no wonder that 10 Gigabit Ethernet (10GbE) use has skyrocketed—this high-speed cabled networking standard offers ten times the performance of Gigabit Ethernet, the common wired network connection included with most computers today. To get your computer up to speed, you'll have to adapt—Sonnet's Presto™ 10GbE 10GBASE-T PCIe 3.0 card is a powerfully simple and cost-effective way to add dual-port copper 10GbE connectivity to your Mac Pro® tower or Windows® PC, or Linux® server.

    Presto 10GbE 10GBASE-T: Provides 10GbE Connectivity to Mac and PCs
    The Presto 10GbE 10GBASE-T card enables you to connect your computer to high-speed infrastructure and storage without stepping down in speed. Setup is simple—after installing the low-profile card into an available x4 or larger PCIe slot in your computer, just download and install a driver, connect to the switch or device's 10GbE ports via inexpensive CAT-6 or CAT-6A copper cabling at distances up to 55 or 100 meters, respectively, and then configure the card through the OS X® Network control panel or Windows Device Manager. This Sonnet solution is perfect for high-performance computing where low latency, high bandwidth, and low CPU overhead are required.

    Features:

    • Compatible with 2019 Mac Pro
    • Works in Thunderbolt Expansion Systems (like Sonnet's Echo™ Express, xMac™ Pro Server, or xMac mini Server)
    • Optimized for Maximum Performance Over Thunderbolt
    • Cost-Effective
    • Simple Setup
    • Supports Transparent Failover
    • Supports Link Aggregation (Teaming)
    • Plug-and-Play Simplicity (installs directly into a PCIe slot)
    • Compatible with Mac® and Windows®
    • 2-year Product Warranty
    • Free Lifetime Customer Technical Supported
    • Designed in the USA
    Compatibility
    Computer Compatibility Mac Pro¨ 3,1, 4,1, 5,1, 7,1 (2019), or 8,1 (2023)
    PC desktop or server
    Thunderbolt expansion system
    OS Compatibility OS X 10.8.5+
    macOS Ventura compatible
    64-bit editions of Windows 11, 10; Server 2022, 2019, 2016
    Linux
    - RHEL 8.5/8.4
    - SLES 15 SP3, 12 SP5
    - Ubuntu 20.04 LTS, 18.04 LTS
    FreeBSD 13.0/12.3
    VMWare, ESXi 8,7
    Thunderbolt Compatibility Mac (Intel¨) or PC via a Thunderbolt to PCIe Card Expansion System
    Mac (M1) not currently compatible. See Big Sur Compatibility for status.
    Hardware
    Part No. G10E-2X-E3
    Warranty 2-year
    Form Factor Low-profile PCIe computer card
    External Connectors RJ45
    Controller Intel X540/X550 (subject to part availability)
    Bus Interface X540 PCIe v2.0 x8
    X550 PCIe v3.0 x4
    Network Support
    10GBASE-T 100 meters using CAT-6A cabling
    55 meters using CAT-6 cabling
    5GBASE-T(3), 2.5GBASE-T(3), 1000BASE-T 100 meters using CAT-5E, CAT-6, or CAT-6A cabling
    Link Aggregation (Teaming) Supported
    Packets Maximum packet size: 15872 bytes (jumbo frames)
    Advanced Features Flow control support
    Message Signaled Interrupts (MSI)
    RSS (Receive-Side Scaling)
    Interrupt coalescing
    Multicast filtering
    64-bit address support for systems using more than 4GB of physical memory
    Wake-on-LAN not supported
    Stateless Offloads TCP, UDP and IPv4 checksum offloading
    TSO (TCP Segmentation Offload, AKA Large Send Offload)
    LRO (Large Receive Offload)
    RoHS Compliant Yes
    Package Contents Presto 10GbE 10GBASE-T Dual-Port 10 Gigabit Ethernet PCI Express 3.0 Card
    Two mounting brackets
    Documentation
