DALE SKU # SONN-G10EUSBCM2E

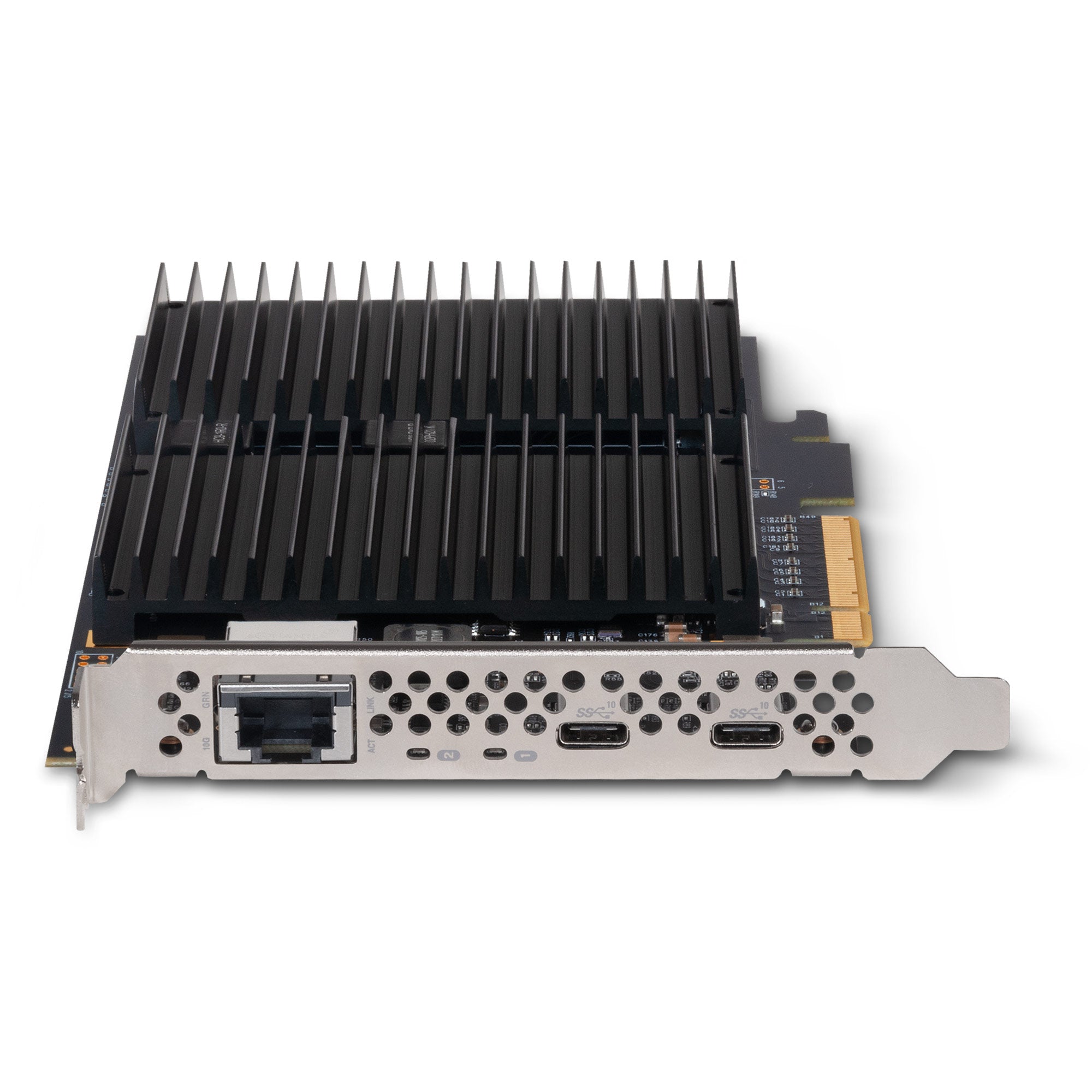

Sonnet G10E-USBC-M2-E McFiver - Multifunction PCIe Adapter Card

Sale price$329.99
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    Are you looking to add SSD storage, ultra-high-speed Ethernet connectivity, or high-performance USB-C® ports to your setup? Or all three? Even in computers with multiple expansion card slots, installing three adapter cards to get the interfaces you need may not be feasible. Sonnet's engineers designed a truly unique solution — the McFiver™ PCIe® Card. Mac, Windows, and Linux compatible, this professional, multifunction adapter includes five interfaces — this is the only adapter card to feature dual M.2 NVMe SSD slots, one RJ45 10Gb Ethernet port, and two 10Gbps USB-C ports, fitting them all on a standard full-height PCIe card.

    Features:

    • Multiple Functions, One Card
    • Two High Performance M.2 NVMe SSD Slots
    • No SSD Thermal Throttling
    • One 10GBASE-T Ethernet Port
    • Supports NBASE-T Ethernet Technology
    • AVB-Compliant Ethernet
    • Two 10Gbps USB-C Ports
    • Advanced USB 3.2 Gen 2 Controller, Full 10Gbps Per Port
    • Advanced USB Data Traffic Management
    • Powered USB Ports
    • Protected USB Power Delivery
    • Great for Use in Thunderbolt Expansion Systems
    • Mac, Windows, and Linux Compatible
    • 2-year Product Warranty
    • Free Lifetime Customer Technical Support
    • Designed in the USA


    One PCIe x8 Slot is all You Need

    Install the McFiver PCIe Card into an available x8 PCIe 3.0 or 4.0 slot to obtain maximum performance in your computer. No PCIe card slots in your computer, but Thunderbolt ports outside? The McFiver provides great performance, a lot of connectivity, and is ideal for use in an Echo™ Thunderbolt™ to PCIe card expansion system with an available full-height x8 card slot. The combo enables you to take advantage of all that the McFiver has to offer with any compatible Mac (M1/M2, M1/M2 Pro, M1/M2 Max, M1 Ultra, Intel®), Windows, or Linux computer with Thunderbolt ports.

    Dual M.2 NVMe SSD Slots – Add Up to 16TB of SSD Storage
    McFiver PCIe Card provides mass SSD storage capability on a PCIe card. Dual M.2 NVMe PCIe SSD slots support up to 16TB internal high performance storage expansion (SSDs sold separately), enabling you to save and access your data fast, and effortlessly store large files and media libraries.

    If super high-speed data transfers are critical to your work, you need an NVMe SSD-based upgrade. Installed on the McFiver PCIe Card, a single NVMe PCIe SSD can deliver tremendous performance — up to 3500 MB/s read and write sustained data transfers — but the McFiver enables you to mount two of them. Formatted as a RAID 0 set, two SSDs can achieve sustained transfers up to 6600 MB/s read and write. No matter how you use it, you'll love the speed.

    10Gb Ethernet Port – Blazing-Fast 10GBASE-T Connectivity
    The increasing demand for wired network bandwidth has pushed 10Gb Ethernet (10GbE) into the mainstream. It's not just for use in software development, postproduction, and shared storage workflows where speed is critical — there's increasing need for it in workflows of all kinds and businesses of all sizes. Very affordable 10GbE switches have reduced the cost of upgrading, but many computers don't natively support 10GbE — the McFiver PCIe Card can get you connected. The cFiver is equipped with one RJ45 port that enables you to connect your computer to 10GbE infrastructure via Cat 6A cabling at up to 100 meters.

    Two 10Gbps USB 3.2 Type-C Ports
    High Performance USB 3.2 Gen 2 Controller – 10Gbps USB 3.2 controller can concurrently deliver full 10Gbps bandwidth through both ports.

    Compatibility
    Mac Compatibility Mac Pro¨ 8,1 (2023)
    Mac Pro 7,1 (2019)
    macOS 12+
    macOS Ventura compatible
    Windows Compatibility Windows computer with available x8 PCIe slot
    Windows 11 and 10
    Windows Server 2022, 2019
    Linux Compatibility Linux computer with available x8 PCIe slot
    Linux Kernel 5.4+
    VMWare ESXi Not currently compatible
    Thunderbolt PCIe Expansion System Compatibility Mac computer (M1, M2, M1 Pro, M1 Max, M1 Ultra, and Intel) with Thunderbolt ports via a Thunderbolt or Thunderbolt to PCIe card expansion system with available x8 PCIe card slot
    Windows 10 computer with Thunderbolt 4 or Thunderbolt 3 ports via a Thunderbolt to PCIe card expansion system with available x8 PCIe card slot
    Windows 11 will support multiple-slot Thunderbolt expansion systems beginning with 23H1 future release
    Linux computer with Thunderbolt 4 or Thunderbolt 3 ports via a Thunderbolt to PCIe card expansion system with available x8 PCIe card slot
    M.2 NVMe SSDs Compatibility For a list of compatible NVMe SSDs, see Sonnet's website for the latest up to date info.
    Hardware
    Part Number G10E-USBC-M2-E
    Warranty 2-year
    Form Factor Full-height, half-length+ (7.25 in.), x8 PCIe card
    Bus Interface PCI Express 3.0 x8
    M.2 SSD Sockets Specifications
    Internal Connectors Two M-keyed (NVMe) M.2 slots
    SSDs Supported M.2 2280 NVMe PCIe SSDs
    macOS Boot Support Only from a single SSD (not RAIDed)
    Mac Pro 7,1
    Any Thunderbolt Mac
    Windows/Linux Boot Support No
    RAID Support macOS, Windows, Linux
    RAID 0 or 1
    NVMe Support Yes
    S.M.A.R.T. Status Data Reporting Support Yes
    10Gb Ethernet Port Specifications
    External Connectors One RJ45 port
    10GbE Controller Marvell AQC113S
    Network Support 10GBASE-T (100 meters using Cat 6A cabling; 55 meters using Cat 6 cabling)
    5GBASE-T(3), 2.5GBASE-T(3),1000BASE-T (100 meters using Cat5e [or better] cabling)
    Packets Maximum packet size: 16352 bytes (jumbo frames); 9000 bytes under macOS
    Data Rates Supported 10 Gb/s, 5 Gb/s, 2.5 Gb/s, 1 Gb/s, 100 Mb/s
    Advanced Features Flow control support
    MSI (Message Signaled Interrupts)
    RSS (Receive-Side Scaling)
    Interrupt coalescing
    Multicast filtering
    Energy-Efficient Ethernet (IEEE 802.3az)
    64-bit address support for systems using more than 4GB of physical memory
    Wake-on-LAN support
    Stateless Offloads TCP, UDP, and IPv4 checksum offloading
    TSO (TCP Segmentation Offload, AKA Large Send Offload)
    LRO (Large Receive Offload)
    RSS (Receiver Side Scaling)
    USB-C 3.2 Gen 2 Ports Specifications
    Peripherals Supported Industry standard USB 3.2 Gen 1, Gen 2 and 2x2; USB 3.1 Gen 1 and 2; USB 3.0, 2.0 and 1.1
    Thunderbolt-only peripherals are NOT supported
    Bus-Powered Peripherals Supported HD, SSD, SSD RAID, etc.
    7.5W (5V @ 1.5A) per port advertised using USB Type-C Charging
    Cables Supported USB-C (10Gbps)
    USB4
    Thunderbolt 4
    Thunderbolt 3 (? 0.8 meter)
    USB 3 Chipset ASMedia 3142
    USB Standard Complies with OHCI (Open Host Controller Interface), EHCI (Enhanced Host Controller Interface), and xHCI (eXtensible Host Controller Interface) standards
    UASP USB attached SCSI protocol supported under macOS 12+, Windows 11 and 10
    Hot Plug Supports hot-pluggable and hot swappable device connection
    Boot Support Booting not supported via devices attached to USB-C ports
    Operating Temperatures 0¼C to 35¼C (32¼F to 95¼F)
    Compliance RoHS 3 (Directive 2015/863)
    IEC62368-1 and IEC62368-2 Safety
    Package Contents McFiver PCIe Card
    Documentation
