DALE SKU # SONN-G25E2XE3

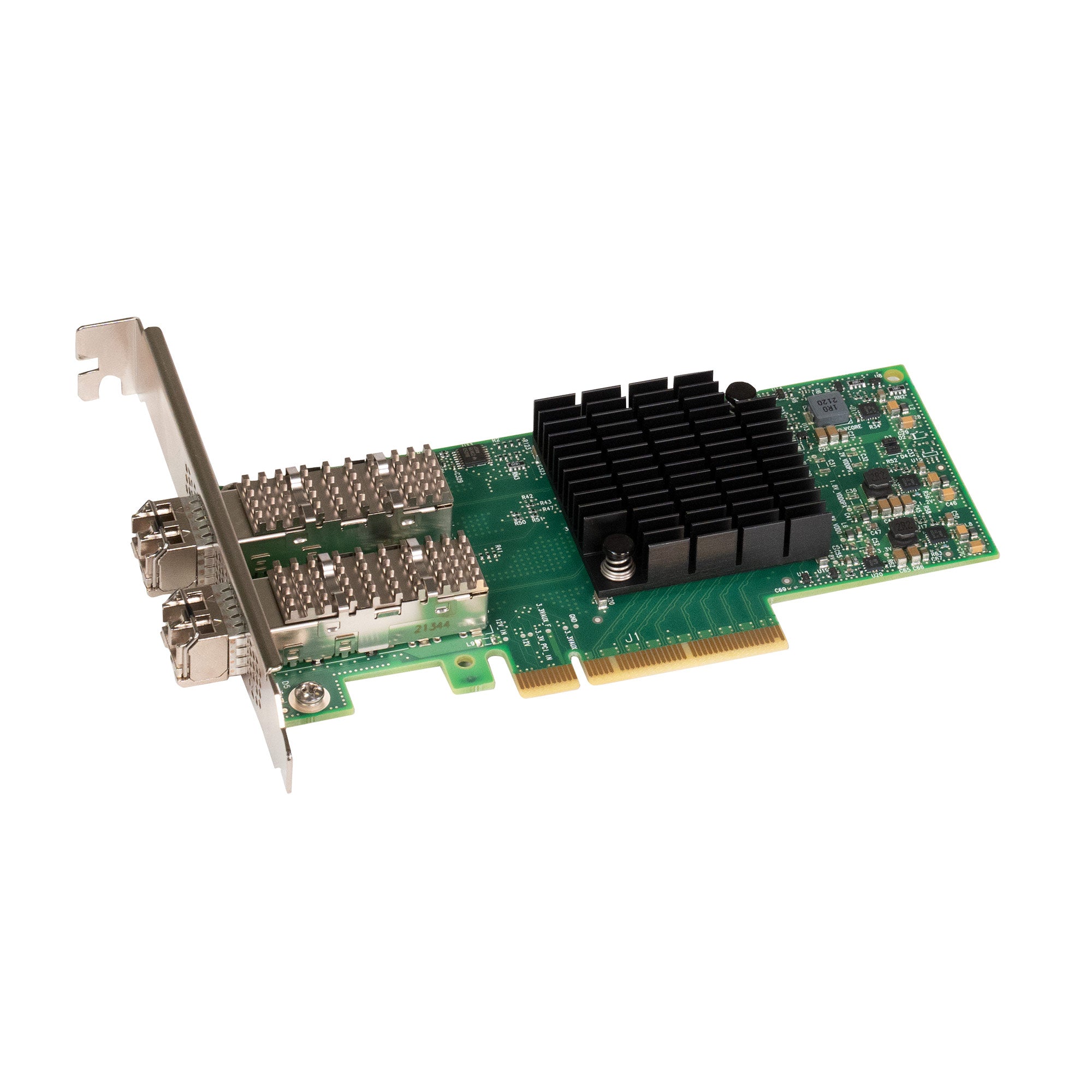

Sonnet G25E-2X-E3 - Twin25G Dual-Port 25GbE Ethernet PCIe Card (with SFP28 Transceivers)

Sale price$659.99
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    Many bandwidth-intensive workflows — including post-production shared storage workgroups — have reached a point where 10Gb Ethernet does not provide sufficient bandwidth and speed for optimum performance. Upgrading to 25Gb Ethernet is the smart choice — it offers greater performance and works with the same optical network infrastructure as 10GbE. Step up to the Sonnet Twin25G™ PCIe Card, an affordable and powerful solution for adding incredibly-fast fiber optic 25GbE network connectivity.

    Features:

    • Adds High-performance 25GbE Connectivity
    • Two SFP28 Transceivers Included
    • Backward Compatible with 10GbE Infrastructure
    • Mac, Windows, and Linux Compatible
    • Great for Use in Thunderbolt Expansion Systems
    • 2-year Product Warranty
    • Free Lifetime Customer Technical Support
    • Designed and Made In the USA

    Affordable 25GbE Networking – Make the Switch
    Mac users need faster network speeds and increased bandwidth for postproduction workflows. Recently, 25Gb Ethernet switches have become more affordable, but connecting a 2019 Mac Pro® to a 25GbE infrastructure has been expensive. Sonnet's Twin25G PCIe Card is a cost-effective and simple solution for adding 25GbE network connectivity to not only Mac Pro, but also to any computer with PCIe slots.

    Perfect Companion for Echo Thunderbolt Expansion Systems
    Use a free slot in a Sonnet multi-slot Echo Thunderbolt expansion system to add 25Gb Ethernet to your computer without card slots.

    Storage Environments – Efficient NVMe Storage Access
    Storage Environments NVMe storage devices are gaining popularity by offering very fast storage access. Sonnet Twin25G offers performance enhancements not only by delivering higher network speed, but also by providing NVMe over Fabric (NVMe-oF) target offloads, enabling very efficient NVMe storage access with no CPU intervention, thus improving performance and reducing latency. Compared to multi-fabric teamed 10G networks, a consolidated 25G storage network achieves significant cost and performance advantages with fewer cables and switch ports, which also lowers power requirements.

    Includes Two Mounting Brackets – Install Card Into Any PCIe Slot
    Twin25G PCIe Card is packaged with both full-height and low-profile mounting brackets, enabling installation of the card into any PCIe slot.

    Install and Connect – Simple Installation
    Simply install the Twin25G PCIe Card into a PCIe slot in your computer or Sonnet Thunderbolt PCIe card expansion system, install a driver, install the included SFP28 modules, and then connect the card to the network switch or directly to 25GbE-enabled storage. Configure the adapter's settings through the macOS Network control panel, Windows Device Manager, or Linux command line (or graphical utility).

    Compatibility
    Mac Compatibility Mac Pro 8,1 (2023)
    Mac Pro 7,1 (2019)
    macOS 13 (Ventura)
    Windows Compatibility Windows 11 and 10
    Windows Server 2022, 2019
    Linux Compatibility Linux Kernel 5.0+
    Thunderbolt PCIe Expansion System Compatibility Mac computer (M1/M2 series, Intel) with Thunderbolt port via a Thunderbolt to PCIe card expansion system
    Windows computer with Thunderbolt port via a Thunderbolt to PCIe card expansion system
    Linux computer with Thunderbolt 4 port via a Thunderbolt to PCIe card expansion system
    Hardware
    Part Number G25E-2X-E3
    Warranty 2-year
    Form Factor Low-profile PCIe 3.0 x8 card
    PCIe x4 slot supports one port at full bandwidth
    PCIe x8 slot supports two ports at full bandwidth
    External Connectors Two SFP28 optical transceivers
    25GbE Controller Mellanox ConnectX
    Network Support 25Gb/s
    10Gb/s
    Teaming (Link Aggregation) macOS
    Link Aggregation provides balanced network traffic and automatic failover
    Windows 11* and 10*, Windows Server, and Linux
    Teaming doubles transfer speeds up to 50Gb/s
    * Get Sonnet software to create a Team in Windows 11 or 10
    Packets Maximum packet size: 9000 bytes (jumbo frames)
    Advanced Features Flow control support
    MSI (Message Signaled Interrupts)
    RSS (Receive-Side Scaling)
    Multicast filtering
    64-bit address support for systems using more than 4GB of physical memory
    Wake-on-LAN not supported
    Stateless Offloads TCP, UDP, and IPv4 checksum offloading
    TSO (TCP Segmentation Offload, AKA Large Send Offload)(3)
    TRO (TCP Receive Offload)
    Compliance RoHS 3 (Directive 2015/863)
    IEC62368-1 and IEC62368-2 Safety
    Package Contents Twin25G PCIe Card
    Two PCIe mounting brackets
    Documentation
