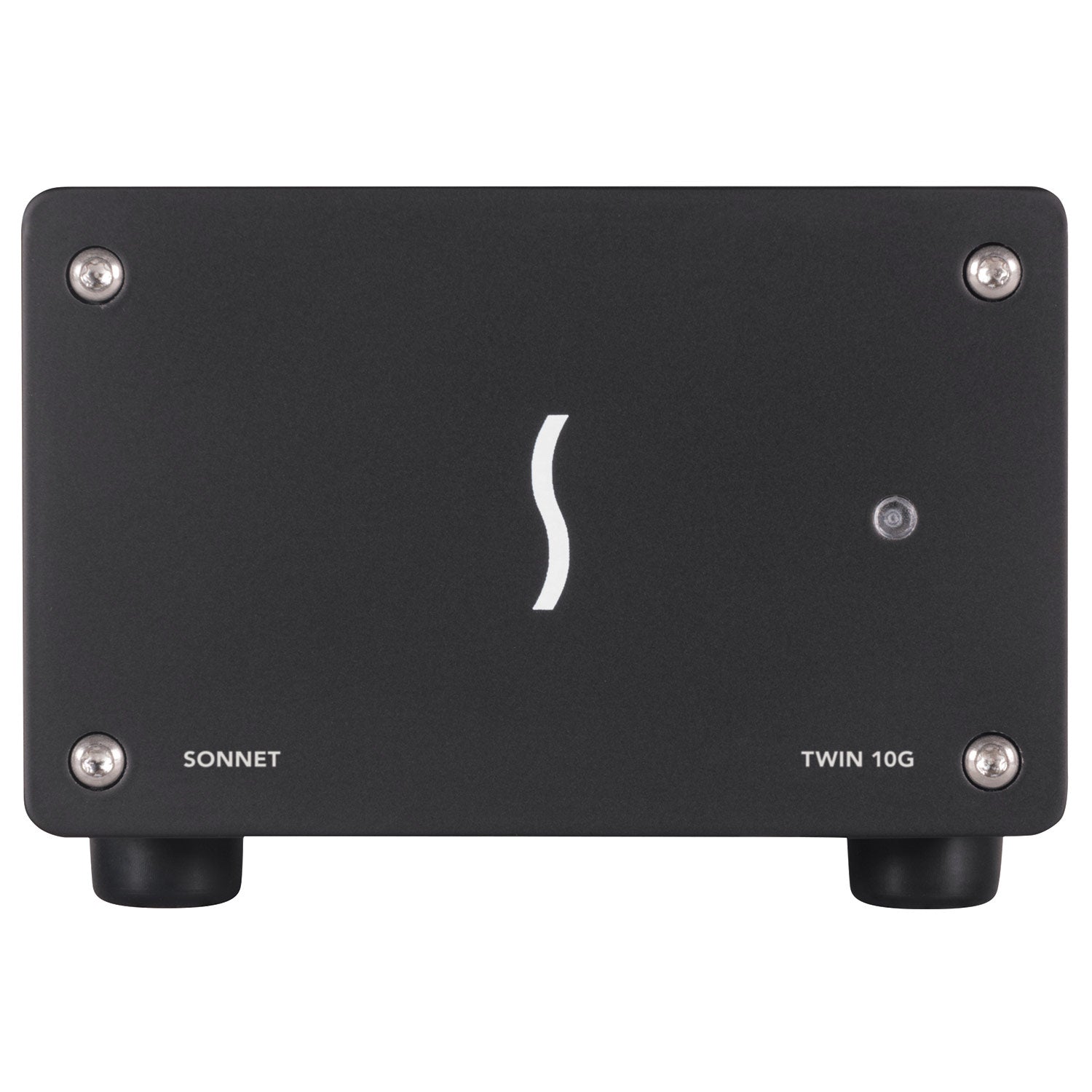

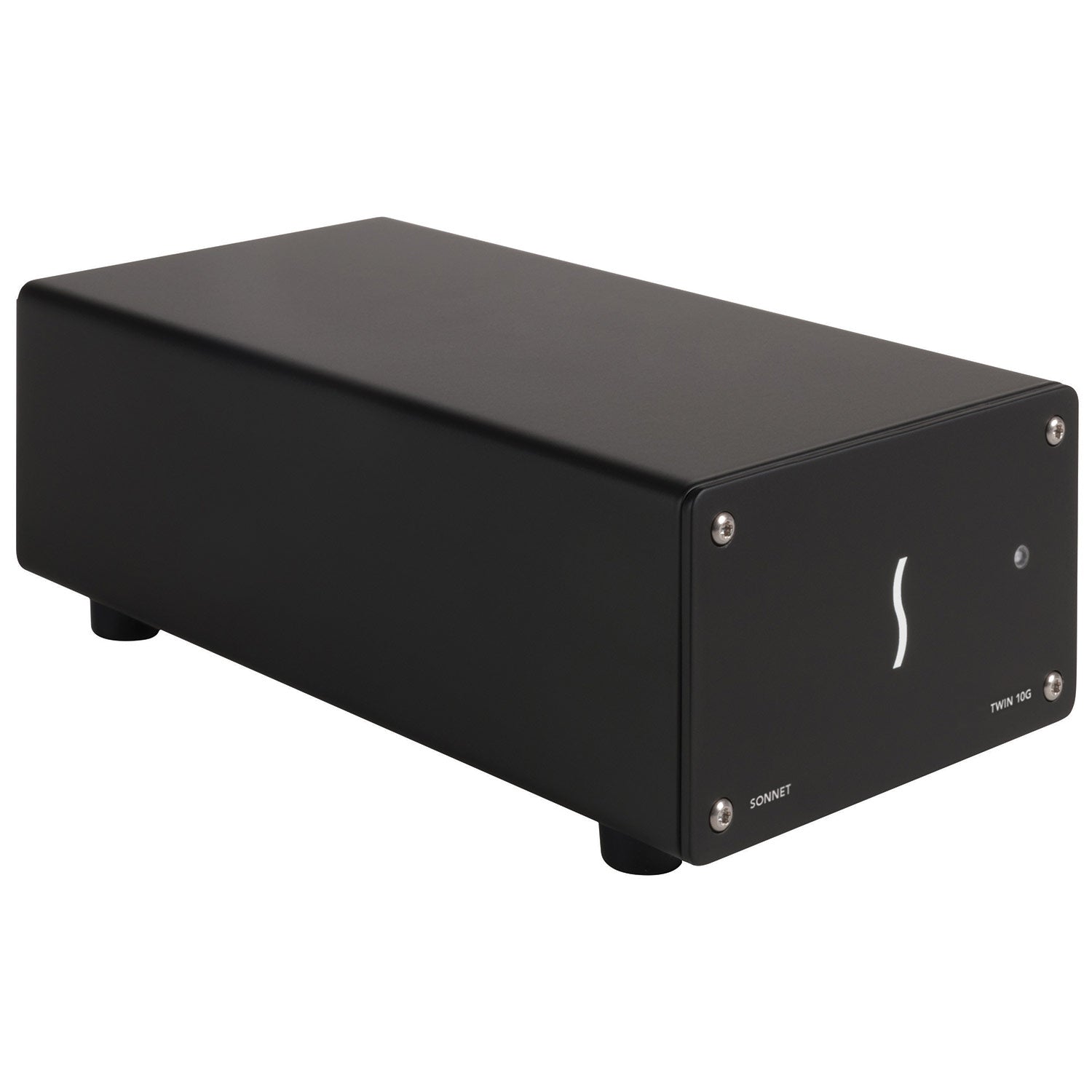

Sonnet TWIN10GC-TB3 Twin10G - Dual-Port 10GBASE-T Thunderbolt Adapter
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Increased demand for greater data transfer speeds and more bandwidth on high-performance shared storage networks has driven the explosion in demand for 10 Gigabit Ethernet (10GbE) networking. Yet, most computers aren't equipped to get you connected. If your computer has a Thunderbolt™ 3 or Thunderbolt 4 port, you are in luck—Sonnet's Twin10G™ 10GbE adapter is the powerfully simple and most cost-effective solution for adding blazing-fast dual-port 10GBASE-T 10GbE network connectivity.
Twin10G: Dual Port 10GbE Connectivity
This dual-port 10 Gigabit Ethernet Thunderbolt adapter is a simple way to add dual RJ45 10 Gigabit Ethernet ports to your computer.
Features:
- For Computers with Thunderbolt 3 or Thunderbolt 4 Ports
- 40Gbps Thunderbolt Interface
- Adds 10GBASE-T 10GbE Connectivity
- Two Thunderbolt 3 Ports
- Cost-effective
- Easy Setup
- Small. Rugged. Nearly Noiseless.
- Supports Transparent Failover
- Supports Link Aggregation (Teaming)
- Provides 10W of Power for Connected Peripherals
- Includes 0.7-meter Thunderbolt 3 (40Gbps) Cable
- Includes Sonnet's ThunderLok 3 Thunderbolt Connector Retainer Clip
- Mac®, Windows®, and Linux® Compatible
- 2-year Product Warranty
- Free Lifetime Customer Technical Support
- Designed and Made in the USA
| Compatibility | |
| Mac Compatibility | Mac (M series) Mac (Intel¨) with Thunderbolt 3 ports Mac (Intel) with a Thunderbolt 2 or Thunderbolt 1 port with an Apple Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter plus a Thunderbolt 2 cable (both sold separately) macOS 10.12.6+ macOS Ventura compatible |
| Windows Compatibility | Windows computer with Thunderbolt 4 or Thunderbolt 3 ports Windows 11 and 10 |
| Linux Compatibility | Linux computer with Thunderbolt 4 or Thunderbolt 3 ports Linux Kernel 5.0+ |
| Hardware | |
| Part Number | TWIN10GC-TB3 |
| Warranty | 2-year |
| Form Factor | Thunderbolt 10GbE adapter |
| External Connectors | Two Thunderbolt ports Two RJ45 ports 12V power port |
| 10GbE Controller | Intel X540/X550 (subject to part availability) |
| Network Support | 10BASE-T (100 meters using Cat 6A cabling; 55 meters using Cat 6 cabling) 1000BASE-T (100 meters using Cat 5e, Cat 6, or Cat 6A cabling) |
| Link Aggregation (Teaming) | Supported by Windows and Linux |
| Packets | Maximum packet size: 15872 bytes (jumbo frames) |
| Advanced Features | Flow control support MSI (Message Signaled Interrupts) RSS (Receive-Side Scaling) Interrupt coalescing Multicast filtering 64-bit address support for systems using more than 4GB of physical memory Wake-on-LAN not supported |
| Stateless Offloads | TCP, UDP, and IPv4 checksum offloading TSO (TCP Segmentation Offload, AKA Large Send Offload) LRO (Large Receive Offload) RSS (Receiver Side Scaling) |
| Power Adapter | Universal 60W, 100-240V, 50-60 Hz NRTL Certified |
| Operating Temperature | 0¼C to 35¼C (32¼F to 95¼F) |
| Dimensions (WxDxH) | 4 x 8.25 x 2.75 in. (10.3 x 21 x 7.3 cm) |
| Weight | 2.95 lbs. (1.34 kg) |
| Compliance | RoHS 3 (Directive 2015/863) IEC62368-1 and IEC62368-2 Safety |
| Package Contents | Twin10G 10GbE Adapter Thunderbolt 3 cable(4) ThunderLok 3 Thunderbolt connector retainer clip(5) Universal power adapter Power cord Documentation |
Increased demand for greater data transfer speeds and more bandwidth on high-performance shared storage networks has driven the explosion in demand for 10 Gigabit Ethernet (10GbE) networking. Yet, most computers aren't equipped to get you connected. If your computer has a Thunderbolt™ 3 or Thunderbolt 4 port, you are in luck—Sonnet's Twin10G™ 10GbE adapter is the powerfully simple and most cost-effective solution for adding blazing-fast dual-port 10GBASE-T 10GbE network connectivity.
Twin10G: Dual Port 10GbE Connectivity
This dual-port 10 Gigabit Ethernet Thunderbolt adapter is a simple way to add dual RJ45 10 Gigabit Ethernet ports to your computer.
Features:
- For Computers with Thunderbolt 3 or Thunderbolt 4 Ports
- 40Gbps Thunderbolt Interface
- Adds 10GBASE-T 10GbE Connectivity
- Two Thunderbolt 3 Ports
- Cost-effective
- Easy Setup
- Small. Rugged. Nearly Noiseless.
- Supports Transparent Failover
- Supports Link Aggregation (Teaming)
- Provides 10W of Power for Connected Peripherals
- Includes 0.7-meter Thunderbolt 3 (40Gbps) Cable
- Includes Sonnet's ThunderLok 3 Thunderbolt Connector Retainer Clip
- Mac®, Windows®, and Linux® Compatible
- 2-year Product Warranty
- Free Lifetime Customer Technical Support
- Designed and Made in the USA
| Compatibility | |
| Mac Compatibility | Mac (M series) Mac (Intel¨) with Thunderbolt 3 ports Mac (Intel) with a Thunderbolt 2 or Thunderbolt 1 port with an Apple Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter plus a Thunderbolt 2 cable (both sold separately) macOS 10.12.6+ macOS Ventura compatible |
| Windows Compatibility | Windows computer with Thunderbolt 4 or Thunderbolt 3 ports Windows 11 and 10 |
| Linux Compatibility | Linux computer with Thunderbolt 4 or Thunderbolt 3 ports Linux Kernel 5.0+ |
| Hardware | |
| Part Number | TWIN10GC-TB3 |
| Warranty | 2-year |
| Form Factor | Thunderbolt 10GbE adapter |
| External Connectors | Two Thunderbolt ports Two RJ45 ports 12V power port |
| 10GbE Controller | Intel X540/X550 (subject to part availability) |
| Network Support | 10BASE-T (100 meters using Cat 6A cabling; 55 meters using Cat 6 cabling) 1000BASE-T (100 meters using Cat 5e, Cat 6, or Cat 6A cabling) |
| Link Aggregation (Teaming) | Supported by Windows and Linux |
| Packets | Maximum packet size: 15872 bytes (jumbo frames) |
| Advanced Features | Flow control support MSI (Message Signaled Interrupts) RSS (Receive-Side Scaling) Interrupt coalescing Multicast filtering 64-bit address support for systems using more than 4GB of physical memory Wake-on-LAN not supported |
| Stateless Offloads | TCP, UDP, and IPv4 checksum offloading TSO (TCP Segmentation Offload, AKA Large Send Offload) LRO (Large Receive Offload) RSS (Receiver Side Scaling) |
| Power Adapter | Universal 60W, 100-240V, 50-60 Hz NRTL Certified |
| Operating Temperature | 0¼C to 35¼C (32¼F to 95¼F) |
| Dimensions (WxDxH) | 4 x 8.25 x 2.75 in. (10.3 x 21 x 7.3 cm) |
| Weight | 2.95 lbs. (1.34 kg) |
| Compliance | RoHS 3 (Directive 2015/863) IEC62368-1 and IEC62368-2 Safety |
| Package Contents | Twin10G 10GbE Adapter Thunderbolt 3 cable(4) ThunderLok 3 Thunderbolt connector retainer clip(5) Universal power adapter Power cord Documentation |
