Sonnet XMAC-MS-A-TB3 xMac Mini Server - Thunderbolt PCIe Card Expansion System/Rackmount Enclosure
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
For many applications, a Mac mini has all the processing power necessary to allow it to replace a full-sized desktop or workstation. But for pro audio and video users, the mini's compact size can limit its potential—there are no slots for PCIe expansion cards needed to provide additional connectivity and functionality, and you need to securely rackmount the computer. Sonnet's award-winning xMac mini Server™ addresses these issues and maximizes a Mac mini's capabilities in a big way.

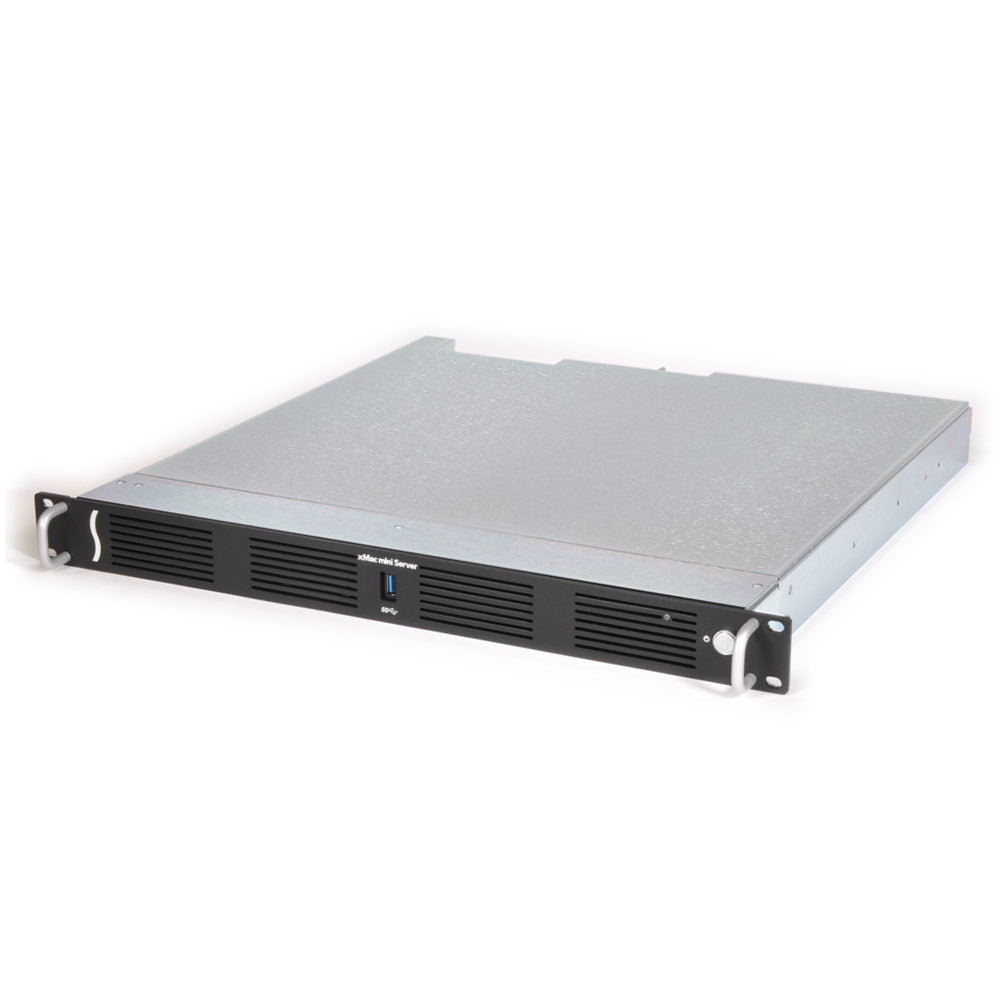

xMac mini Server: Thunderbolt PCIe Card Expansion System/1U Rackmount Enclosure

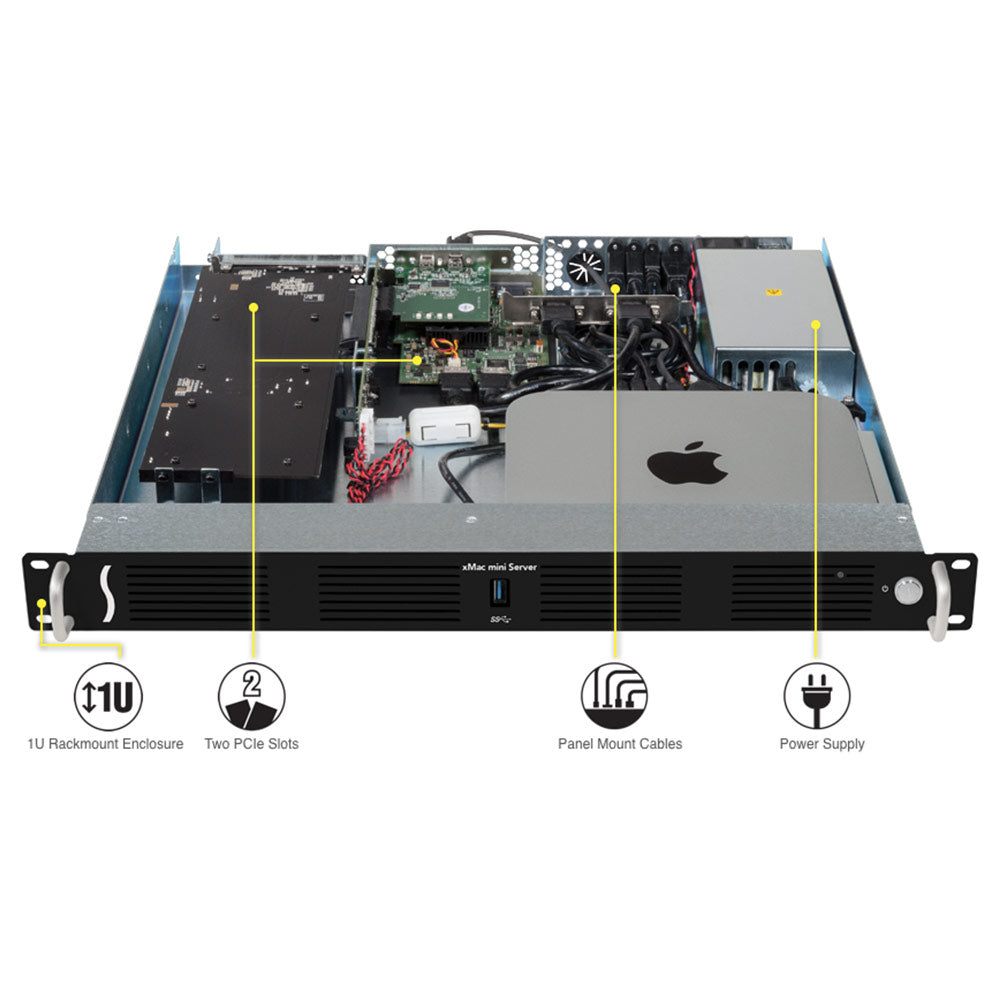

xMac mini Server features a cleverly-designed and rugged 1U enclosure that houses the Mac mini, PCIe expansion slots, power supply, and panel mount cables for convenient external connection.
Features:
- Adds Connectivity and Capabilities to Mac mini 2018-2022 (Intel and M1/M2 series)
- Diverse PCIe Card Support (pro video capture and play-out, pro audio, 10GbE, Fibre Channel, SAS/SATA RAID controllers)
- Server Room Ready
- Makes Your Mac mini Road-Ready
- Thunderbolt 3 Interface
- Two 40Gbps Thunderbolt Ports
- Rear Panel Connectivity, Front Panel Operation
- Integrated 150W Power Supply (with auxiliary power connector for power-hungry PCIe cards)
- Includes 0.5-meter Thunderbolt 3 Cable
- Includes Sonnet's ThunderLok™ 3 Thunderbolt Connector Retainer Clip
- Dimensions (WxDxH): 19 x 17.75 x 1.72 in. (48.3 x 45.1 x 4.4 cm)
- 2-year Product Warranty
- Free Lifetime Customer Technical Support
- Designed and Made in the USA
| Compatibility | Mac mini (M2/M2 Pro) macOS 13 Mac mini (M1) macOS 11 - macOS 13 Mac mini (2018 Intel current version) macOS 10.14.6 Ð macOS 13 Mac mini (Late 2014) with Apple Thunderbolt 3 to Thunderbolt 2 Adapter and Thunderbolt 2 cable OS X 10.10.5 Ð macOS 12 Mac mini (Late 2012) with Apple Thunderbolt 3 to Thunderbolt 2 Adapter and Thunderbolt 2 cable OS X 10.8.5 Ð macOS 10.15.7 |
| PCIe Card Compatibility | For up-to-date PCIe card compatibility see Sonnet's website. For maximum PCIe bandwidth, dedicate one Thunderbolt 3 bus on the computer to the PCIe expansion slots. |
| Hardware | |
| Part No. | XMAC-MS-A-TB3 xMac mini Server |
| Warranty | 2-year |
| Form Factor | 1U Rackmount Enclosure |
| Dimensions (WxDxH) | 19 x 17.75 x 1.72 in. (48.3 x 45.1 x 4.4 cm) |
| Weight | 16 lbs (7.26 kg) |
| External Connectors | Two Thunderbolt 3 ports (one open, one used) One RJ-45 Gigabit/10 Gigabit Ethernet port extension Two USB-A port extensions (one front-mount and 1 rear-mount) One HDMI port extension |
| Internal Connectors | 6-pin Mini-Fit Jr (provides auxiliary power for PCIe cards that require it) One C-8 power |
| PCIe Expansion Slots | One x8 (x4 electrical) PCIe 2.0 half-length+ (7.25 in.) One x16 (x4 electrical) PCIe 2.0 full-length |
| Compatible PCIe Cards | PCIe cards listed on Sonnet's supporting PCIe Card Thunderbolt Compatibility Chart and as specified by card manufacturers |
| Power Supply | Universal 150W, 90-260V AC, 50-60 Hz |
| Operating Temperature | 0¼ C to 35¼ C (32¼ F to 95¼ F) |
| RoHS Compliant | Yes |
| Package Contents | xMac mini Server (assembled) Daughter card mounting bracket 0.5-meter Thunderbolt 3 (40Gbps) cable Thunderbolt 3 cable lock(5) Power cord Documentation |
| Note | Mac mini and PCIe cards sold separately |
For many applications, a Mac mini has all the processing power necessary to allow it to replace a full-sized desktop or workstation. But for pro audio and video users, the mini's compact size can limit its potential—there are no slots for PCIe expansion cards needed to provide additional connectivity and functionality, and you need to securely rackmount the computer. Sonnet's award-winning xMac mini Server™ addresses these issues and maximizes a Mac mini's capabilities in a big way.
xMac mini Server: Thunderbolt PCIe Card Expansion System/1U Rackmount Enclosure
xMac mini Server features a cleverly-designed and rugged 1U enclosure that houses the Mac mini, PCIe expansion slots, power supply, and panel mount cables for convenient external connection.
Features:
- Adds Connectivity and Capabilities to Mac mini 2018-2022 (Intel and M1/M2 series)
- Diverse PCIe Card Support (pro video capture and play-out, pro audio, 10GbE, Fibre Channel, SAS/SATA RAID controllers)
- Server Room Ready
- Makes Your Mac mini Road-Ready
- Thunderbolt 3 Interface
- Two 40Gbps Thunderbolt Ports
- Rear Panel Connectivity, Front Panel Operation
- Integrated 150W Power Supply (with auxiliary power connector for power-hungry PCIe cards)
- Includes 0.5-meter Thunderbolt 3 Cable
- Includes Sonnet's ThunderLok™ 3 Thunderbolt Connector Retainer Clip
- Dimensions (WxDxH): 19 x 17.75 x 1.72 in. (48.3 x 45.1 x 4.4 cm)
- 2-year Product Warranty
- Free Lifetime Customer Technical Support
- Designed and Made in the USA
| Compatibility | Mac mini (M2/M2 Pro) macOS 13 Mac mini (M1) macOS 11 - macOS 13 Mac mini (2018 Intel current version) macOS 10.14.6 Ð macOS 13 Mac mini (Late 2014) with Apple Thunderbolt 3 to Thunderbolt 2 Adapter and Thunderbolt 2 cable OS X 10.10.5 Ð macOS 12 Mac mini (Late 2012) with Apple Thunderbolt 3 to Thunderbolt 2 Adapter and Thunderbolt 2 cable OS X 10.8.5 Ð macOS 10.15.7 |
| PCIe Card Compatibility | For up-to-date PCIe card compatibility see Sonnet's website. For maximum PCIe bandwidth, dedicate one Thunderbolt 3 bus on the computer to the PCIe expansion slots. |
| Hardware | |
| Part No. | XMAC-MS-A-TB3 xMac mini Server |
| Warranty | 2-year |
| Form Factor | 1U Rackmount Enclosure |
| Dimensions (WxDxH) | 19 x 17.75 x 1.72 in. (48.3 x 45.1 x 4.4 cm) |
| Weight | 16 lbs (7.26 kg) |
| External Connectors | Two Thunderbolt 3 ports (one open, one used) One RJ-45 Gigabit/10 Gigabit Ethernet port extension Two USB-A port extensions (one front-mount and 1 rear-mount) One HDMI port extension |
| Internal Connectors | 6-pin Mini-Fit Jr (provides auxiliary power for PCIe cards that require it) One C-8 power |
| PCIe Expansion Slots | One x8 (x4 electrical) PCIe 2.0 half-length+ (7.25 in.) One x16 (x4 electrical) PCIe 2.0 full-length |
| Compatible PCIe Cards | PCIe cards listed on Sonnet's supporting PCIe Card Thunderbolt Compatibility Chart and as specified by card manufacturers |
| Power Supply | Universal 150W, 90-260V AC, 50-60 Hz |
| Operating Temperature | 0¼ C to 35¼ C (32¼ F to 95¼ F) |
| RoHS Compliant | Yes |
| Package Contents | xMac mini Server (assembled) Daughter card mounting bracket 0.5-meter Thunderbolt 3 (40Gbps) cable Thunderbolt 3 cable lock(5) Power cord Documentation |
| Note | Mac mini and PCIe cards sold separately |
