Sound Devices A20-Monarch - Omnidirectional Wideband Antenna for A20-Nexus
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

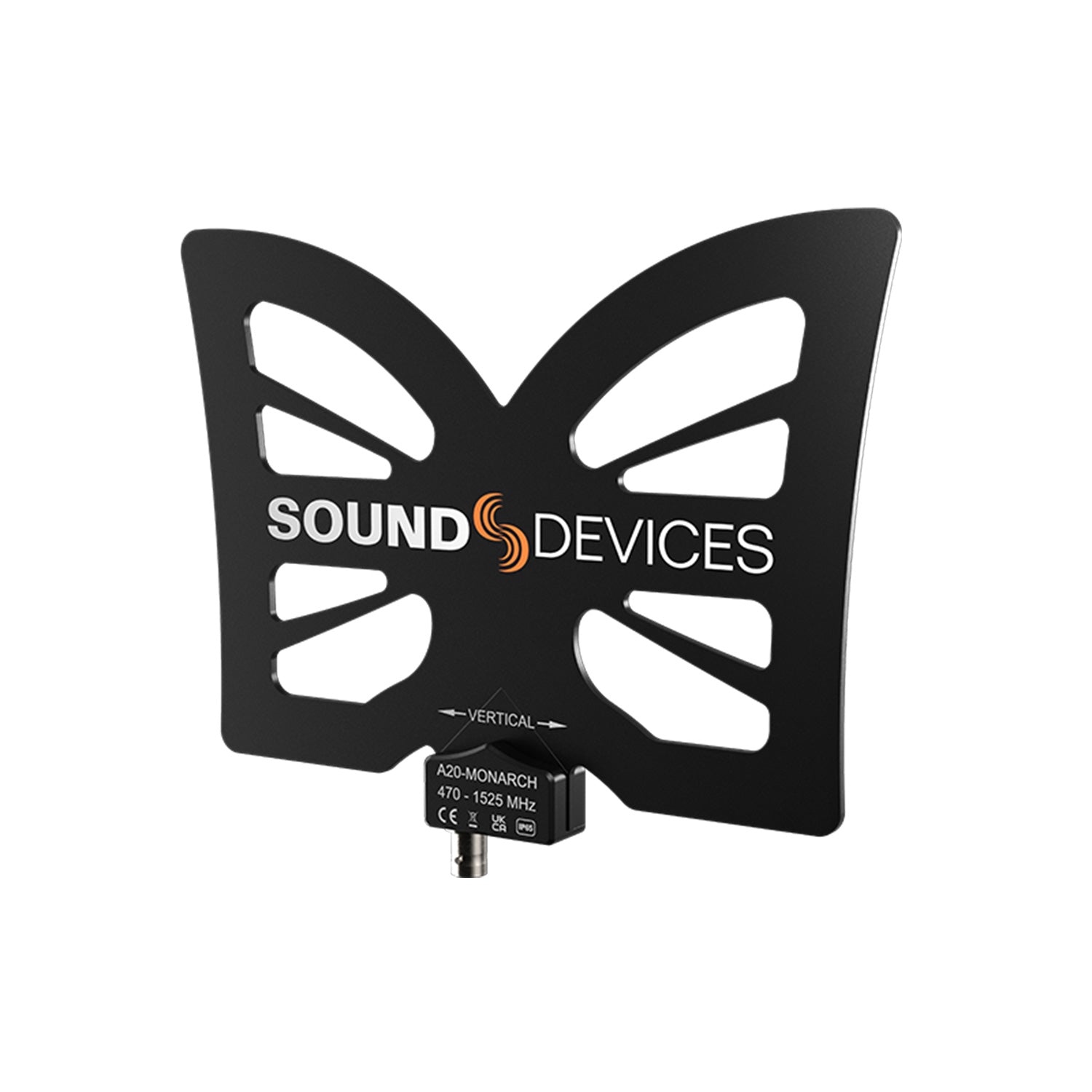

The A20-Monarch is an omnidirectional, wide-bandwidth (470-1525 MHz) antenna. It provides uniform coverage and gain across the exceptionally wide SpectraBand tuning range of the Sound Devices Astral series wireless products. The antenna is paired with a multifunction clamp and articulating arm, as well as two accessory cables.
The A20-Monarch kit includes:
- 1x A20-Monarch antenna with BNC-F connector and 1/4″-20 female threaded mount

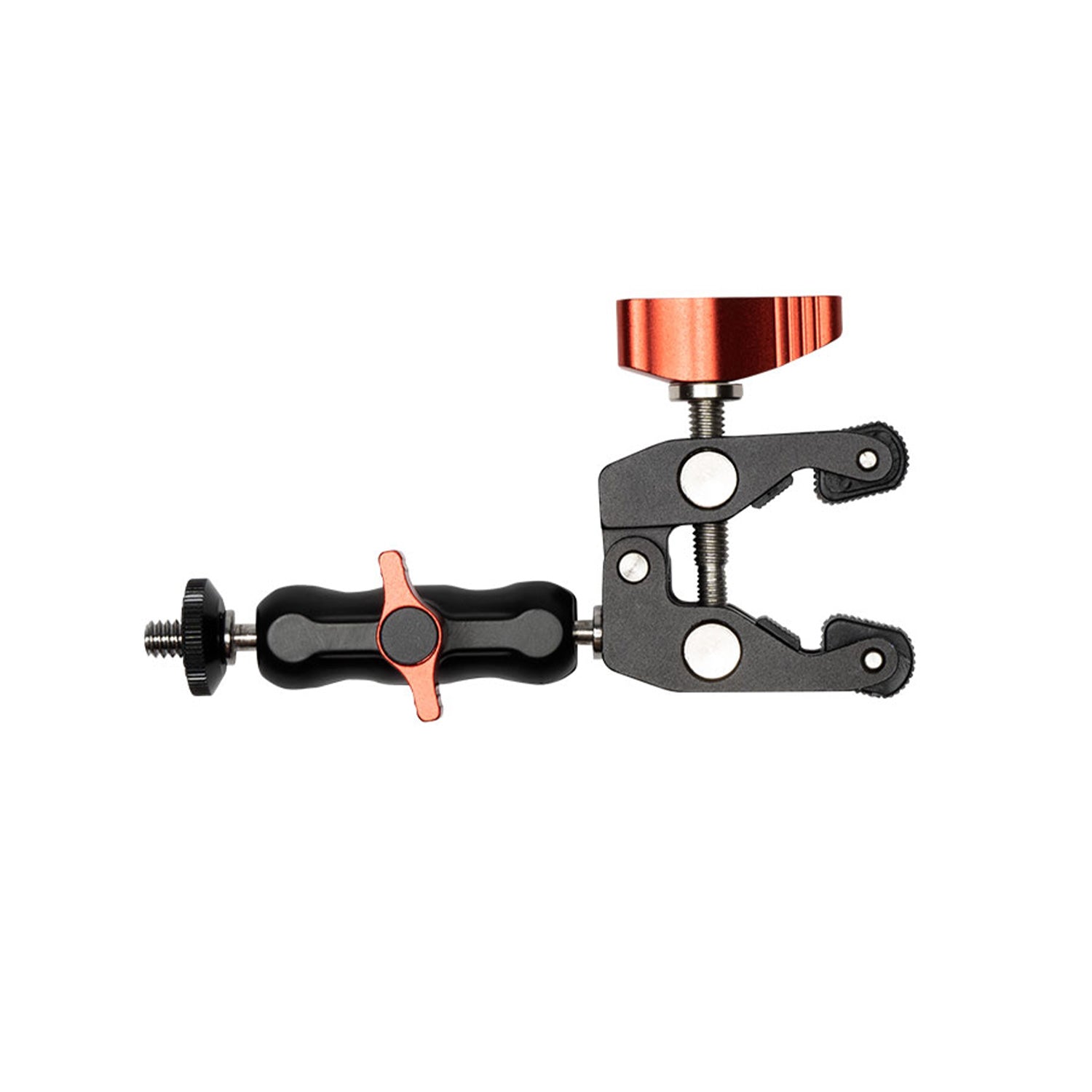

- 1x adjustable clamp and articulating arm with 1/4″-20 male threaded mount
- 1x 30 in/75 cm BNC-M to BNC-M cable
- 1x 18 in/45 cm BNC-M to SMA-M cable
| Frequency range | 470 MHz Ð 1600 MHz |
| Gain | 2.2 dBi |
| Pattern | Omnidirectional |
| Return Loss | Better than 15 dB across entire 470 Ð 1600 MHz range |
| Mounting Threads | _-20 |
| Dimensions (H x W x D) | 17.0 cm x 21.0 cm x 1.7 cm (6.68 in x 8.26 in 0.67 in) |
| Weight | 0.12 kg (unpackaged) 0.26 lbs (unpackaged) |
The A20-Monarch is an omnidirectional, wide-bandwidth (470-1525 MHz) antenna. It provides uniform coverage and gain across the exceptionally wide SpectraBand tuning range of the Sound Devices Astral series wireless products. The antenna is paired with a multifunction clamp and articulating arm, as well as two accessory cables.
The A20-Monarch kit includes:
- 1x A20-Monarch antenna with BNC-F connector and 1/4″-20 female threaded mount
- 1x adjustable clamp and articulating arm with 1/4″-20 male threaded mount
- 1x 30 in/75 cm BNC-M to BNC-M cable
- 1x 18 in/45 cm BNC-M to SMA-M cable
| Frequency range | 470 MHz Ð 1600 MHz |
| Gain | 2.2 dBi |
| Pattern | Omnidirectional |
| Return Loss | Better than 15 dB across entire 470 Ð 1600 MHz range |
| Mounting Threads | _-20 |
| Dimensions (H x W x D) | 17.0 cm x 21.0 cm x 1.7 cm (6.68 in x 8.26 in 0.67 in) |
| Weight | 0.12 kg (unpackaged) 0.26 lbs (unpackaged) |
