Sound Devices A20-Quick-Dock - 8-Series Mount for A20-Nexus
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

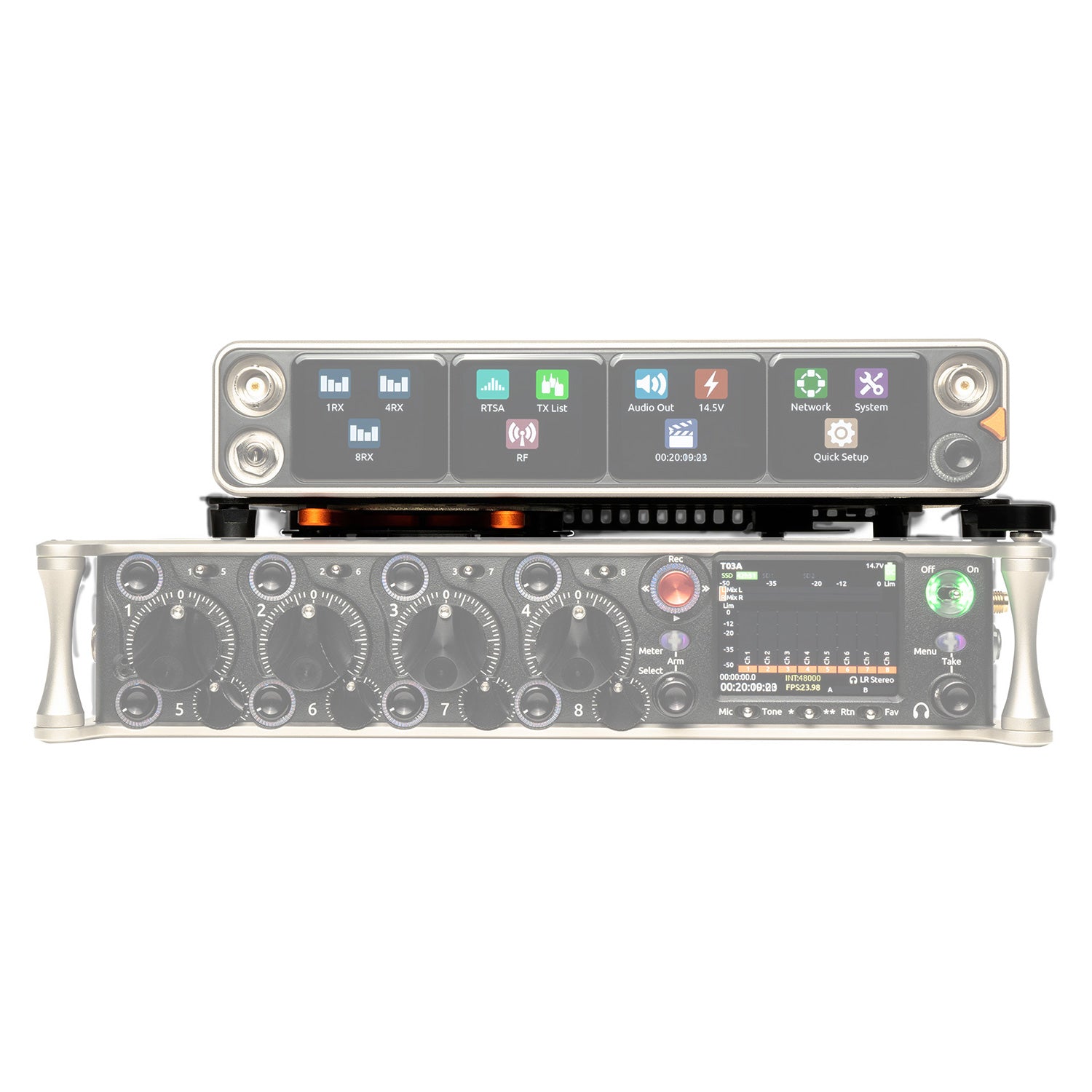

The A20-QuickDock enables the A20-Nexus to be docked to 833, 888, or Scorpio mixer/recorders. The bottom panel incorporates a multi-pin port that provides convenient power, audio, and timecode connections with no additional cables. This accessory allows the A20-Nexus to connect and disconnect from the 8-Series in seconds with no tools, allowing for easy remote mounting when desired.
Considerations when docking an A20-Nexus on an 8-Series mixer/recorder:
- Power must be provided by the 8-Series - A20-Nexus power inputs (TA4 and PoE+) are disabled.
- Most A20-Nexus rear panel connectors are disabled apart from the antenna connectors, the USB-A port and the Ethernet ports.
- When docked to an 8-Series, the A20-Nexus Ethernet ports can only be used for control, not Dante.
The A20-QuickDock kit includes:

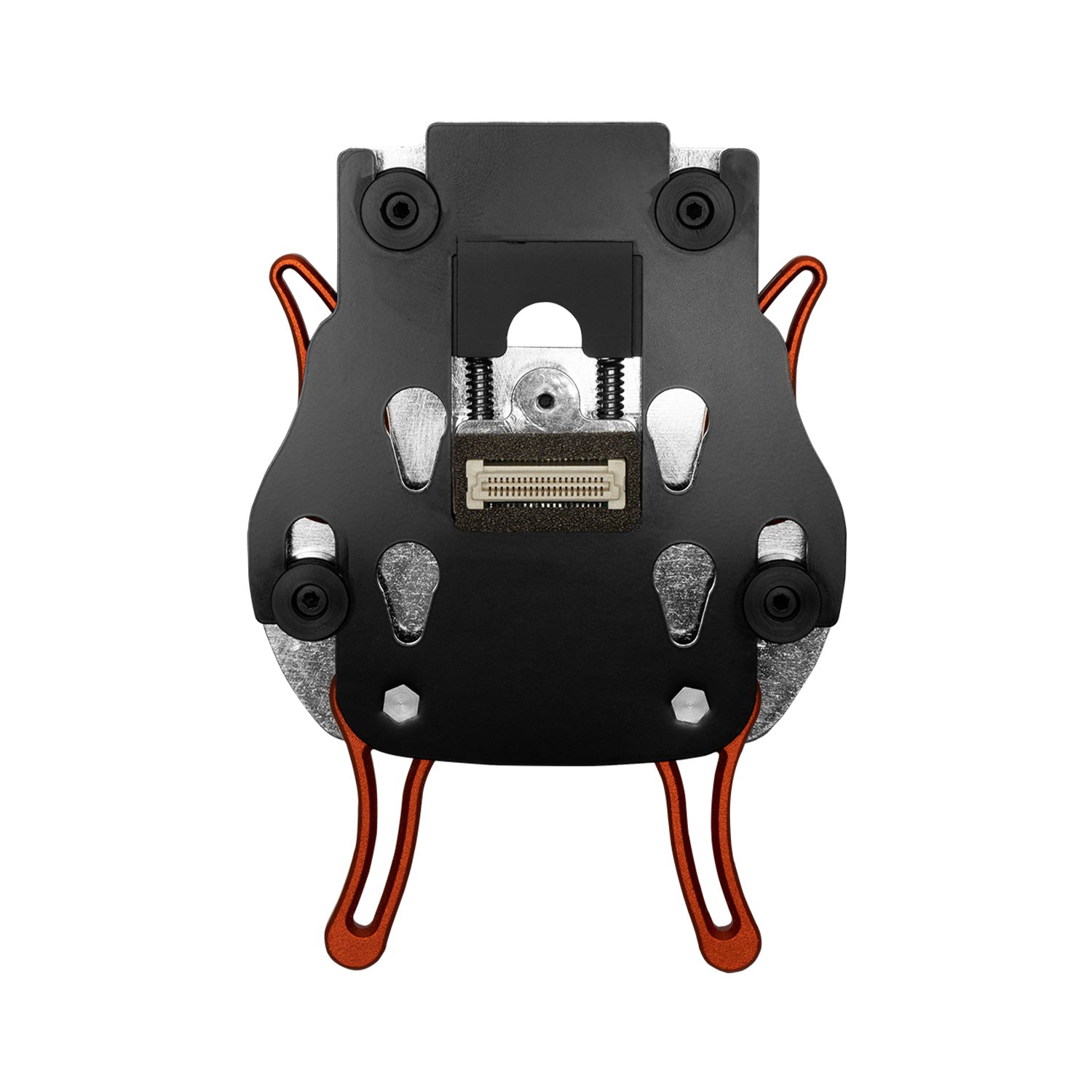

- Mounting plate with detachable Quick Release mechanism and multi-pin connector.
- 2 mm and 1/16" allen keys.
- Four 1/16" allen screws for securing the mounting plate to the bottom of the A20-Nexus.
- Three long and two short mounting pegs for securing the A20-Nexus to the top of the 8-Series.
- Additional mounting hardware for Scorpio.
| H x W x D | 2.1 cm x 20.6 cm x 15.1 cm 0.81 in x 8.11 in 5.93 in |
| Weight | 0.23 kg (unpackaged) 0.50 lbs (unpackaged) 0.44 kg (packaged) 0.98 lbs (packaged) |
| Height added to the 8-Series and A20-Nexus rig | 1.1 cm added height 0.42 in added height |
| A20-QuickDock kit includes | Mounting plate with detachable Quick Release mechanism and multi-pin connector. 2 mm and 1/16Ó allen keys. Four 1/16Ó allen screws for securing the mounting plate to the bottom of the A20-Nexus. Three long and two short mounting pegs for securing the A20-Nexus to the top of the 8-Series. Additional mounting hardware for Scorpio. |
The A20-QuickDock enables the A20-Nexus to be docked to 833, 888, or Scorpio mixer/recorders. The bottom panel incorporates a multi-pin port that provides convenient power, audio, and timecode connections with no additional cables. This accessory allows the A20-Nexus to connect and disconnect from the 8-Series in seconds with no tools, allowing for easy remote mounting when desired.
Considerations when docking an A20-Nexus on an 8-Series mixer/recorder:
- Power must be provided by the 8-Series - A20-Nexus power inputs (TA4 and PoE+) are disabled.
- Most A20-Nexus rear panel connectors are disabled apart from the antenna connectors, the USB-A port and the Ethernet ports.
- When docked to an 8-Series, the A20-Nexus Ethernet ports can only be used for control, not Dante.
The A20-QuickDock kit includes:
- Mounting plate with detachable Quick Release mechanism and multi-pin connector.
- 2 mm and 1/16" allen keys.
- Four 1/16" allen screws for securing the mounting plate to the bottom of the A20-Nexus.
- Three long and two short mounting pegs for securing the A20-Nexus to the top of the 8-Series.
- Additional mounting hardware for Scorpio.
| H x W x D | 2.1 cm x 20.6 cm x 15.1 cm 0.81 in x 8.11 in 5.93 in |
| Weight | 0.23 kg (unpackaged) 0.50 lbs (unpackaged) 0.44 kg (packaged) 0.98 lbs (packaged) |
| Height added to the 8-Series and A20-Nexus rig | 1.1 cm added height 0.42 in added height |
| A20-QuickDock kit includes | Mounting plate with detachable Quick Release mechanism and multi-pin connector. 2 mm and 1/16Ó allen keys. Four 1/16Ó allen screws for securing the mounting plate to the bottom of the A20-Nexus. Three long and two short mounting pegs for securing the A20-Nexus to the top of the 8-Series. Additional mounting hardware for Scorpio. |
