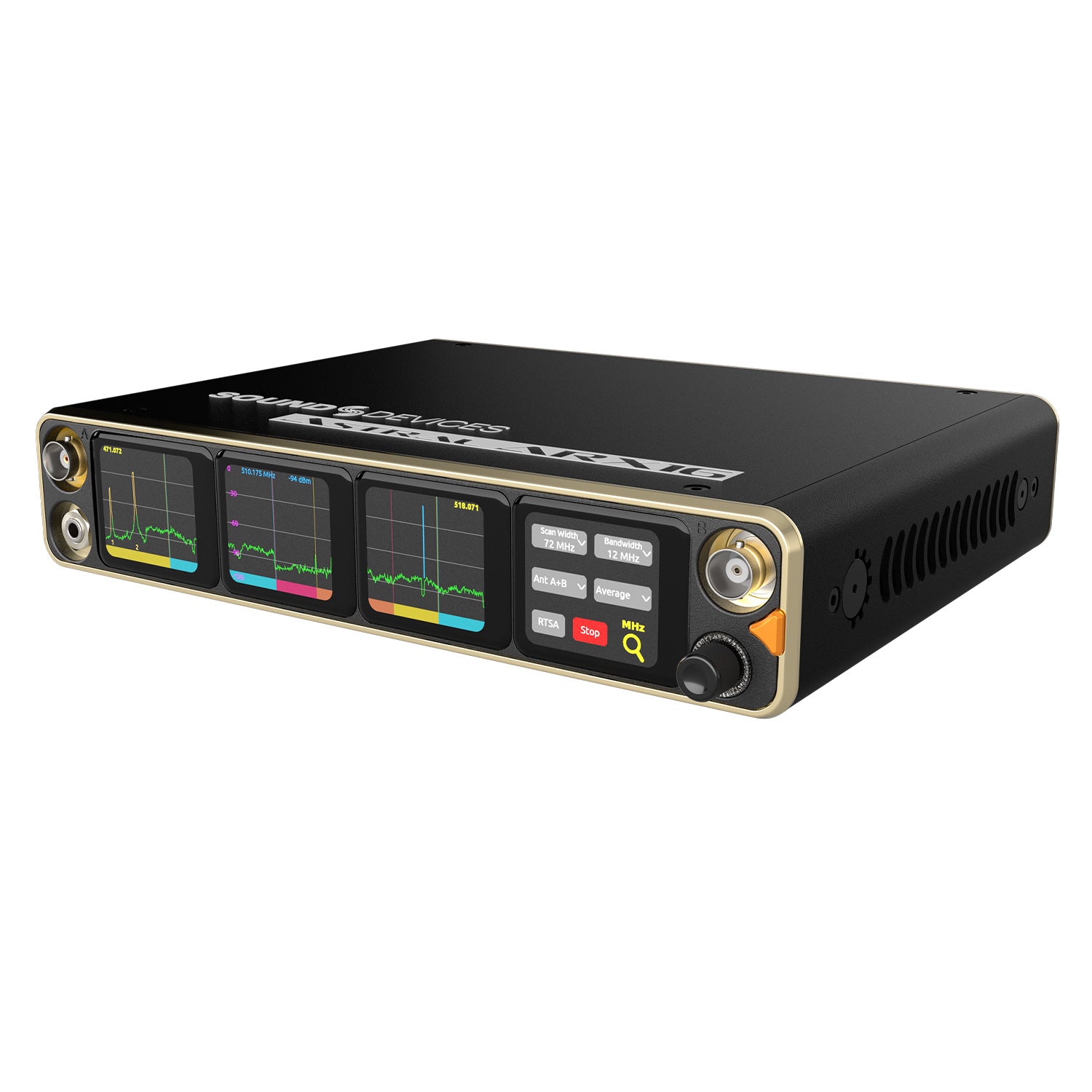

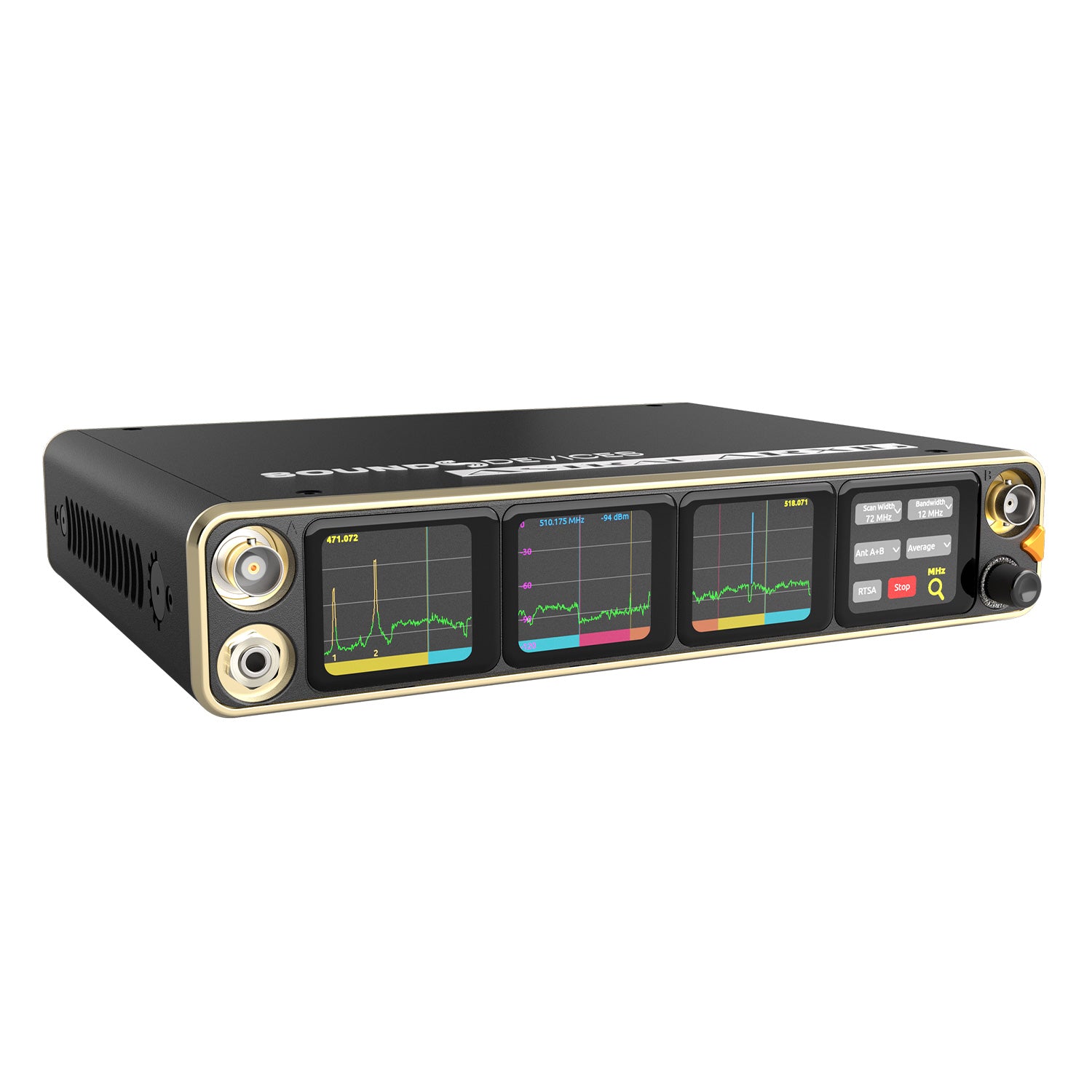

Sound Devices Astral ARX16 - Expandable 8-Channel True Diversity Wireless Receiver
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Sound Devices Astral ARX16 - Expandable 8-Channel True Diversity Wireless Receiver
Sale price$15,125.00
Description
Meet the half-rack receiver with an entire rack's worth of features. The next-generation Astral ARX16 is expandable from 8 channels up to 12 and 16 with additional software and features forward-thinking technologies like SpectraBand, the powerful NexLink remote-control link, real time spectrum analysis, and more. With multiple options for audio outputs, powering, and remote control, the Astral ARX16 can seamlessly adapt to your workflow, both now and in the future.
Features:
- 8-channel ultra-high-performance, true-diversity receivers in a _ rack size (8.0" x 6.6" x 1.6").
- Expandable to 12 or 16 channels via Astral ARX16 4-Channel Expansion License. Licenses are $2500 USD, or $250 USD for a 7-day rental, or $850 USD for a 30-day rental.
- 169 MHz Ð 1525 MHz tuning range via SpectraBand Technology.
- NexLink: an advanced long-distance modulation that allows for remote control of wireless transmitters from the receiver.
- Dante audio-over-IP of RF receiver audio.
- Flexible powering: via PoE+, DC input, 8-Series, or AC mains (with optional adapter).
- Web App control from browser on any computer, smartphone or tablet.
- Full remote operation capability: Power via PoE, audio via Dante, control via Web App.

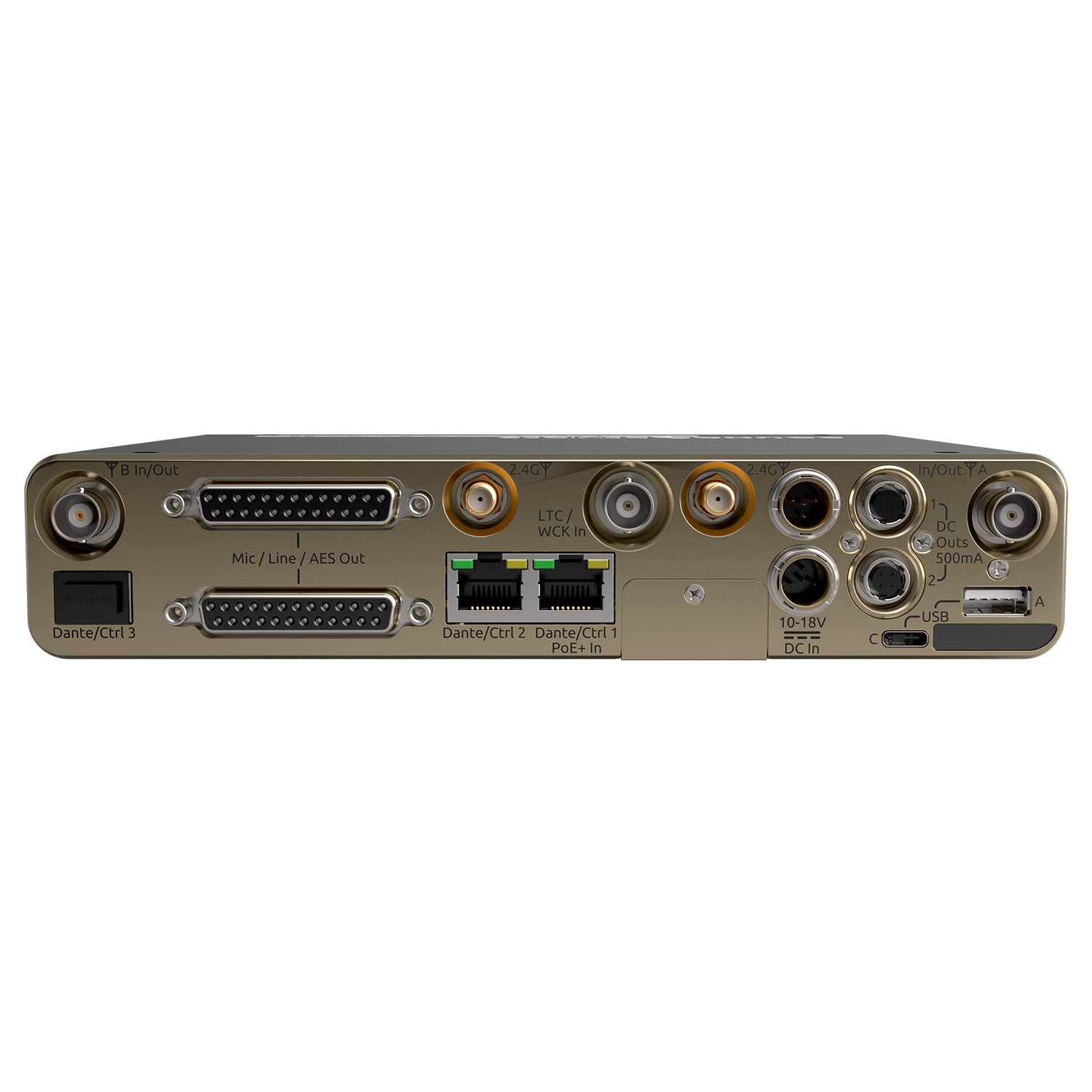

- Dual DB-25 connectors for 16 channels of mic, line, or AES outputs
- Convert 16 channels of Dante to analog and/or AES on DB25 connectors, for sending IFB, voice-of-god, and more from mixer to set.

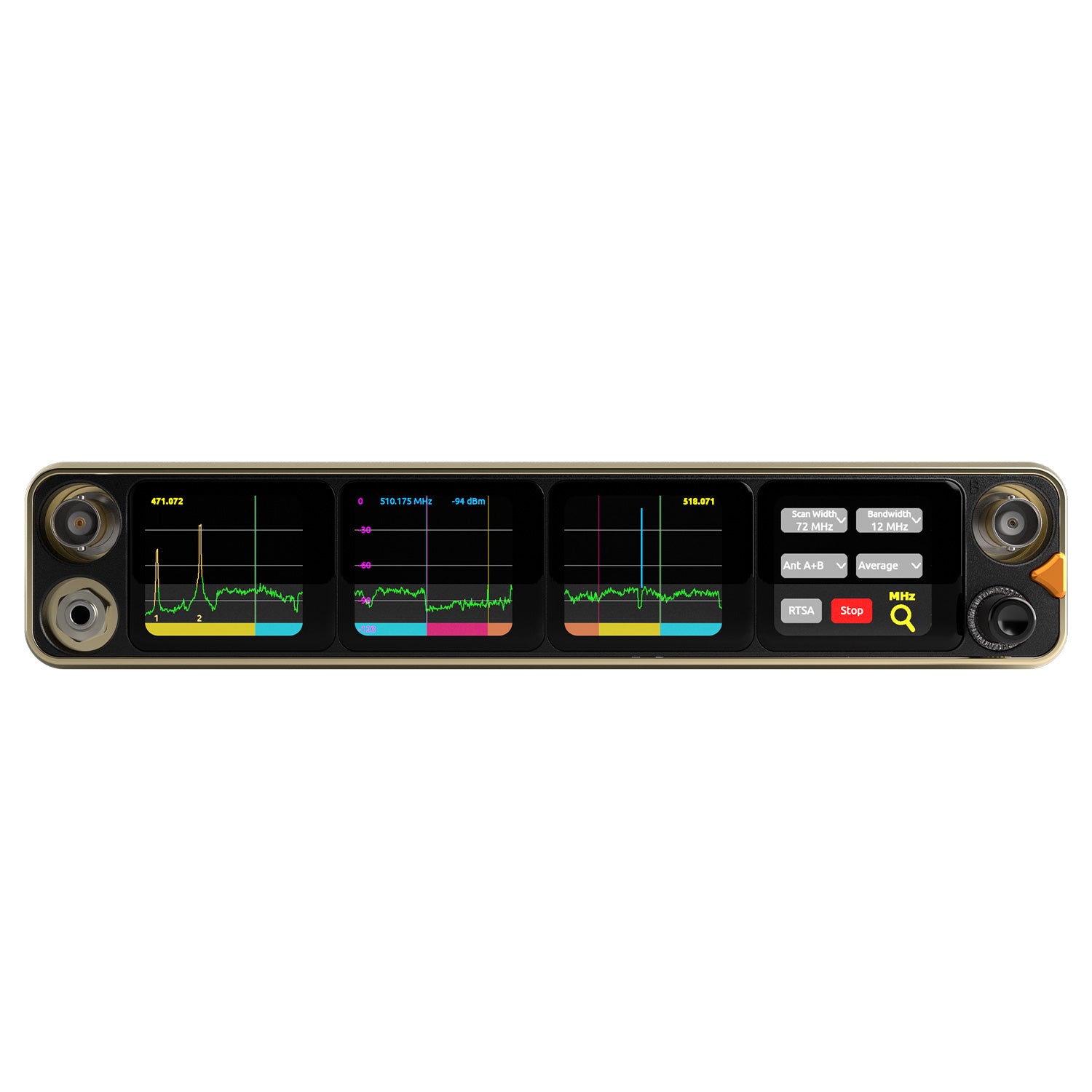

- Wide, 6.2" color OLED array with touch for control and monitoring.
- Integrated Real Time Spectrum Analyzer (RTSA) and scanning for intuitive frequency coordination.
- Optical Fiber Network option via SFP slot. SFP accepts a wide variety of modular network transceivers.
- Astral-QuickDock allows docking and undocking in seconds from 8-Series mixer-recorders with no tools.
- The AutoAssign_function automatically scans the current tuning band for clean frequencies and assigns them to multiple channels. The clean frequencies are automatically pushed to NexLinked_transmitters.
- Modular design: RF section (Astral ARX16) can be disconnected and remoted from 8-Series, as opposed to less-flexible integrated RF/Mixer/Recorder solutions.
- All NexLink control is handled by Astral ARX16 and/or its Web App instead of the 8-Series for maximum flexibility.
- Full remote power-down: Astral TX, HH, and Mini transmitters can be fully powered down via NexLink for excellent battery life. This alleviates the need for remote auto-RF-Power adjustment schemes. User is in full control of RF power settings.
- Supports GainForward Architecture: No gain setting on the Astral transmitters. Adjust gain at the receiver or mixer.
- 100% digital long-range modulation delivers the longest transmission distance of any system on the market._
- Excellent audio quality, full 10 Hz Ð 20 kHz audio bandwidth.
- RF SAW filters for excellent rejection of interference from nearby IFB or camera hop transmitters.
- BNC timecode input for auto timecode sync of transmitters over NexLink.
- On-the-fly audio output routing changes directly from the Astral HH and Astral TX. Ideal for talkback, guitar tuning etc.ÊÊ
- Wireless transmitter pairing to Astral receivers in addition to pairing via USB cableÊ
- Ad-hoc handoff of transmitters' NexLink control between Astral receivers; ideal for large reality showsÊ
- Astral ARX16 digital audio outputs increased (Dante) to 32 channelsÊ
- Flexible tone routing matrix.
| RF | |
| Tuning | 470 to 1525 MHz (1055 MHz switching bandwidth) 25 kHz steps SpectraBand Technology for maximum rejection of out-of-band signals Available frequencies depend on country of operation |
| Modulation | Proprietary, 100% digital RF modulation Standard or Long Range, selectable per channel |
| Spurious Rejection | >100 dB typical |
| Cascade output | 50 ohm 3.5 dB Insertion Loss from front BNC through rear BNC: It is recommended to use an external powered antenna to overcome the 3 dB splitting loss in the Nexus so that the receivers maintain excellent range. Wideband power split, pre-LNA |
| RF Bias output | 12V, 200 mA each BNC Smart antenna support, Wisycom-compatible |
| Audio | |
| Latency | Standard modulation = 2 ms, analog or digital outputs Long Range modulation = 3.9 ms, analog or digital outputs |
| Audio Frequency Response | 10 HzÐ20 kHz, +/- 1 dB relative to 1 kHz |
| Dynamic Range | > 130 dB with A20-Mini as transmitter |
| Output Level | Line-level: +20 dBu for 0 dBFS Mic-level: -20 dBu for 0 dBFS |
| Audio Output Sample Rate | 44.1, 48, or 96 kHz |
| Digital Audio Output | AES3 balanced connection, 110 ohm output impedance |
| Audio-Over-IP | Dante, 44.1 or 48 kHz sample rate |
| Network | |
| Dante Audio-Over-IP | 16 input/output channels |
| Control | Web-based control and monitoring of all Nexus settings |
| Connections | 2x RJ45 ports: For Dante and/or Control. Port 1 supports powering from PoE+ 1x SFP: For Dante and/or Control. Compatible with Small Form-factor Pluggable (SFP) network transceivers |
| Powering | |
| Sources | DC Input: dual, redundant (highest voltage takes precedence) PoE+: 802.3at, 30W needed (standard 15W PoE 802.3af will not work) 8-Series (through unit-to-unit connector when docked) AC mains adapter (sold separately) |
| Levels | DC input, 10 to 18V in, 3A minimum at 6.5 VDC 11 W idle, default configuration Extra power passed through for USB power, active antenna power, and DC output power USB-A: 5V, 500 mA output; supports keyboards, thumb drives, A20-Mini transmitters, and USB hubs |
| Environmental | |
| Operating Temperature Range | -10 ¡C to +55 ¡C |
| Dimensions (H x W x D) | 4.0 cm x 20.3 cm x 16.7 cm (1.6 in x 8.0 in 6.6 in) |
| Weight | 1.27 kg (unpackaged) 2.8 lbs (unpackaged) |
| WhatÔs in the box | A20-Nexus 2 x A20-2.4G antenna + mounts 2 x A20-Monarch antenna 2 x adjustable clamp and articulating arms |
