Description

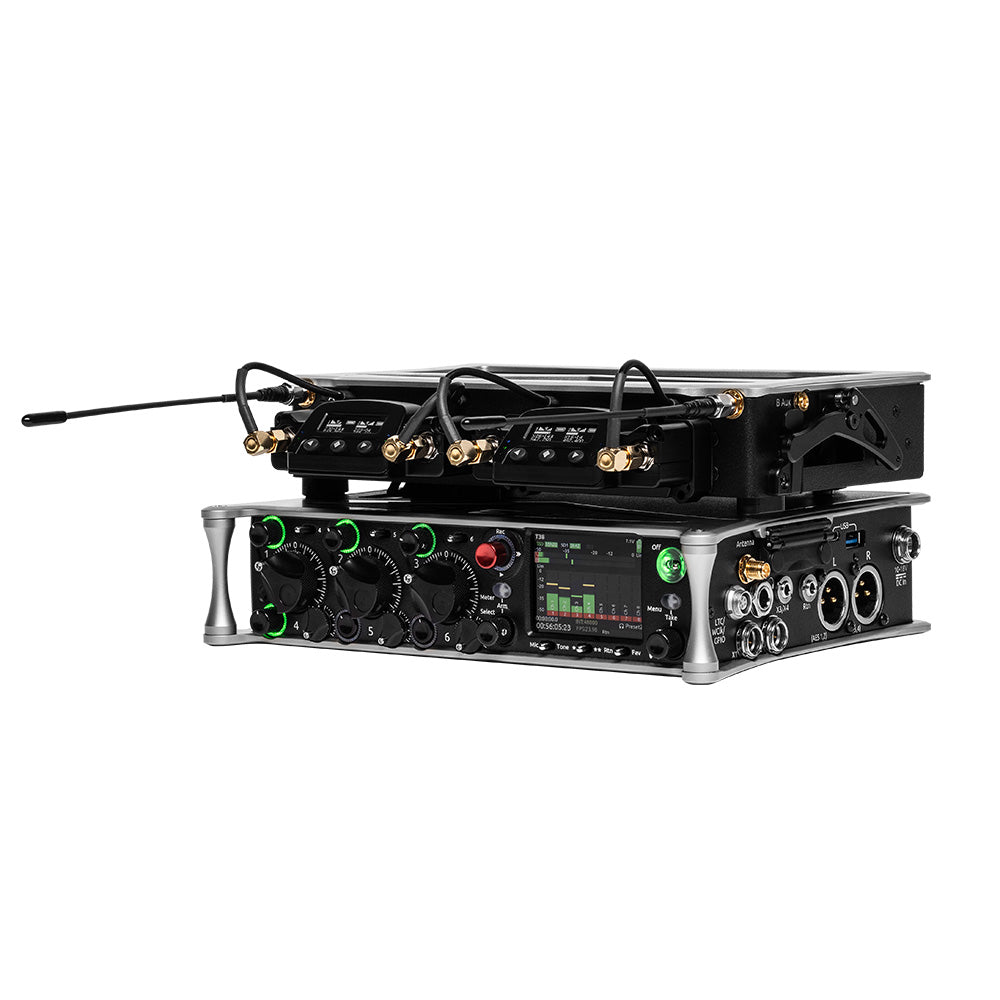

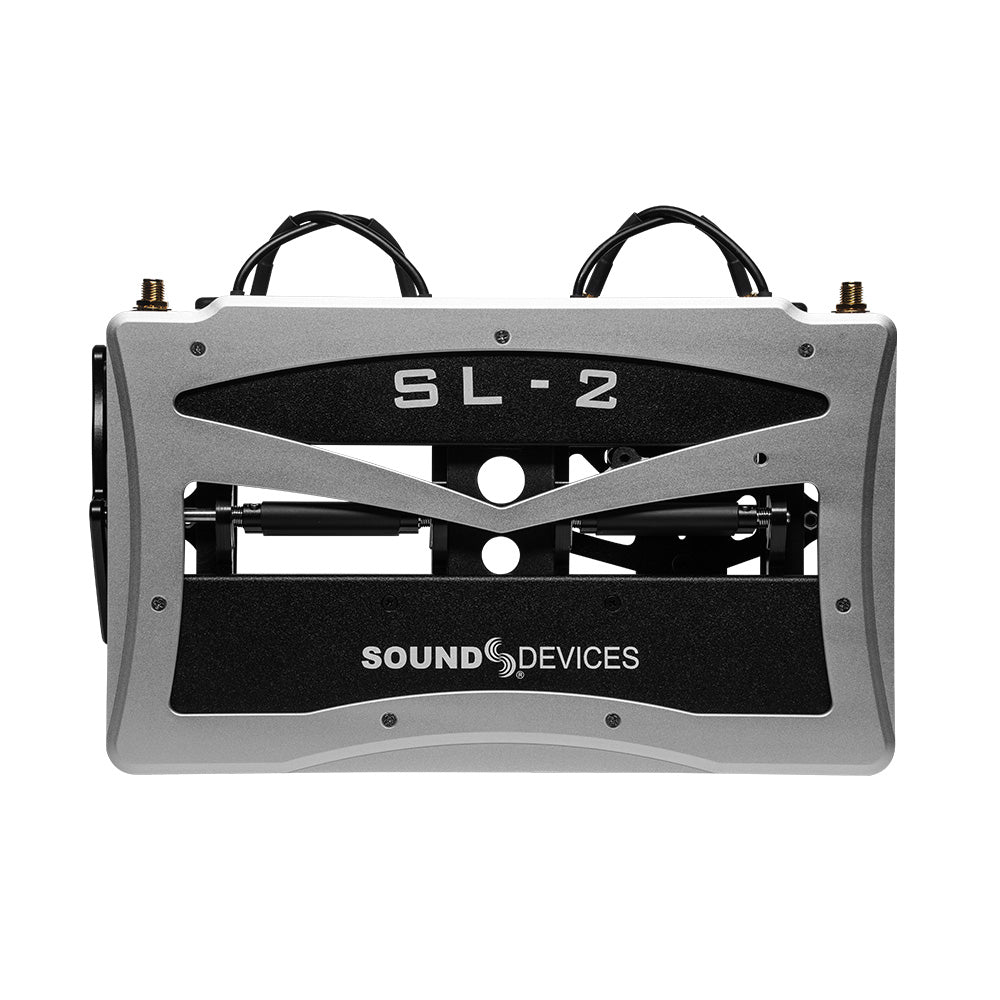

Streamline your bag with the SL-2 Dual SuperSlot Wireless Module. This two slot-in wireless receiver integration system easily mounts to the top panel of any 8-Series mixer-recorder. UniSlot and SuperSlot™ wireless receivers from a variety of manufacturers are accepted, including Audio Ltd, Lectrosonics, Wisycom, and Sennheiser. The SuperSlot protocol supports up to four channels of wireless audio per slot.

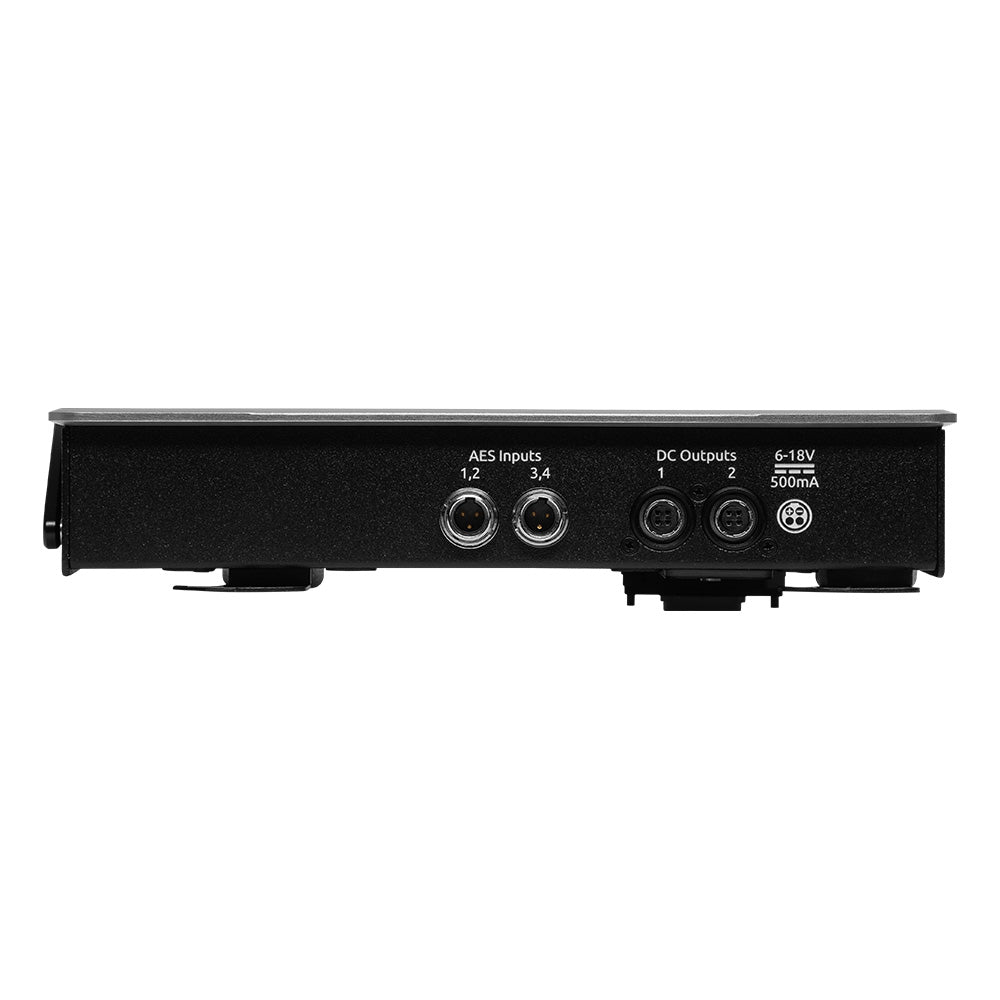

An 8-Series mixer-recorder supplies power to the SL-2 and slotted-in receivers – no external DC connector needed. Analog or digital audio is sent from the receivers into the mixer-recorder via the expansion port, reducing messy cabling for power and audio connectivity. The SL-2 offers antenna distribution to slot-in receivers, spreading out the placement of antennas for better RF performance. The rear panel of the SL-2 is equipped with two TA3 connectors for an additional four inputs of AES3 audio and two 4-pin Hirose DC Outputs, each supplying up to 500 mA for powering additional equipment.
Features:
- Compatible with the 833, 888, and the Scorpio.

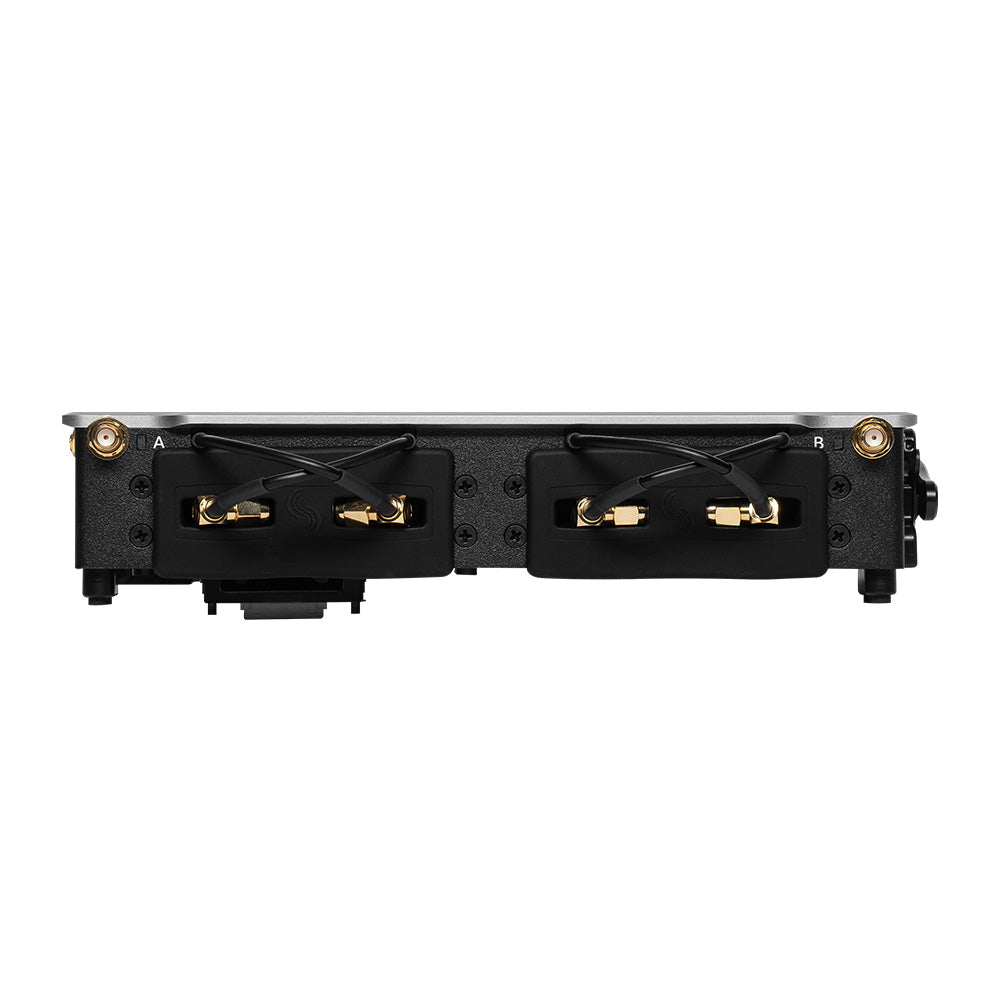

- Accepts two UniSlot or SuperSlot wireless receivers from Audio Ltd, Lectrosonics, Sennheiser, and Wisycom.
- Built-in antenna distribution with antenna powering for active antennas or boosters.
- Supports remote control of third party smart antennas.

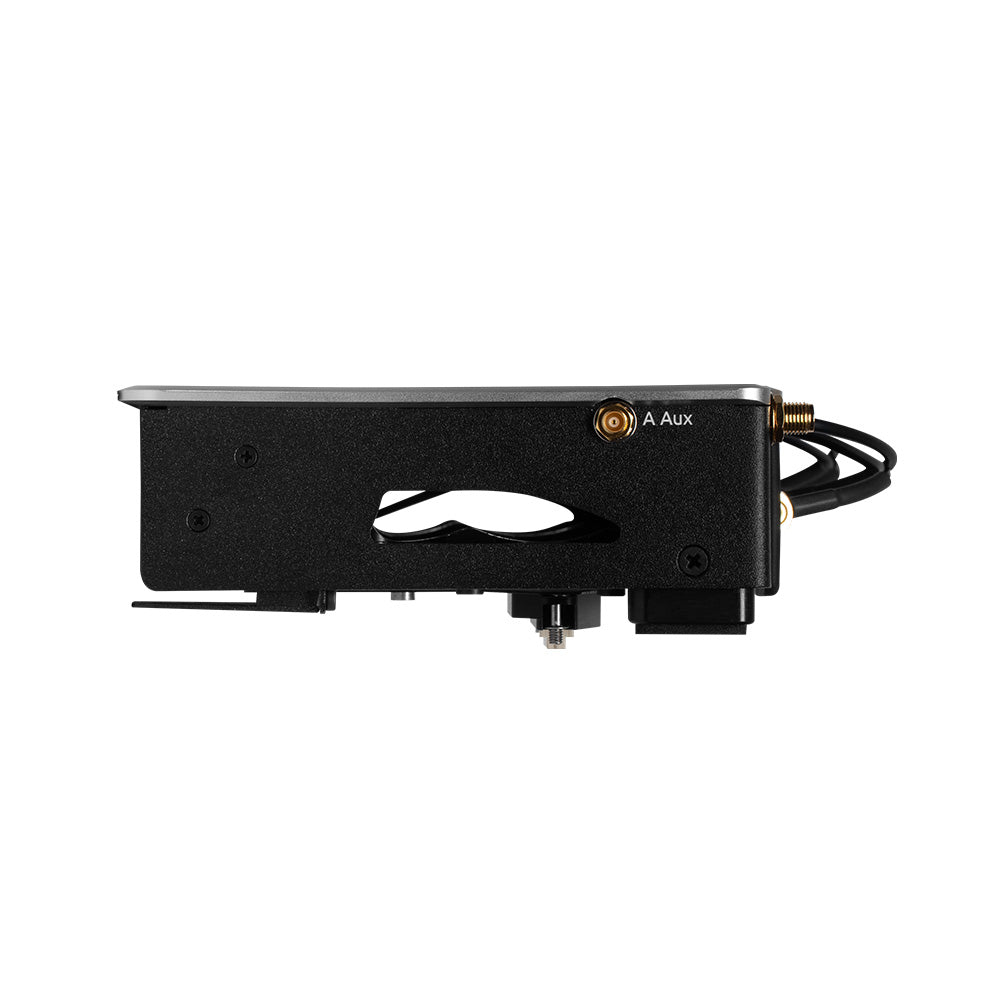

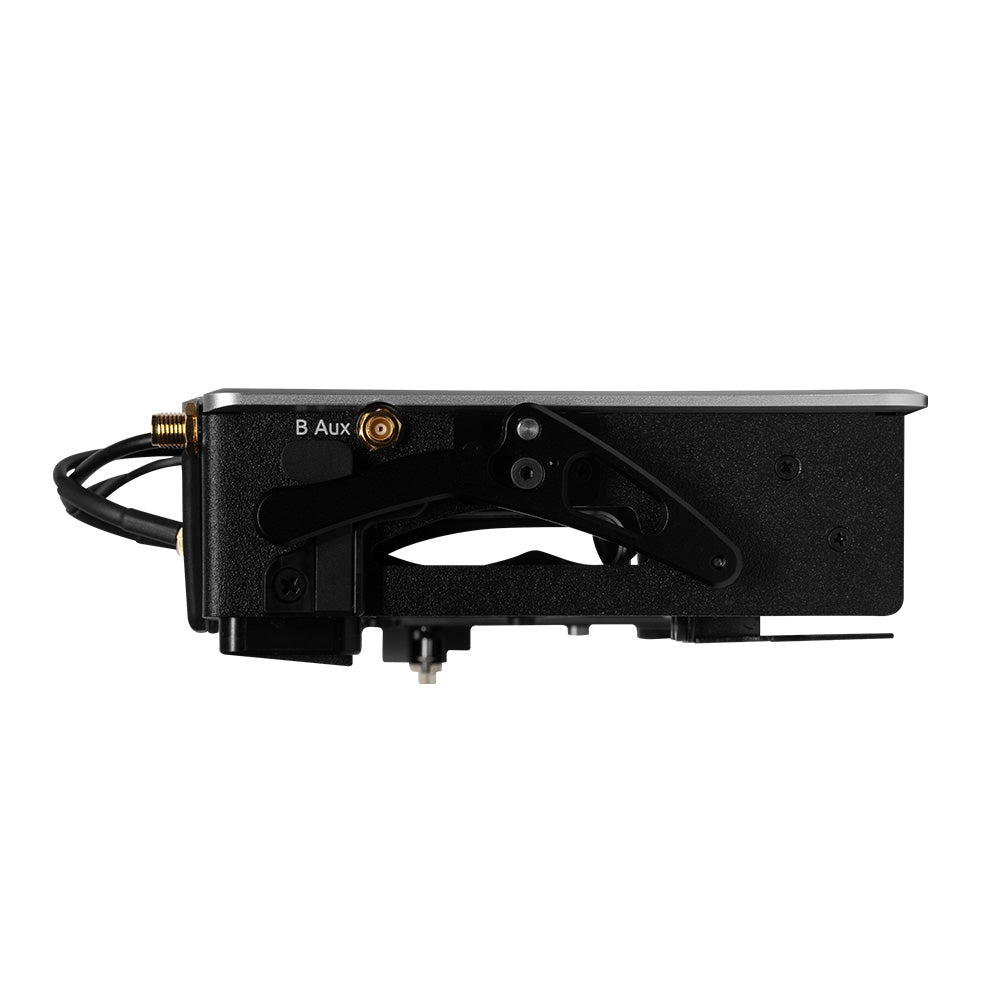

- Two auxiliary MCX antenna ports for connecting other receivers or RF distribution.
- Two TA3 AES3 inputs for an additional 4 channels of digital audio.
- Two DC Outputs via Hirose 4-pin connectors, each supplying up to 500 mA.
- Powers via an 8-Series mixer-recorder.
- Accepts either analog or digital audio from slot-in receivers.
- Ability to set and monitor multiple functions of a SuperSlot-compatible receiver from the 8-Series mixer-recorder.
- RF Scan with visual representation of the RF spectrum.
- Monitor transmitter battery, receiver audio, and RF levels.
- Rugged, lightweight, and compact design.

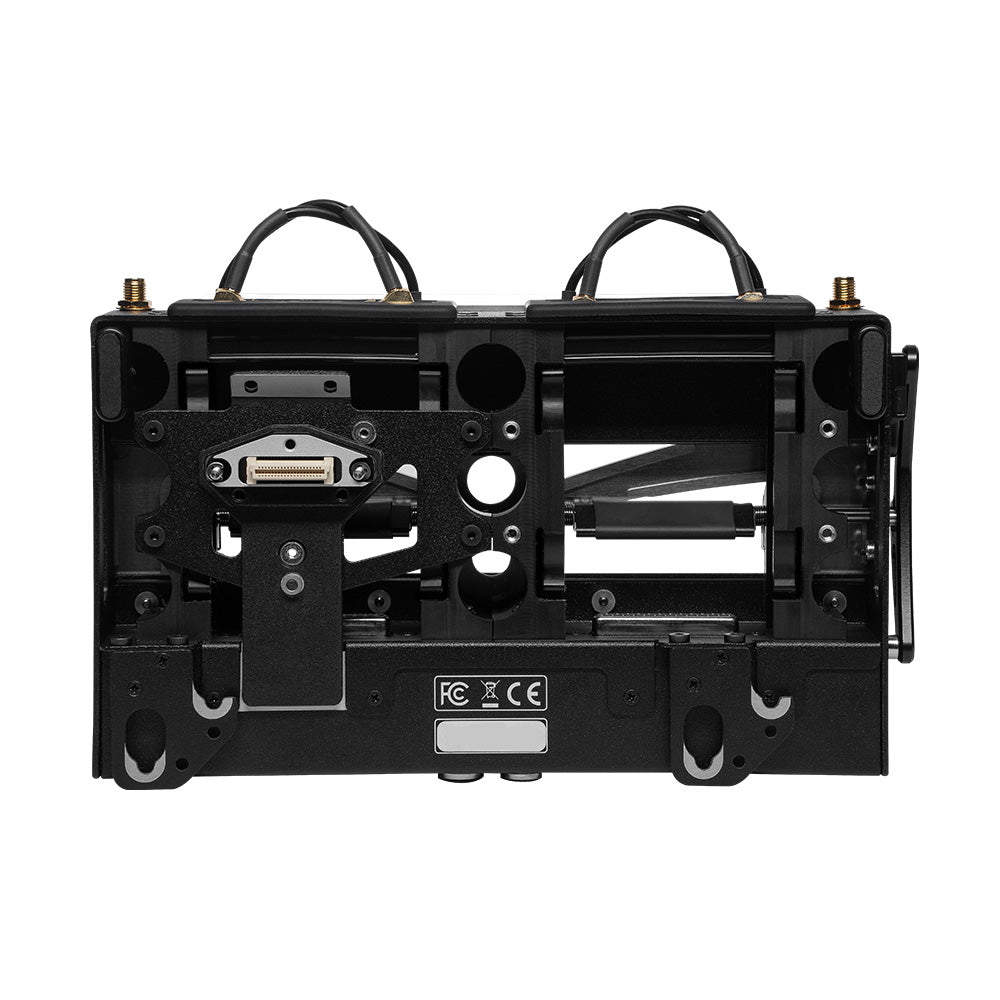

- Mounts to the top of any 8-Series mixer-recorder.
- Same width as the 833.
Powering | All power supplied by host 8-series machine |
Antenna Impedance | 50 ohms |
Antenna Powering | 12V at 200 mA, menu selectable on/off Serial remote control, Wisycom-compatible for ADFA and LFA powered antenna etc. |
Antenna Pre-select Filters | Menu selectable: Wideband/bypass (low pass filter, 1.7 GHz upper cut-off) 470-614 MHz 542-694 MHz 606-770 MHz 770-960 MHz |
Input RF Attenuators | 0 to -1 8dB, in 6 dB steps, menu selectable |
RF Outputs | Auxiliary Antenna Outputs for additional receiver |
DC Outputs 1-2 | 500 mA max (each), 6-18 VDC passed through from host 8-series machine, depending on power source. Hirose 4-pin connector: pin 4 = +, pin 1 = ground. |
Aes Inputs | Two pairs for a total of four channels, AES-3 balanced, 110 ohms, TA-3 connectors |
Dimensions H x W x D |
4.5 cm x 21.3 cm x 13.1 cm (1.8 in x 8.4 in 5.1 in) |
Weight | 1.35 lbs (unpackaged) 0.61 kg (unpackaged) |
