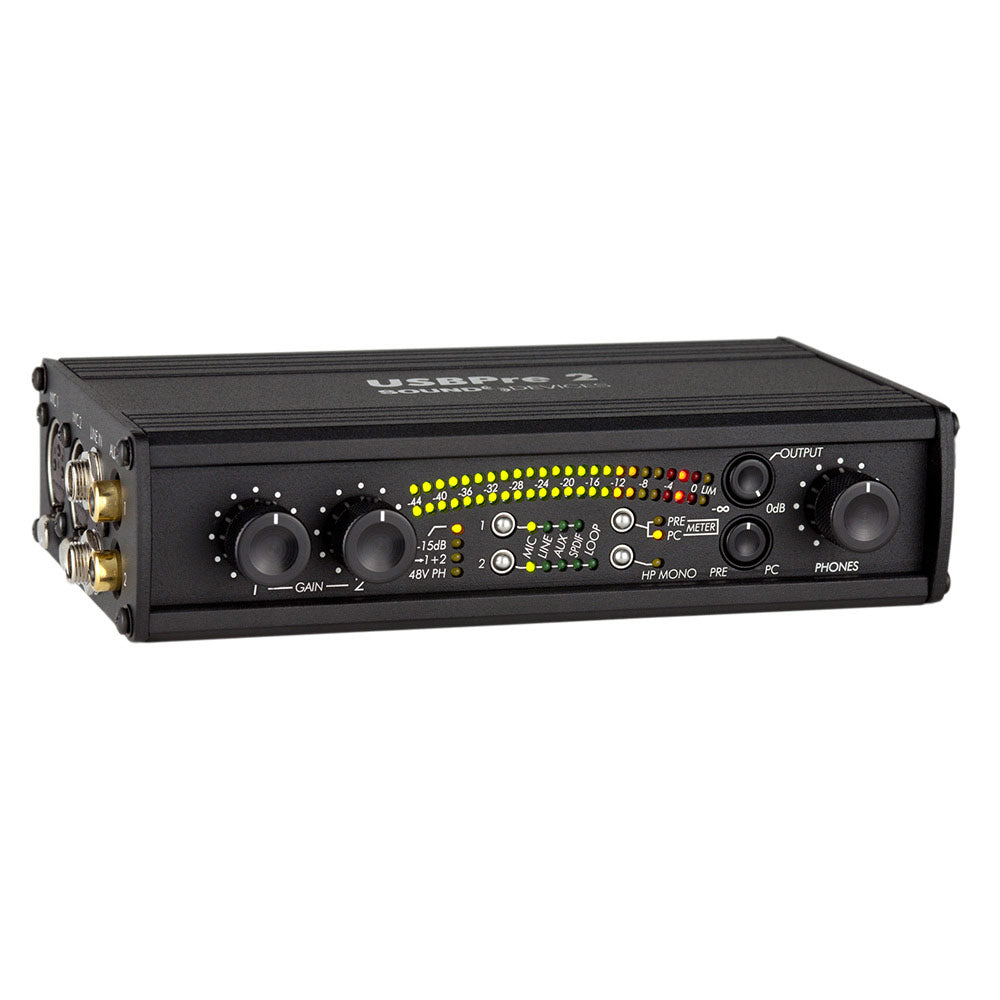

Sound Devices USBPre 2 USB Portable High Resolution Stereo Audio Interface

  • Dale #:

    SODE-3782
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The Sound Devices USBPre® 2 is a high-resolution, portable hardware interface for Mac- and Windows-based digital audio. The USBPre 2 is the industry's highest performance and most flexible portable interface, connecting professional microphones, line-level sources, consumer audio electronics, and... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The Sound Devices USBPre® 2 is a high-resolution, portable hardware interface for Mac- and Windows-based digital audio. The USBPre 2 is the industry's highest performance and most flexible portable interface, connecting professional microphones, line-level sources, consumer audio electronics, and S/PDIF digital sources with Mac OS and Windows computers via USB.

Features:

  • Extended bandwidth, low-noise microphone preamplifiers with 48 V phantom, limiters, high-pass filters, and 15 dB pad.
  • Dynamic range greater than 114 dB (in 24-bit operation).
  • Flat 10 Hz to 40 kHz (@96 kHz SR) audio bandwidth with very low distortion characteristics.
  • Each input individually selectable between microphone, line, and aux level signals (both channels selected simultaneously for S/PDIF connections).
  • Precision, 23-segment, multicolor LED peak/VU meter, selectable between input and output sources.
  • High-output headphone amplifier can drive a wide range of headphones.
  • Balanced outputs on XLR connectors with dedicated level control can be used to drive line- or mic-level inputs.
  • Mix control enables zero-delay monitoring of source audio, computer audio, or a mix of both source and computer audio for multitrack recording or computer telephony.
  • Phono (RCA) jacks connect Aux Output to external loudspeakers or preamplifiers.
  • Bus powering via USB for convenient, single-cable connection to the computer.
  • In Stand-Alone mode the USBPre 2 operates as a microphone preamplifier and analog-to-digital converter.
  • Hardware loop-through for test & measurement to send computer audio directly back to an input.
  • High-strength extruded aluminum chassis.
  • Mac® OS X 10.4+, Windows®XP/Vista/7, and Linux, class-compliant audio device.
  • Additional features controlled by hardware DIP switches on the back panel; no software-only features and no control panel.

Precision Microphone Preamplifiers
USBPre 2 includes two discrete-transistor microphone preamps with 24-bit converters and sampling rates up to 192 kHz. These preamplifiers provide the highest performance in any portable interface. Their topology is shared with Sound Devices award-winning 744T Digital Audio Recorder. Peak limiters, high-pass filters, and a 15 dB pad provide overload protection. All analog-to-digital and digital-to-analog conversion is performed by the USBPre 2 for superior audio performance.

Computer Connectivity
USBPre 2 is a class-compliant audio device. This allows for simple plug-and-play connection to computers running Mac OS, Windows, and Linux (see note to the right on Class-Compliant Drivers). There are no drivers to install for the USBPre 2 and there are no software-only features. All additional controls and settings are available on back panel DIP switches. The USB port also provides power to the unit, both when connected as an audio interface and when used in Stand-Alone operation.

Output Connectivity Flexibility

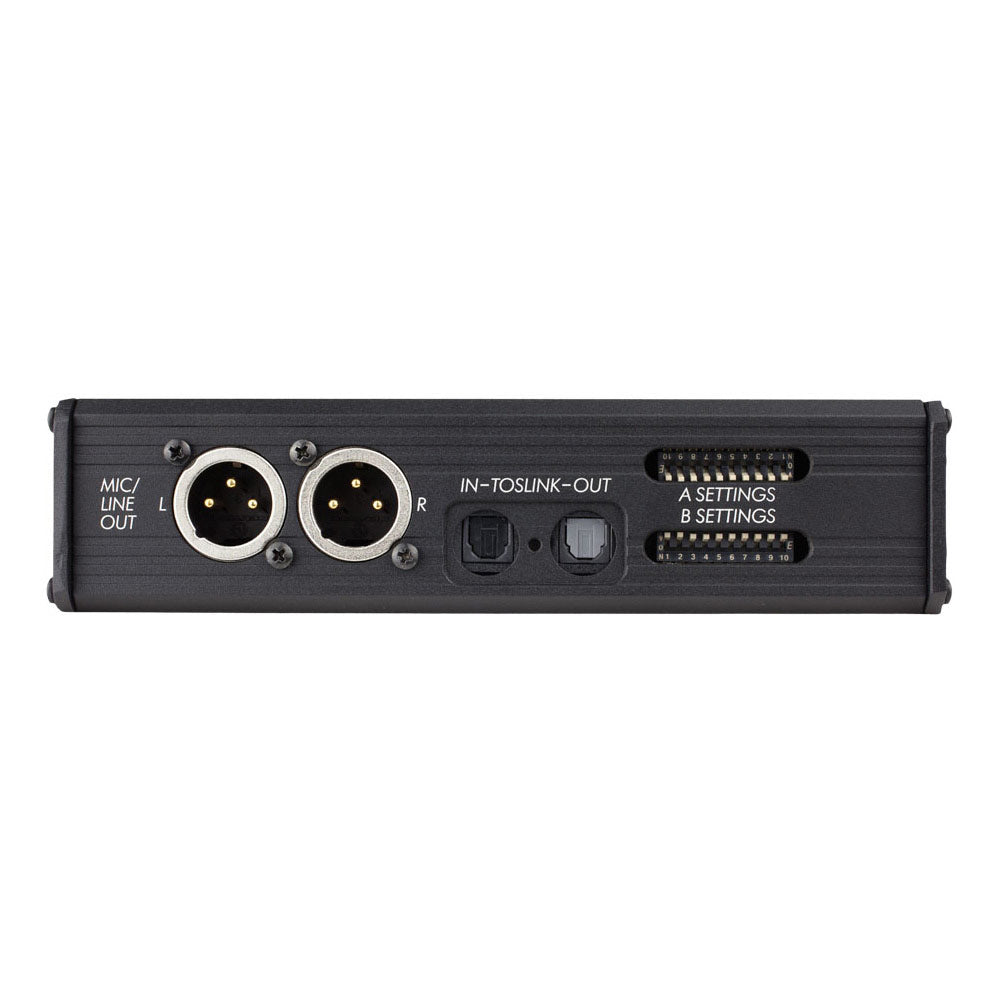

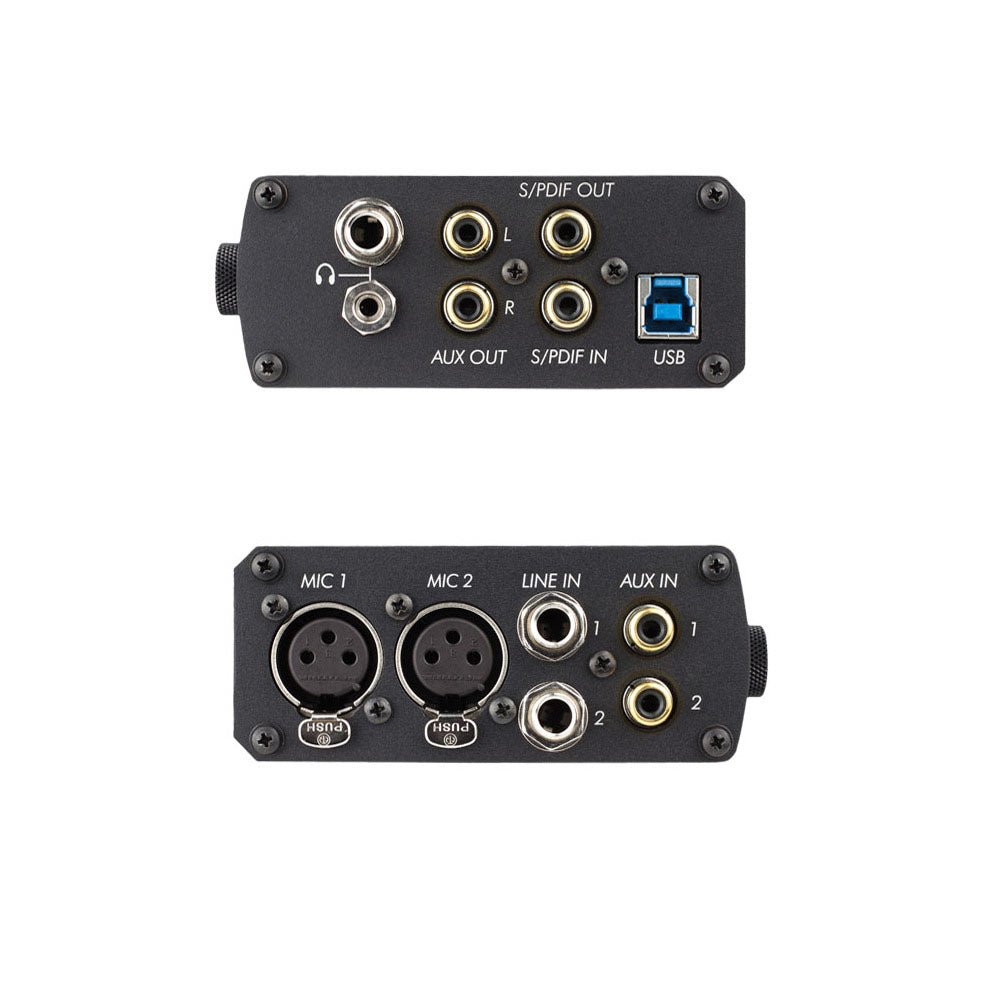

To interconnect with sound systems big and small, the USBPre 2 includes numerous output connection types, including balanced mic- or line-level on XLR, unbalanced consumer line-level on RCA, S/PDIF coaxial (RCA) and optical (Toslink). The outputs have their own, dedicated front-panel level control. Use the balanced line-level signals to connect to powered loudspeakers. Use the optical S/PDIF to connect to hi-fi systems. Use the coaxial S/PDIF output in Stand-Alone mode for a portable microphone preamplifer with digital output for any production application.

Informative Metering
Accurate signal level metering is essential for any sound engineer. The USBPre 2 includes a 23-segment, multicolor LED meter for precise level indication. The meter is switchable between input signal metering and playback signal metering. The meter indicates both VU and peak (PPM) ballistics.

Stand-Alone Operation
The USBPre 2 can be used in Stand-Alone mode where it operates as a high-quality, portable microphone preamplifier and analog-to-digital converter. Digital signals connected to the USBPre 2 are converted to analog and available at the headphone, XLR, and RCA outputs. Stand-Alone operation requires the unit to be connected to a USB power source. Stand-Alone mode is a great option when an additional microphone preamplifer, A-D converter, or D-A converter is required.

Field-Tested Reliability
Like all of Sound Devices products, the USBPre 2 is designed to stand up to the most demanding environments. Its extruded aluminum chassis and aluminum panels, machined knobs, metal connectors, and laser-etched nomenclature are designed to hold up to years of abuse.

Class Compliant Drivers
As a class-compliant audio device, the USBPre 2 is limited to a maximum data rate of 24-bit, 48 kHz in Windows, Linux, and Mac OS versions 10.4 to 10.5.7. Mac OS 10.5.8 and higher support the audio class 2.0 device and can address the USBPre 2 up to 24-bit, 192 kHz.

More +

Product Specs

Frequency Response (reference 1 kHz) 10 Hz - 20 kHz, ±0.5 dB (any input to PC recording)
10 Hz - 20 kHz, +/- 1.0 dB (PC source to PC audio out)
E.I.N. (mic inputs) -127 dBu min. (10 Hz - 22 kHz bandwidth, 150 ohm source, gain control at 50% or more, 15 dB pad out)
Input Impedance Mic: 4k ohm, active-balanced
Mic (15 dB pad): 4k ohm, active-balanced
Line: 60k ohm, active-balanced
Aux: 80k ohm, active-balanced
Output Impedance Balanced XLR (Line level): 500 ohms
Balanced XLR (Mic level): 5 ohms
Aux: 2k ohms
S/PDIF Digital 24 or 16 bit input
Sample Rates / Bit Depths Recording: 8, 16, or 24-bit at 8, 16, 32, 44.1, 48, 96, or 192 kHz
Playback: 24-bit at 8, 16, 32, 44.1, 48, 96, or 192 kHz
Master Clock Crystal based, low jitter
Metering 48 segments, 44 dB total range, peak ballistics. 0 dB on meter = 0 dB FS (0 dB referenced to full scale digital)
Phantom Power 48 V through 6.8k W resistors, each mic input will supply 10 mA
Powering SB bus powered, soft-start meets USB hot-plugging power requirements (5 V, 100 mA max current drawn during enumeration) 5 V, 500 mA max current from USB port (USBPre 2 will not function if connected through a passive USB connection or hub)
THD+N (22 Hz - 22 kHz measurement bandwidth) 0.05% max. (any input to PC recording, gain control at min., input driven to -6 dB FS)
0.009% max. (PC audio output, 0 dB FS output, 100 ohm load) 0.05% max. (headphone output, 2 V rms output, 600 ohm load)
Low Cut Filter Mic: 80 Hz, -3 dB, 12 dB per octave
Input Limiter Threshold Mic: -4 dBFS
Input Clipping Levels Mic: -10 dBu
Mic (15 dB pad): +4 dBu
Line: +28 dBu (19.45 V rms)
Aux: +9 dBu (2.18 V rms)
Input Sensitivity (typical, for 0 dB FS) Mic: -9 dBu min, -60 dBu max
Mic (15 dB pad): +6 dBu min, -58 dBu max
Line: +29 dBu min, +10 dBu max
Aux: +12 dBu min, -7 dBu max.font>
Output Clipping Levels (1% THD, PC-controlled output levels at max.) Balanced XLR: +18 dBu with 100k ohm load
Aux: +8 dBu (2.0 V rms) with 100k ohm load
Headphones: +11 dBu (2.75 V rms) with 600 ohm load
A/D Converter 24-bit resolution. 114 dB typical dynamic range (22 Hz - 22 kHz bandwidth, A-weighted)
D/A Converter 24-bit resolution. 112 dB typical dynamic range (22 Hz - 22 kHz bandwidth, A-weighted)
Dimensions (unpackaged) 4.3 cm x 18 cm x 10 cm (H x W x D)
1.7 in. x 7.25 in. x 4.25 in.
Weight 0.5 kg
1.13 lbs.
Certifications meets FCC Part 15 Class B, Complies with the requirements of European Directive 89/336/EEC
