Description

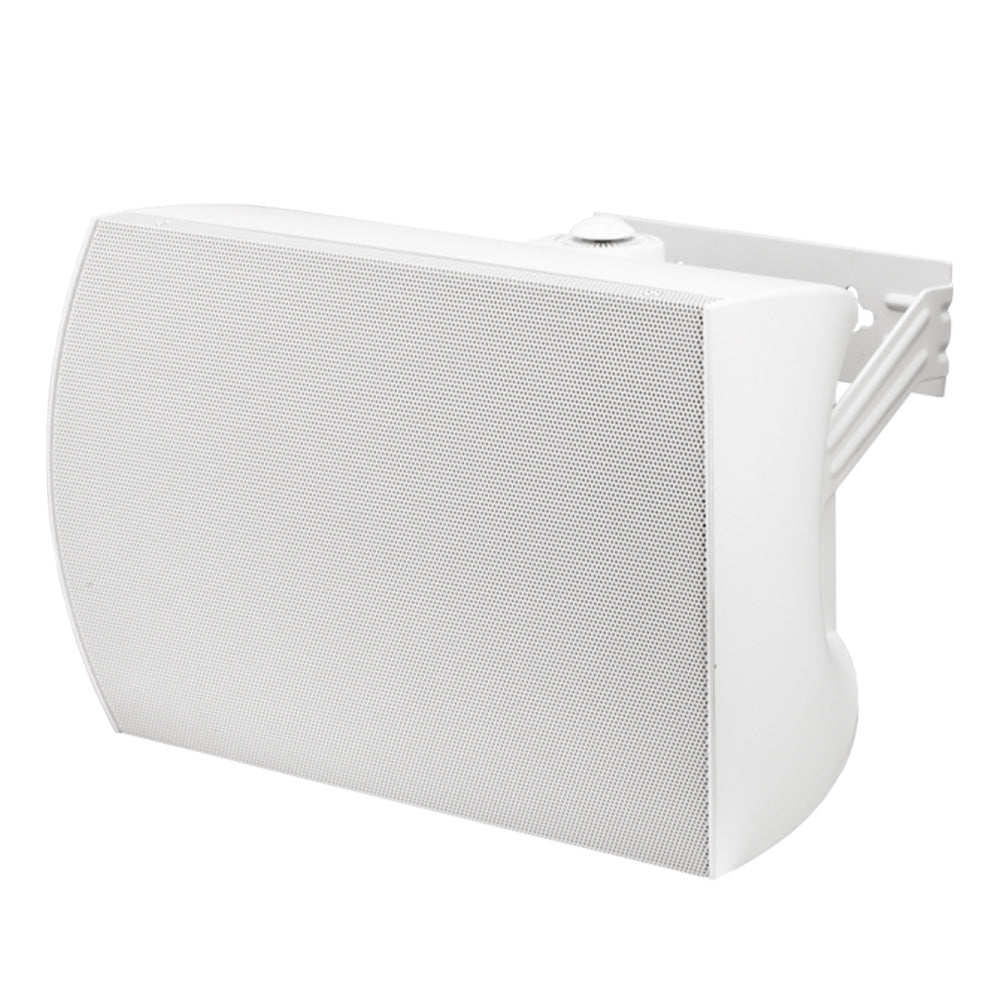

The SM82-EZ-II-WX is a cost-effective, highefficiency surface-mount loudspeaker for distributed or 8 ½ applications. The SM82-EZ-II-WX incorporates a dedicated 8Ó polypropylene woofer and an offset 1Ó soft dome tweeter with waveguide to deliver superb intelligibility for background to foreground music and messaging (up to 106 dB max. SPL). The SM82-EZ-II-WX uses a 64 W low-insertion loss transformer and a six-position tap switch with a transformer bypass position. Mounting for the SM82EZ-II-WX includes a pre-mountable U-bracket for fast, secure installation and easy division of labor.
Features:
- The SM82-EZ-II-WX is a cost-conscious, weatherresistant, surface-mount loudspeaker.
- BroadBeam Ringª technology for midrange clarity and ultra-wide off-axis performance up to 10 kHz for maximum coverage area per speaker.
- One 8Ó (203 mm) polypropylene woofer and one 1Ó (25.4 mm) soft dome tweeter.
- IP65 rated (when included port plug is installed) for high dust and water-resistance.
- 87 dB average sensitivity offers high output capabilities and reduced amplification costs.
- Easy access, six-position selectable tap switch for 25, 70.7, and 100 V applications with transformer bypass position.
- Aluminum grille with powder-coat finish.
- Vertical and horizontal mounting offer precision aiming for indoor and outdoor applications.
- UL 1480A approved.
- High-quality black or white paint finish.
- Included accessories: safety cable, wall-mount bracket, port plug, Allen wrench, and watertight strain-relief bushing.
Color | White |
UPC | 748252172471 |
Manufacturer | SoundTube |
Manufacturer's Category | SM-EZ Economical Surface Mount |
Height | 18.78 in / 477 mm |
Width/Diameter | 11.65 in / 295.9 mm |
Shipping Weight | 21 lbs / 9.5 kg |
Carton Height | 15 in / 381 mm |
Carton Length | 21 in / 533.4 mm |
Carton Width | 16.75 in / 425.45 mm |
Certifications | CE, IP65, RoHS, UL1480A |
Enclosure Properties | Polystyrene, Ported |
Included Accessories | Back Cover, Mounting Hardware, Port Plug, Safety Cable, Wire Gland |
Source Inputs | 4 Pin Ceramic Terminal |
IP Rating | IP65 |
TAA Compliant (Trade America) | No |
BAA Compliant (Made in USA) | No |
Coverage Angle (±6dB @ 2kHz) | 100Á |
Crossover Frequency | 2.5 kHz |
Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 5.0 and 8.0 |
Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 5.0dB and 8.0dB |
Frequency Response (± 10 dB) | 38 Hz - 22 kHz |
Frequency Response (± 3 dB) | 50 Hz - 20 kHz |
Grille Properties | Aluminum, Powder-Coated |
Low Pass Crossover | 12 dB per octave 2nd order |
Max. Continuous Power RMS | 64 W |
Max. Program Power | 128 W |
Minimum Impedance (_ Ohms) | 8 _ |
Mounting Depth | 6.63 in / 168.4 mm |
Network Type: High Pass | 12 dB per octave 2nd order |
Nominal Impedance (_ Ohms) | 8 _ |
Tweeter Driver | 1" Aluminum Dome |
Woofer Driver | 8" Polypropylene |
Sensitivity dB @ 1W/1M | 90 dB |
Sensitivity dB @ 2.83V/1M | 90 dB |
Tap Selector | Rotary Switch |
Transformer Options | 25 / 70.7 / 100 V, 8 Ohm direct |
Transformer Taps Max. Setting (25V/70.7V/100V) | 8W/64W/64W |
