Description

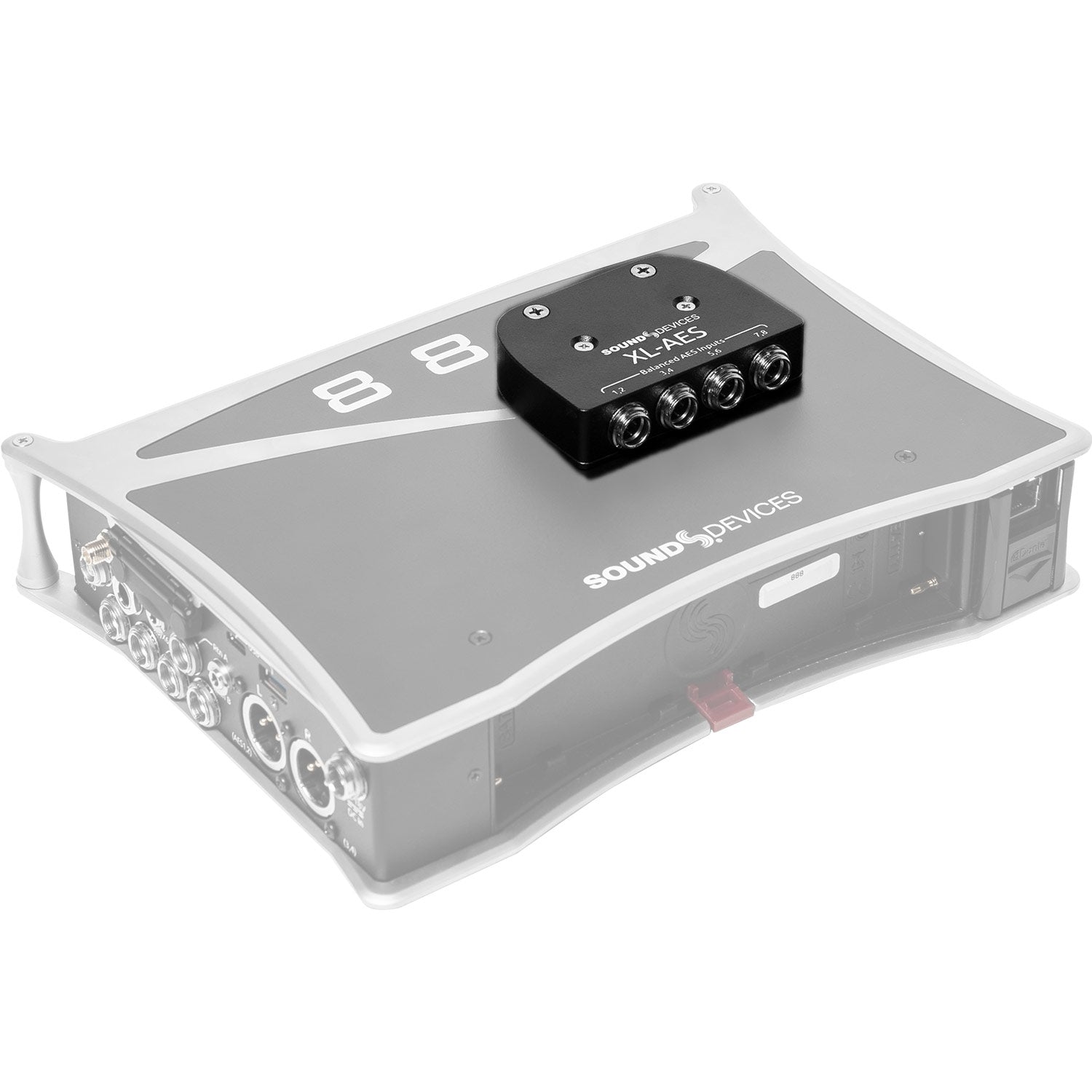

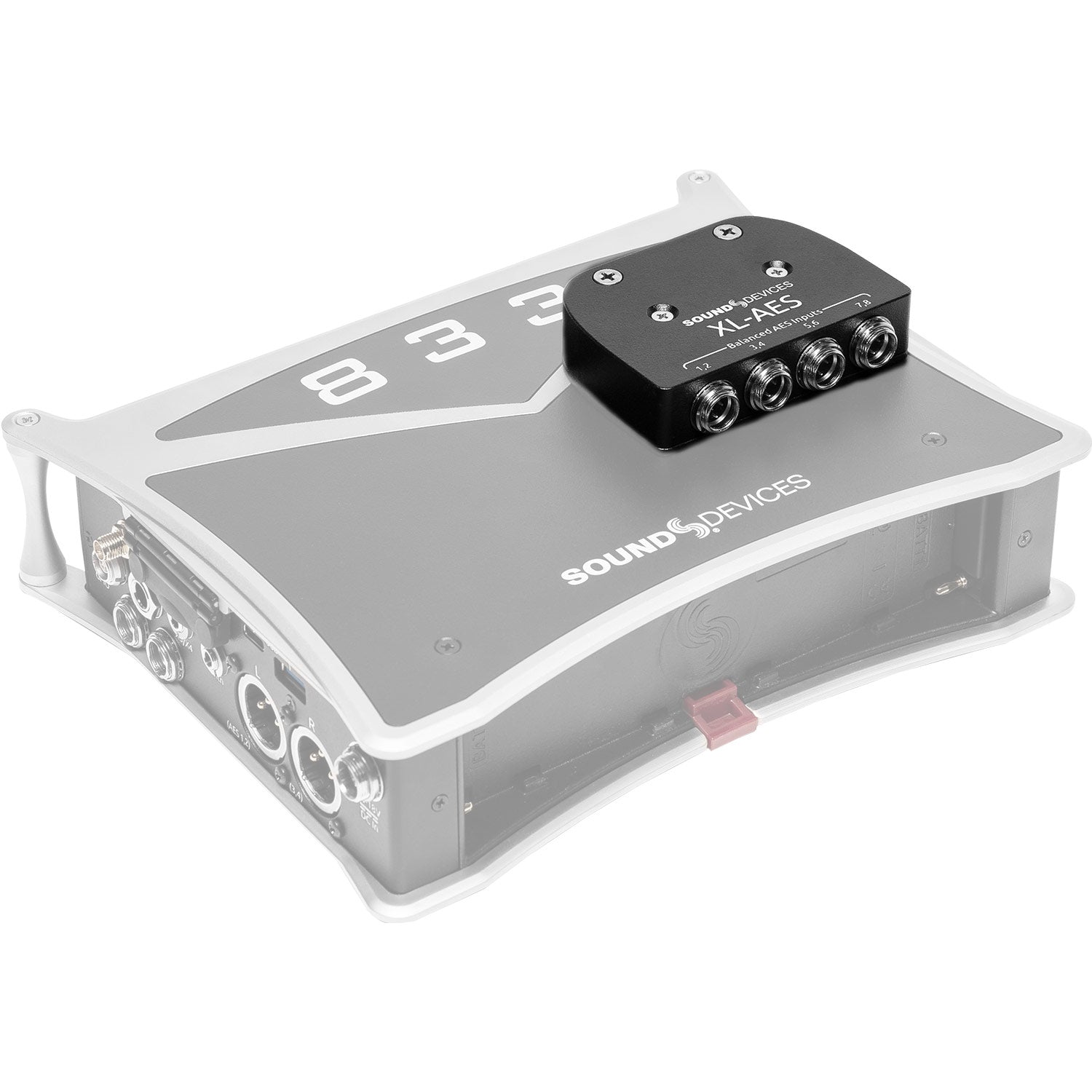

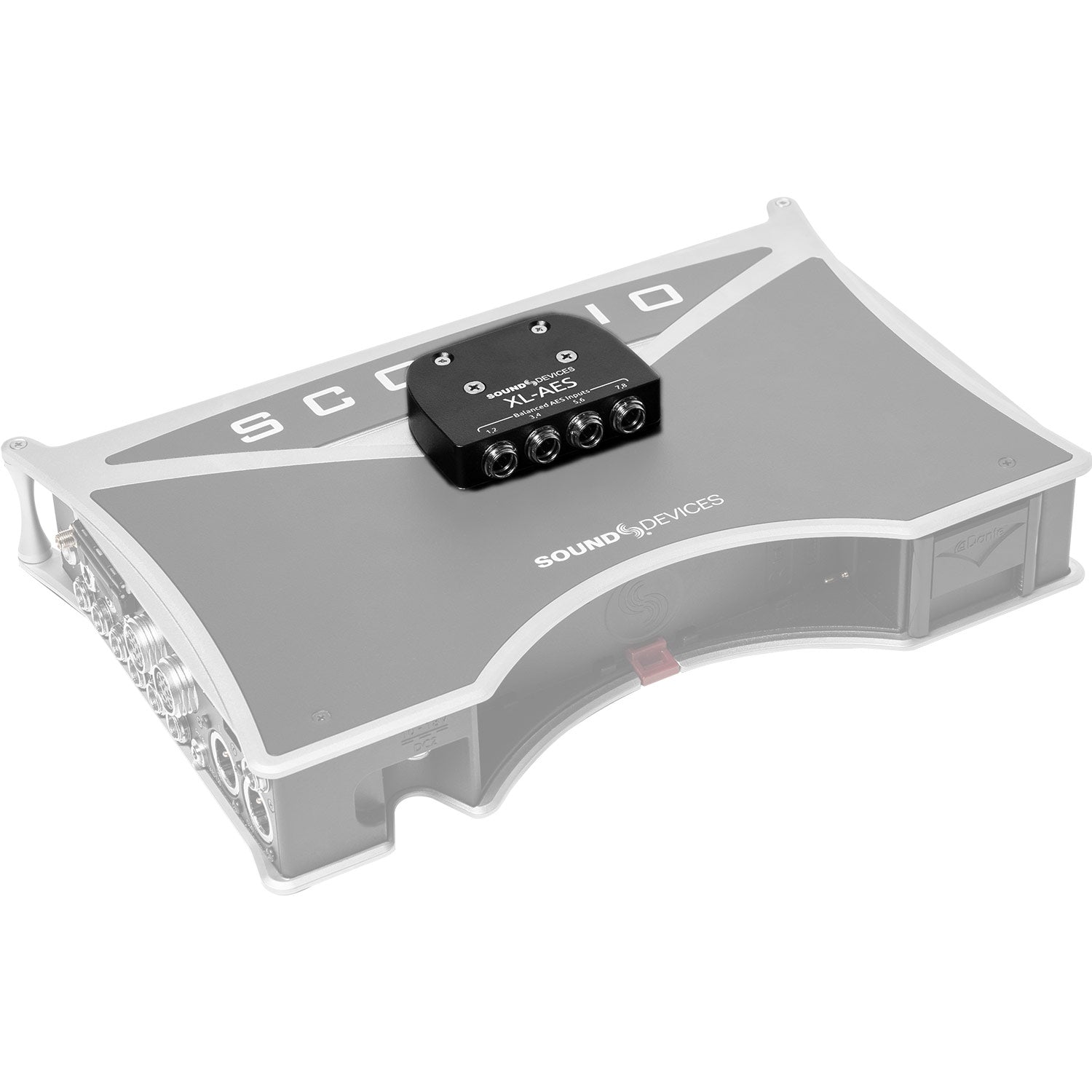

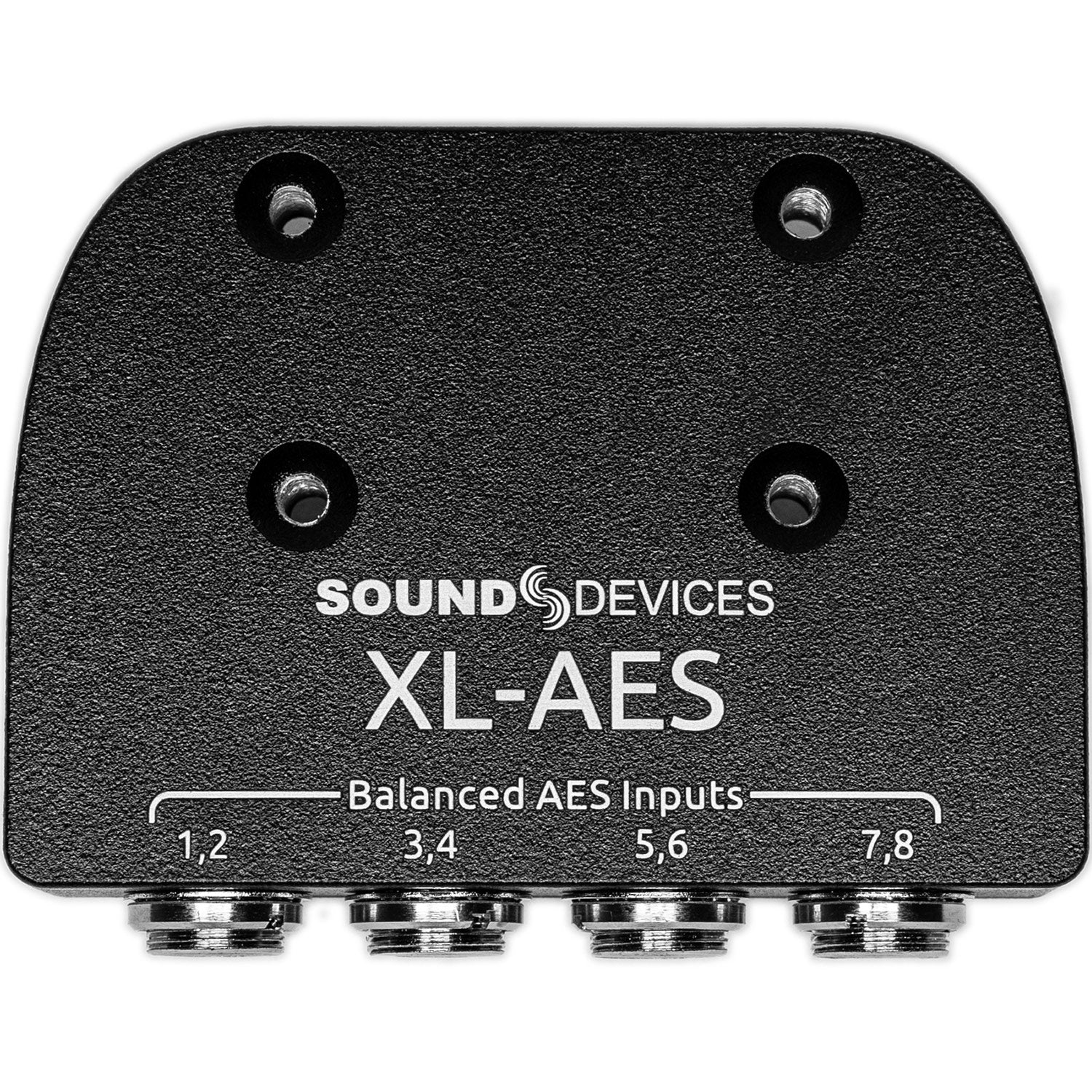

The XL-AES is an optional accessory for the Scorpio, 888, and 833 that provides 8 channels of AES3 audio connectivity through four heavy-duty TA3F input jacks. The accessory mounts directly to the expansion port on the mixer-recorder's top panel and features a rugged milled aluminum enclosure for years of reliable use.
The XL-AES appears in the Channel Input Source menu with all other possible input sources. Any of the 8 audio channels from the XL-AES may be routed to any channel on the mixer-recorder.
Powering | the XL-AES receives power from the host mixer-recorder |
Input type | AES3, balanced, TA3F connectors |
Impedance | 110 ohms |
Sensitivity | 200 mV or higher accepted |
Wiring | pin 1 = ground pin 2 = + pin 3 = - |
The XL-AES is an optional accessory for the Scorpio, 888, and 833 that provides 8 channels of AES3 audio connectivity through four heavy-duty TA3F input jacks. The accessory mounts directly to the expansion port on the mixer-recorder's top panel and features a rugged milled aluminum enclosure for years of reliable use.
The XL-AES appears in the Channel Input Source menu with all other possible input sources. Any of the 8 audio channels from the XL-AES may be routed to any channel on the mixer-recorder.
Powering | the XL-AES receives power from the host mixer-recorder |
Input type | AES3, balanced, TA3F connectors |
Impedance | 110 ohms |
Sensitivity | 200 mV or higher accepted |
Wiring | pin 1 = ground pin 2 = + pin 3 = - |
