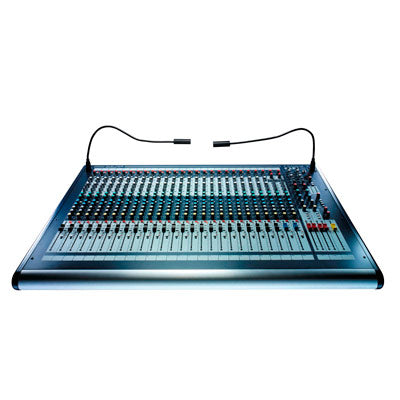

Soundcraft GB2 32 Channel Live and Recording Mixer



Have a Question? Call Toll Free: 888-462-7828

Live Chat Email Us
Dale #:SOCR-RW5749SM

Availability: Usually ships in 5 - 10 Days

This item usually ships within 5-10 days after your order is placed. Your payment will be charged after completing checkout.
Shipping Charges Apply
  • The GB2 is the latest addition to the Soundcraft GB Series, featuring 4 group busses configured as 2 stereo subgroups and an integral 6 x 2 matrix.Intended for installed-sound and Audio-Visual applications that do not require the functionality provided by the GB4 or GB8, the GB2 is available in frame sizes of 16, 24 and 32 mono inputs, each with 2 stereo inputs as standard. Each input features the high-performance GB30 Mic Pre and GB30 Equaliser designs of the GB4 and GB8, along with 6 Aux buses.

    Features:
    • Individually switched 48V phantom power on every mono input module.
    • 6 Aux sends.
    • 4 Group sends (paired).
    • 6 X 2 Output Matrix.
    • New GB30 mic pre-amp.
    • 4-band GB30 EQ.
    • Integral power supply, with an external power supply link option.
    • All metal TRS jacks and Neutrik XLRs.
    • Direct outputs on all mono input channels.

    Available in 16, 24 and 32 channel configurations, the GB2 is designed for installed sound and A/V applications that don't require all the sophisticated functionality of the GB4 and GB8. Howeverthe GB2 is a genuine GB Series console in every respect, with sound quality assured by GB30 Mic Pre and Equaliser designs, and reliability by the same rugged build quality that has made the GB4 and GB8 so dependable in demanding professional applications.

    Along with six Aux busses and an integral 6 x 2 matrix, four subgroups are provided as two stereo pairs, with a unique facility for adjusting the width of the stereo signal across the stereo mix. The channel pan settings are retained on the group outputs,while the degree of stereo separation to the mix bus is independently adjustable from full stereo through to mono.The GB2 also features two stereo input channels, with separate mic and line inputs.In normal use, the mic inputs are routed to the local channel and the line inputs act as a stereo return to the mix bus. Selecting the line input to the local channel overrides the mic inputs.

    Four Subgroups are provided as two stereo pairs, with a unique facility for adjusting the width of the stereo signal across the stereo mix. The channel pan settings are retained on the group outputs, while the degree of stereo separation to the mix bus is independently adjustable from full stereo through to mono. The GB2 also features two stereo input channels, with separate mic and line inputs. In normal use, the mic inputs are routed to the local channel and the line inputs act as a stereo return to the mix bus. Selecting the LINE input to the local channel overrides the Mic inputs.

  • Frequency ResponseMic/Line Input to any output, 20Hz - 20kHz:<1dB
    THD + N
    Mic sens. -30dBu, +20dBu at all outputs @1kHz <0.006%
    NoiseMeasured RMS, 22Hz to 22kHz Bandwidth; Mic E.I.N. @ unity gain,150Ohms source impedance: -128dBu; Mix Output, 40 inputs routed to mix: <-82dBu; Group & Centre Outputs : <-83dBu; Aux Outputs (GB2 Groups only) :<-80dBu; Matrix Outputs: <-89dBu
    CMRR Typical @: 1kHz :80dB
    Input & Output Max Levels
    Mono & Stereo Mic Inputs+15dBu
    Max Levels Mono & Stereo Line Inputs+30dBu
    Stereo Returns & Insert Returns+20dBu
    Any output+20dBu
    Nominal Operating Level0dBu
    Headphone Power2 x 250mW into 200Ohms
    Input & Output Impedances
    Mic Inputs2kOhms
    Impedances Line Inputs and Stereo Returns10kOhms
    Input channels Insert Return5kOhms with EQ in, otherwise 3kOhms
    Mix, Group, Aux, Matrix & Direct outputs150Ohms
    Insert sends75Ohms
    Power consumptionLess than 150W
    Operating conditions Temperature range-10ºC to +30ºC
    Relative humidity0% to 80%
