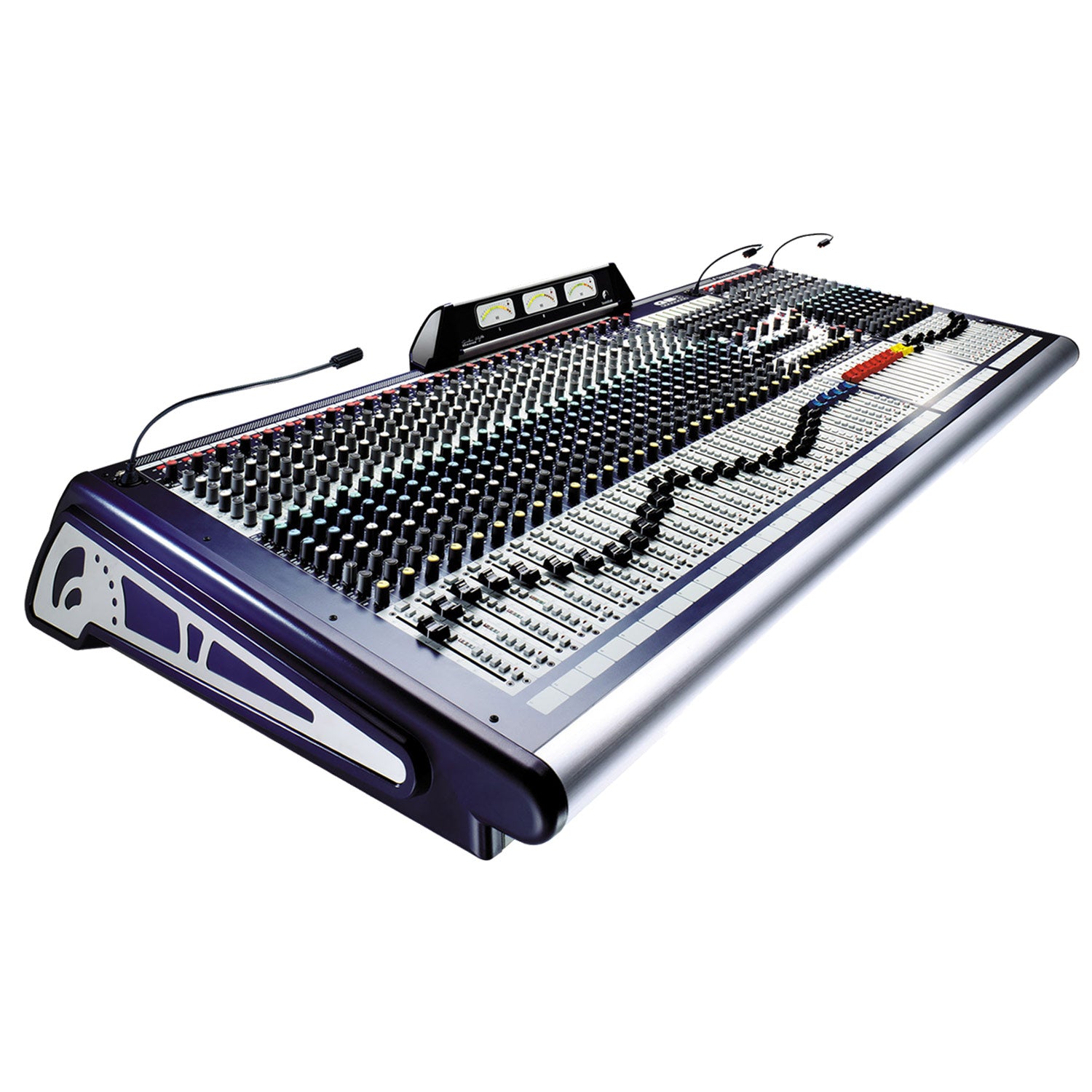

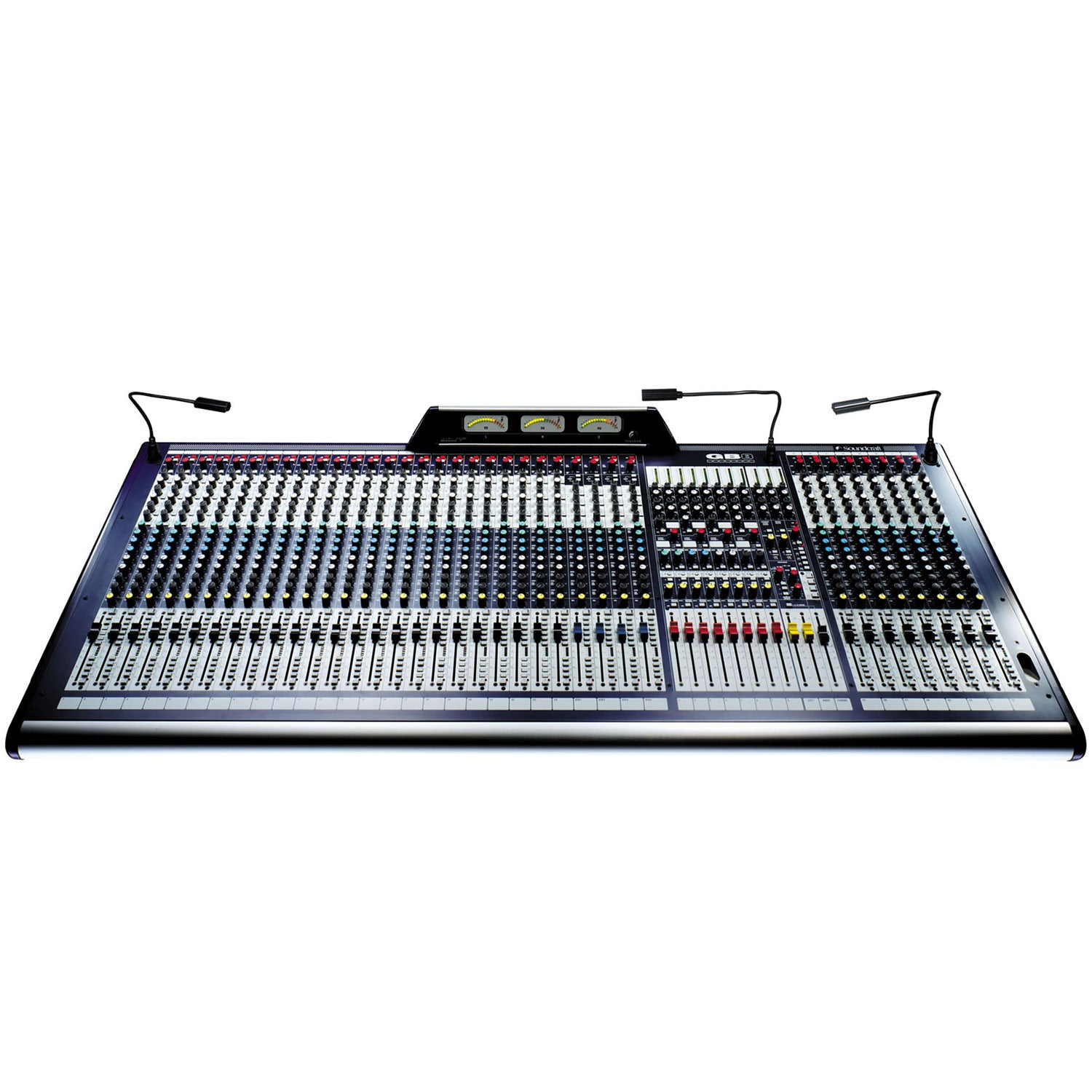

Soundcraft GB8 32 Channel Live and Recording Mixer with Meter Bridge



Have a Question? Call Toll Free: 888-462-7828

Live Chat Email Us
Dale #:SOCR-RW5696SM

Availability: Usually ships in 5 - 10 Days

This item usually ships within 5-10 days after your order is placed. Your payment will be charged after completing checkout.
Shipping Charges Apply
  • Available in frame sizes from 24 to 48 channels, each with four full-function stereo channels and four stereo returns, the GB8 is designed for installations such as churches and performance venues, or for small touring sound systems. The dual-mode topology implemented to such success on the MH3 and MH4 desks allows the GB8 to be used on FOH or monitor duties, with fader control of group or aux outputs. Additional features over the GB4 include a 1kHz oscillator and a meter bridge with three led meters that very closely emulate the ballistics of VU meters.

    Features:
    • Dual purpose console.
    • Individually switched 48V phantom power on every mono input module.
    • 4 STE channels per frame size.
    • 8 Aux sends (all switchable between pre/post fader operation).
    • Group sends (paired).
    • 4 Stereo returns.
    • 4 Mute Groups.
    • 11x4 Output Matrix.
    • Limiter on Record Output and Alternative Stereo Output.
    • GB30 mic pre-amp.
    • 4-band GB30 EQ.
    • Meter Bridge with accurate VU meters for LEFT, RIGHT and CENTRE Outputs.
    • Integral power supply, with an external power supply link option.
    • All metal TRS jacks and Neutrik XLRs.
    • Direct outputs on all mono input channels.

    Four mute groups allow several channels to be muted simultaneously, while another unique facility is the limiter on both the Record and Alternate stereo outputs that makes it easier to create a stereo recording of the mix.The console also features an output matrix with eleven feeds to four outputs, being fed from the group busses and main L, R and C (mono) outputs.

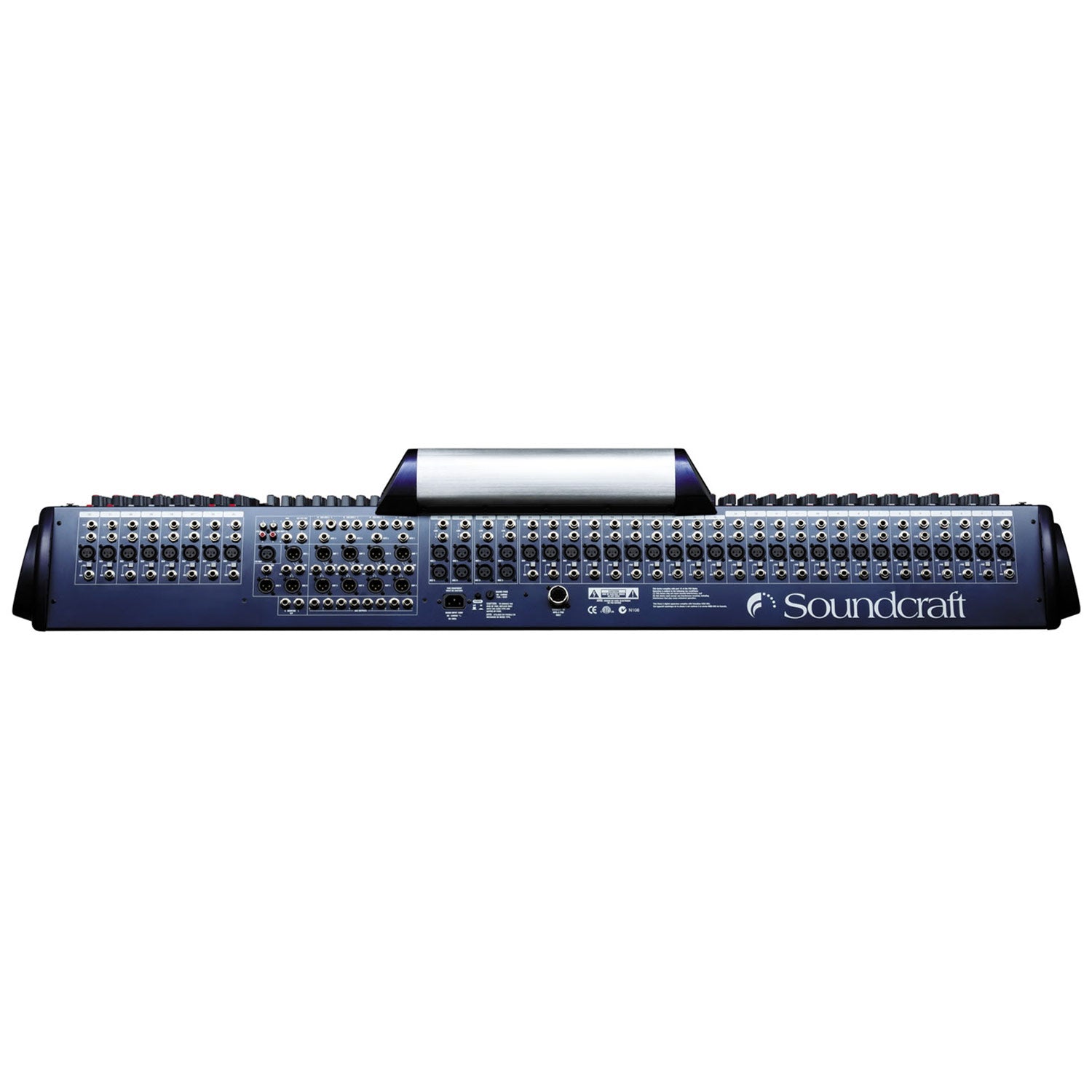

    Although largely conventional in layout, the GB8 does have some unique mechanical features. The rugged steel chassis has a sloping rear connector panel so that it is easier to configure from the front of the desk, while the integral power supply has a link option for an external back-up PSU.Both the GB4 and GB8 desks carry the high quality hallmark with which Soundcraft is synonymous, with engineering and design, as you'd expect from this high-end manufacturer.

    Careful attention has been given to the mechanical construction, to ensure reliability under strenuous conditions, with all input modules being constructed with individual vertically-mounted pcb's, fitted to the steel chassis front panel with individually-nutted potentiometers.The GB Series also shares the stylish looks of the MH4, MH3 and LX7ii consoles, continuing a strong family look and feel across the range.

  • Noise Measured RMS, 22Hz to 22kHz Bandwidth
    Mic E.I.N. @ unity gain,150ohms source impedance -128dBu
    Mix Output, 40 inputs routed to mix <-82dBu
    Group Outputs <-83dBu
    Aux Outputs <-80dBu
    Matrix Outputs <-89dBu
    Crosstalk (@1kHz, typical)
    Input Channel Mute <-97dB
    Input Fader cut-off <-95dB
    Pan isolation <-77dB
    Mix route isolation <-97dB
    Group route isolation <-97dB
    Adjacent channel crosstalk <-99dB
    Group to Mix <-89dB
    Aux Send pots offness (typical) <-84dB
    Matrix Send pots offness (typical) <-84dB
    Frequency Response
    Mic/Line Input to any output, 20Hz - 20kHz <1dB
    THD + N
    Mic sens. -30dBu, +20dBu at all outputs @1kHz <0.006%
    CMRR
    Typical @ 1kHz 80dB
    Input & Output Max Levels
    Mono & Stereo Mic Inputs +15dBu
    Mono & Stereo Line Inputs +30dBu
    Stereo Returns & Insert Returns +20dBu
    Any output +20dBu
    Nominal Operating Level 0dBu
    Headphone Power 2x250mW into 200ohms
    Input & Output Impedances
    Mic Inputs 2kohms
    Line Inputs and Stereo Returns 10kohms
    Mix, Group, Aux, Matrix & Direct outputs 150ohms
    Insert Sends 75ohms
    Insert Returns 5kohms
    Recommended Headphone Impedance 200 - 600ohms
