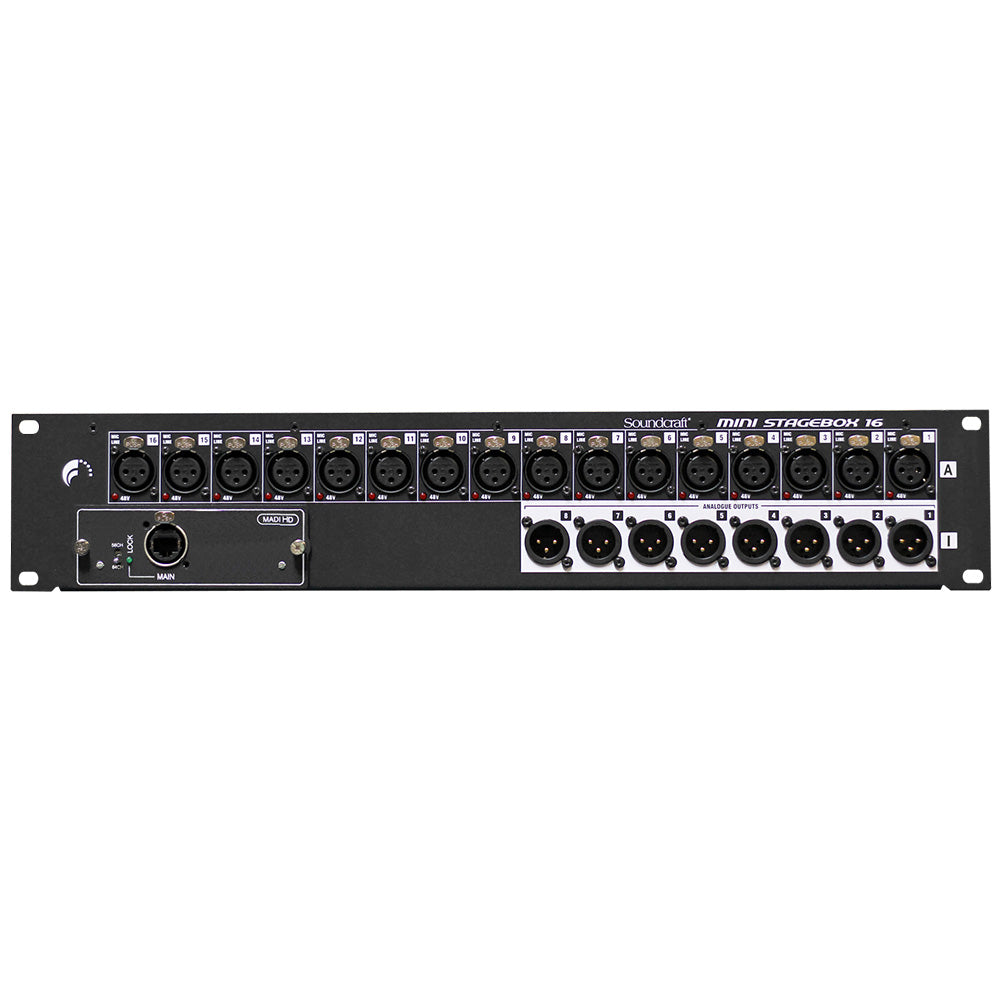

Soundcraft Mini Stagebox 16R - Stage Box for Soundcraft Digital Mixers


  • Dale #:

    SOCR-5049655
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The Mini Stagebox 16 is ideal for for expanding the I/O capabilities of any of the Vi or Si range of consoles regardless of whether that I/O is needed locally or hundreds of meters away on the stage. The Soundcraft Mini Stagebox 16 requires only 2U of rack space and, in this tiny footprint, provi... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The Mini Stagebox 16 is ideal for for expanding the I/O capabilities of any of the Vi or Si range of consoles regardless of whether that I/O is needed locally or hundreds of meters away on the stage. The Soundcraft Mini Stagebox 16 requires only 2U of rack space and, in this tiny footprint, provides 16 recallable mic/line inputs and 8 balanced line outputs, all lifted directly from the Vi1 and the larger Compact Stagebox. The Mini Stagebox 16 comes, as standard, fitted with a single-cable Cat 5 MADI HD interface for connection to the host console using an approved Cat 5 cable. If required this MADI HD interface card can be upgraded after purchase to either redundant (dual-cable) Cat 5 or redundant (dual-fibre) optical fibre by purchasing the appropriate MADI HD interface card.

Compatible Mixers:

  • Vi Series (Requires Vi MADI Card)
  • Si Impact Series
  • Si Performer Series
  • Si1, Si1+
  • Si2, Si2+
  • Si3, Si3+


The new Mini Stagebox range from Harman's Soundcraft provides a simple solution to stage connectivity offering a lower-cost option for many systems where the modularity and configurability of the larger systems are not required.

The Mini Stagebox 32 (3U) provides 32 analogue inputs and 8 analogue line outputs, with 4 pairs of AES outputs, providing a total I/O capacity of 32 inputs and 16 outputs, with the Mini Stagebox 16 (2U) model providing 16 analogue inputs and 8 line outputs making a 16 x 8 matrix. They connect to any of the Soundcraft Si Expression, Si Compact, Si Performer, Si Series and Vi Series consoles via a MADI card fitted to the option card slot. The Mini Stagebox models contain an integral PSU so are completely self-contained and sit comfortably stage-side.

The new units are part of the ViSi Connect range of interface options for all Soundcraft mixing consoles which includes the Compact and Vi Stageboxes and a range of option cards such as MADI, AES, CobraNet and AES.

More +

Product Specs

Frequency Response Mic / Line Input to any Output +0/-1dB, 20Hz – 20kHz
T.H.D. Mic Sensitivity -30dBu < 0.01% @ 1kHz
Residual noise -85dBu
Mic Input E.I.N. (maximum gain) -125dBu (150Ω source)
Mix noise, masters at unity < -86dBu
1 input to mix at unity gain -84dBu
CMRR mic @1KHz (max gain) -86dBu
Crosstalk (@ 1kHz) Mic – Mic <-80dB @ 1kHz
Mic Gain -5dB – 58dB integrated pad design 1dB steps
Max. input level +24dBu
Max. output level +22dBu
Sample rate 48kHz
Convertor resolution 24 bit
Latency 1.5ms
Internal clock accuracy +/- 25ppm
Mains power consumption 33W
Mains voltage operating range 90 — 264 VAC, 47 — 63Hz
Operating temperature range -10oC — +50oC
Relative humidity 0 — 90%
Storage temperature range -10oC — +50oC
