Description

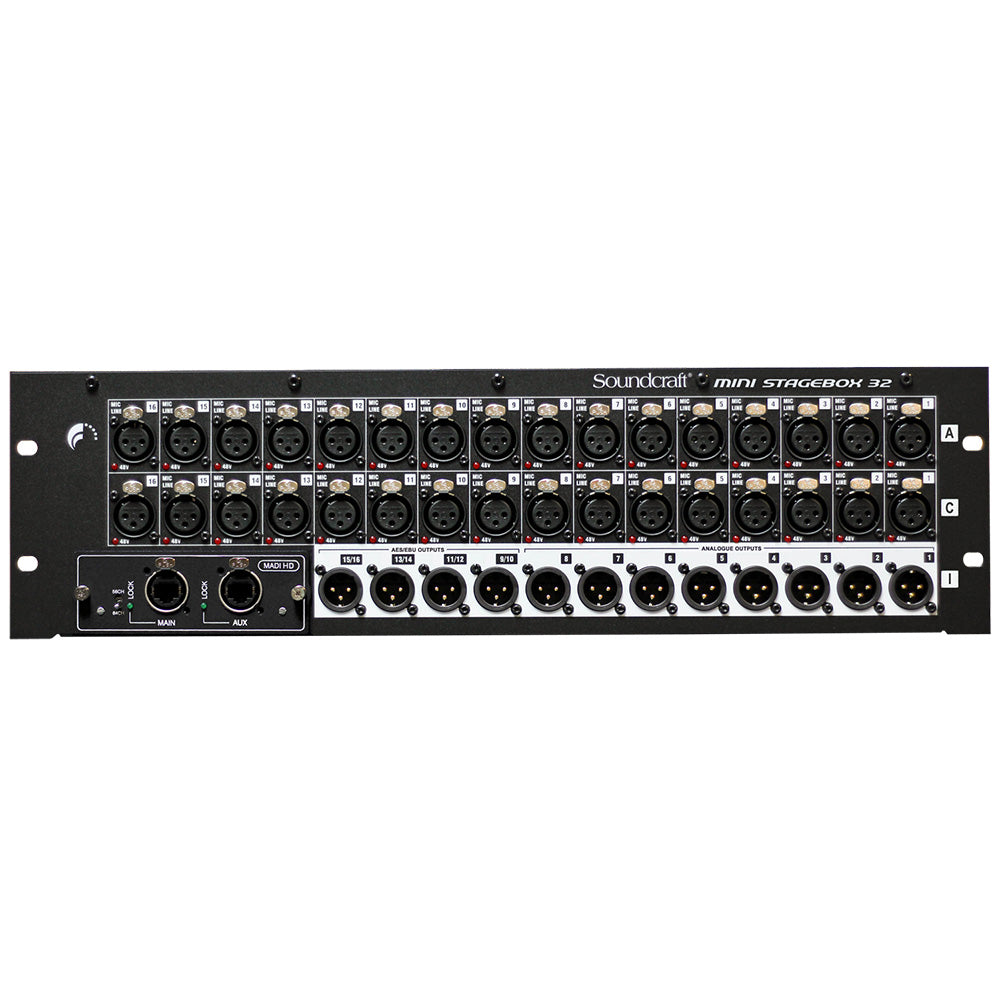

The Mini Stagebox 32 is ideal for for expanding the I/O capabilities of any of the Vi or Si range of consoles regardless of whether that I/O is needed locally or hundreds of meters away on the stage. The Soundcraft Mini Stagebox 32 requires only 3U of rack space and, in this tiny footprint, provides 32 recallable mic/line inputs, 8 balanced line outputs and 4 pairs of AES outputs, all lifted directly from the Vi1 and larger Compact Stagebox. The Mini Stagebox 32 is connected to the host console using Cat-5, similar to how the larger 64 mic/line Vi6 Stagebox is hooked up, and shares the same redundant MADI cable capability when connected directly to a single console. The efficient design negates the need for a fan so making the MINI Stagebox ideal for applications where silence is a must!
Compatible Mixers:
- Vi Series (Requires Vi MADI Card)
- Si Impact Series
- Si Performer Series
- Si1, Si1+
- Si2, Si2+
- Si3, Si3+
The new Mini Stagebox range from Harman's Soundcraft provides a simple solution to stage connectivity offering a lower-cost option for many systems where the modularity and configurability of the larger systems are not required.
The Mini Stagebox 32 (3U) provides 32 analogue inputs and 8 analogue line outputs, with 4 pairs of AES outputs, providing a total I/O capacity of 32 inputs and 16 outputs, with the Mini Stagebox 16 (2U) model providing 16 analogue inputs and 8 line outputs making a 16 x 8 matrix. They connect to any of the Soundcraft Si Expression, Si Compact, Si Performer, Si Series and Vi Series consoles via a MADI card fitted to the option card slot. The Mini Stagebox models contain an integral PSU so are completely self-contained and sit comfortably stage-side.
The new units are part of the ViSi Connect range of interface options for all Soundcraft mixing consoles which includes the Compact and Vi Stageboxes and a range of option cards such as MADI, AES, CobraNet and AES.
Frequency Response Mic / Line Input to any Output | +0/-1dB, 20Hz Ð 20kHz |
T.H.D. Mic Sensitivity -30dBu | < 0.01% @ 1kHz |
Residual noise | -85dBu |
Mic Input E.I.N. (maximum gain) | -125dBu (150½ source) |
Mix noise, masters at unity | < -86dBu |
1 input to mix at unity gain | -84dBu |
CMRR mic @1KHz (max gain) | -86dBu |
Crosstalk (@ 1kHz) Mic Ð Mic | <-80dB @ 1kHz |
Mic Gain | -5dB Ð 58dB integrated pad design 1dB steps |
Max. input level | +24dBu |
Max. output level | +22dBu |
Sample rate | 48kHz |
Convertor resolution | 24 bit |
Latency | 1.5ms |
Internal clock accuracy | +/- 25ppm |
Mains power consumption | 33W |
Mains voltage operating range | 90 Ñ 264 VAC, 47 Ñ 63Hz |
Operating temperature range | -10oC Ñ +50oC |
Relative humidity | 0 Ñ 90% |
Storage temperature range | -10oC Ñ +50oC |
The Mini Stagebox 32 is ideal for for expanding the I/O capabilities of any of the Vi or Si range of consoles regardless of whether that I/O is needed locally or hundreds of meters away on the stage. The Soundcraft Mini Stagebox 32 requires only 3U of rack space and, in this tiny footprint, provides 32 recallable mic/line inputs, 8 balanced line outputs and 4 pairs of AES outputs, all lifted directly from the Vi1 and larger Compact Stagebox. The Mini Stagebox 32 is connected to the host console using Cat-5, similar to how the larger 64 mic/line Vi6 Stagebox is hooked up, and shares the same redundant MADI cable capability when connected directly to a single console. The efficient design negates the need for a fan so making the MINI Stagebox ideal for applications where silence is a must!
Compatible Mixers:
- Vi Series (Requires Vi MADI Card)
- Si Impact Series
- Si Performer Series
- Si1, Si1+
- Si2, Si2+
- Si3, Si3+
The new Mini Stagebox range from Harman's Soundcraft provides a simple solution to stage connectivity offering a lower-cost option for many systems where the modularity and configurability of the larger systems are not required.
The Mini Stagebox 32 (3U) provides 32 analogue inputs and 8 analogue line outputs, with 4 pairs of AES outputs, providing a total I/O capacity of 32 inputs and 16 outputs, with the Mini Stagebox 16 (2U) model providing 16 analogue inputs and 8 line outputs making a 16 x 8 matrix. They connect to any of the Soundcraft Si Expression, Si Compact, Si Performer, Si Series and Vi Series consoles via a MADI card fitted to the option card slot. The Mini Stagebox models contain an integral PSU so are completely self-contained and sit comfortably stage-side.
The new units are part of the ViSi Connect range of interface options for all Soundcraft mixing consoles which includes the Compact and Vi Stageboxes and a range of option cards such as MADI, AES, CobraNet and AES.
Frequency Response Mic / Line Input to any Output | +0/-1dB, 20Hz Ð 20kHz |
T.H.D. Mic Sensitivity -30dBu | < 0.01% @ 1kHz |
Residual noise | -85dBu |
Mic Input E.I.N. (maximum gain) | -125dBu (150½ source) |
Mix noise, masters at unity | < -86dBu |
1 input to mix at unity gain | -84dBu |
CMRR mic @1KHz (max gain) | -86dBu |
Crosstalk (@ 1kHz) Mic Ð Mic | <-80dB @ 1kHz |
Mic Gain | -5dB Ð 58dB integrated pad design 1dB steps |
Max. input level | +24dBu |
Max. output level | +22dBu |
Sample rate | 48kHz |
Convertor resolution | 24 bit |
Latency | 1.5ms |
Internal clock accuracy | +/- 25ppm |
Mains power consumption | 33W |
Mains voltage operating range | 90 Ñ 264 VAC, 47 Ñ 63Hz |
Operating temperature range | -10oC Ñ +50oC |
Relative humidity | 0 Ñ 90% |
Storage temperature range | -10oC Ñ +50oC |
