Soundtube CM31-EZ-WH MP - Full-Range 3-Inch In-Ceiling Loudspeaker (White / 8 Pack)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The CM31-EZ is a premium full-range 3" in-ceiling speaker for applications requiring 8 ? or distributed audio solutions. The CM31-EZ incorporates low profile grille with a total visible footprint of 6.3" diameter and an integrated backcan and driver design for ultra compact in-ceiling installations. The in-ceiling speaker includes a six-position tap switch with a transformer bypass position. A tile bridge and mounting hardware are included and feature a fast and secure constant tension SpeedWingª mounting system. The CM31-EZ incorporates weatherized components for indoor and outdoor applications.
Features

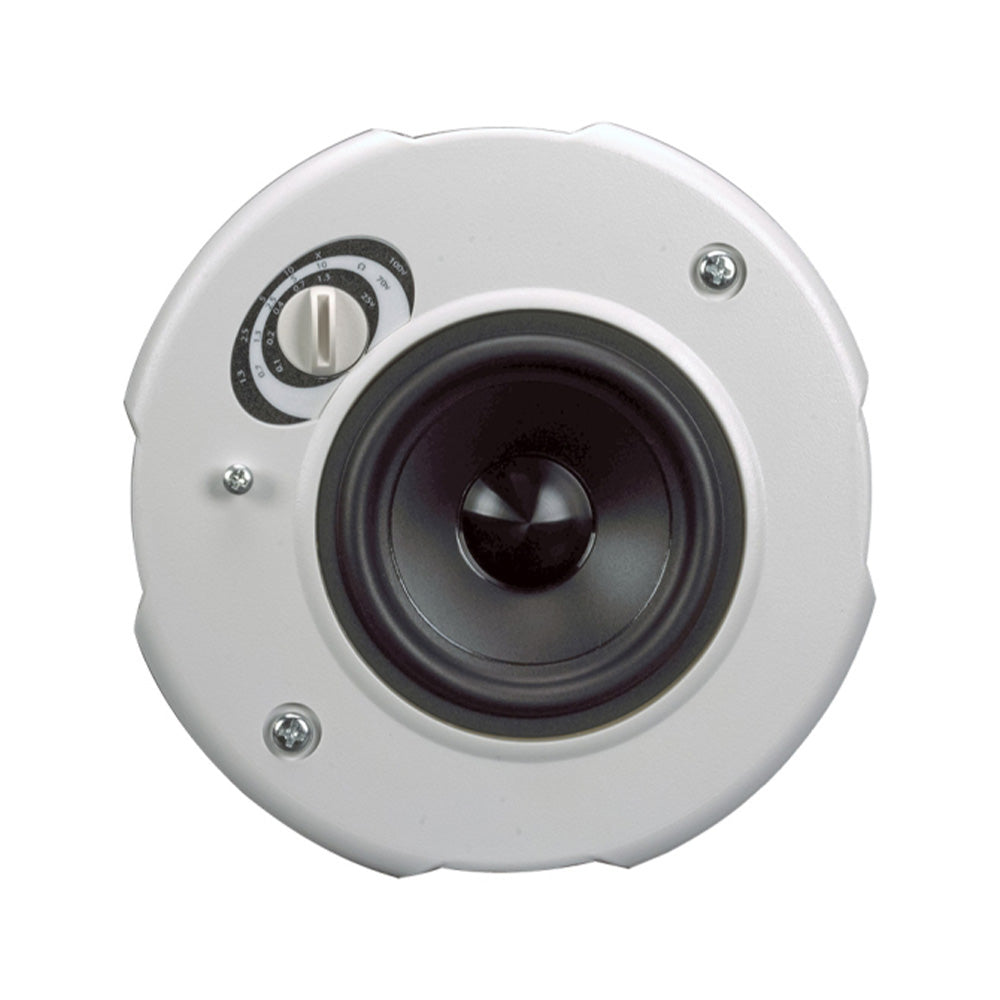

- One 3" (76.2 mm) full-range high-extrusion, highf idelity polypropylene driver with butyl rubber surround
- Weatherized components for indoor/outdoor applications

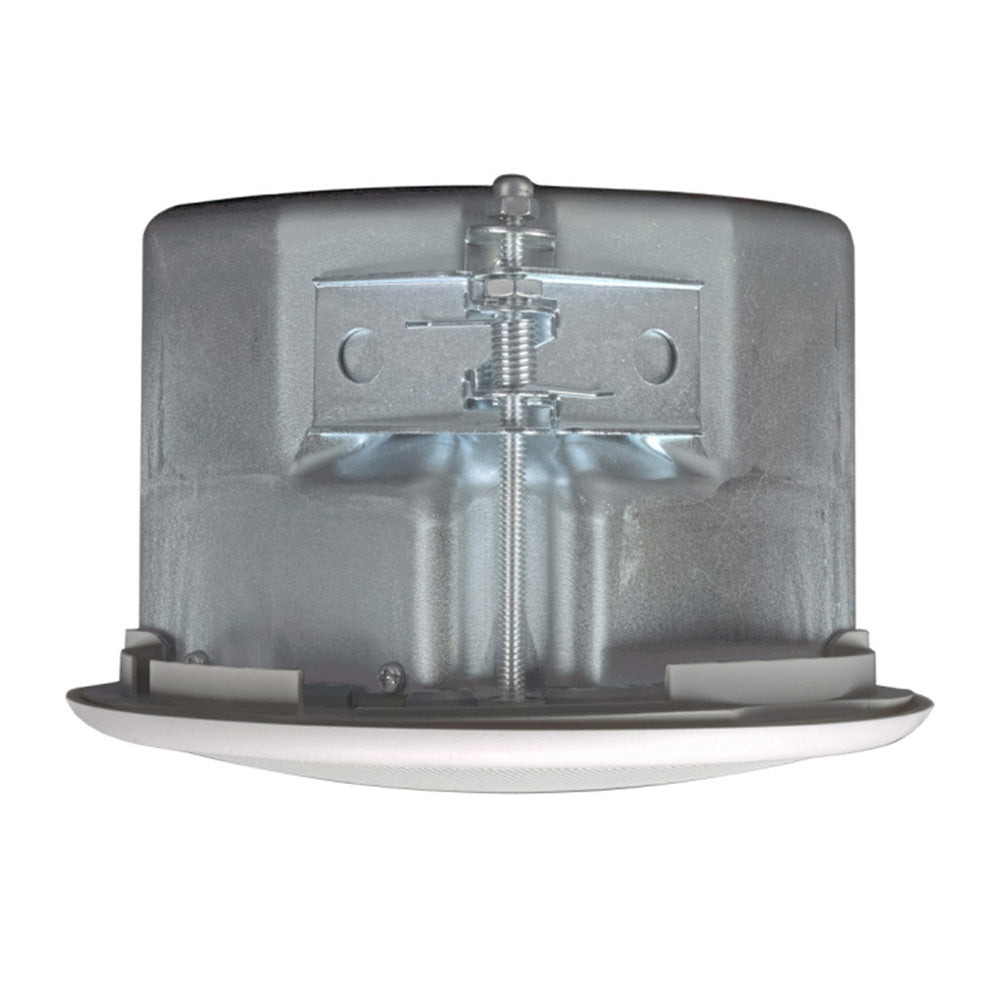

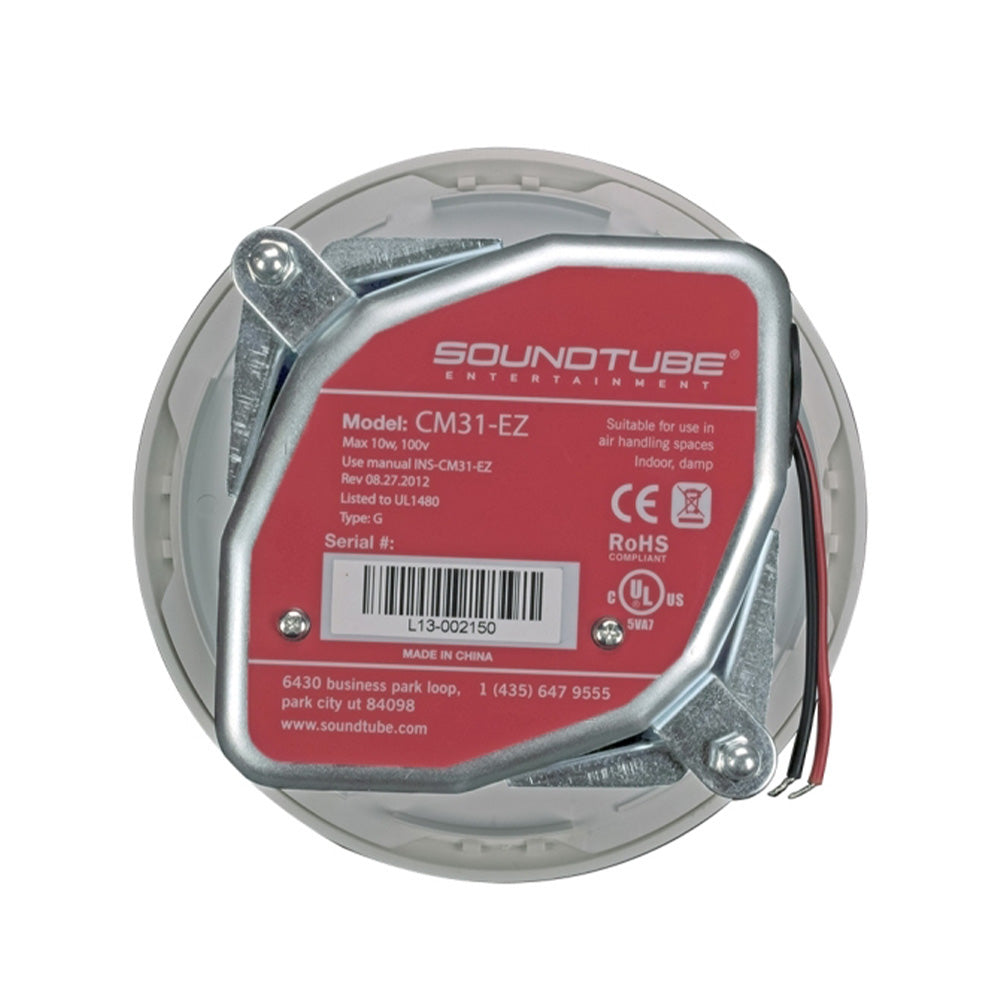

- Shallow 3.5" (88.9 mm) deep all-steel backcan with integrated driver and baffle configuration
- Ultra-compact design with a total visible footprint of less than 6.3" (160.6 mm) diameter

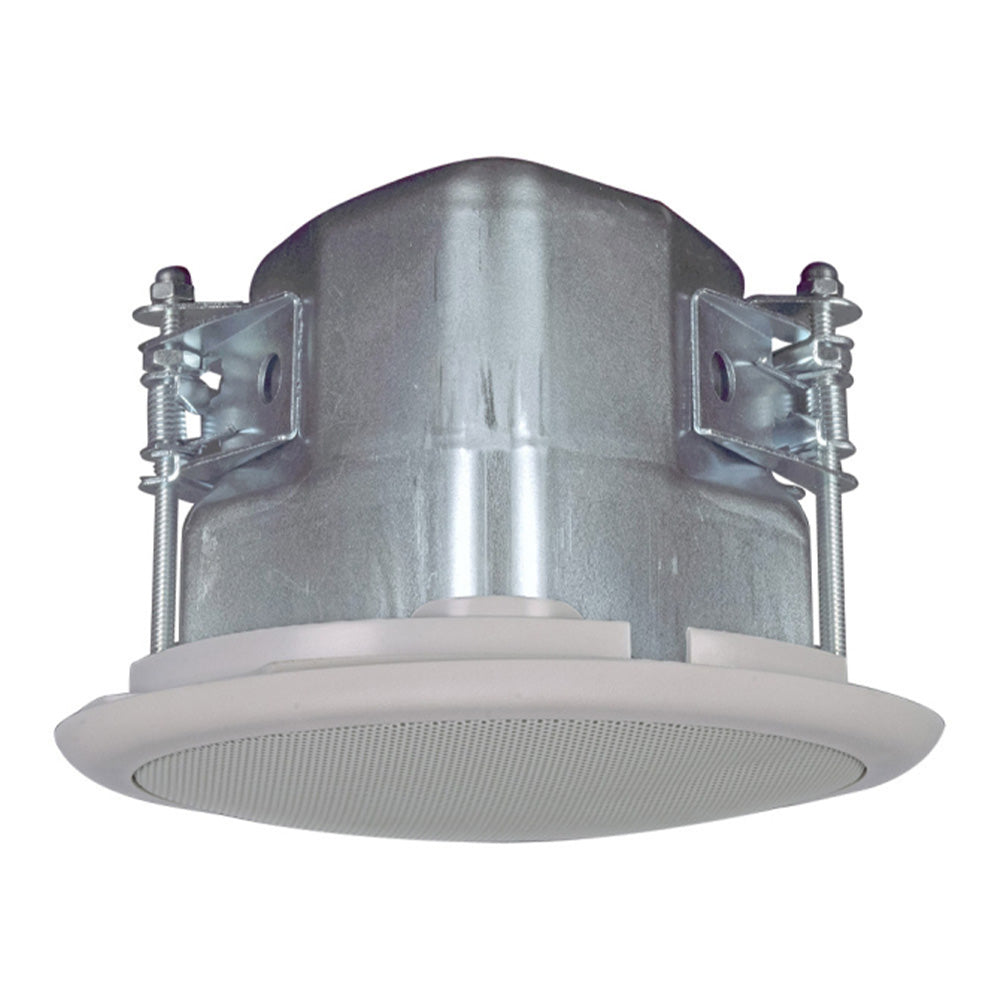

- Rapid installation, blind-mount, fixed-wing mounting mechanism with constant tension design affixing to wall thicknesses ranging from 0.1" (2.5 mm) to 1.5" (38.1 mm)

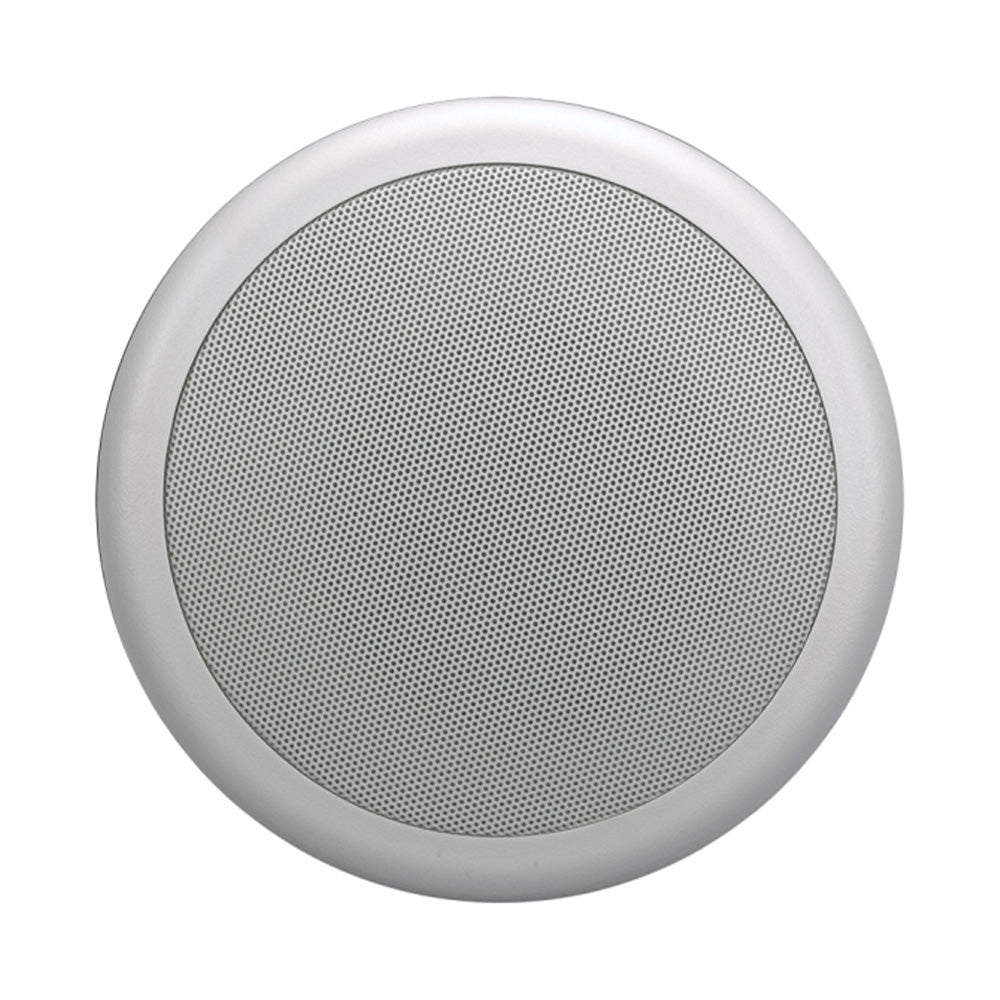

- Corrosion-resistant, powder-coated aluminum grille with snap fit attachment
- UL1480A and 2043 approved
- High-quality black or white paint finish
- Included accessories: tile bridge, conduit connector, paint mask, and wire nuts
- Optional accessories: pre-construction bracket (AC-CM3-PCB)
| Color | White |
| UPC | 752830439986 |
| Manufacturer | SoundTube |
| Manufacturer's Category | CM-EZ Economical In-Ceiling |
| Shipping Weight | 3.7 lbs / 1.68 kg |
| Carton Height | 8.25 in / 209.55 mm |
| Carton Length | 8 in / 203.2 mm |
| Carton Width | 7.25 in / 184.15 mm |
| Certifications | CE, RoHS, UL1480A, UL2043 |
| Enclosure Properties | ABS Glass Fiber Reinforced, Injection Molded, Sealed |
| Enclosure Volume | 60 cu in / 983.22 cu cm |
| Included Accessories | Conduit Clamp, Grille, Paint Mask, Wire Nuts, Choose Between a Tile Bridge or Pre-Construction Bracket |
| Optional Accessories | Black Grille (GRL-CM31-BK)|Tile Bridge (AC-CM31-TB)|Pre-Construction Bracket (AC-CM31-PCB)|Junction Box (Included with pre-construction bracket) |
| Source Inputs | Wire Leads |
| IP Rating | IP54 |
| Backcan Diameter | 5.5 in / 139.7 mm |
| Backcan Height | 3.5 in / 88.9 mm |
| Coverage Angle (±6dB @ 2kHz) | 45Á |
| Cutout Width/Diameter | 5.5 in / 139.7 mm |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 4.5 and 3.5 |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 5.3dB and 5.2dB |
| Frequency Response (± 10 dB) | 115 Hz - 22 kHz |
| Frequency Response (± 3 dB) | 190 Hz - 14 kHz |
| Grille Properties | Aluminum, Black, Standard-Flange, Powder-Coated, Snap-Fit |
| Low Frequency Voice Coil | 0.75 in / 19 mm |
| Max. Ceiling Thickness | 1.5 in / 38.1 mm |
| Max. Continuous Power RMS | 20W |
| Max. Program Power | 40 W |
| Minimum Impedance (_ Ohms) | 8 _ |
| Minimum Ceiling Thickness | 0.1 in / 2.5 mm |
| Nominal Impedance (_ Ohms) | 8 _ |
| Fullrange Driver | 3" Polypropylene driver with butyl rubber surround |
| Sensitivity dB @ 1W/1M | 85 dB |
| Sensitivity dB @ 2.83V/1M | 85 dB |
| Tap Selector | Rotary Switch |
| Transformer Options | 25 / 70.7 / 100 V, 8 Ohm direct |
| Transformer Taps Max. Setting (25V/70.7V/100V) | 1.3W/10W/30W |
| Visible Diameter | 6.3 in / 160 mm |
| Visible Height | 0.6 in / 15.2 mm |
The CM31-EZ is a premium full-range 3" in-ceiling speaker for applications requiring 8 ? or distributed audio solutions. The CM31-EZ incorporates low profile grille with a total visible footprint of 6.3" diameter and an integrated backcan and driver design for ultra compact in-ceiling installations. The in-ceiling speaker includes a six-position tap switch with a transformer bypass position. A tile bridge and mounting hardware are included and feature a fast and secure constant tension SpeedWingª mounting system. The CM31-EZ incorporates weatherized components for indoor and outdoor applications.
