Soundtube CM52-BGM-II-WH - Two-Way 5.25-Inch In-Ceiling Loudspeaker (White)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
The CM52-BGM-II is a 5.25" coaxial two-way blind-mount in-ceiling speaker which delivers highefficiency and performance across the operating bandwidth. By incorporating a 5.25" polypropylene driver with a rubber surround and a .75" silk dome tweeter in a drawn steel backcan (with a tuned port), this speaker delivers maximum frequency response (56 Hz - 22 kHz, ±10 dB) in an integrated enclosure design.
Mounting hardware is included and features a constant-tension fixed-wing mounting system with a 21-gauge steel tile bridge ensuring rapid and secure installation in any sheetrock or drop-tile application. For easy ordering, stocking and installation, this series includes a color-coded (green) tile bridge and optional color-coded (green) pre-construction bracket, as well as a six-position tap switch for 25, 70.7 and 100 V applications with a transformer bypass position.
Features:
- One 5.25" (130 mm) polypropylene woofer with rubber surround and one .75" (19 mm) silk dome tweeter
- BroadBeam Ringª technology for mid-range clarity and ultra wide off axis performance
- Easy-access six-position tap switch for 25/70.7/100 V and transformer bypass settings allows for easy ordering, stocking and installation
- Tuned port on baffle for improved bass response down to 56 Hz (±10 dB)
- Reduced amplification costs and maximum efficiency of 83.5 dB sensitivity, 16 ? impedance
- Incorporates a steel plated and powder coated flangeless magnetic grille for lasting durability and seamless aesthetic (White grille included, but also available in Black)
- Adaptable to material thicknesses ranging from 0.035" (0.9 mm) to 1.6" (40.6 mm)
- UL 1480 and 2043 approved
- High-quality black or white painted finish.
- Included accessories: tile bridge, UL listed 0.5 inch conduit clamp
- Optional accessories: Color-coded (green) preconstruction bracket (AC-CMEZ-6/8-PCB) Black Grill (GRL-CM-BGM-II-BK)
| Color | White |
| UPC | 752830451087 |
| Manufacturer | SoundTube |
| Manufacturer's Category | CM-BGM Background Music In-Ceiling |
| Shipping Weight | 9.55 lbs / 4.33 kg |
| Carton Height | 8 in / 203.2 mm |
| Carton Length | 13.25 in / 336.55 mm |
| Carton Width | 13 in / 330.2 mm |
| Certifications | CE, RoHS, UL1480, UL2043 |
| Enclosure Properties | ABS Glass Fiber Reinforced, Injection Molded, Ported |
| Enclosure Volume | 350 cu in / 5735.47 cu cm |
| Included Accessories | Conduit Clamp, Cover Plate, Grille, Paint Mask |
| Optional Accessories | White Grille (GRL-CM6/8EZ-II-WH)|Tile Bridge (AC-CMEZ6/8-TB)|Pre-Construction Bracket (AC-CMEZ6/8-PCB)|Junction Box (AC-CM-EZ-JBOX) |

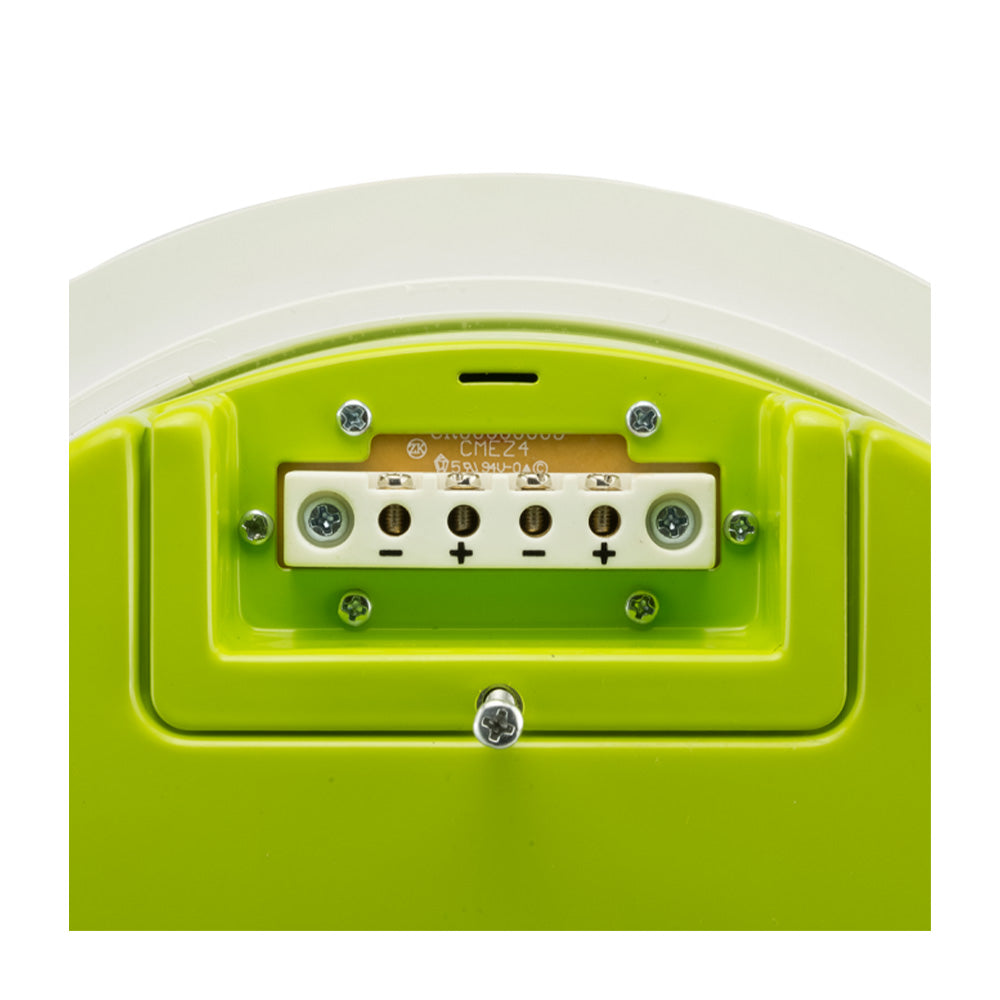

| Source Inputs | 4 Pin Ceramic Terminal |
| Backcan Diameter | 9.67 in / 245.6 mm |
| Backcan Height | 5.75 in / 146.1 mm |
| Coverage Angle (±6dB @ 2kHz) | 105Á |
| Crossover Frequency | 5.0 kHz |
| Cutout Width/Diameter | 10.5 in / 266.7 mm |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 3.8 and 2.1 |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 5.1dB and 3.3dB |
| Frequency Response (± 10 dB) | 56 Hz - 22 kHz |
| Frequency Response (± 3 dB) | 67 Hz - 20 kHz |
| Grille Properties | Standard-Flange, Friction-Fit, White, Paintable, Painted, Steel |
| Low Frequency Voice Coil | 1 in / 25.4 mm |
| Low Pass Crossover | 12 dB per octave 2nd order |
| Max. Ceiling Thickness | 1.6 in / 40.6 mm |
| Max. Continuous Power RMS | 40W |
| Max. Program Power | 80 W |
| Minimum Impedance (_ Ohms) | 16 _ |
| Minimum Ceiling Thickness | 0.04 in / 0.9 mm |
| Network Type: High Pass | 12 dB per octave 2nd order |
| Nominal Impedance (_ Ohms) | 16 _ |
| Tweeter Driver | 1" Silk Dome w/ BroadBeam Ring¬ |
| Woofer Driver | 5.25" Polypropylene Cone w/ Butyl Rubber Surround |
| Sensitivity dB @ 1W/1M | 83.5 dB |
| Sensitivity dB @ 2.83V/1M | 80.4 dB |
| Tap Selector | Rotary Switch |
| Transformer Taps (25V/70.0V/100V) | 2.5W/20W/20W |
| Visible Diameter | 11.75 in / 298.5 mm |
| Visible Height | 0.34 in / 8.6 mm |
The CM52-BGM-II is a 5.25" coaxial two-way blind-mount in-ceiling speaker which delivers highefficiency and performance across the operating bandwidth. By incorporating a 5.25" polypropylene driver with a rubber surround and a .75" silk dome tweeter in a drawn steel backcan (with a tuned port), this speaker delivers maximum frequency response (56 Hz - 22 kHz, ±10 dB) in an integrated enclosure design.
Mounting hardware is included and features a constant-tension fixed-wing mounting system with a 21-gauge steel tile bridge ensuring rapid and secure installation in any sheetrock or drop-tile application. For easy ordering, stocking and installation, this series includes a color-coded (green) tile bridge and optional color-coded (green) pre-construction bracket, as well as a six-position tap switch for 25, 70.7 and 100 V applications with a transformer bypass position.
Features:
- One 5.25" (130 mm) polypropylene woofer with rubber surround and one .75" (19 mm) silk dome tweeter
- BroadBeam Ringª technology for mid-range clarity and ultra wide off axis performance
- Easy-access six-position tap switch for 25/70.7/100 V and transformer bypass settings allows for easy ordering, stocking and installation
- Tuned port on baffle for improved bass response down to 56 Hz (±10 dB)
- Reduced amplification costs and maximum efficiency of 83.5 dB sensitivity, 16 ? impedance
- Incorporates a steel plated and powder coated flangeless magnetic grille for lasting durability and seamless aesthetic (White grille included, but also available in Black)
- Adaptable to material thicknesses ranging from 0.035" (0.9 mm) to 1.6" (40.6 mm)
- UL 1480 and 2043 approved
- High-quality black or white painted finish.
- Included accessories: tile bridge, UL listed 0.5 inch conduit clamp
- Optional accessories: Color-coded (green) preconstruction bracket (AC-CMEZ-6/8-PCB) Black Grill (GRL-CM-BGM-II-BK)
| Color | White |
| UPC | 752830451087 |
| Manufacturer | SoundTube |
| Manufacturer's Category | CM-BGM Background Music In-Ceiling |
| Shipping Weight | 9.55 lbs / 4.33 kg |
| Carton Height | 8 in / 203.2 mm |
| Carton Length | 13.25 in / 336.55 mm |
| Carton Width | 13 in / 330.2 mm |
| Certifications | CE, RoHS, UL1480, UL2043 |
| Enclosure Properties | ABS Glass Fiber Reinforced, Injection Molded, Ported |
| Enclosure Volume | 350 cu in / 5735.47 cu cm |
| Included Accessories | Conduit Clamp, Cover Plate, Grille, Paint Mask |
| Optional Accessories | White Grille (GRL-CM6/8EZ-II-WH)|Tile Bridge (AC-CMEZ6/8-TB)|Pre-Construction Bracket (AC-CMEZ6/8-PCB)|Junction Box (AC-CM-EZ-JBOX) |
| Source Inputs | 4 Pin Ceramic Terminal |
| Backcan Diameter | 9.67 in / 245.6 mm |
| Backcan Height | 5.75 in / 146.1 mm |
| Coverage Angle (±6dB @ 2kHz) | 105Á |
| Crossover Frequency | 5.0 kHz |
| Cutout Width/Diameter | 10.5 in / 266.7 mm |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 3.8 and 2.1 |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 5.1dB and 3.3dB |
| Frequency Response (± 10 dB) | 56 Hz - 22 kHz |
| Frequency Response (± 3 dB) | 67 Hz - 20 kHz |
| Grille Properties | Standard-Flange, Friction-Fit, White, Paintable, Painted, Steel |
| Low Frequency Voice Coil | 1 in / 25.4 mm |
| Low Pass Crossover | 12 dB per octave 2nd order |
| Max. Ceiling Thickness | 1.6 in / 40.6 mm |
| Max. Continuous Power RMS | 40W |
| Max. Program Power | 80 W |
| Minimum Impedance (_ Ohms) | 16 _ |
| Minimum Ceiling Thickness | 0.04 in / 0.9 mm |
| Network Type: High Pass | 12 dB per octave 2nd order |
| Nominal Impedance (_ Ohms) | 16 _ |
| Tweeter Driver | 1" Silk Dome w/ BroadBeam Ring¬ |
| Woofer Driver | 5.25" Polypropylene Cone w/ Butyl Rubber Surround |
| Sensitivity dB @ 1W/1M | 83.5 dB |
| Sensitivity dB @ 2.83V/1M | 80.4 dB |
| Tap Selector | Rotary Switch |
| Transformer Taps (25V/70.0V/100V) | 2.5W/20W/20W |
| Visible Diameter | 11.75 in / 298.5 mm |
| Visible Height | 0.34 in / 8.6 mm |
