Soundtube CM52S-BGM-II-WH - Two-Way 5.25-Inch In-Ceiling Loudspeaker with Short Can (White)

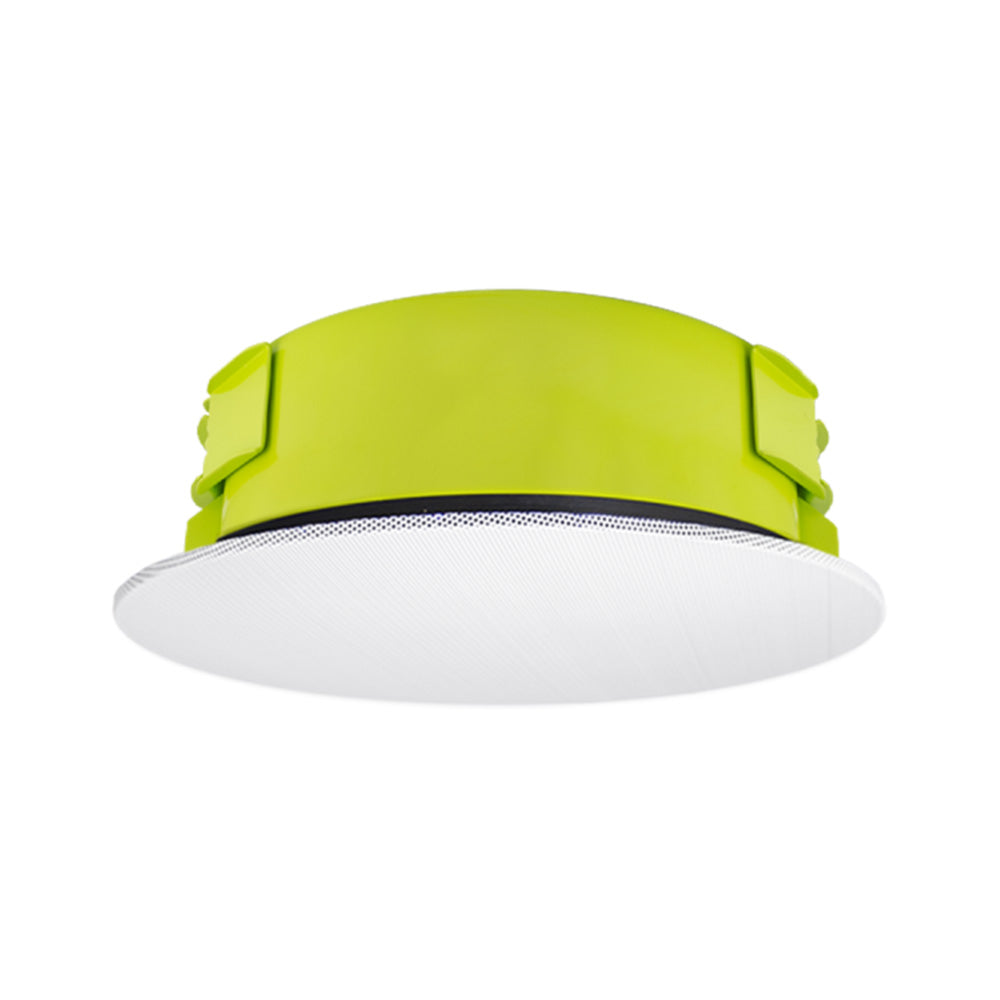

The CM52s-BGM-II is a 5.25" coaxial two-way blind-mount in-ceiling speaker which delivers true high-efficiency and performance across the operating bandwidth. By incorporating a 5.25" polypropylene driver with a rubber surround and a .75" silk dome tweeter in a drawn steel shallow backcan (3.75") with a tuned port, this speaker delivers maximum frequency response (65 Hz - 22 kHz, ±10 dB) in an integrated enclosure design. Mounting hardware is included and features a constant-tension fixed-wing mounting system with a 21-gauge "full metal" steel tile bridge ensuring rapid and secure installation in any sheetrock or drop-tile application. For easy ordering, stocking and installation, this series includes a color-coded (green) tile bridge and optional color-coded (green) pre-construction bracket, as well as a six-position tap switch for 25, 70.7 and 100 V applications with a transformer bypass position.

• Engineered for applications with limited plenum space incorporating a SoundTube-specific shallow backcan with an installed depth of 3.5" | 88.9 mm

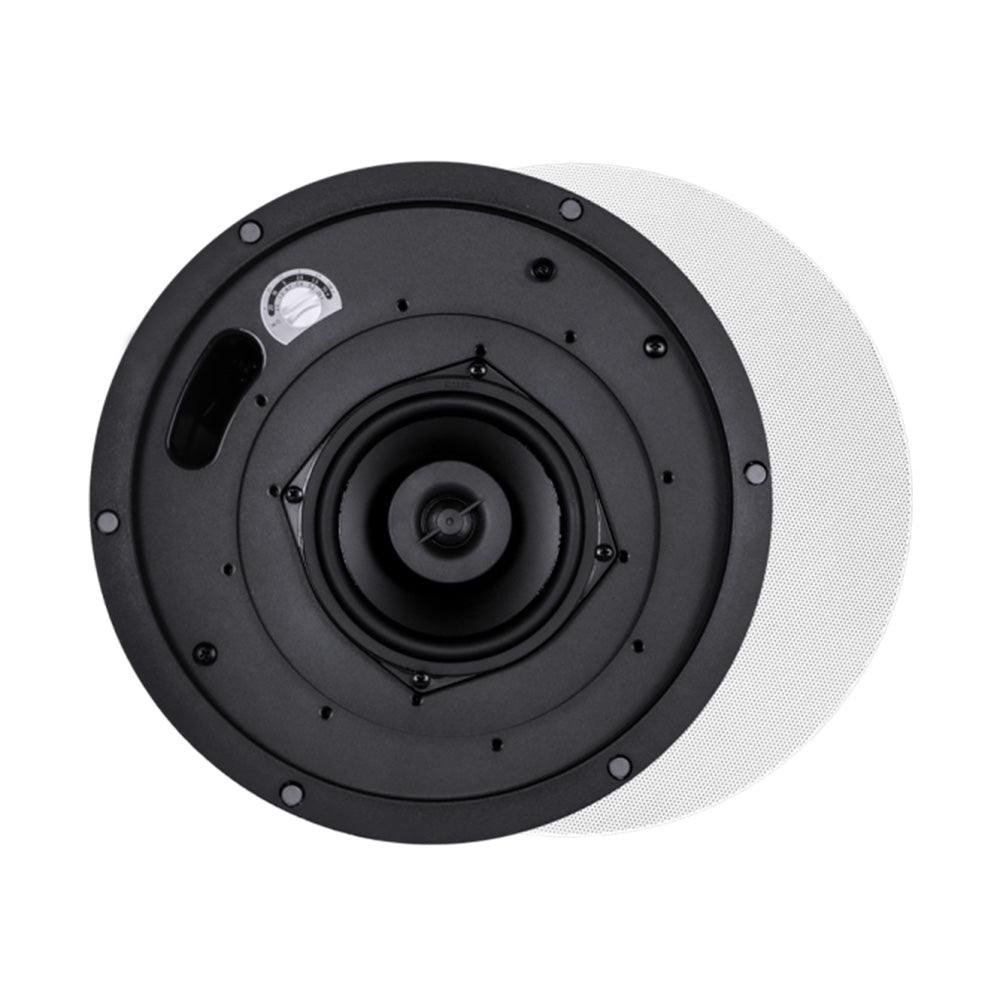

• One 5.25 (130 mm) polypropylene woofer with rubber surround and one .75" (19 mm) silk dome tweeter
• BroadBeam Ringª technology for mid-range clarity and ultra wide off axis performance

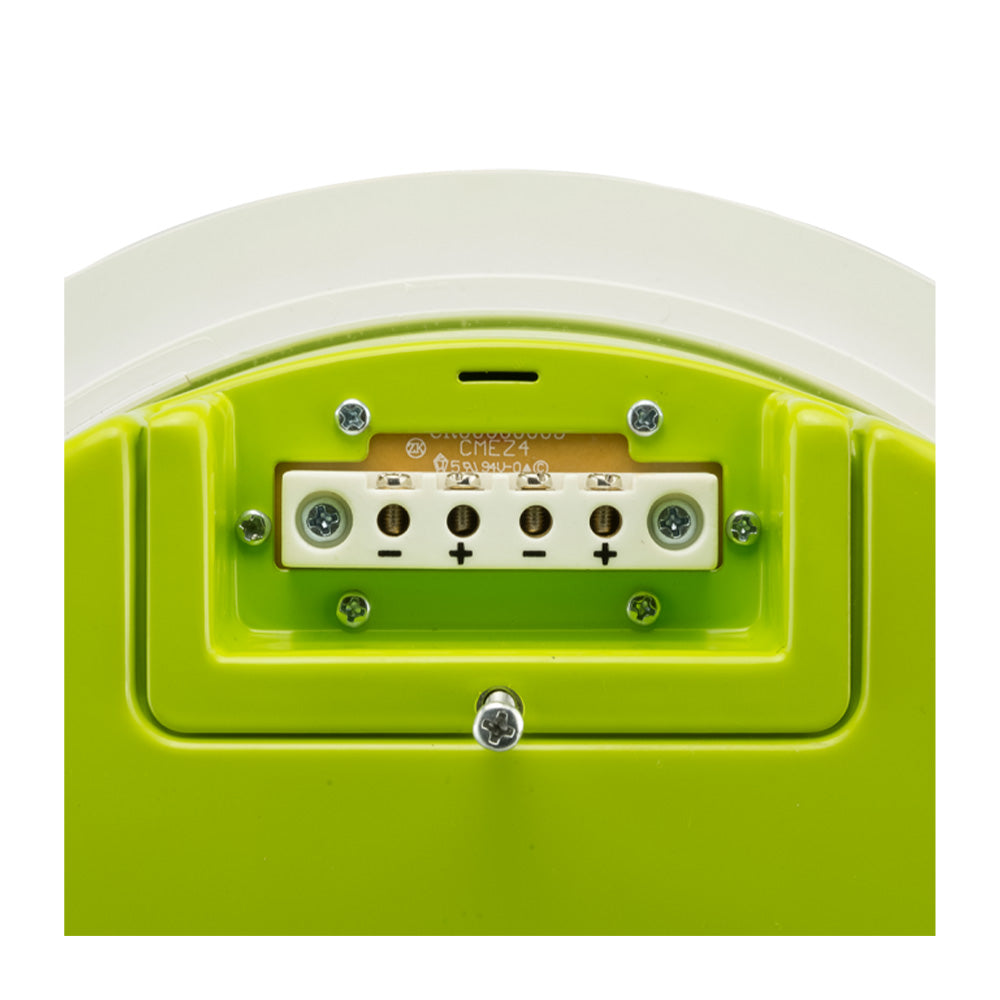

• Easy-access six-position tap switch for 25/70.7/100 V and transformer bypass settings allows for easy ordering, stocking and installation
• Tuned port on baffle for added musicality and bass response down to 65 Hz (±10 dB)
• Reduced amplification costs and maximum efficiency of 79.1 dB sensitivity, 16 ½ impedance

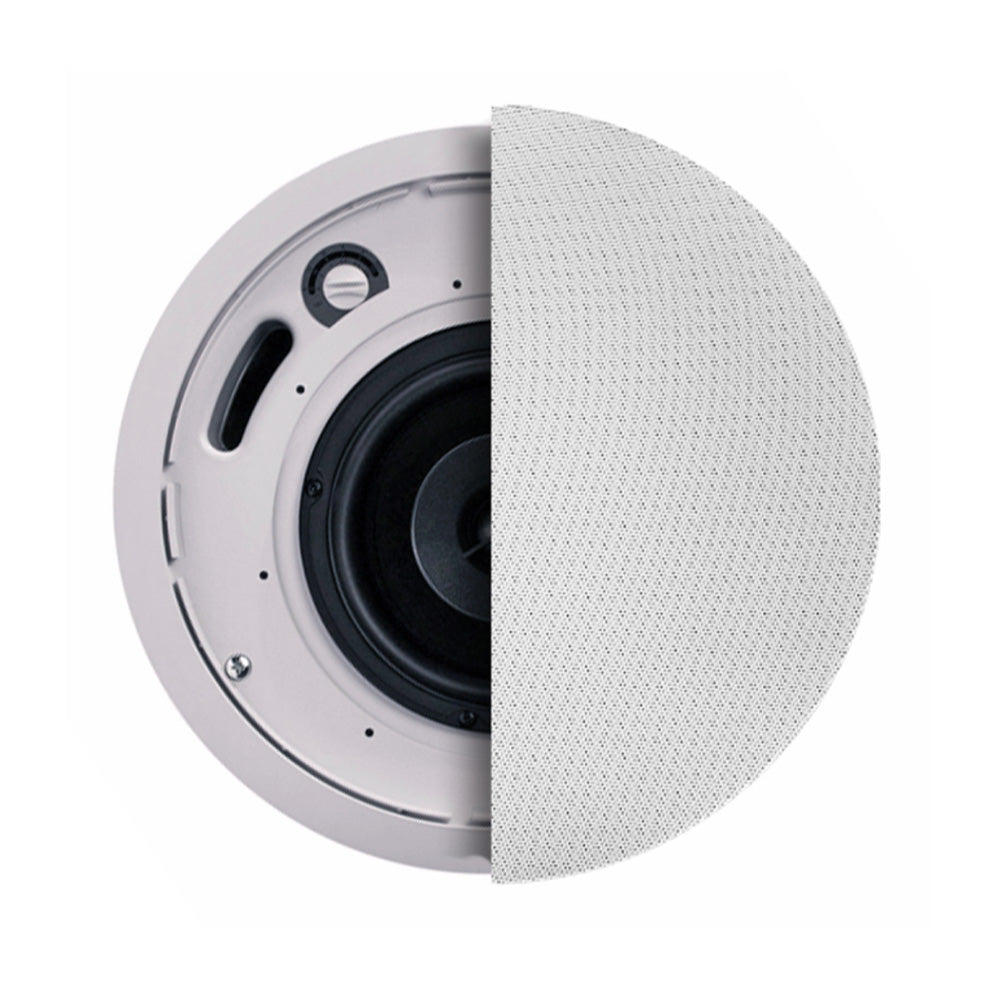

• Incorporates a steel plated and powder coated flangeless magnetic grille for lasting durability and seamless aesthetic (White grille included, but also available in Black)
• Adaptable to material thicknesses ranging from 0.035" | 0.9 mm to 1.6" | 40.6 mm
• UL1480 and 2043 approved
• Included accessories: tile bridge, UL listed 0.5 inch conduit clamp
• Optional accessories: Color-coded (green) preconstruction bracket (AC-CMEZ-6/8-PCB) Black Grill (GRL-CM-BGM-II-BK)

Applications
Developed specifically for paging and background music applications, the CM52s-BGM-II is ideal for hotels, education, hospitals, retail stores, restaurants, airports, churches or boardrooms. Indeed, the entire CMBGM-II series is engineered for installations where high-efficiency, added bass response and rapid installation are critical attributes. For applications requiring additional bass response, SoundTube's CM1001d subwoofer provides true low-end response down to 41 Hz. Patented Technologies SoundTube Entertainment and the MSE Audio Group constantly develop new technologies which enhance audio product performance. SoundTube Entertainment innovations are protected by multiple U.S. and international patents, which explicitly cover SoundTube dome, enclosure and dispersion technologies. The MSE Audio Group actively defends its patents in order to protect SoundTube resellers and end-users.
