Soundtube CM600i-BK - Two-Way 6.5-Inch In-Ceiling Loudspeaker (Black)

The CM600i is a 6.5", two-way, blind-mount inceiling speaker design that delivers effective low-end response (52 Hz) and optimal off-axis performance (2-10 kHz, independently verified). SoundTube's proprietary BroadBeam¨ waveguide tweeter system delivers consistent high-performance audio across the operating bandwidth. The CM600i speaker design incorporates a low-profile grille, proprietary motor-board, and a six-position tap switch with a transformer bypass position. Mounting hardware is included and features a fast and secure constanttension fixed-wing mounting system.

Features:

• Patented BroadBeam¨ waveguide technology delivers a consistent dispersion pattern for maximum intelligibility and edge-to-edge coverage (2-10 kHz, independently verified).

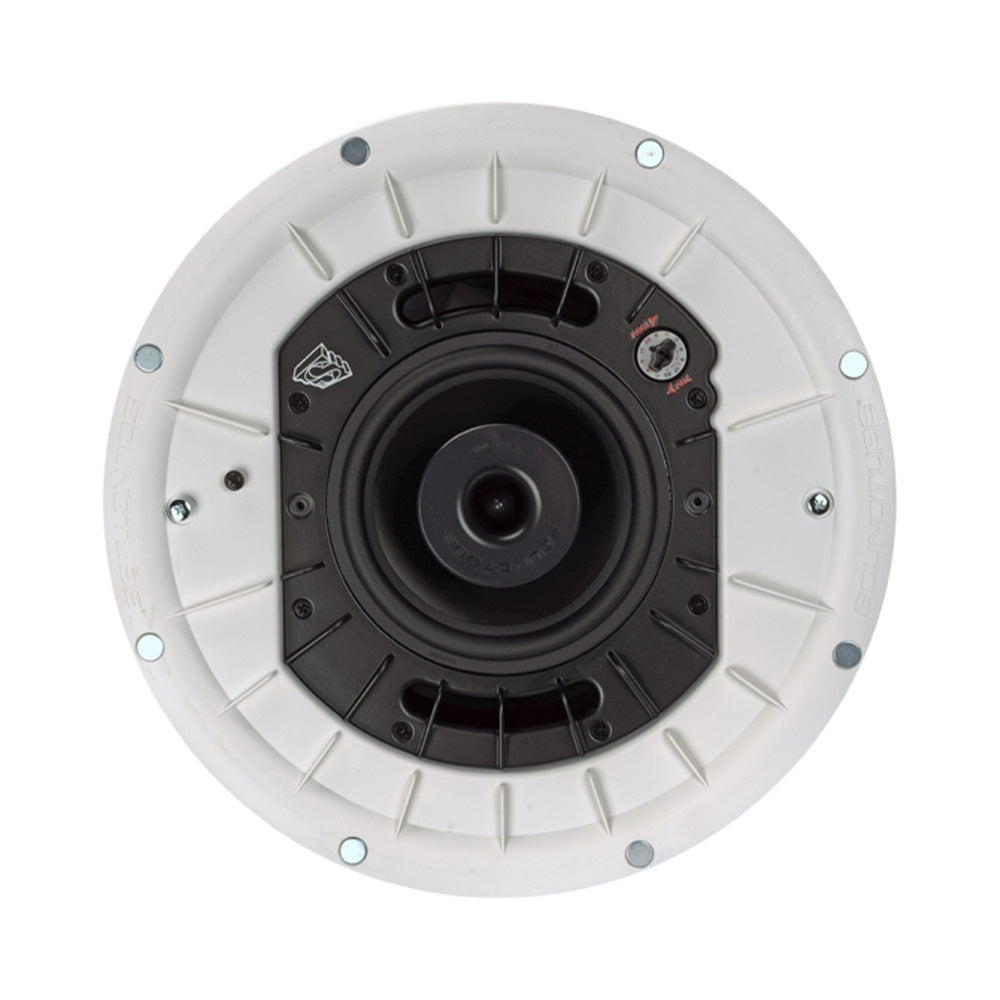

• One 6.5" (165 mm) polypropylene woofer and one 1" (25.4 mm) convex aluminum tweeter with FerroFluid cooling mounted to a proprietary castaluminum baffle and heat sink.
• Rapid installation blind-mount, fixed-wing mounting mechanism with constant tension design affixing to ceiling thicknesses ranging from 0.25" (6.4 mm) to 1.91" (48.5 mm)
• Easy access six-position selectable tap switch for 25, 70.7, and 100 V applications with transformer bypass position

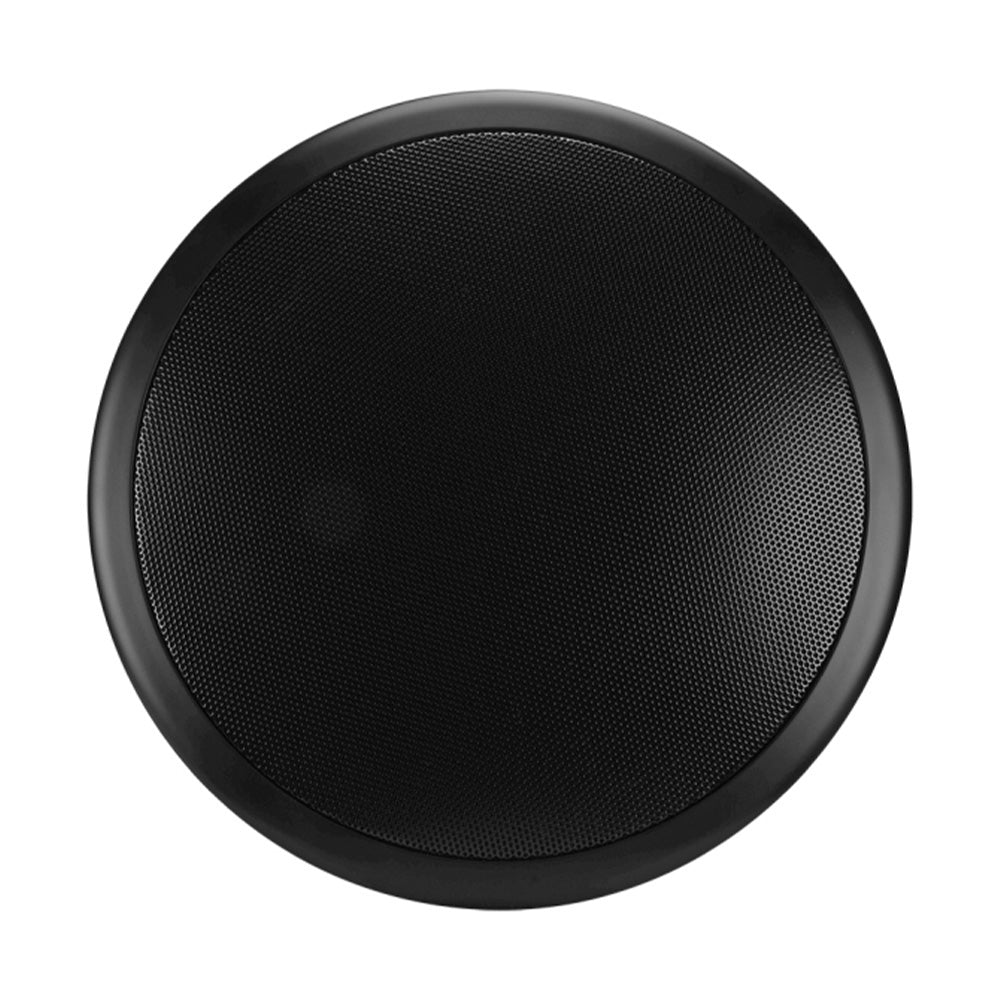

• Separate tool-free magnetic grille and bezel assembly with integrated safety cable for ease of install and in-field painting
• Steel grille with protective powder-coated finish for lasting durability
• Average sensitivity of 88 dB offers high-output capabilities and reduced amplification costs
• UL1480A and UL2043 approved
• High-quality black or white paint finish. Custom paint colors optional
• Included accessories: tile bridge, Euroblock connector, conduit plate, and paint mask
• Optional accessories: color-coded (purple) preconstruction bracket (AC-CM8-PCB), junction box (AC-CMi-JBOX), low-profile flangeless grille (GRL-6/8-FLG-BK/WH)
