Soundtube CM62-EZ-II Ceiling Mount 6.5" Coaxial Loudspeaker (White) - B-Stock
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
The CM62-EZ-II is a 6.5-inch, coaxial, two-way, blind-mount, in-ceiling speaker which delivers true high efficiency and performance across the operating bandwidth. By incorporating a 6.5-inch treated-fiber driver with cloth surround in a sealed drawn steel backcan, this speaker delivers maximum frequency response (65 Hz – 22 kHz, - 10 dB) in an integrated enclosure design.

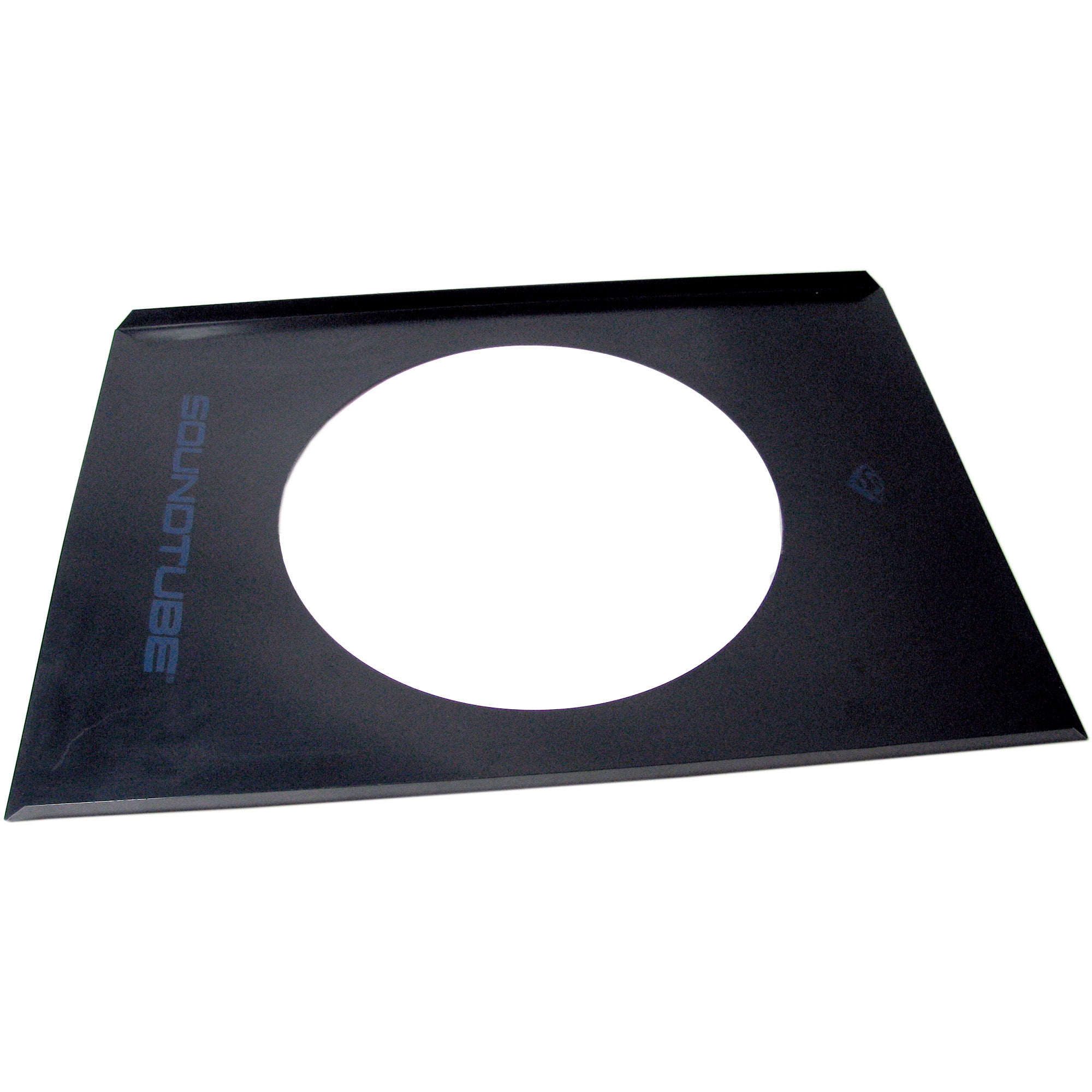

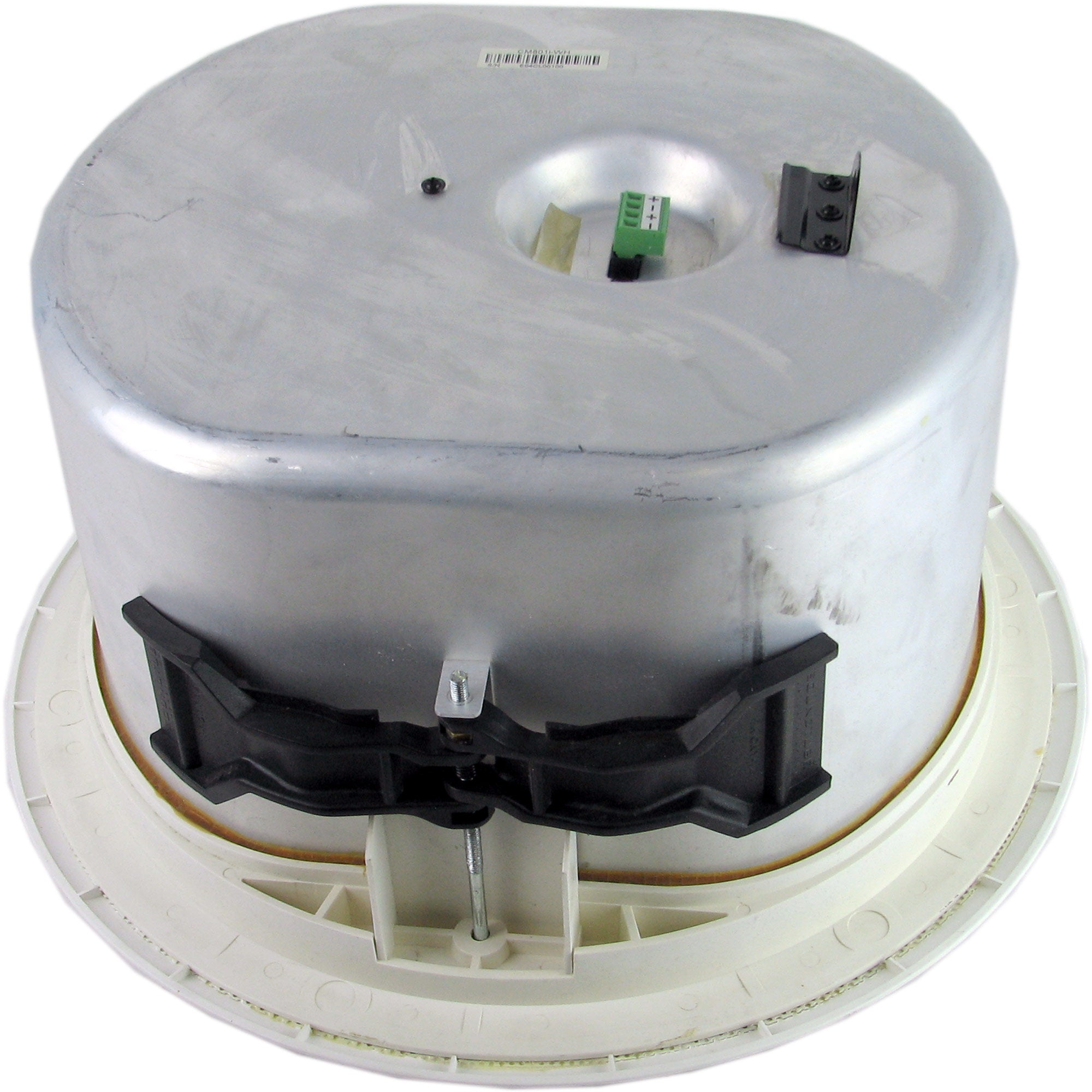

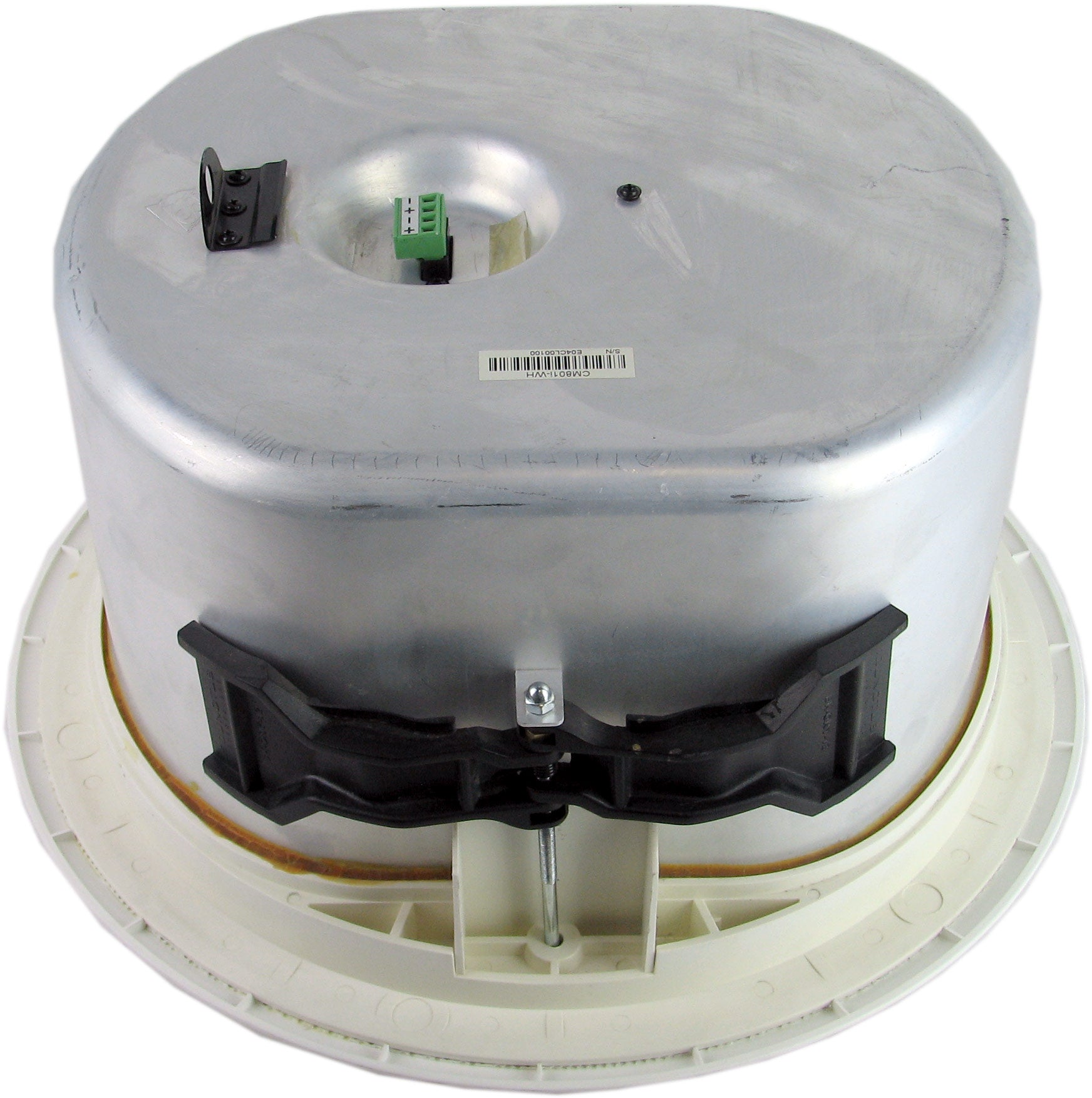

Mounting hardware is included and features a constant-tension, winged mounting system with a 21-gauge “fullmetal” steel tile bridge, ensuring rapid and secure installation in any sheetrock or drop-tile application. For easy ordering, stocking and installation, this series includes a color-coded (green) tile bridge and a six-position tap switch for 25-, 70.7- and 100-volt applications and 16 ohm transformer bypass. Optional preconstruction brackets are also available.
Features:
- One 6.5 in (165 mm) treated fiber woofer with cloth surround and one 1.0 in (25.4 mm) silk dome tweeter.
- Easy-access, six-position tap switch for 25/70.7/100-volt and 16 ohm transformer bypass position allows for easy ordering, stocking and installation.
- Reduced amplification costs with maximum efficiency including 90 dB sensitivity and 16-ohm impedance.
- Superior voice intelligibility with a 10 kHz coverage angle of 80° (Independently verified).

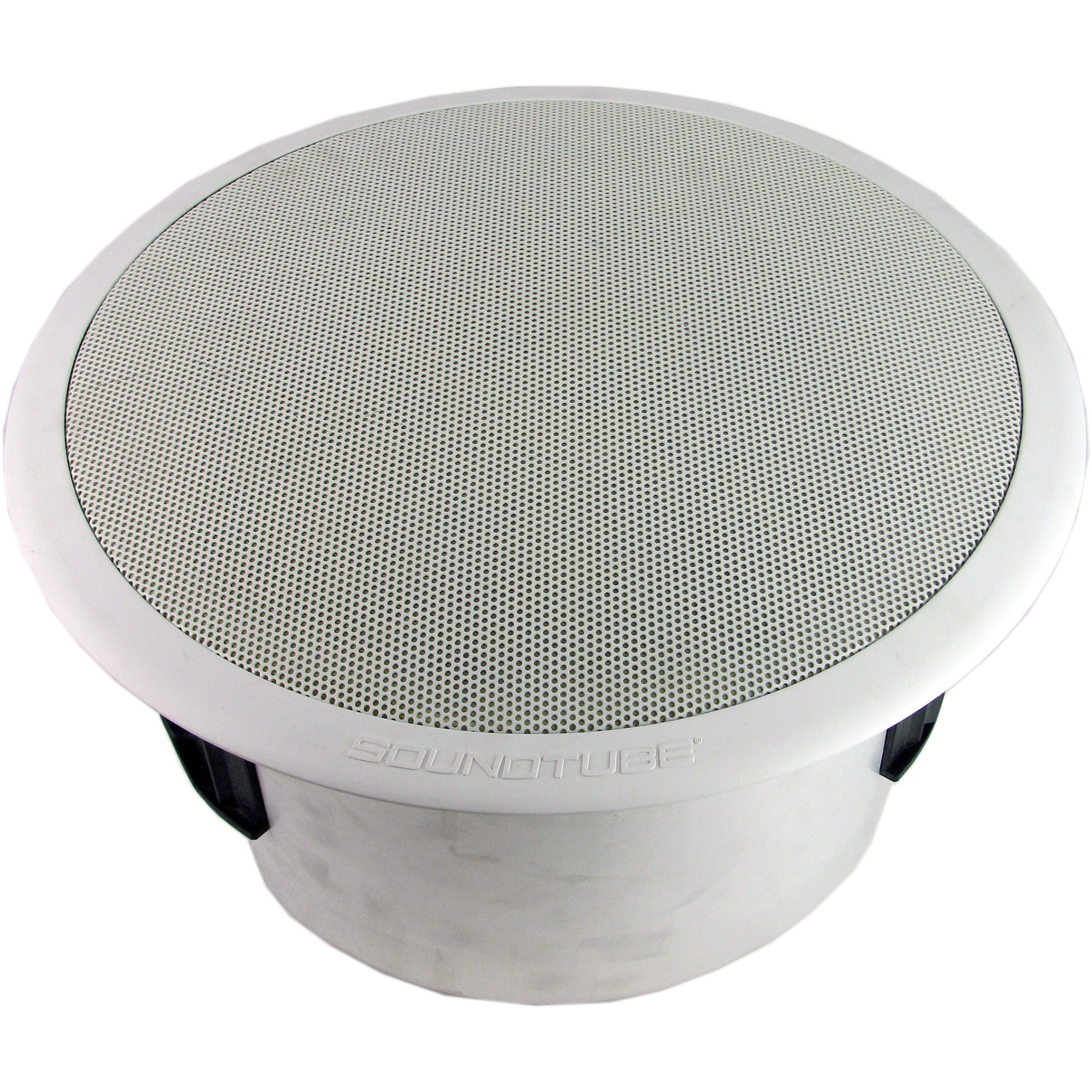

- Incorporates a painted steel grille for lasting durability.
- Adaptable to material thicknesses ranging from 0.04 in (0.9 mm) to 1.60 in (40.6 mm).
- UL 1480 (UEAY) and 2043, CE (EMC Directive 89/366/EEC, EN55020, EN55013) approved
- High-quality black or white painted finish. Custom colors available.
- Included accessories: Tile bridge, UL listed 0.5-inch flex conduit clamp, paint shield and two wire nuts.
- Optional accessories: Color-coded (green) pre-construction bracket (ACCMEZ6/8-PCB), junction box (AC-CMEZ-JBOX).
| Nominal Impedance | 16 ohm |
| Impedance (min) | 17.9 ohm |
| Sensitivity dB @ 2.83V/1M | 90.0dB |
| Sensitivity dB @ 1W/1M (2) | 90.0dB |
| Frequency Response (±10 dB) | 65Hz-22kHz |
| Max. Program Power | 100w |
| Max. Continuous Power RMS | 50w |
| Max. Power SPL @ 1 M | 107.0dB |
| Max. SPL @ 3dB distortion | 50w |
| Tap Selector | 6 Position rotary switch with transformer bypass |
| 70.7 Volt Transformer Taps | 32w / 105.0dB |
| 100 Volt Transformer Taps (dB) | 32w / 105.0dB |
| 25 Volt Transformer Taps (dB) | 4w / 96.0dB |
| Transformer Options | 25 / 70.7 / 100 Volt option with a 16 Ohm direct |
| Coverage Angles | -6 dB @ 500 Hz / |
| Angle | 135° |
| Colors | Black / White / Custom |

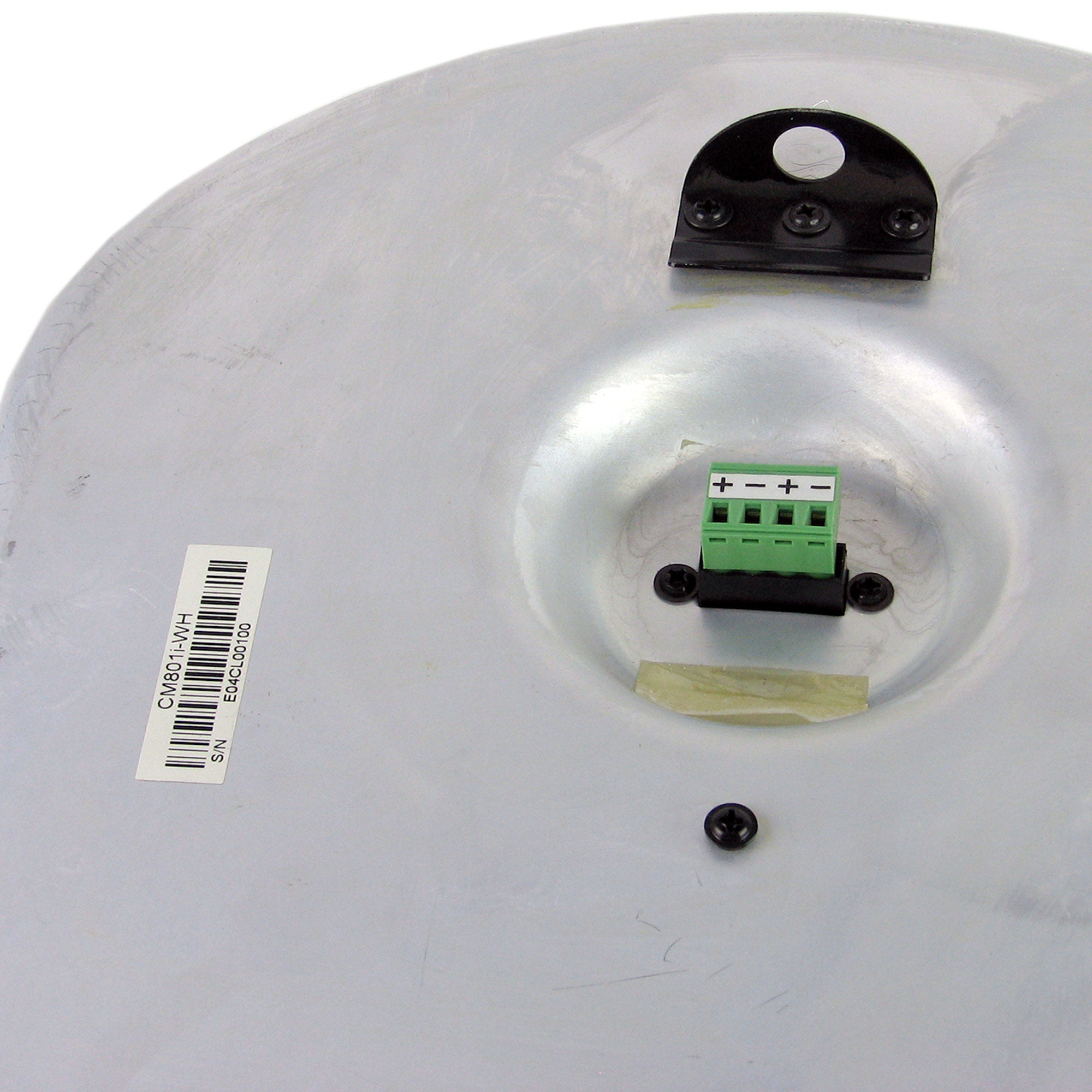

| Connections | 4 position ceramic terminal strip |
| Tweeter - part | 1″ Silk Dome |
| Woofer - part | 6.5" Treated Fiber Cone w/ Cloth Surround |
| Inputs | 4 position ceramic terminal connector |
| Backcan Diameter | 245.6 mm / 9.67 in |
| Backcan Height | 146.1 mm / 5.75 in |
| Visible Diameter | 298.5 mm / 11.75 in |
| Visible Height | 8.6 mm / 0.34 in |
| Mounting Hole Diameter | 266.7 mm / 10.50 in |
| Weight | 3.6 kg / 8 lbs |
| Shipping Weight | 4.1 kg / 9 lbs |
| Accessories Optional | AC-CMEZ6/8-PCB, AC-CM-EZ-JBOX |
| Packaging | 1 per box |
| Regulatory - UL | Approved 1480 & 2043 |
| Regulatory - CE | Approved |
| Regulatory - RoHS | approved |
| Regulatory - IP | not planned |
| Regulatory - CCC | approved |
