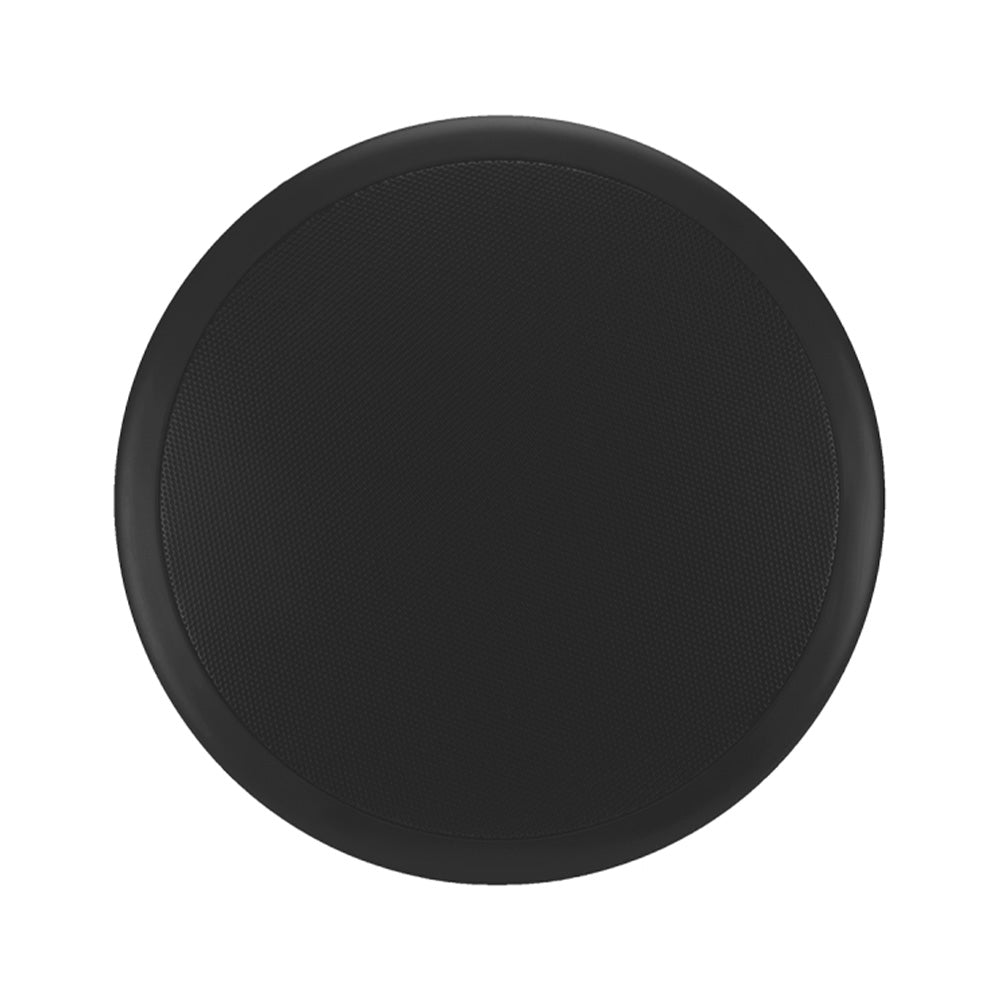

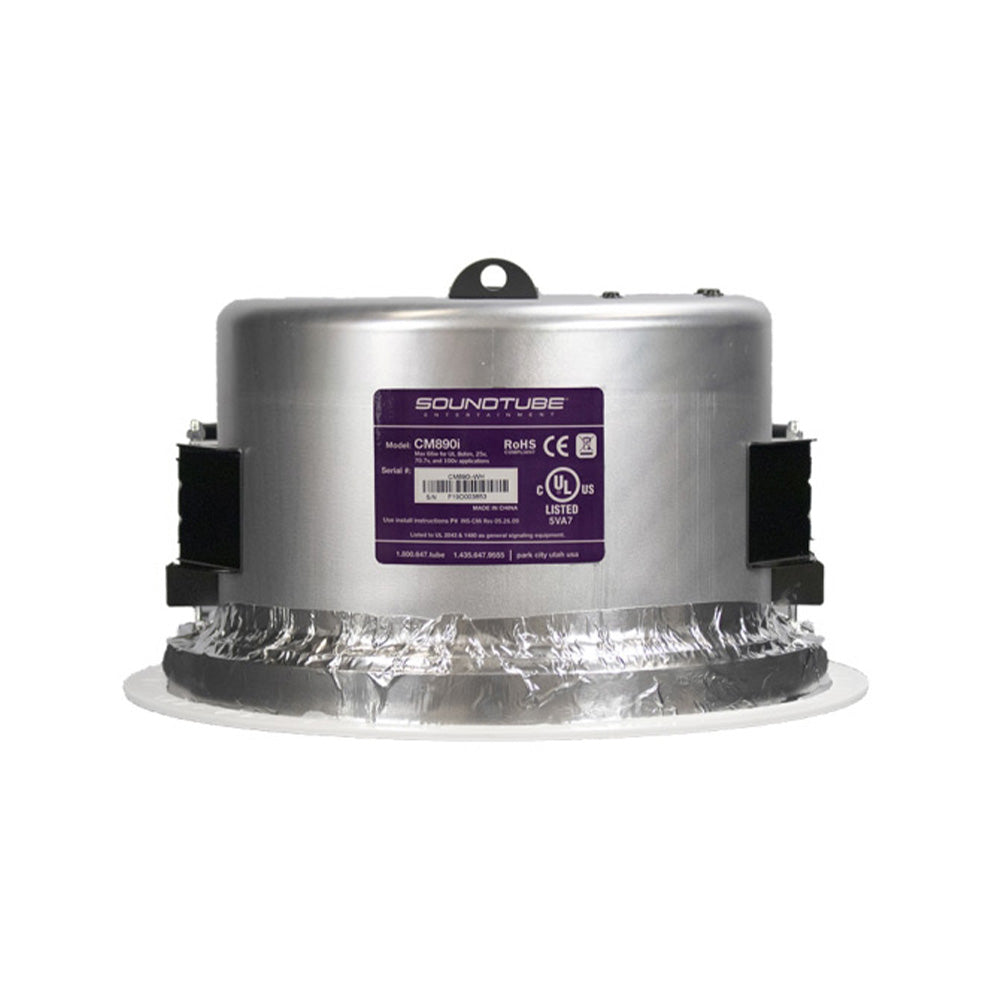

Soundtube CM890i-BK - Two-Way High-Power 8-Inch In-Ceiling Loudspeaker (Black)

The CM890i is a premium 8", two-way, blind-mount in-ceiling, high-efficiency, high SPL loudspeaker for distributed or 8 ½ applications. The CM890i incorporates a dedicated 8" treated fiber driver and high-power compression transducer with a BroadBeamHP¨ waveguide to deliver a consistent dispersion pattern and superb intelligibility for the foreground music, sound reinforcement and PA markets. The CM890i also incorporates a 66 W transformer with a six-position tap switch and transformer bypass position. Mounting hardware is included and features a fast and secure constant-tension, fixed-wing mounting system.

Features:

• Patented BroadBeamHP¨ waveguide technology delivers a consistent BroadBeam dispersion pattern for maximum intelligibility and edge-to-edge coverage (2-8 kHz, independently verified)
• A 66 W transformer and high output (114 dB) for the sound reinforcement and PA markets

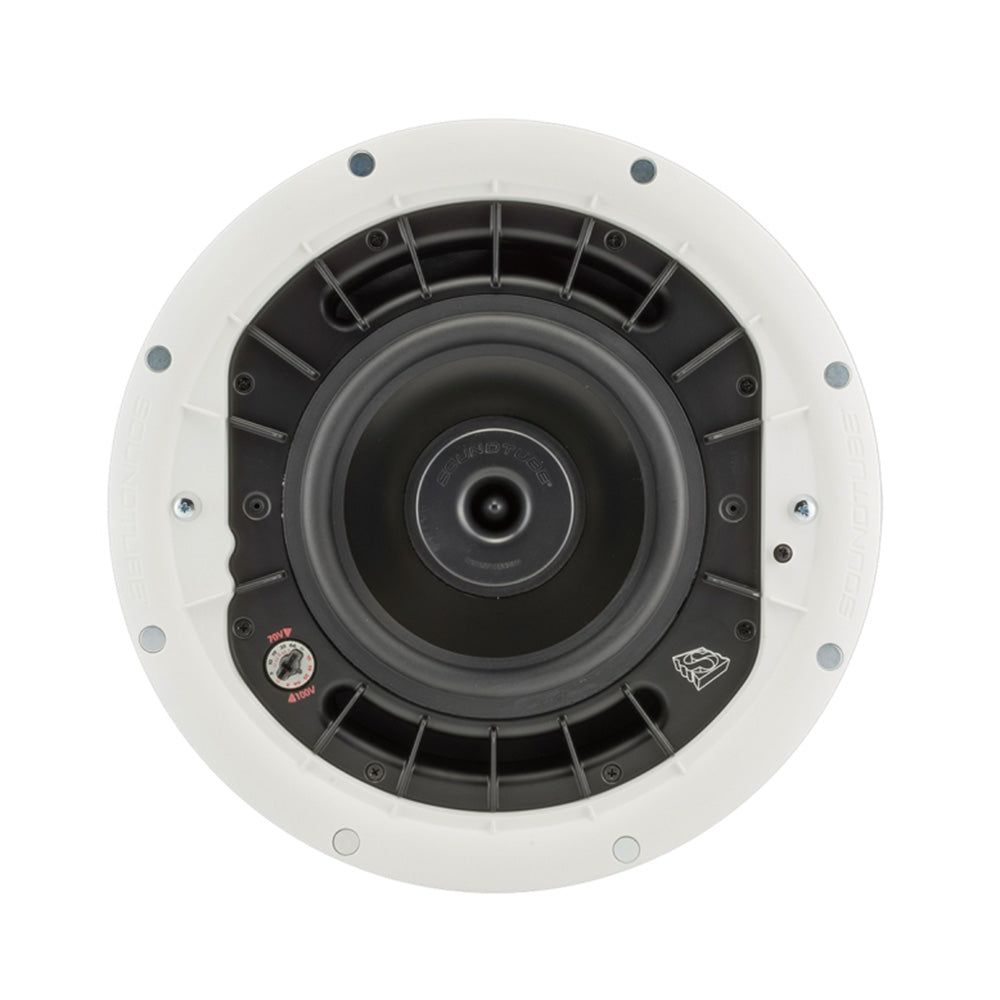

• One 8" (203 mm) treated fiber driver and one compression driver with a 1" (25.4 mm) exit mounted to a proprietary cast-aluminum baffle and heat sink

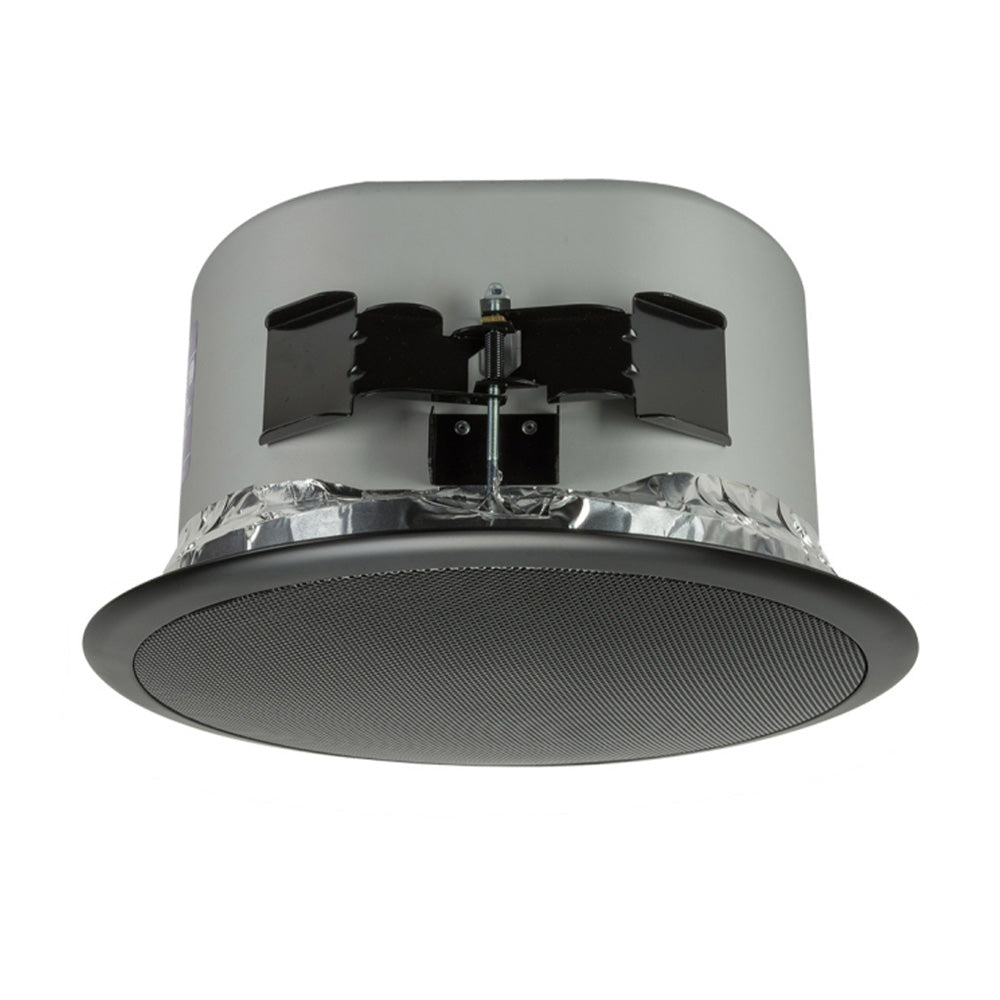

• Rapid installation blind-mount, fixed-wing mounting mechanism with constant-tension design affixing to ceiling thicknesses ranging from 0.25" (6.4 mm) to 1.91" (48.5 mm)
• Easy access six-position selectable tap switch for 25, 70.7, and 100 V applications with transformer bypass position
• Separate tool-free magnetic grille and bezel assembly with integrated safety cable for ease of install and in-field painting
• Average sensitivity of 93 dB offers high-output capabilities and reduced amplification costs
• UL1480A and UL2043 approved
• High-quality black or white paint finish. Custom paint colors optional
• Included accessories: tile bridge, Euroblock connector, conduit plate, and paint mask/ installation aid
• Optional accessories: color-coded (purple) pre-construction bracket (AC-CM8-PCB), and junction box (AC-CMi-JBOX)
