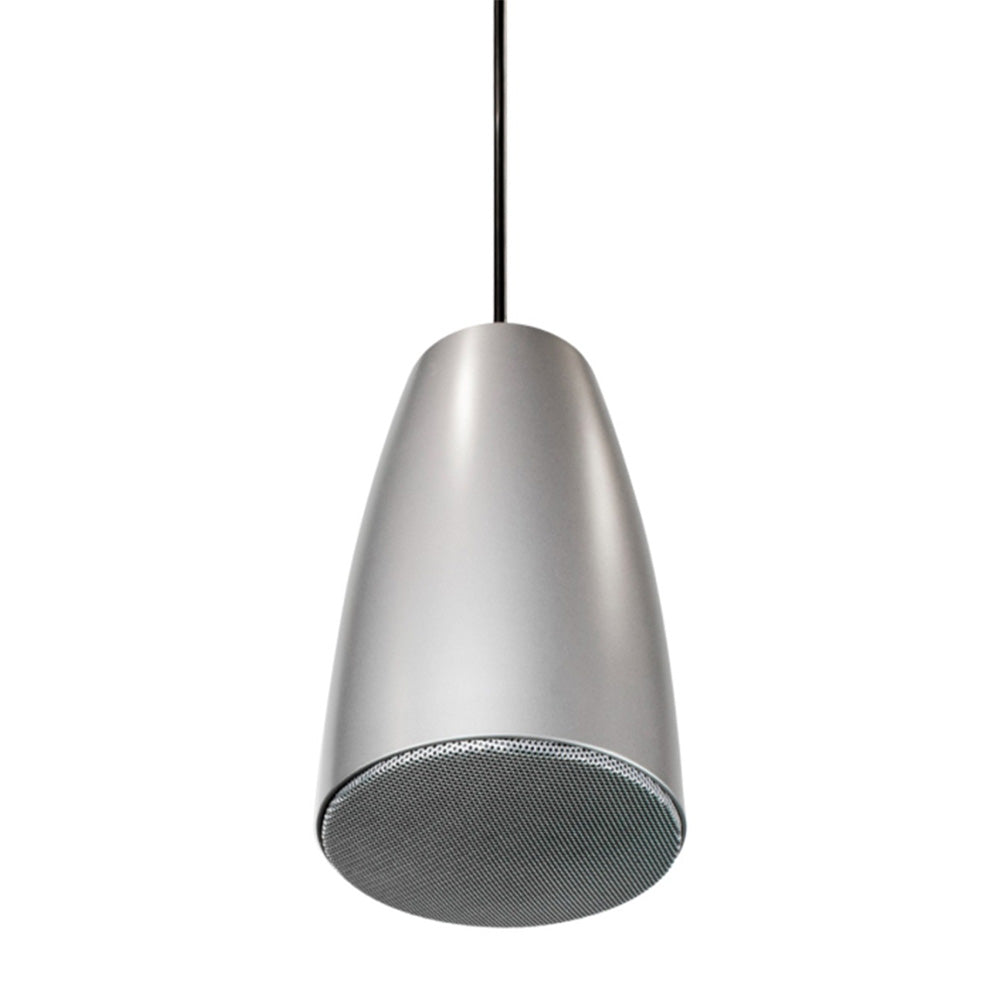

Soundtube DS31-EZ-TS-SL - Tapered Sleeve Hanging Loudspeaker (Silver)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Designer Sleeve DS31-EZ pendant speakers were developed to offer varying aesthetic options for near space applications that require a design element to meet dŽcor needs. The speaker can be used with or without the sleeve based on the desired look with multiple contemporary slide-on sleeves to match any aesthetic. The speakers blend well with drop lighting and are available in silver (DS31-EZ-SL), black (DS31EZ-BK), and white (DS31-EZ-WH).
Features:
- Full-range pendant speaker with multiple color and style options
- Hanging hardware included
- Powder-coated seamless magnetic grille
- Three color options available: Black, White, or Silver

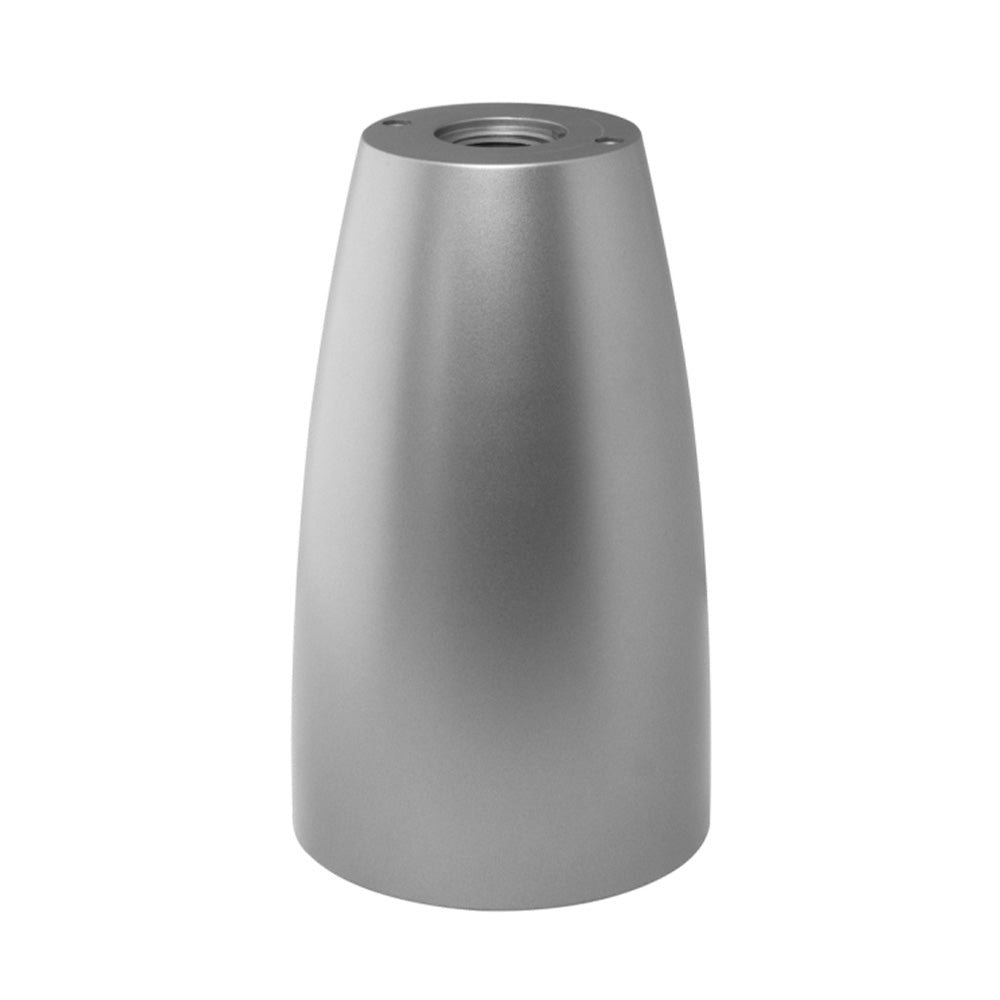

- Two sleeve options available: Tapered or Cylindrical (Cylindrical Sleeve has two configurations)
| Color | Silver |
| UPC | 644216229703 |
| Manufacturer | SoundTube |
| Manufacturer's Category | MM/DS Contemporary Pendants |
| Height | 8.25 in / 209.55 mm |
| Width/Diameter | 4.75 in / 120.65 mm |
| Shipping Weight | 6 lbs / 2.7 kg |
| Certifications | CE, RoHS |
| Enclosure Properties | ABS |
| Included Accessories | Grille, Hanging Hardware, Mounting Assembly, Wire Nuts, Designer Sleeve |
| Source Inputs | Wire Leads |
| IP Rating | IPX6 |
| TAA Compliant (Trade America) | No |
| BAA Compliant (Made in USA) | No |
| Coverage Angle (±6dB @ 2kHz) | 90Á |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 4.9 and 7.1 |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 5.1 dB and 8.5 dB |
| Frequency Response (± 10 dB) | 80 Hz - 20 kHz |
| Frequency Response (± 3 dB) | 115 Hz - 14 kHz |

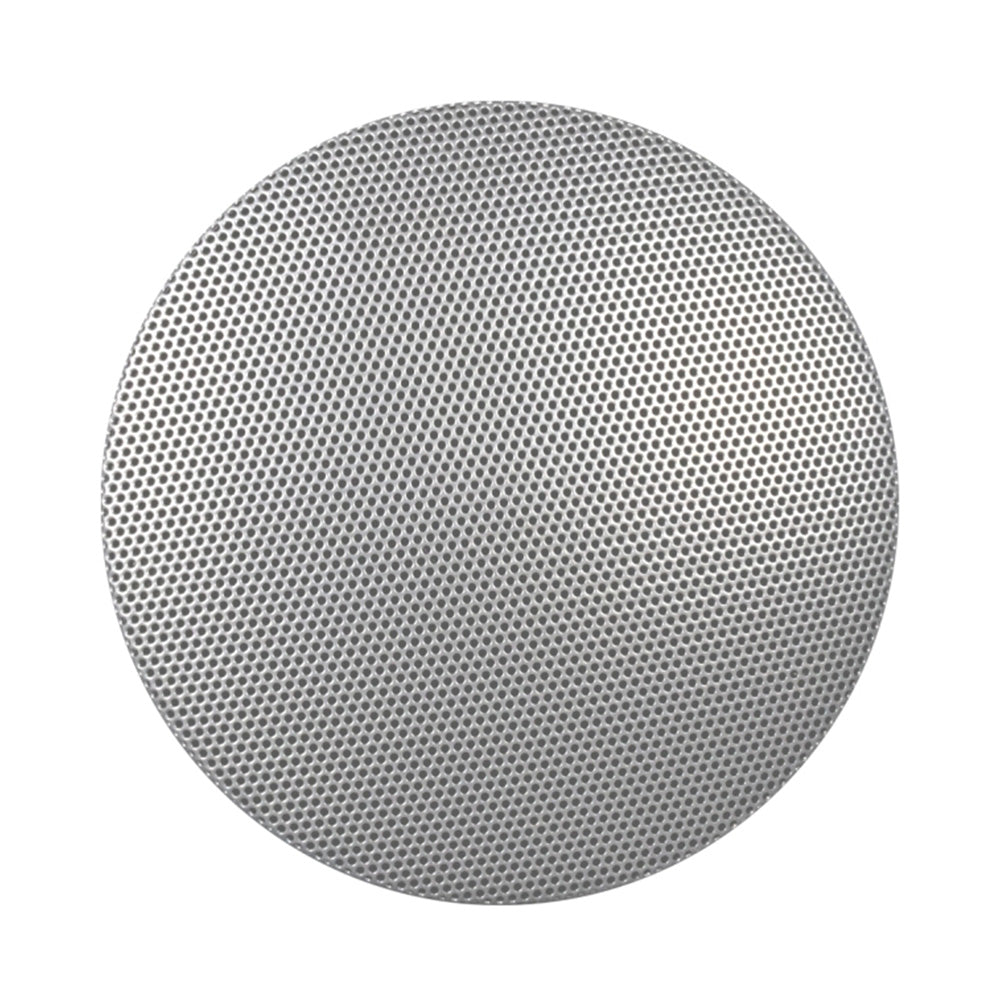

| Grille Properties | Magnetic, Powder-Coated, Steel |
| Max. Continuous Power RMS | 30 W |
| Max SPL @ 1M | 97.2 dB RMS, 112 dB Max |
| Max. Program Power | 60 W |
| Nominal Impedance (_ Ohms) | 8 _ |
| Fullrange Driver | 3" Polypropylene driver with butyl rubber surround |
| Sensitivity dB @ 1W/1M | 87 dB |

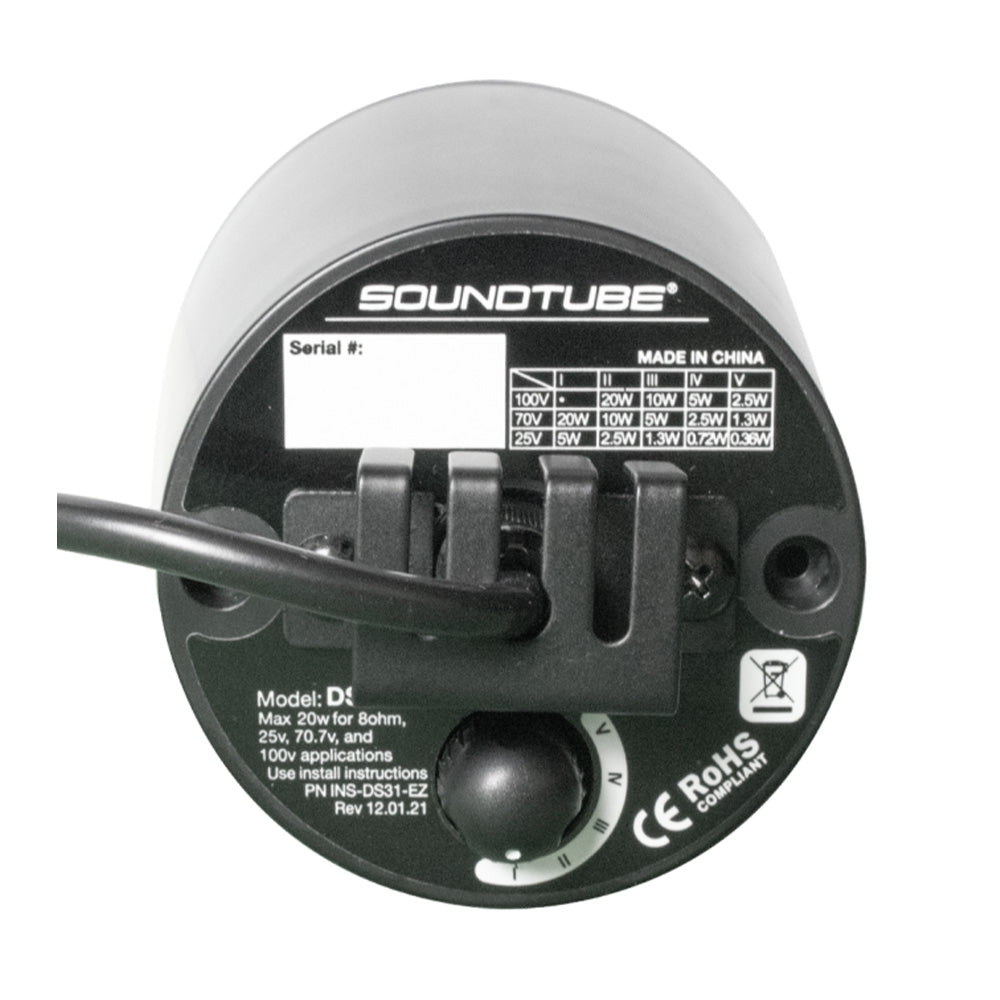

| Tap Selector | Rotary Switch |
| Transformer Options | 25 / 70.7 / 100 V, 8 Ohm direct |
| Transformer Taps Max. Setting (25V/70.7V/100V) | 5W/20W/20W |
The Designer Sleeve DS31-EZ pendant speakers were developed to offer varying aesthetic options for near space applications that require a design element to meet dŽcor needs. The speaker can be used with or without the sleeve based on the desired look with multiple contemporary slide-on sleeves to match any aesthetic. The speakers blend well with drop lighting and are available in silver (DS31-EZ-SL), black (DS31EZ-BK), and white (DS31-EZ-WH).
Features:
- Full-range pendant speaker with multiple color and style options
- Hanging hardware included
- Powder-coated seamless magnetic grille
- Three color options available: Black, White, or Silver
- Two sleeve options available: Tapered or Cylindrical (Cylindrical Sleeve has two configurations)
| Color | Silver |
| UPC | 644216229703 |
| Manufacturer | SoundTube |
| Manufacturer's Category | MM/DS Contemporary Pendants |
| Height | 8.25 in / 209.55 mm |
| Width/Diameter | 4.75 in / 120.65 mm |
| Shipping Weight | 6 lbs / 2.7 kg |
| Certifications | CE, RoHS |
| Enclosure Properties | ABS |
| Included Accessories | Grille, Hanging Hardware, Mounting Assembly, Wire Nuts, Designer Sleeve |
| Source Inputs | Wire Leads |
| IP Rating | IPX6 |
| TAA Compliant (Trade America) | No |
| BAA Compliant (Made in USA) | No |
| Coverage Angle (±6dB @ 2kHz) | 90Á |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 4.9 and 7.1 |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 5.1 dB and 8.5 dB |
| Frequency Response (± 10 dB) | 80 Hz - 20 kHz |
| Frequency Response (± 3 dB) | 115 Hz - 14 kHz |
| Grille Properties | Magnetic, Powder-Coated, Steel |
| Max. Continuous Power RMS | 30 W |
| Max SPL @ 1M | 97.2 dB RMS, 112 dB Max |
| Max. Program Power | 60 W |
| Nominal Impedance (_ Ohms) | 8 _ |
| Fullrange Driver | 3" Polypropylene driver with butyl rubber surround |
| Sensitivity dB @ 1W/1M | 87 dB |
| Tap Selector | Rotary Switch |
| Transformer Options | 25 / 70.7 / 100 V, 8 Ohm direct |
| Transformer Taps Max. Setting (25V/70.7V/100V) | 5W/20W/20W |
