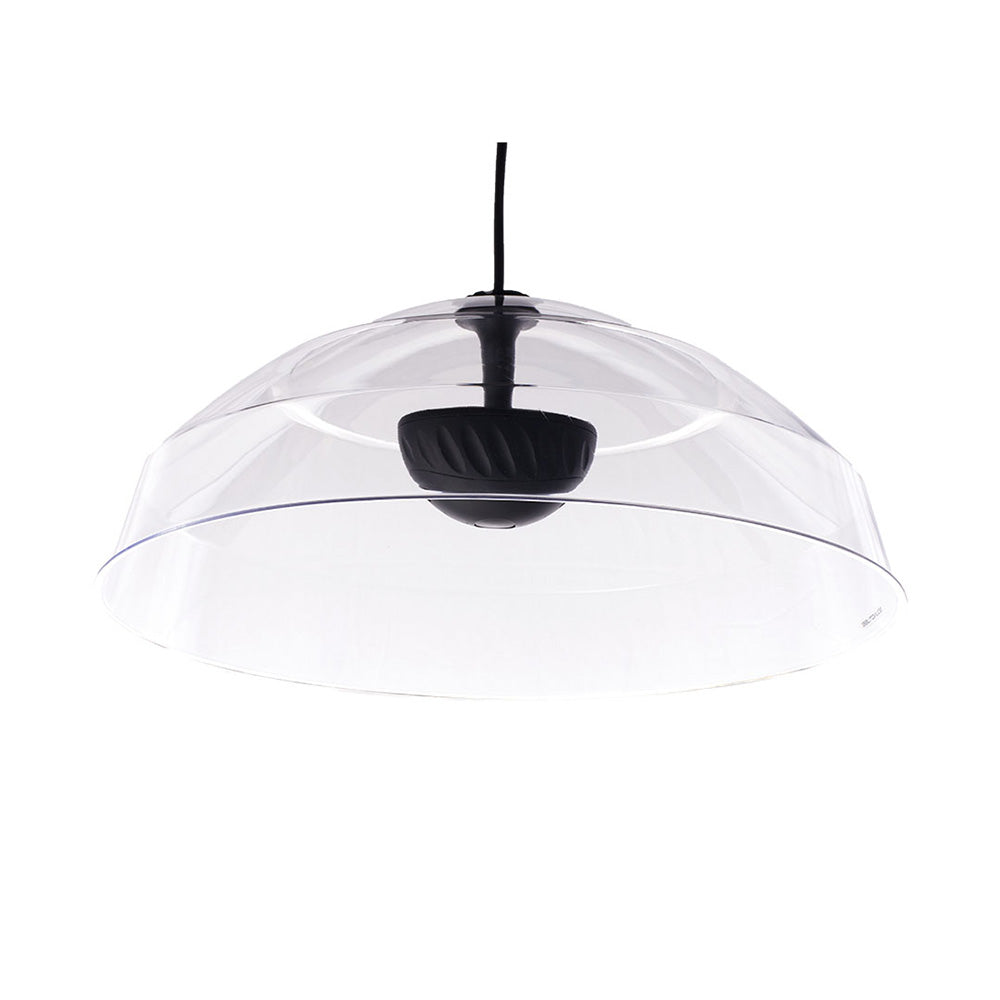

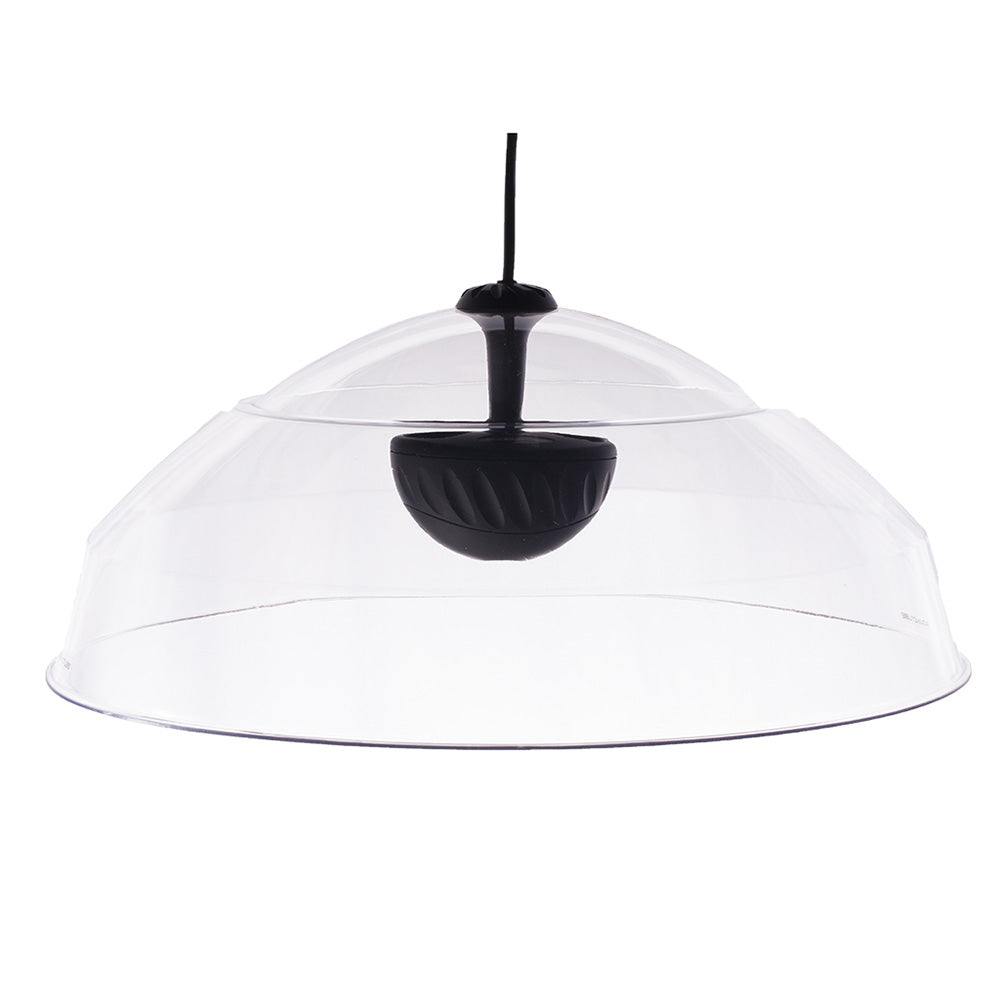

Soundtube FP6030-II - 30-Inch Stereo Dual-Parabolic SoundDome Speaker
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The FP6030-II delivers targeted audio in a unique package by incorporating two full-range, high-performance, 1-inch, concave, aluminum dome, high-excursion drivers with patented 30.75-inch Dual-Parabolicª sound domes. All models can be wired in either 8 ohm stereo or 4 ohm mono with optional 25/70.7/100-volt transformer available.
Included accessories: hanging bracket, mounting bushing and a 15-foot hanging cable that includes four 16-gauge inputs and a CAT V cable. Optional modules include Motion Sensor (FP-Motion), LED light (FP-Light), optional 15-volt, 3-amp power supply necessary for all module accessories (AC-PS-1530). Optional electronic accessories include 10 and 20-watt transformers with junction box for 25, 70.7, and 100-volt applications (AC-JB10-XFMR, AC-JB20-XFMR) and an external amplification unit with power supply (SA202-RDT) for use with any FP module.
Additional optional accessories include: wall bracket, sound sleeves and rigid mount adaptor. Ships as individual unit,
Features:
- Patented Dual-Parabolicª dispersion control technology provides a targeted audio footprint with true stereo separation.
- Twin 1.00 in (25 mm) concave aluminum high-excursion drivers in individually sealed compartments for stereo or mono music and messaging.
- Patented ZeroReflectionª enclosure technology for accurate sound reproduction.
- Narrow 45¼ coverage angle for sharp focus (average 2 - 10 kHz, independently verified).

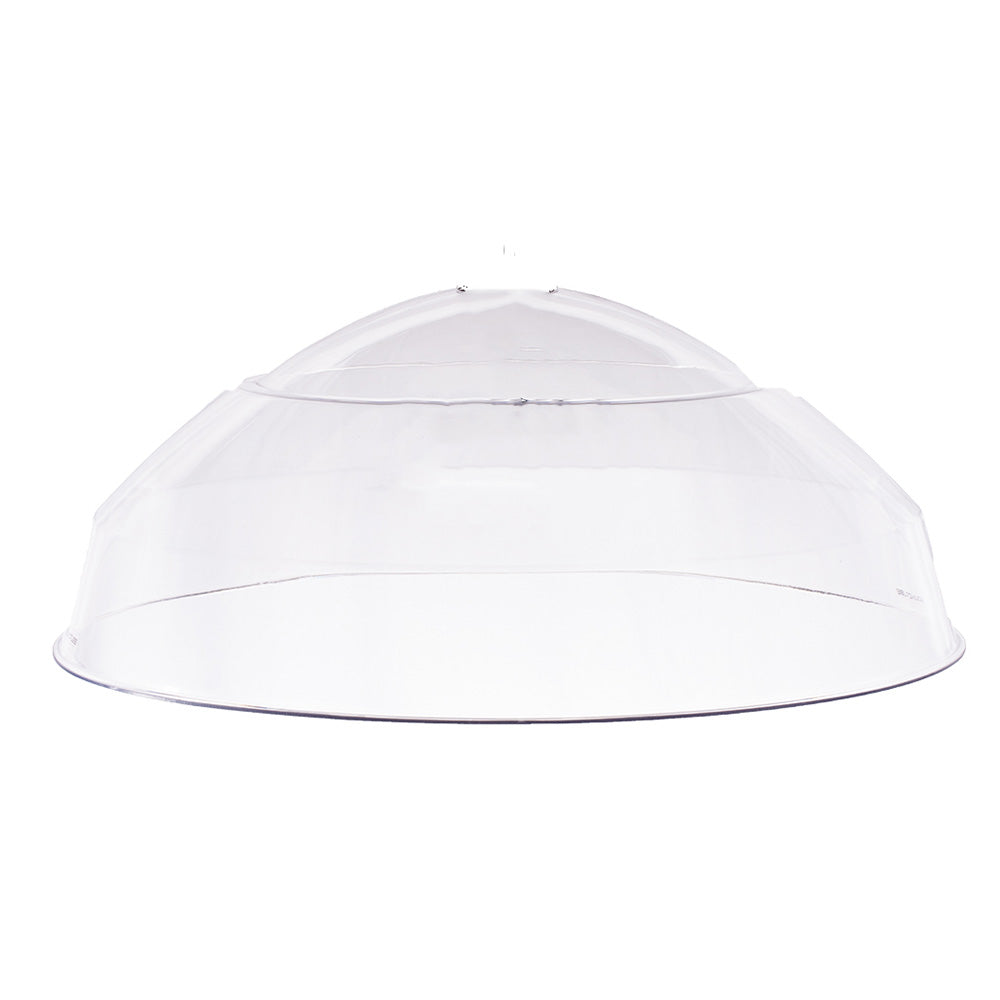

- 30.75 in (781.1 mm) custom-molded PETG clear polymer dome for minimal visual impact.
- User-selectable 350 Hz high-pass filter.
- Single-point balanced mounting for easy and clean-looking installs.
- Ships with clear dome, custom colors available.
- Included accessories: hanging bracket, mounting bushing and a 15-foot hanging cable which includes four 16-gauge inputs and a CAT V cable.
- Optional modules include motion sensor (FP-Motion), LED light (FP-Light) amplification (FP-Amp), and scent unit (FP-ScentAirª); optional 15-volt, 5-amp or 15-volt, 3-amp power supply necessary for all module accessories (AC-PS-1550 or AC-PS-1530). The FP-ScentAir ships plumbed for scent unit (scent unit sold separately, visit www.scentair.com for details).
- Optional electronic accessories include 10- and 20-watt transformers with junction box for 25-, 70.7- and 100-volt applications (AC-JB10-XFMR, AC-JB20-XFMR) and an external amplification unit with power supply (SA202-RDT) for use with any FP module.
- Additional optional accessories include: wall bracket, sound sleeves and rigid mount adaptor.
| Color | Clear |
| Manufacturer's Suggested Retail Price | $580.00 |
| UPC | 752830451988 |
| Manufacturer | SoundTube |
| Manufacturer's Category | FP Focus Point Parabolic Series |
| Height | 13.1 in / 332.7 mm |
| Width/Diameter | 30.75 in / 781.1 mm |
| Shipping Weight | 11.02 lbs / 5 kg |
| Certifications | CE, RoHS |
| Enclosure Properties | PETG, Polystyrene, Sealed |
| Included Accessories | Hanging Hardware, Mounting Hardware |
| Optional Accessories | Motion Kit (FP-MOTION MODULE)|Light Kit (FP-LIGHT MODULE)|Wall Mount Bracket (AC-WB4)|White Sound Sleeve (AC-SFP20-WH)|Black Sound Sleeve (AC-SFP20-BK)|Rigid Mount Adaptor (AC-FP6-RMA)|10W Transformer J-Box (AC-JB10-XFMR)|20W Transformer J-Box (AC-JB20-XFMR) |
| Coverage Angle (-6dB @ 2kHz) | 55Á |
| Crossover Frequency | 75 Hz or 350 Hz switchable |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 23.4 and 27.5 |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 12.4dB and 14.4dB |
| Frequency Response (± 10 dB) | 130 Hz - 22 kHz (200 Hz with high-pass filter) |
| Frequency Response (± 3 dB) | 170 Hz - 22 kHz (300 Hz with high-pass filter) |
| Grille Properties | High-Impact Polystyrene |
| Low Frequency Voice Coil | 0.81 in / 20.5 mm |
| Magnetically Boosted | No |
| Max. Continuous Power RMS | 15W |
| Max. Program Power | 30 W |
| Minimum Impedance (_ Ohms) | 5.4 _ |
| Network Type: High Pass | 6 dB per octave 1st order |
| Nominal Impedance (_ Ohms) | 8 _ |
| Fullrange Driver | (2) 1" Aluminum High Excursion |
| Sensitivity dB @ 1W/1M | 75 dB |
| Sensitivity dB @ 2.83V/1M | 75 dB |
| Tap Selector | Rotary Switch J-Box |
| Transformer Options | 25 / 70.7 / 100 V, 8 Ohm direct |
| Transformer Taps (25V/70.0V/100V) | 1.25W/10W/30W |
The FP6030-II delivers targeted audio in a unique package by incorporating two full-range, high-performance, 1-inch, concave, aluminum dome, high-excursion drivers with patented 30.75-inch Dual-Parabolicª sound domes. All models can be wired in either 8 ohm stereo or 4 ohm mono with optional 25/70.7/100-volt transformer available.
Included accessories: hanging bracket, mounting bushing and a 15-foot hanging cable that includes four 16-gauge inputs and a CAT V cable. Optional modules include Motion Sensor (FP-Motion), LED light (FP-Light), optional 15-volt, 3-amp power supply necessary for all module accessories (AC-PS-1530). Optional electronic accessories include 10 and 20-watt transformers with junction box for 25, 70.7, and 100-volt applications (AC-JB10-XFMR, AC-JB20-XFMR) and an external amplification unit with power supply (SA202-RDT) for use with any FP module.
Additional optional accessories include: wall bracket, sound sleeves and rigid mount adaptor. Ships as individual unit,
Features:
- Patented Dual-Parabolicª dispersion control technology provides a targeted audio footprint with true stereo separation.
- Twin 1.00 in (25 mm) concave aluminum high-excursion drivers in individually sealed compartments for stereo or mono music and messaging.
- Patented ZeroReflectionª enclosure technology for accurate sound reproduction.
- Narrow 45¼ coverage angle for sharp focus (average 2 - 10 kHz, independently verified).
- 30.75 in (781.1 mm) custom-molded PETG clear polymer dome for minimal visual impact.
- User-selectable 350 Hz high-pass filter.
- Single-point balanced mounting for easy and clean-looking installs.
- Ships with clear dome, custom colors available.
- Included accessories: hanging bracket, mounting bushing and a 15-foot hanging cable which includes four 16-gauge inputs and a CAT V cable.
- Optional modules include motion sensor (FP-Motion), LED light (FP-Light) amplification (FP-Amp), and scent unit (FP-ScentAirª); optional 15-volt, 5-amp or 15-volt, 3-amp power supply necessary for all module accessories (AC-PS-1550 or AC-PS-1530). The FP-ScentAir ships plumbed for scent unit (scent unit sold separately, visit www.scentair.com for details).
- Optional electronic accessories include 10- and 20-watt transformers with junction box for 25-, 70.7- and 100-volt applications (AC-JB10-XFMR, AC-JB20-XFMR) and an external amplification unit with power supply (SA202-RDT) for use with any FP module.
- Additional optional accessories include: wall bracket, sound sleeves and rigid mount adaptor.
| Color | Clear |
| Manufacturer's Suggested Retail Price | $580.00 |
| UPC | 752830451988 |
| Manufacturer | SoundTube |
| Manufacturer's Category | FP Focus Point Parabolic Series |
| Height | 13.1 in / 332.7 mm |
| Width/Diameter | 30.75 in / 781.1 mm |
| Shipping Weight | 11.02 lbs / 5 kg |
| Certifications | CE, RoHS |
| Enclosure Properties | PETG, Polystyrene, Sealed |
| Included Accessories | Hanging Hardware, Mounting Hardware |
| Optional Accessories | Motion Kit (FP-MOTION MODULE)|Light Kit (FP-LIGHT MODULE)|Wall Mount Bracket (AC-WB4)|White Sound Sleeve (AC-SFP20-WH)|Black Sound Sleeve (AC-SFP20-BK)|Rigid Mount Adaptor (AC-FP6-RMA)|10W Transformer J-Box (AC-JB10-XFMR)|20W Transformer J-Box (AC-JB20-XFMR) |
| Coverage Angle (-6dB @ 2kHz) | 55Á |
| Crossover Frequency | 75 Hz or 350 Hz switchable |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 23.4 and 27.5 |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 12.4dB and 14.4dB |
| Frequency Response (± 10 dB) | 130 Hz - 22 kHz (200 Hz with high-pass filter) |
| Frequency Response (± 3 dB) | 170 Hz - 22 kHz (300 Hz with high-pass filter) |
| Grille Properties | High-Impact Polystyrene |
| Low Frequency Voice Coil | 0.81 in / 20.5 mm |
| Magnetically Boosted | No |
| Max. Continuous Power RMS | 15W |
| Max. Program Power | 30 W |
| Minimum Impedance (_ Ohms) | 5.4 _ |
| Network Type: High Pass | 6 dB per octave 1st order |
| Nominal Impedance (_ Ohms) | 8 _ |
| Fullrange Driver | (2) 1" Aluminum High Excursion |
| Sensitivity dB @ 1W/1M | 75 dB |
| Sensitivity dB @ 2.83V/1M | 75 dB |
| Tap Selector | Rotary Switch J-Box |
| Transformer Options | 25 / 70.7 / 100 V, 8 Ohm direct |
| Transformer Taps (25V/70.0V/100V) | 1.25W/10W/30W |
