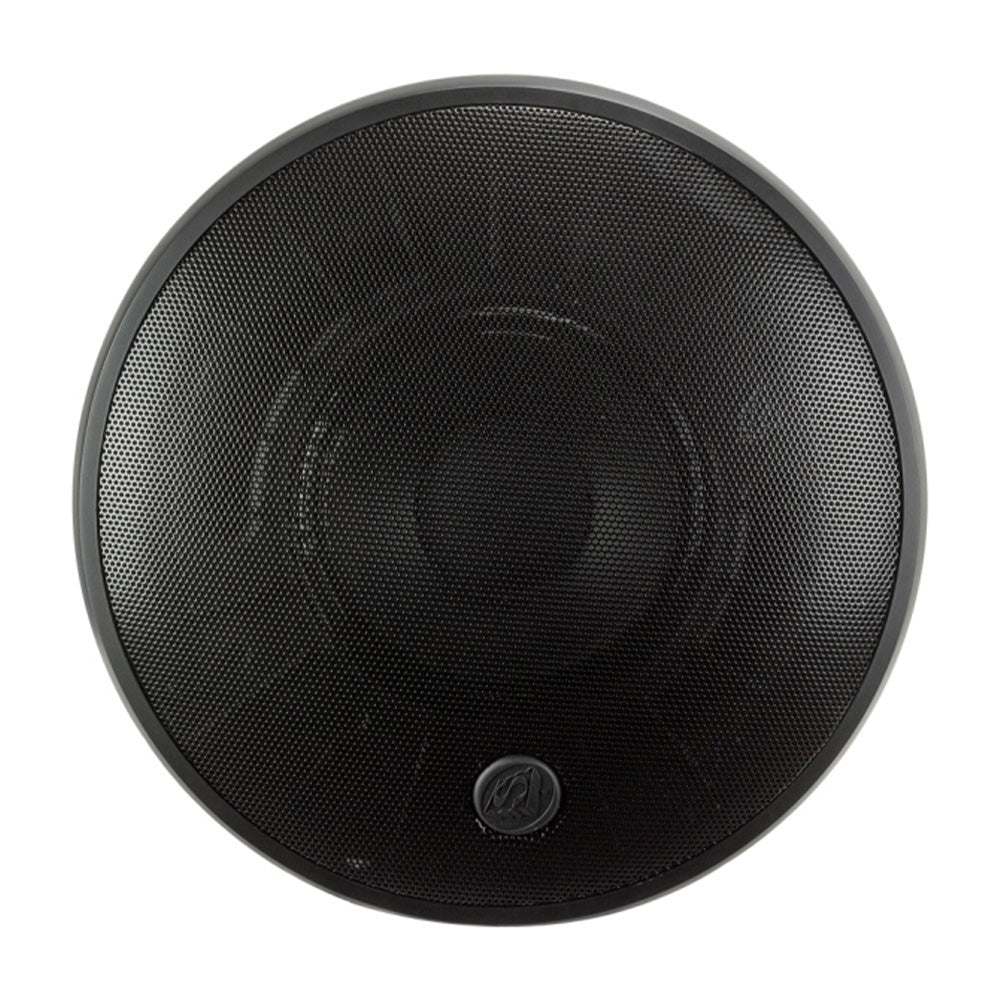

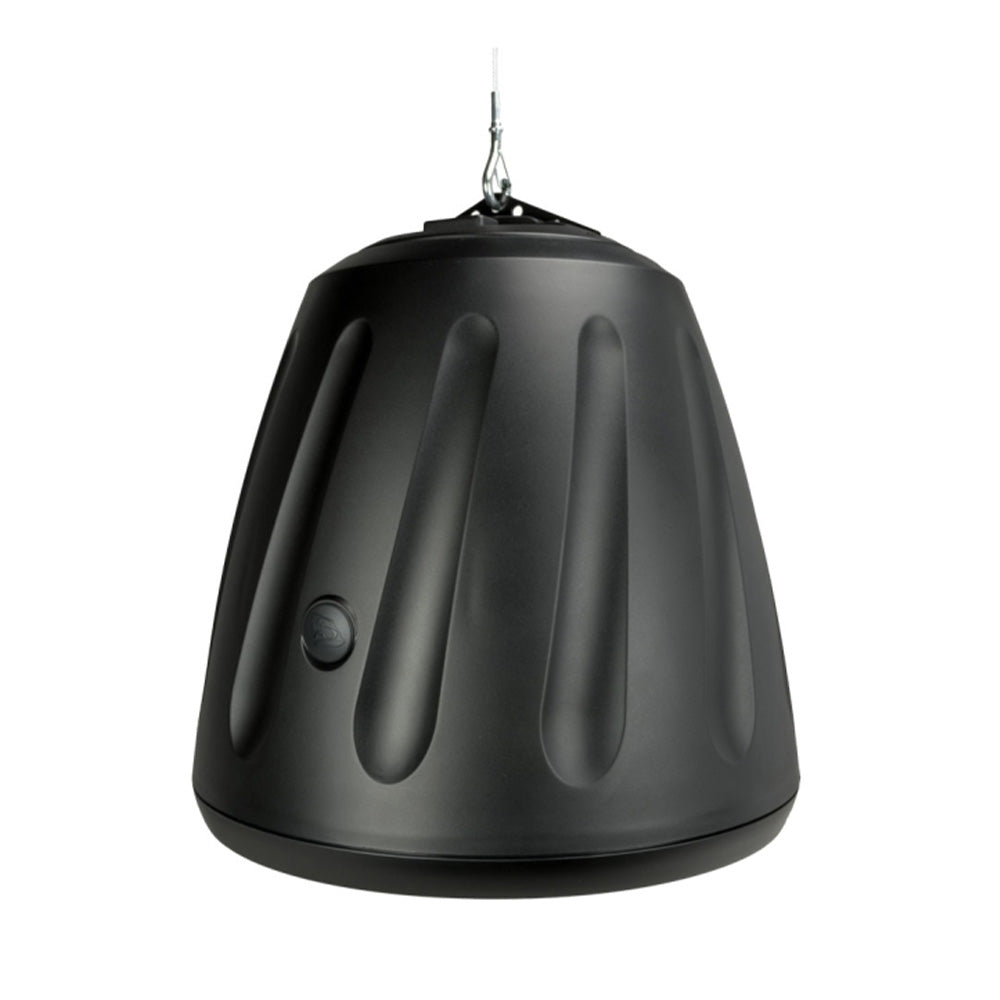

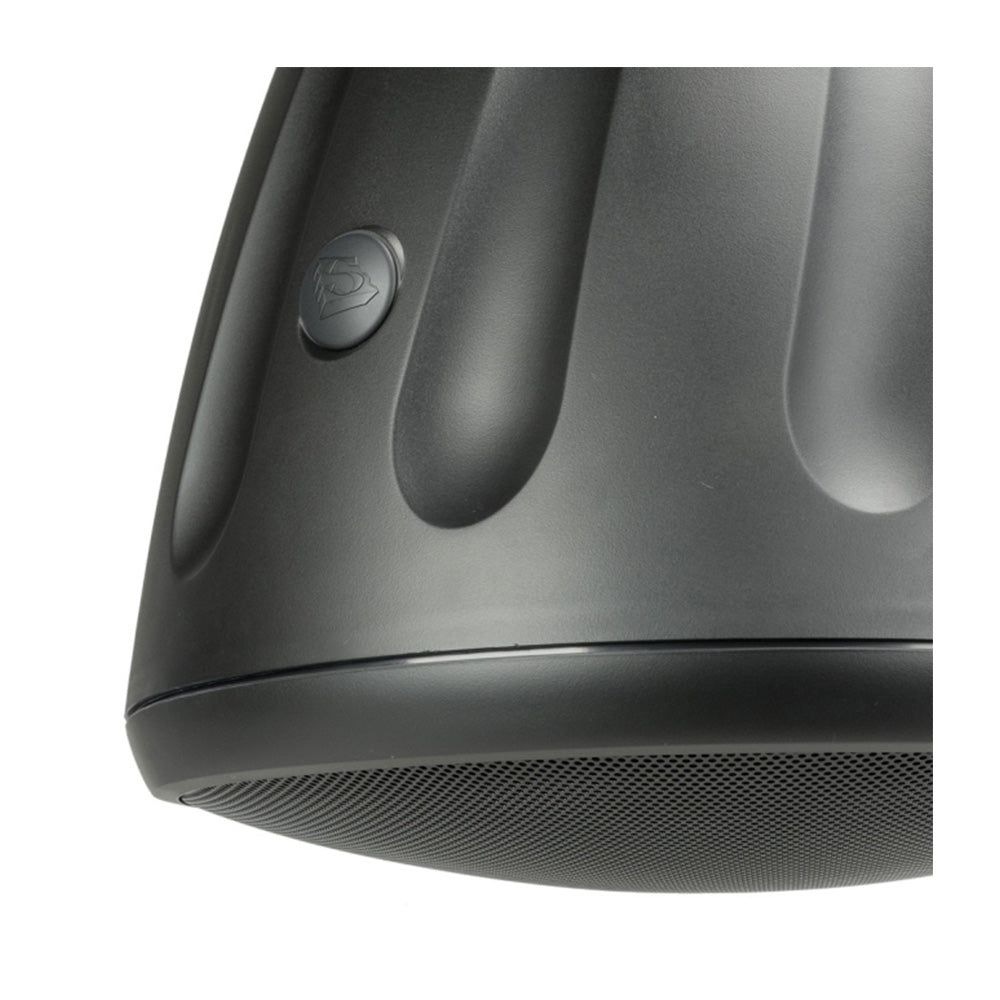

Soundtube HP1290i-BK - Two-Way 12-Inch Hanging Loudspeaker (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The HP1290i is a 12Ó, coaxial, two-way, hanging speaker with a surface-mount option and a proprietary BroadBeamHP¨ waveguide. Engineered to deliver true high SPL performance, the HP1290i incorporates a 12Ó treated fiber cone and one coaxially-mounted 35 mm (1.375Ó) mylar compression driver. The result is a pendant-mount speaker with maximum efficiency (96 dB 1 W/ 1 M) and an extended frequency response from 59 Hz - 22 kHz (±10 dB). For lasting performance and maximum rigidity, the enclosure is made from injection-molded, glass-filled ABS.
UL2239 rated mounting hardware is included and features hanging and safety cables, Euroblock connector and terminal weather boot. For easy ordering, stocking and installation, every speaker is equipped with a five-position tap switch for 25, 70.7, and 100 V applications with transformer bypass position. For surface-mount applications, SoundTube offers an optional surface-mount adapter (AC-HPSM1290).
Features:
- Patented BroadBeamHP¨ waveguide technology delivers a consistent dispersion pattern (2-10 kHz, independently verified) for maximum coverage area per speaker
- One 12Ó (305 mm) treated fiber cone with a cloth surround concentrically mounted to a 1.375Ó (35 mm) Mylar compression driver with waveguide
- Weatherized components for both indoor/outdoor applications
- High SPL, high-efficiency system for the sound reinforcement and PA markets ¥ An impressive 2 cubic foot, ported ZeroReflectionª enclosure for added bass response, rigidity and optimal sound reproduction
- Easy-access, five-position tap switch for 25, 70.7, and 100 V applications with transformer bypass position
- High efficiency (96 dB) for reduced amplification costs and max output (118 dB SPL) for distributed or 8 ½ systems
- Low insertion loss 150 W transformer
- UL 1480A and UL 2239 (hanging hardware) approved
- High quality black or white paint finish. Custom colors available
- Included accessories: impact-resistant steel grille, hanging hardware, Euroblock connector, terminal weather boot
- Optional accessory: surface-mount bracket (ACHP-SM1290)
| Color | Black |
| UPC | 752830441880 |
| Manufacturer | SoundTube |
| Manufacturer's Category | HPi High Ceiling Pendant |
| Height | 22.8 in / 579.1 mm |
| Width/Diameter | 20.8 in / 528.3 mm |
| Shipping Weight | 52.7 lbs / 23.9 kg |
| Carton Height | 26.75 in / 679.45 mm |
| Carton Length | 24 in / 609.6 mm |
| Carton Width | 24 in / 609.6 mm |
| Certifications | CE, RoHS, UL1480A, UL2239 |
| Enclosure Properties | ABS Glass Fiber Reinforced, Injection Molded, Ported |
| Enclosure Volume | 3500 cu in / 57354.72 cu cm |
| Included Accessories | Euroblock, Hanging Hardware, Safety Cable, Terminal Weather Boot |
| Optional Accessories | Black Grille (GRL-HP1290-BK)|Black Surface Mount Bracket (AC-HP-SM1290-BK)|Beam Clamp (AC-BC-1)|Forged Eyebolt (AC-FE1)|Black Split Loom Tubing (AC-SLT-10-BK)|10' Hanging Kit (AC-HP-HD10)|20' Hanging Kit (AC-HP-HD20)|50' Hanging Kit (AC-HP-HD50)|Large Weather Resistant Black Terminal Boot (WEATHERBOOT-L-BK)|Snap Link (AC-SL1)|Connector (EUROBLOCK) |
| Source Inputs | 4 Pin 5.08mm Euroblock |
| TAA Compliant (Trade America) | No |
| BAA Compliant (Made in USA) | No |
| Coverage Angle (±6dB @ 2kHz) | 85Á |
| Crossover Frequency | 2.2 kHz |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 6.2 and 16.2 |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 6.7dB and 12.1dB |
| Frequency Response (± 10 dB) | 59 Hz - 22 kHz |
| Frequency Response (± 3 dB) | 77 Hz - 19 kHz |
| Grille Properties | Powder-Coated, Steel |
| Low Frequency Voice Coil | 2 in / 50.8 mm |
| Low Pass Crossover | 24dB per octave 4th order |
| Max. Continuous Power RMS | 150W |
| Max. Program Power | 300 W |
| Minimum Impedance (_ Ohms) | 6.6 _ |
| Network Type: High Pass | 24dB per octave 4th order |
| Nominal Impedance (_ Ohms) | 8 _ |
| Tweeter Driver | 1.375" Mylar Compression Driver w/ Waveguide |
| Woofer Driver | 12" Treated Fiber Cone w/ Treated Cloth Surround |
| Sensitivity dB @ 1W/1M | 96 dB |
| Sensitivity dB @ 2.83V/1M | 96 dB |
| Tap Selector | Rotary Switch |
| Transformer Taps Max. Setting (25V/70.7V/100V) | 19W/150W/150W |
