Soundtube HP590i-WH - Two-Way 5.25-Inch Hanging Loudspeaker (White)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Soundtube HP590i-WH - Two-Way 5.25-Inch Hanging Loudspeaker (White)
Sale price$432.00
Description

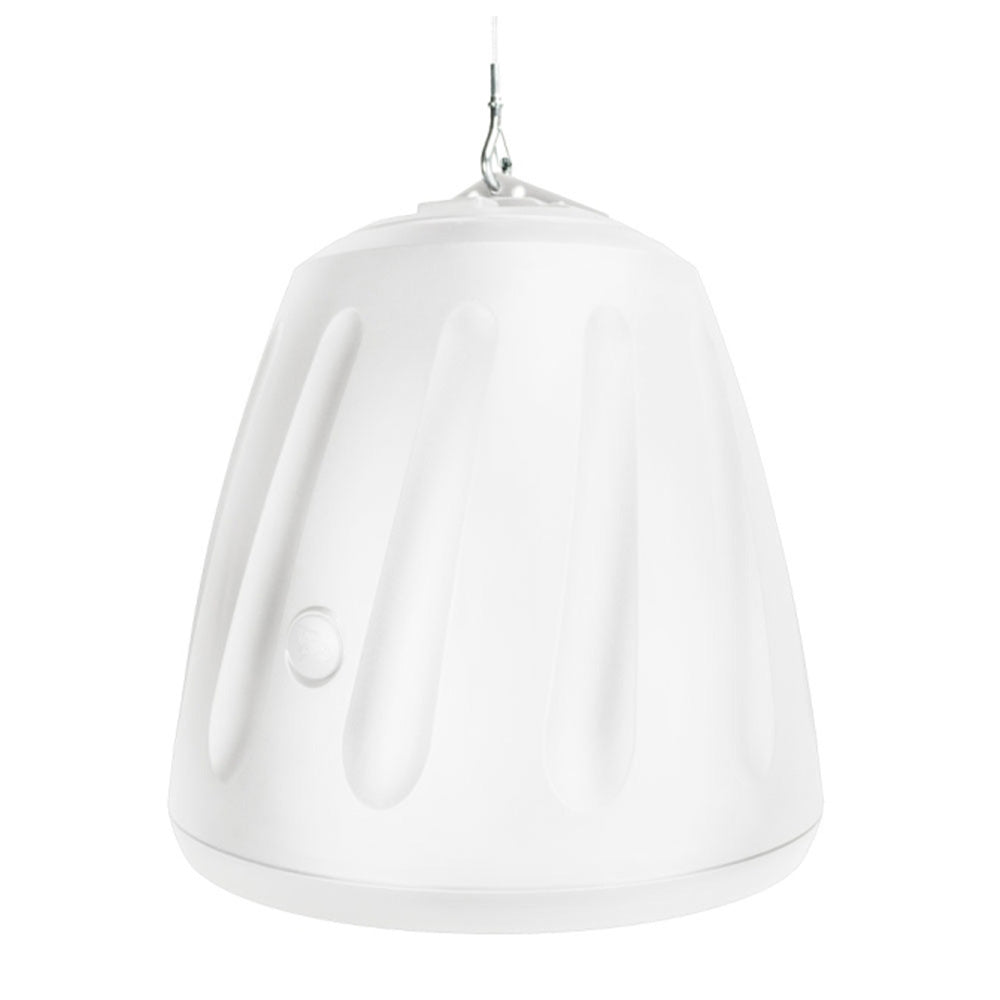

The HP590i is a high-powered, 5.25Ó, two-way, horn-loaded loudspeaker in a ported enclosure design. The HP590i incorporates a low-profile grille, proprietary motor-board and six-position tap switch with transformer bypass position. Hanging hardware is included and features a SpeedClampª self-locking cable grip for fast, easy and secure installation. For indoor/outdoor applications, the HP590i incorporates a powder-coated steel grille, polypropylene driver and durable enclosure design.
Features:
- Patented BroadBeamHP¨ waveguide technology delivers a consistent dispersion pattern for maximum intelligibility and edge-to-edge coverage (2-8 kHz, independently verified)
- One 5.25Ó (133 mm) polypropylene woofer and one 1Ó (25.4 mm) convex titanium tweeter with a 90¡ waveguide mounted to a proprietary cast aluminum baffle and heat sink
- Weatherized components for indoor/outdoor applications
- Average sensitivity of 87.5 dB offers high output capabilities and reduced amplification costs
- Patented ZeroReflectionª enclosure technology for optimal sound reproduction and cabinet rigidity
- Easy-access, six-position selectable tap switch for 25, 70.7, and 100 V applications with transformer bypass position
- Includes hanging hardware with galvanized steel cables and integrated SpeedClamp self-locking wire grip for fast, easy and secure installation. Also includes Euroblock connector and terminal weather boot
- UL2239 (hanging cable) approved
- High quality black or white painted finish. Custom colors available
- Optional accessory: surface-mount bracket (ACRS-SM5)
| Color | White |
| UPC | 752830442382 |
| Manufacturer | SoundTube |
| Manufacturer's Category | HPi High Ceiling Pendant |
| Height | 11.74 in / 298.2 mm |
| Width/Diameter | 9.68 in / 245.9 mm |
| Shipping Weight | 22.95 lbs / 10.41 kg |
| Carton Height | 13.5 in / 342.9 mm |
| Carton Length | 22.25 in / 565.15 mm |
| Carton Width | 12.25 in / 311.15 mm |
| Certifications | CE, RoHS, UL2239 |
| Enclosure Properties | ABS Glass Fiber Reinforced, Injection Molded, Ported |
| Enclosure Volume | 339.7 cu in / 5566.69 cu cm |
| Included Accessories | Euroblock, Hanging Hardware, Safety Cable, Terminal Weather Boot |
| Optional Accessories | Black Grille (GRL-RS500-BK)|Black Mount Bracket (AC-RS-SM5-BK)|Beam Clamp (AC-BC-1)|Forged Eyebolt (AC-FE1)|Black Split Loom Tubing (AC-SLT-10-BK)|10' Hanging Cable (AC-RS-HH-10)|20' Hanging Cable (AC-RS-HH-20)|50' Hanging Cable (AC-RS-HH-50)|Black Weatherboot (WEATHERBOOT-L-BK)|Snap Link (AC-SL1)|Connector (EUROBLOCK) |
| Source Inputs | 4 Pin 5.08mm Euroblock |
| TAA Compliant (Trade America) | No |
| BAA Compliant (Made in USA) | No |
| Coverage Angle (±6dB @ 2kHz) | 55Á |
| Crossover Frequency | 3.0 kHz |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 5.5 and 9.1 |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 5.7dB and 9.6dB |
| Frequency Response (± 10 dB) | 69 Hz - 22 kHz |
| Frequency Response (± 3 dB) | 95 Hz - 22 kHz |
| Grille Properties | Powder-Coated, Steel |
| Low Frequency Voice Coil | 1 in / 25.4 mm |
| Max. Continuous Power RMS | 80W |
| Max. Program Power | 160 W |
| Minimum Impedance (_ Ohms) | 4.2 _ |
| Network Type: High Pass | 12 dB per octave 2nd order |
| Nominal Impedance (_ Ohms) | 8 _ |
| Tweeter Driver | 1" Convex Titanium Tweeter w/ Tractrix Profile Horn |
| Woofer Driver | 5.25" Polypropylene |
| Sensitivity dB @ 1W/1M | 87.5 dB |
| Sensitivity dB @ 2.83V/1M | 87.5 dB |
| Tap Selector | Rotary Switch |
| Transformer Options | 25 / 70.7 / 100 V, 8 Ohm direct |
| Transformer Taps Max. Setting (25V/70.7V/100V) | 5W/33W/33W |
The HP590i is a high-powered, 5.25Ó, two-way, horn-loaded loudspeaker in a ported enclosure design. The HP590i incorporates a low-profile grille, proprietary motor-board and six-position tap switch with transformer bypass position. Hanging hardware is included and features a SpeedClampª self-locking cable grip for fast, easy and secure installation. For indoor/outdoor applications, the HP590i incorporates a powder-coated steel grille, polypropylene driver and durable enclosure design.
Features:
- Patented BroadBeamHP¨ waveguide technology delivers a consistent dispersion pattern for maximum intelligibility and edge-to-edge coverage (2-8 kHz, independently verified)
- One 5.25Ó (133 mm) polypropylene woofer and one 1Ó (25.4 mm) convex titanium tweeter with a 90¡ waveguide mounted to a proprietary cast aluminum baffle and heat sink
- Weatherized components for indoor/outdoor applications
- Average sensitivity of 87.5 dB offers high output capabilities and reduced amplification costs
- Patented ZeroReflectionª enclosure technology for optimal sound reproduction and cabinet rigidity
- Easy-access, six-position selectable tap switch for 25, 70.7, and 100 V applications with transformer bypass position
- Includes hanging hardware with galvanized steel cables and integrated SpeedClamp self-locking wire grip for fast, easy and secure installation. Also includes Euroblock connector and terminal weather boot
- UL2239 (hanging cable) approved
- High quality black or white painted finish. Custom colors available
- Optional accessory: surface-mount bracket (ACRS-SM5)
| Color | White |
| UPC | 752830442382 |
| Manufacturer | SoundTube |
| Manufacturer's Category | HPi High Ceiling Pendant |
| Height | 11.74 in / 298.2 mm |
| Width/Diameter | 9.68 in / 245.9 mm |
| Shipping Weight | 22.95 lbs / 10.41 kg |
| Carton Height | 13.5 in / 342.9 mm |
| Carton Length | 22.25 in / 565.15 mm |
| Carton Width | 12.25 in / 311.15 mm |
| Certifications | CE, RoHS, UL2239 |
| Enclosure Properties | ABS Glass Fiber Reinforced, Injection Molded, Ported |
| Enclosure Volume | 339.7 cu in / 5566.69 cu cm |
| Included Accessories | Euroblock, Hanging Hardware, Safety Cable, Terminal Weather Boot |
| Optional Accessories | Black Grille (GRL-RS500-BK)|Black Mount Bracket (AC-RS-SM5-BK)|Beam Clamp (AC-BC-1)|Forged Eyebolt (AC-FE1)|Black Split Loom Tubing (AC-SLT-10-BK)|10' Hanging Cable (AC-RS-HH-10)|20' Hanging Cable (AC-RS-HH-20)|50' Hanging Cable (AC-RS-HH-50)|Black Weatherboot (WEATHERBOOT-L-BK)|Snap Link (AC-SL1)|Connector (EUROBLOCK) |
| Source Inputs | 4 Pin 5.08mm Euroblock |
| TAA Compliant (Trade America) | No |
| BAA Compliant (Made in USA) | No |
| Coverage Angle (±6dB @ 2kHz) | 55Á |
| Crossover Frequency | 3.0 kHz |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 5.5 and 9.1 |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 5.7dB and 9.6dB |
| Frequency Response (± 10 dB) | 69 Hz - 22 kHz |
| Frequency Response (± 3 dB) | 95 Hz - 22 kHz |
| Grille Properties | Powder-Coated, Steel |
| Low Frequency Voice Coil | 1 in / 25.4 mm |
| Max. Continuous Power RMS | 80W |
| Max. Program Power | 160 W |
| Minimum Impedance (_ Ohms) | 4.2 _ |
| Network Type: High Pass | 12 dB per octave 2nd order |
| Nominal Impedance (_ Ohms) | 8 _ |
| Tweeter Driver | 1" Convex Titanium Tweeter w/ Tractrix Profile Horn |
| Woofer Driver | 5.25" Polypropylene |
| Sensitivity dB @ 1W/1M | 87.5 dB |
| Sensitivity dB @ 2.83V/1M | 87.5 dB |
| Tap Selector | Rotary Switch |
| Transformer Options | 25 / 70.7 / 100 V, 8 Ohm direct |
| Transformer Taps Max. Setting (25V/70.7V/100V) | 5W/33W/33W |
