Soundtube HP82-EZ-BK - High-Power 8-Inch Open-Ceiling Pendant Speaker (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

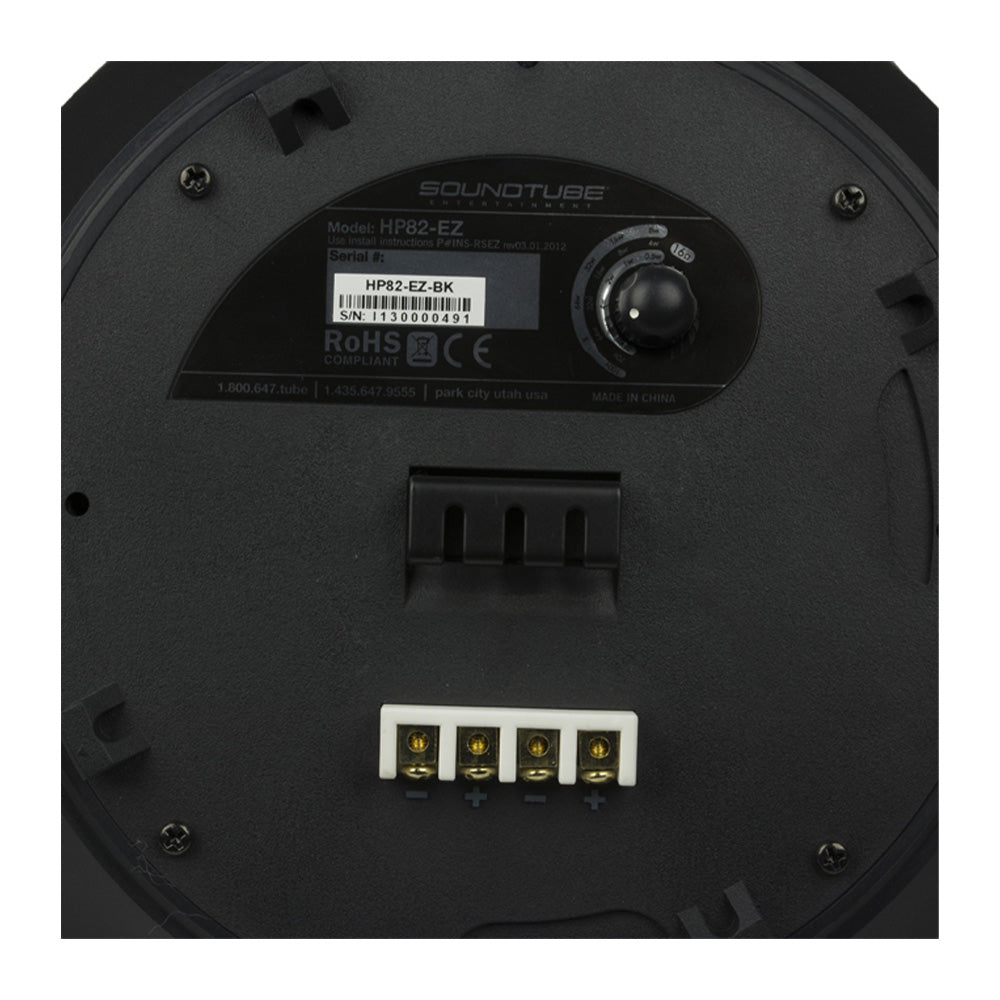

The HP82-EZ is an 8Ó, coaxial speaker designed for open-ceiling applications. Hanging hardware is included and features a built-in hanging bracket and screw on the cover plate for fast, easy and secure installation. The unit may be mounted direct-toconduit via the locking cover plate (see installation instructions for additional information). The HP82-EZ speaker incorporates 4-position ceramic terminal block input connector and a 6-position tap switch with transformer bypass information.
Features:
- One 8Ó (203 mm) high power coaxial driver with BroadBeamHP Ringª technology for high frequency dispersion.
- Weatherized components for indoor and outdoor applications.
- Includes hanging hardware with galvanized steel cables and hanging bracket for fast, easy and secure installation. Unit may be hung or mounted direct-to-conduit via locking cover plate.
- Enclosure constructed of injection molded ABS with glass fiber reinforcement for lasting durability in indoor or outdoor applications.
- Easy access six-position rotary switch for 25-, 70.7- and 100-volt applications with transformer bypass position.

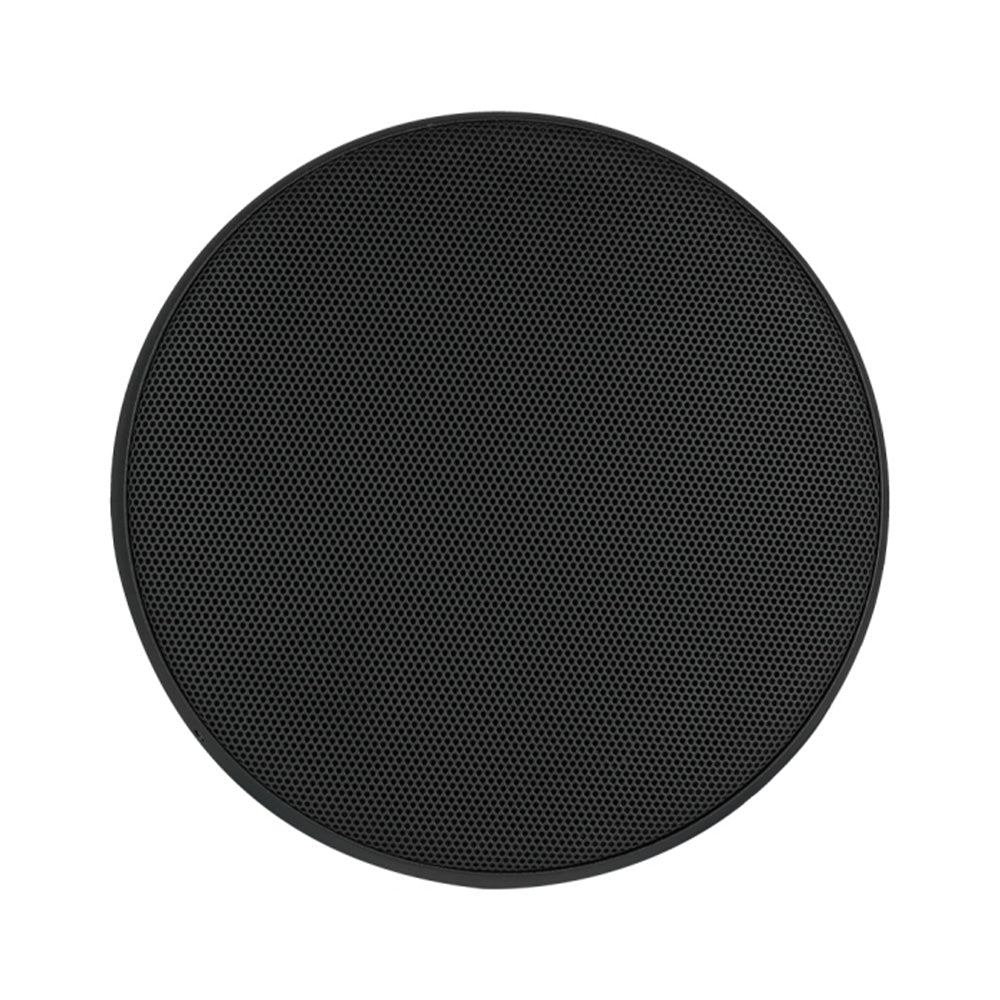

- Aluminum grille with protective powder-coated finish.
- Built-in thermal fuse.
- Unit ships in eco-friendly, recyclable packaging.
- High-quality black or white paint finish. Speaker is paintable.
- Included accessories: hanging hardware, weather plug, cover plate.
| Color | Black |
| UPC | 752830442580 |
| Manufacturer | SoundTube |
| Manufacturer's Category | HPi High Ceiling Pendant |
| Height | 12.9 in / 327.7 mm |
| Width/Diameter | 12.83 in / 325.9 mm |
| Shipping Weight | 16.5 lbs / 7.5 kg |
| Carton Height | 16 in / 406 mm |
| Carton Length | 15 in / 381 mm |
| Carton Width | 15 in / 381 mm |
| Certifications | CE, EN54, RoHS, UL1480A, UL2239 |
| Enclosure Properties | Ported, Reinforced ABS |
| Included Accessories | Cover Plate, Hanging Hardware, Weather Plug |
| Optional Accessories | Black Grille (GRL-RS82-EZ-BK)|10' Hanging Cable (AC-RSEZ-HH-10)|20' Hanging Cable (AC-RSEZ-HH-20)|Black Weatherboot (WEATHERBOOT-L-BK)|Beam Clamp (AC-BC1)|Forged Eye Bolt (AC-FE1)|Black Split Loom Tubing (AC-SLT-10-BK)|Snap Link (AC-SL1) |
| Source Inputs | 4 Pin Ceramic Terminal |
| TAA Compliant (Trade America) | No |
| BAA Compliant (Made in USA) | No |
| Coverage Angle (±6dB @ 2kHz) | 135Á |
| Crossover Frequency | 2.5 kHz |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 3.6 |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 5.6dB |
| Frequency Response (± 10 dB) | 80 Hz - 22 kHz |
| Frequency Response (± 3 dB) | 110 Hz - 22 kHz |
| Grille Properties | Aluminum, Powder-Coated |
| Low Frequency Voice Coil | 1.5 in / 38 mm |
| Low Pass Crossover | 6 dB per octave 1st order |
| Max. Continuous Power RMS | 64W |
| Max. Program Power | 128 W |
| Minimum Impedance (_ Ohms) | 12 _ |
| Network Type: High Pass | 6 dB per octave 1st order |
| Nominal Impedance (_ Ohms) | 16 _ |
| Tweeter Driver | 1.38" Titanium Compression Driver w/ Waveguide |
| Woofer Driver | 8" Treated Paper Cone w/ Cloth Surround |
| Sensitivity dB @ 1W/1M | 92 dB |
| Sensitivity dB @ 2.83V/1M | 89 dB |
| Tap Selector | Rotary Switch |
| Transformer Options | 25 / 70.7 / 100 V, 16 Ohm direct |
| Transformer Taps Max. Setting (25V/70.7V/100V) | 8W/64W/64W |
The HP82-EZ is an 8Ó, coaxial speaker designed for open-ceiling applications. Hanging hardware is included and features a built-in hanging bracket and screw on the cover plate for fast, easy and secure installation. The unit may be mounted direct-toconduit via the locking cover plate (see installation instructions for additional information). The HP82-EZ speaker incorporates 4-position ceramic terminal block input connector and a 6-position tap switch with transformer bypass information.
Features:
- One 8Ó (203 mm) high power coaxial driver with BroadBeamHP Ringª technology for high frequency dispersion.
- Weatherized components for indoor and outdoor applications.
- Includes hanging hardware with galvanized steel cables and hanging bracket for fast, easy and secure installation. Unit may be hung or mounted direct-to-conduit via locking cover plate.
- Enclosure constructed of injection molded ABS with glass fiber reinforcement for lasting durability in indoor or outdoor applications.
- Easy access six-position rotary switch for 25-, 70.7- and 100-volt applications with transformer bypass position.
- Aluminum grille with protective powder-coated finish.
- Built-in thermal fuse.
- Unit ships in eco-friendly, recyclable packaging.
- High-quality black or white paint finish. Speaker is paintable.
- Included accessories: hanging hardware, weather plug, cover plate.
| Color | Black |
| UPC | 752830442580 |
| Manufacturer | SoundTube |
| Manufacturer's Category | HPi High Ceiling Pendant |
| Height | 12.9 in / 327.7 mm |
| Width/Diameter | 12.83 in / 325.9 mm |
| Shipping Weight | 16.5 lbs / 7.5 kg |
| Carton Height | 16 in / 406 mm |
| Carton Length | 15 in / 381 mm |
| Carton Width | 15 in / 381 mm |
| Certifications | CE, EN54, RoHS, UL1480A, UL2239 |
| Enclosure Properties | Ported, Reinforced ABS |
| Included Accessories | Cover Plate, Hanging Hardware, Weather Plug |
| Optional Accessories | Black Grille (GRL-RS82-EZ-BK)|10' Hanging Cable (AC-RSEZ-HH-10)|20' Hanging Cable (AC-RSEZ-HH-20)|Black Weatherboot (WEATHERBOOT-L-BK)|Beam Clamp (AC-BC1)|Forged Eye Bolt (AC-FE1)|Black Split Loom Tubing (AC-SLT-10-BK)|Snap Link (AC-SL1) |
| Source Inputs | 4 Pin Ceramic Terminal |
| TAA Compliant (Trade America) | No |
| BAA Compliant (Made in USA) | No |
| Coverage Angle (±6dB @ 2kHz) | 135Á |
| Crossover Frequency | 2.5 kHz |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 3.6 |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 5.6dB |
| Frequency Response (± 10 dB) | 80 Hz - 22 kHz |
| Frequency Response (± 3 dB) | 110 Hz - 22 kHz |
| Grille Properties | Aluminum, Powder-Coated |
| Low Frequency Voice Coil | 1.5 in / 38 mm |
| Low Pass Crossover | 6 dB per octave 1st order |
| Max. Continuous Power RMS | 64W |
| Max. Program Power | 128 W |
| Minimum Impedance (_ Ohms) | 12 _ |
| Network Type: High Pass | 6 dB per octave 1st order |
| Nominal Impedance (_ Ohms) | 16 _ |
| Tweeter Driver | 1.38" Titanium Compression Driver w/ Waveguide |
| Woofer Driver | 8" Treated Paper Cone w/ Cloth Surround |
| Sensitivity dB @ 1W/1M | 92 dB |
| Sensitivity dB @ 2.83V/1M | 89 dB |
| Tap Selector | Rotary Switch |
| Transformer Options | 25 / 70.7 / 100 V, 16 Ohm direct |
| Transformer Taps Max. Setting (25V/70.7V/100V) | 8W/64W/64W |
