Soundtube HP890i-BK - Two-Way 8-Inch Hanging Loudspeaker (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

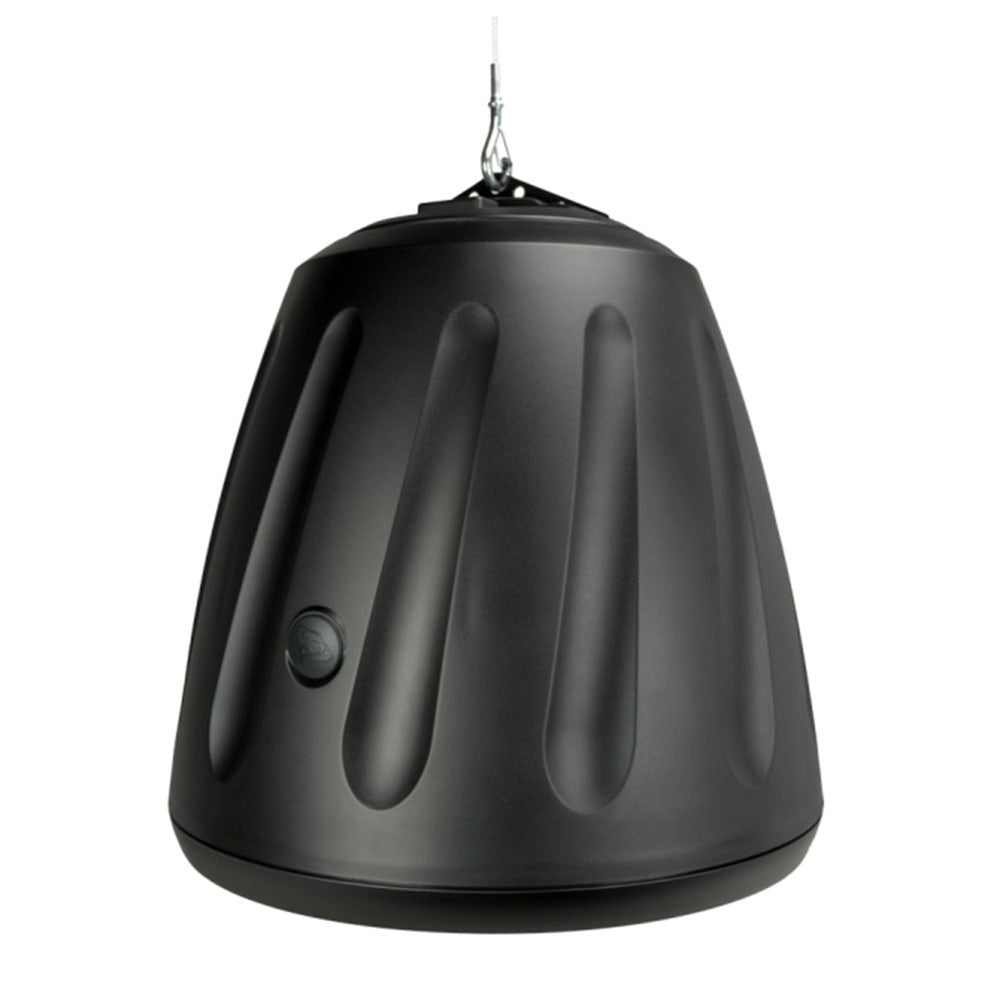

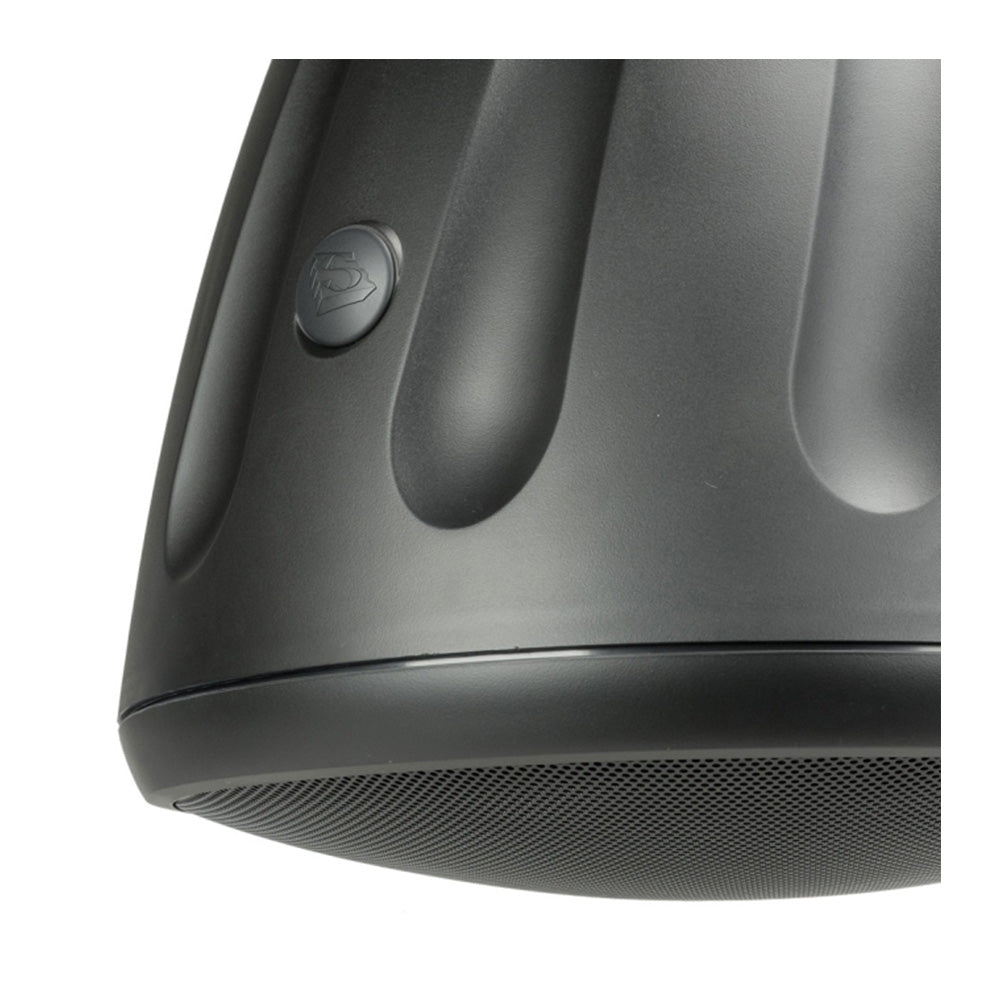

The HP890i is a premium 8-inch, two way, ported, high-efficiency, high-SPL loudspeaker for distributed or 8 ohm applications. The HP890i incorporates a dedicated 8-inch treated-fiber driver and high-power compression transducer with a BroadBeamHP¨ waveguide to deliver a consistent dispersion pattern and superb intelligibility for the foreground music, sound reinforcement and PA markets. The HP890i incorporates a 120-watt transformer with a five-position rotary switch with a transformer bypass position. Hanging hardware is included and features a fast-action SpeedClampª for easy and secure installation.
Features:
- Patented BroadBeamHP¨ waveguide technology delivers a consistent dispersion pattern for maximum intelligibility and edge-to-edge coverage (2 to 8 kHz, independently verified).
- One 8 inch (203 mm) treated fiber woofer and one 1.42 inch (36 mm) compression driver (1.0 inch exit) mounted to a proprietary cast-aluminum baffle and heat sink.
- Weatherized components for indoor and outdoor applications.
- High output (115.0 dB) and 120-watt transformer for the sound reinforcement and PA markets.
- Patented ZeroReflectionª enclosure technology for optimal sound reproduction and cabinet rigidity.
- Easy-access five-position selectable tap switch for 25-, 70.7- and 100-volt applications with transformer bypass position.
- Includes hanging hardware with galvanized steel cables and integrated SpeedClampª self-locking wire grip for fast, easy and secure installation. Also includes Euroblock connector and terminal weather boot.
- Average sensitivity of 94.0 dB offers high output capabilities and reduced amplification costs.
- UL 1480 (UEAY) and 2239 (hanging cable) approved.
- High-quality black or white paint finish.
- Custom paint colors optional.
- Optional accessory: surface-mount bracket (AC-RS-SM8)
Applications
Engineered for installations requiring full-range background/foreground music plus paging, the HP890i delivers a smooth and even coverage pattern. Ideal for warehouses, gyms, aerobic rooms, airports, super stores, arenas, theme parks, transportation hubs, shipping centers, stadiums and other high-SPL or long-throw applications. For applications where additional bass is required, SoundTube's RS1001i-II-T 10-inch subwoofer may be used with bass down to 38 Hz.
| System Type | 8-inch, two-way, high-power, open-ceiling, ported (120-watt transformer for 25/70.7/100-volt or transformer bypass) |
| Impedance (nominal) | 8 ohms |
| Sensitivity dB @ 2.83 V/1 m | 94.0 dB |
| Sensitivity dB @ 1W/1M | 94.0 dB |
| Frequency Response ( - 3 dB) | 93 Hz - 22 kHz |
| Frequency Response ( - 10 dB) | 65 Hz - 22 kHz |
| Max. Program Power | 250 W |
| Max. Continuous Power RMS | 125 W |
| Max. Power SPL @ 1 m | 115.0 dB |
| Coverage Angle (-6 dB @ 2 kHz) | 130_ |
| Coverage Angle (-6 dB @ 10 kHz) | 85_ |
| Coverage Angle (averaged 2-10 kHz) | 115_ |
| Directivity Factor (Q) | 4.2 (averaged 100 Hz - 10 kHz); 3.5 (2 kHz) |
| Directivity Index (DI) | 5.4 dB (averaged 100 Hz - 10 kHz); 5.4 dB (2 kHz) |
| Tap Selector | Five-position rotary switch with transformer bypass position |
| Transducer - High-Frequency Driver | 36 mm (1.42 in.) titanium compression driver with waveguide |
| Transducer - Low-Frequency Driver | 203 mm (8.0 in.) treated paper cone, cloth surround |
| Low-Frequency Voice Coil | 34.0 mm (1.34 in.) |
| Crossover Frequency | 2.5 kHz |
| Network Type: Low Pass | 12 dB per octave, 2nd order |
| Network Type: High Pass | 12 dB per octave, 2nd order |
| Enclosure Material | Injection molded ABS, glass fiber reinforced |
| Motorboard | Cast Aluminum |
| Grille | Steel with powder-coat finish |

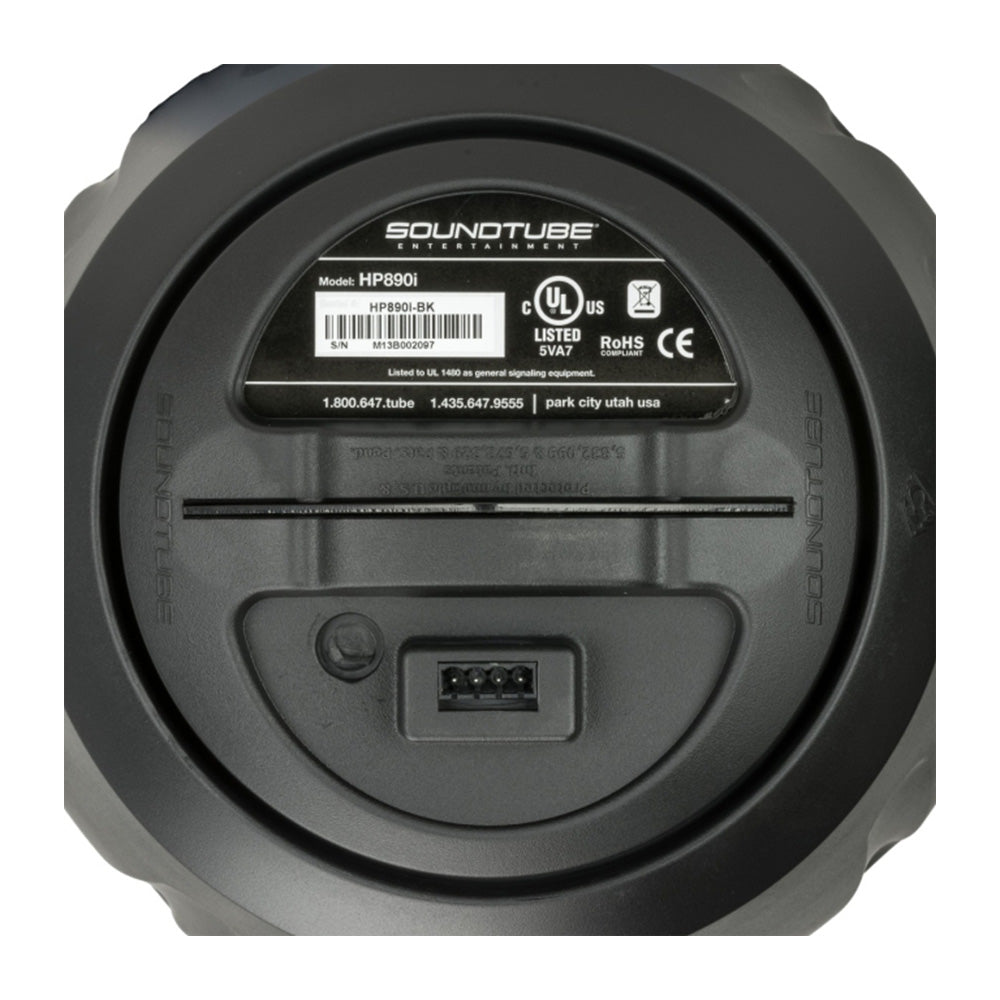

| Inputs | Four-pin, 5.08 mm Euroblock for individual or daisy chain connection |
| Colors | Black or white |
| Height | 437.6 mm (17.23 in.) |
| Diameter | 376.4 mm (14.82 in.) |
| Weight | 12.2 kg (26.8 lbs.) |
| Shipping Weight | 14.7 kg (32.3 lbs.) |
| Packaging | One per box |
| Included Accessories | Hanging hardware, Euroblock connector and terminal weather boot |
| Optional Accessories | Surface-mount bracket (AC-RS-SM8) |
| Regulatory - UL | UL 1480 (UEAY) and 2239 (hanging cable) approved |
| Regulatory - CE | Approved |
| RoHS | Approved |
The HP890i is a premium 8-inch, two way, ported, high-efficiency, high-SPL loudspeaker for distributed or 8 ohm applications. The HP890i incorporates a dedicated 8-inch treated-fiber driver and high-power compression transducer with a BroadBeamHP¨ waveguide to deliver a consistent dispersion pattern and superb intelligibility for the foreground music, sound reinforcement and PA markets. The HP890i incorporates a 120-watt transformer with a five-position rotary switch with a transformer bypass position. Hanging hardware is included and features a fast-action SpeedClampª for easy and secure installation.
Features:
- Patented BroadBeamHP¨ waveguide technology delivers a consistent dispersion pattern for maximum intelligibility and edge-to-edge coverage (2 to 8 kHz, independently verified).
- One 8 inch (203 mm) treated fiber woofer and one 1.42 inch (36 mm) compression driver (1.0 inch exit) mounted to a proprietary cast-aluminum baffle and heat sink.
- Weatherized components for indoor and outdoor applications.
- High output (115.0 dB) and 120-watt transformer for the sound reinforcement and PA markets.
- Patented ZeroReflectionª enclosure technology for optimal sound reproduction and cabinet rigidity.
- Easy-access five-position selectable tap switch for 25-, 70.7- and 100-volt applications with transformer bypass position.
- Includes hanging hardware with galvanized steel cables and integrated SpeedClampª self-locking wire grip for fast, easy and secure installation. Also includes Euroblock connector and terminal weather boot.
- Average sensitivity of 94.0 dB offers high output capabilities and reduced amplification costs.
- UL 1480 (UEAY) and 2239 (hanging cable) approved.
- High-quality black or white paint finish.
- Custom paint colors optional.
- Optional accessory: surface-mount bracket (AC-RS-SM8)
Applications
Engineered for installations requiring full-range background/foreground music plus paging, the HP890i delivers a smooth and even coverage pattern. Ideal for warehouses, gyms, aerobic rooms, airports, super stores, arenas, theme parks, transportation hubs, shipping centers, stadiums and other high-SPL or long-throw applications. For applications where additional bass is required, SoundTube's RS1001i-II-T 10-inch subwoofer may be used with bass down to 38 Hz.
| System Type | 8-inch, two-way, high-power, open-ceiling, ported (120-watt transformer for 25/70.7/100-volt or transformer bypass) |
| Impedance (nominal) | 8 ohms |
| Sensitivity dB @ 2.83 V/1 m | 94.0 dB |
| Sensitivity dB @ 1W/1M | 94.0 dB |
| Frequency Response ( - 3 dB) | 93 Hz - 22 kHz |
| Frequency Response ( - 10 dB) | 65 Hz - 22 kHz |
| Max. Program Power | 250 W |
| Max. Continuous Power RMS | 125 W |
| Max. Power SPL @ 1 m | 115.0 dB |
| Coverage Angle (-6 dB @ 2 kHz) | 130_ |
| Coverage Angle (-6 dB @ 10 kHz) | 85_ |
| Coverage Angle (averaged 2-10 kHz) | 115_ |
| Directivity Factor (Q) | 4.2 (averaged 100 Hz - 10 kHz); 3.5 (2 kHz) |
| Directivity Index (DI) | 5.4 dB (averaged 100 Hz - 10 kHz); 5.4 dB (2 kHz) |
| Tap Selector | Five-position rotary switch with transformer bypass position |
| Transducer - High-Frequency Driver | 36 mm (1.42 in.) titanium compression driver with waveguide |
| Transducer - Low-Frequency Driver | 203 mm (8.0 in.) treated paper cone, cloth surround |
| Low-Frequency Voice Coil | 34.0 mm (1.34 in.) |
| Crossover Frequency | 2.5 kHz |
| Network Type: Low Pass | 12 dB per octave, 2nd order |
| Network Type: High Pass | 12 dB per octave, 2nd order |
| Enclosure Material | Injection molded ABS, glass fiber reinforced |
| Motorboard | Cast Aluminum |
| Grille | Steel with powder-coat finish |
| Inputs | Four-pin, 5.08 mm Euroblock for individual or daisy chain connection |
| Colors | Black or white |
| Height | 437.6 mm (17.23 in.) |
| Diameter | 376.4 mm (14.82 in.) |
| Weight | 12.2 kg (26.8 lbs.) |
| Shipping Weight | 14.7 kg (32.3 lbs.) |
| Packaging | One per box |
| Included Accessories | Hanging hardware, Euroblock connector and terminal weather boot |
| Optional Accessories | Surface-mount bracket (AC-RS-SM8) |
| Regulatory - UL | UL 1480 (UEAY) and 2239 (hanging cable) approved |
| Regulatory - CE | Approved |
| RoHS | Approved |
