Soundtube IPD-CM52S-BGM-II-WH - Coaxial 5.25-Inch Short Can Dante-Enabled In-Ceiing Speaker (White)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

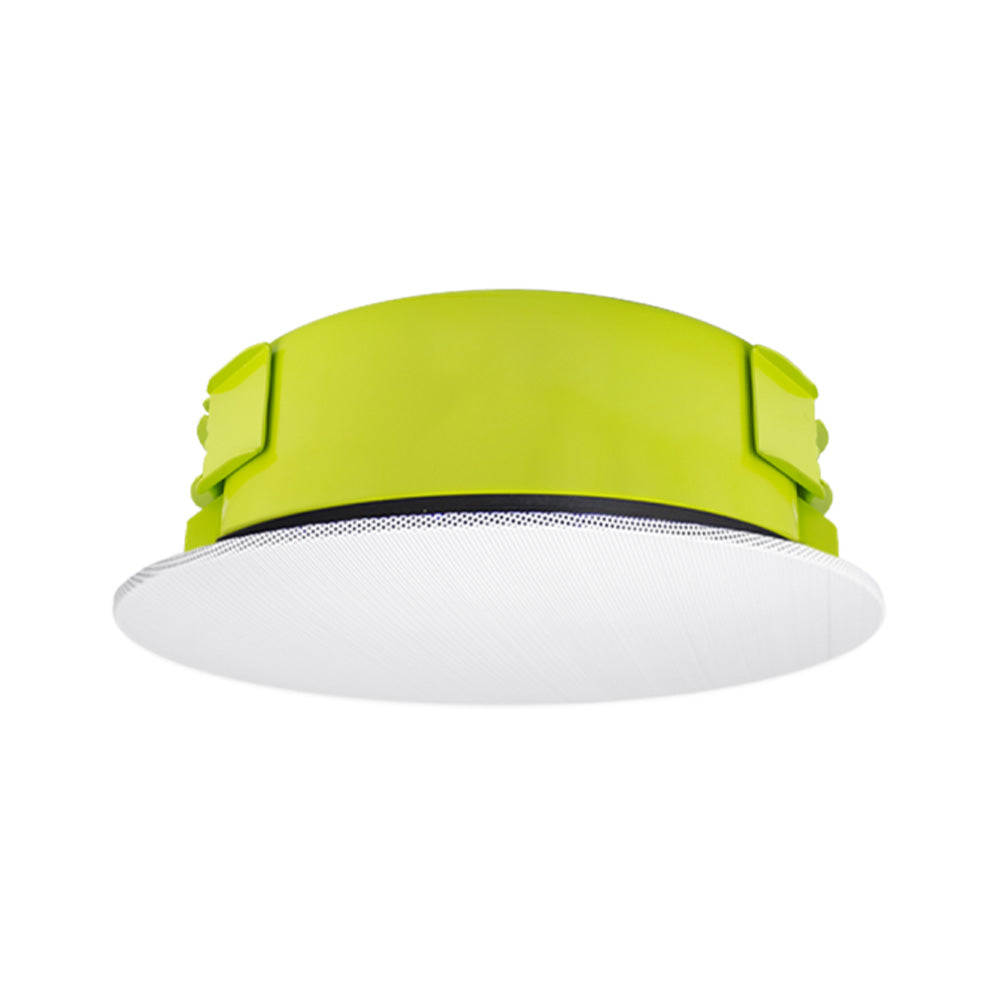

The IPD-CM52s-BGM-II is a 5.25Ó coaxial two-way blind-mount, short can, in-ceiling speaker for IPaddressable audio networks on the Dante and AES67 platforms. It incorporates a 5.25Ó polypropylene driver with butyl rubber surround and a 0.75Ó silk dome tweeter in a sealed drawn steel backcan with a tuned port. The speaker delivers frequency response of 65 Hz - 22 kHz (±10 dB) with consistent, broad high-frequency dispersion supplied through SoundTubeÕs proprietary BroadBeam Ringª technology.
Power, audio, and control are delivered to the speaker via a CAT5 or CAT6 cable; connection on the other end is made to the STNet Switch, which provides 40 W PoE (Power over Ethernet) to each speaker. Configuration and zoning of the speaker is done via software. Should any problem occur with the speaker during operation, it will be reported immediately via SoundTube monitoring software.
Mounting hardware for the IPD-CM52s-BGM is included and features SoundTubeÕs SpeedWingª constant-tension fixed-wing mounting system, along with a 21-gauge steel tile bridge which ensures rapid and secure installation in any drywall or drop-tile application. The tile bridge is color-coded to match the speaker. An optional pre-construction bracket is also available.
Features:
- IP-addressable, self-powered (PoE) speaker. Danteª and AES67 interconnectivity with any Dante or AES67 enabled audio systems.
- Engineered for applications with limited plenum space incorporating a SoundTube-specific shallow backcan with an installed depth of 3.5Ó.
- One 5.25Ó (134 mm) polypropylene woofer with rubber surround and one 0.75Ó (19 mm) silk dome tweeter.
- BroadBeam Ringª technology for mid-range clarity and ultra wide off-axis performance
- Fast connection of power, audio, and control functions via one CAT5 or CAT6 cable.
- 40 W PoE provided by SoundTube STNet Switch; also works with standard PoE+ and PoE switches.
- Provides report-back on any problems via SoundTube software.
- Tuned port on baffle for added musicality and bass response down to 65 Hz (±10 dB).
- SpeedWingª clamping system is adaptable to material thicknesses ranging from 0.035Ó (0.9 mm)to 2.5Ó (63.5 mm)
- High-quality white painted finish. Custom colors available.
- Included accessories: color-coded (green) tile bridge, UL listed 0.5Ó conduit clamp, paint shield.
- Optional accessories: color-coded (green) preconstruction bracket (AC-CMEZ6/8-PCB).
| Color | White |
| UPC | 644216226801 |
| Manufacturer | SoundTube |
| Manufacturer's Category | STNet IP-Addressable and Dante Series |
| Shipping Weight | 7.85 lbs / 3.56 kg |
| Carton Height | 6 in / 152.4 mm |
| Carton Length | 13 in / 31.75 mm |
| Carton Width | 13 in / 330.2 mm |
| Certifications | CE, RoHS, UL2043, UL60065, ETL-C/US |
| Enclosure Properties | ABS, Steel |
| Included Accessories | Conduit Clamp, Cover Plate, Grille, Paint Mask |
| Optional Accessories | Tile Bridge (AC-CMEZ6/8-TB)|Pre-Construction Bracket (AC-CMEZ6/8-PCB)|Junction Box (AC-CM-EZ-JBOX) |

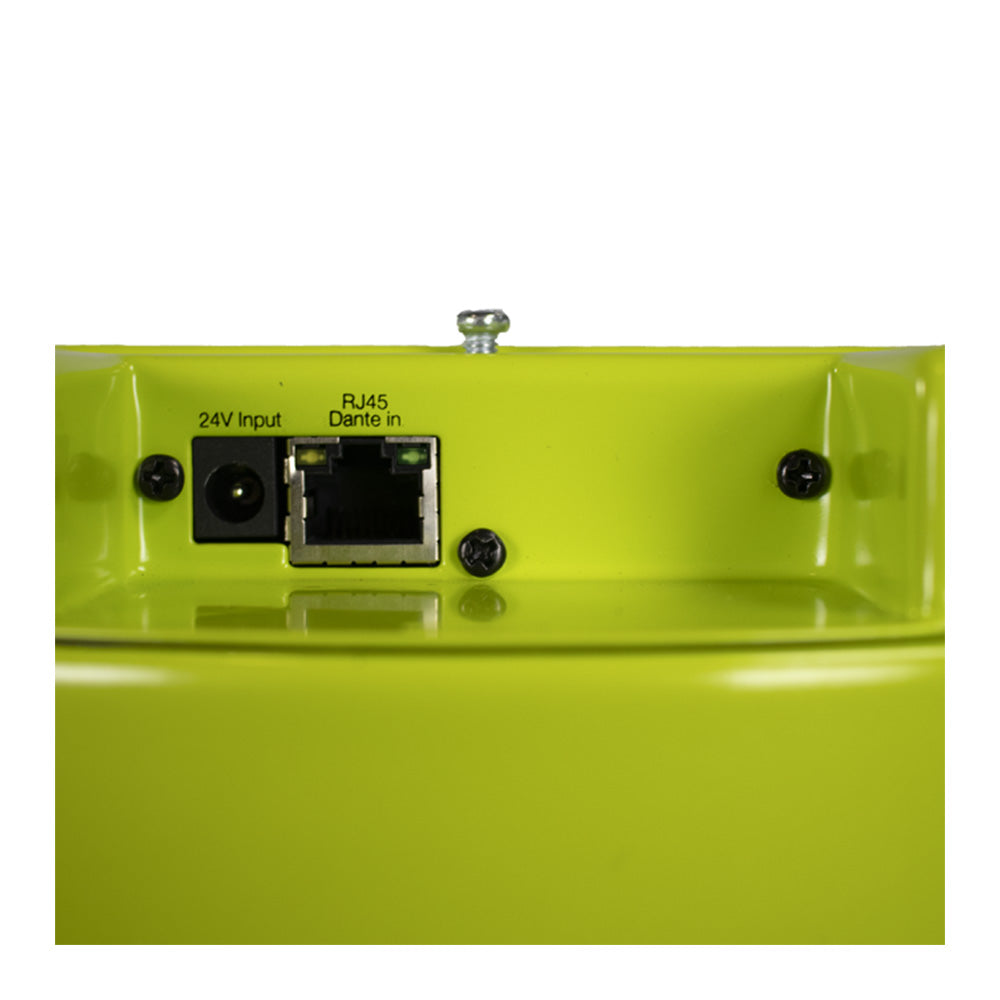

| Source Inputs | RJ45 Ethernet Port |
| TAA Compliant (Trade America) | No |
| BAA Compliant (Made in USA) | No |
| Backcan Diameter | 9.67 in / 245.6 mm |
| Backcan Height | 3.75 in / 95.3 mm |
| Coverage Angle (±6dB @ 2kHz) | 100Á |
| Crossover Frequency | 5.0 kHz |
| Cutout Width/Diameter | 10.5 in / 266.7 mm |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 4.3 and 4.2 |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 5.7dB and 6.2 dB |
| Frequency Response (± 10 dB) | 65 Hz - 22 kHz |
| Frequency Response (± 3 dB) | 90 Hz - 20 kHz |

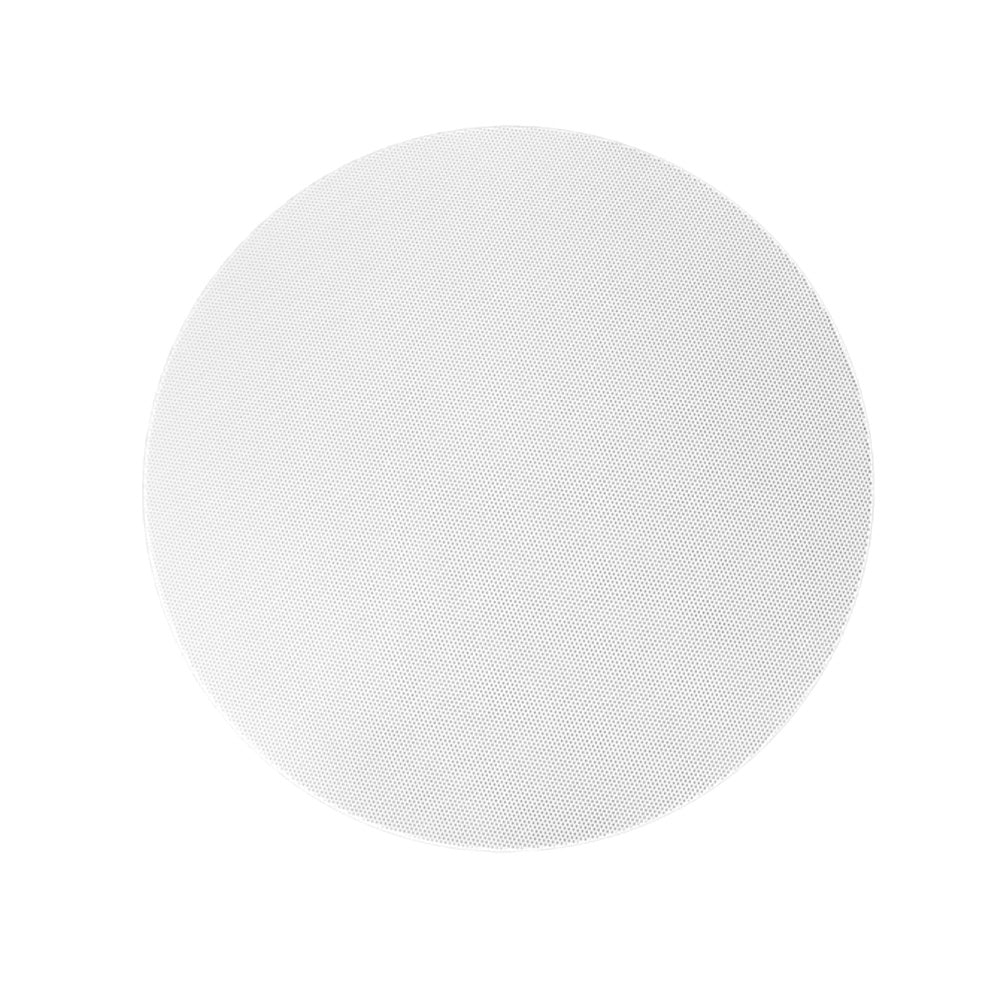

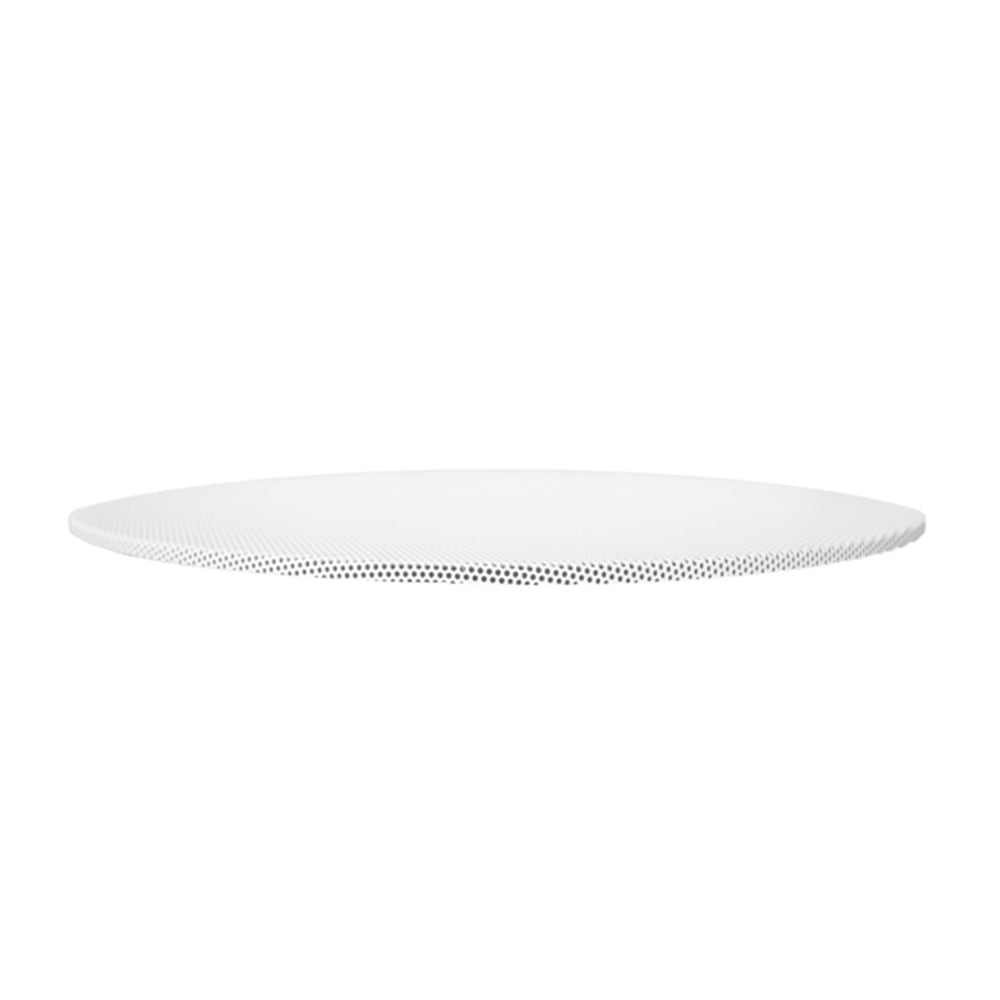

| Grille Properties | Standard-Flange, Friction-Fit, White, Paintable, Painted, Steel |
| Low Frequency Voice Coil | 1 in / 25.4 mm |
| Low Pass Crossover | 12 dB per octave 2nd order |
| Max. Ceiling Thickness | 1.6 in / 40.6 mm |
| Max. Continuous Power RMS | 20W |
| Max. Program Power | 40 W |
| Minimum Ceiling Thickness | 0.04 in / 0.9 mm |
| Network Type: High Pass | 12 dB per octave 2nd order |
| Tweeter Driver | .75" Silk Dome w/ BroadBeam Ring¬ |
| Woofer Driver | 5.25" Polypropylene Cone w/ Butyl Rubber Surround |
| Power for Max SPL | 40 W |
| Visible Diameter | 298.5 mm |
| Visible Height | 8.6 mm |
