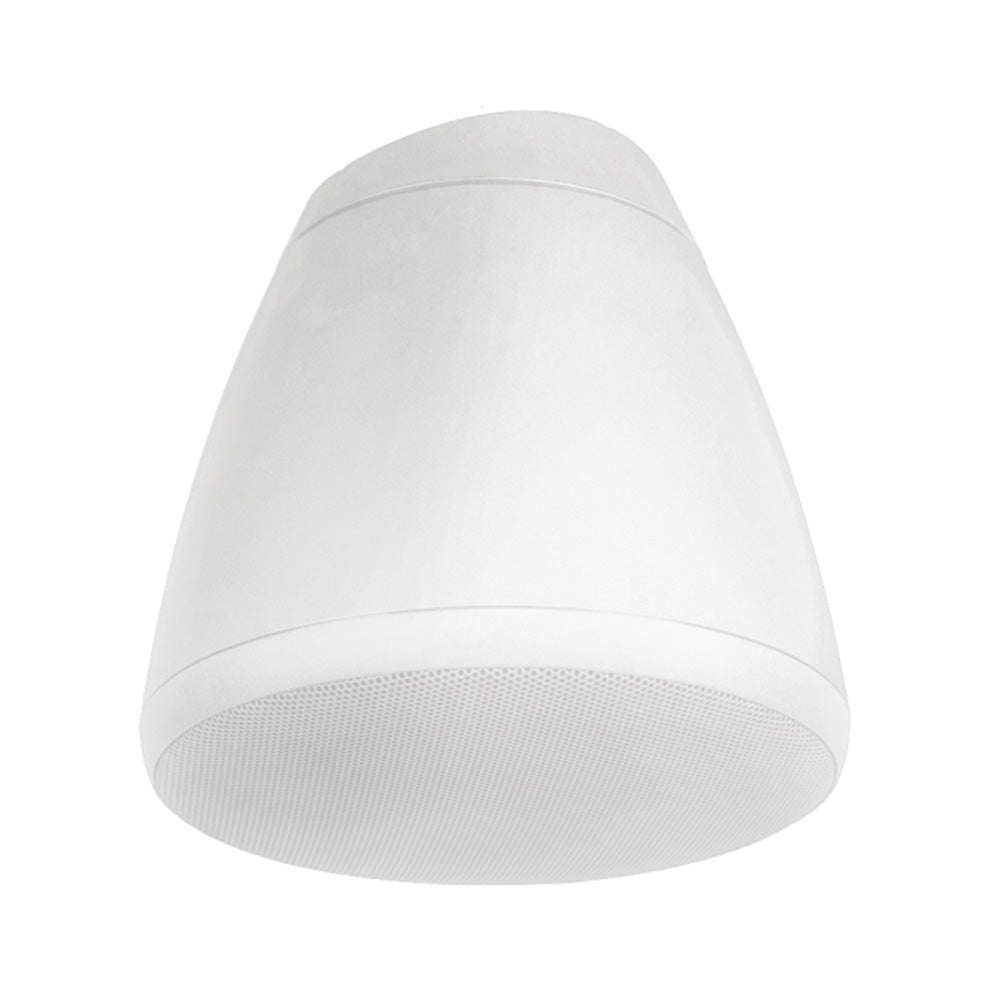

Soundtube IPD-HP82-EZ-WH - High-Power 8-Inch Dante-Enabled Hanging Loudspeaker (White)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The IPD-HP82-EZ is a 1Ó compression horn designed for open-ceiling applications. Hanging hardware is included and features a built-in hanging bracket and screw-on cover plate for fast, easy, and secure installation. The unit may be mounted direct-toconduit via the locking cover plate (see installation instructions for additional information). Power, audio, and control are delivered to the speaker via a CAT5 or CAT6 cable; connection on the other end is made to a PoE or PoE+ switch, or to SoundTubeÕs STNet Switch, which provides 40 W PoE (Power Over Ethernet) to each speaker. Configuration and zoning of the speaker is done via software. Should any problem occur with the speaker during operation, it will be reported immediately via SoundTube monitoring software.
Features:
- IP-addressable, self-powered (PoE) speaker.
- Danteª and AES67 I/O for interconnectivity with Danteª and AES67-enabled audio systems.
- One 1Ó compression horn with BroadBeamHPª technology for high frequency dispersion.
- Fast connection of power, audio, and control functions via one CAT5 or CAT6 cable.
- 40 W PoE provided by SoundTube STNet Switch; also works with standard PoE+ and PoE switches.
- Provides report-back on any problems via SoundTube software.
- Weatherized components for indoor and outdoor applications.
- Includes hanging hardware with galvanized steel cables and hanging bracket for fast, easy, and secure installation. Unit may be hung or mounted direct-to-conduit via locking cover plate.
- Enclosure constructed of injection molded ABS with glass fiber reinforcement for lasting durability in indoor or outdoor applications.
- Aluminum grille with protective powder-coated finish.
- Unit ships in eco-friendly, recyclable packaging.
- UL 60065 listed.
- High-quality black or white paint finish. Speaker is paintable.
- Included accessories: hanging hardware, weather plug, cover plate.
| Color | White |
| UPC | 748252177070 |
| Manufacturer | SoundTube |
| Manufacturer's Category | STNet IP-Addressable and Dante Series |
| Height | 12.9 in / 327.7 mm |
| Width/Diameter | 12.83 in / 325.9 mm |
| Shipping Weight | 16.5 lbs / 7.5 kg |
| Carton Height | 16 in / 406.4 mm |
| Carton Length | 15 in / 381 mm |
| Carton Width | 15 in / 381 mm |
| Certifications | CE, RoHS, UL60065 |
| Enclosure Properties | ABS Glass Fiber Reinforced |
| Included Accessories | Cover Plate, Hanging Hardware, Weather Plug |
| Optional Accessories | Black Grille (GRL-RS82-EZ-BK) | 10' Hanging Cable (AC-RSEZ-HH-10) | 20' Hanging Cable (AC-RSEZ-HH-20) | Black Weatherboot (WEATHERBOOT-L-BK) | Beam Clamp (AC-BC1) | Forged Eye Bolt (AC-FE1) | Black Split Loom Tubing (AC-SLT-10-BK) | Snap Link (AC-SL1) |
| Source Inputs | RJ45 Ethernet Port |
| TAA Compliant (Trade America) | No |
| BAA Compliant (Made in USA) | No |
| Coverage Angle (±6dB @ 2kHz) | 135Á |
| Crossover Frequency | 2.5 kHz |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 3.6 and 3.7 |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 5.6 and 5.7 |
| Frequency Response (± 10 dB) | 80 Hz - 22 kHz |
| Frequency Response (± 3 dB) | 110 Hz - 22 kHz |
| Grille Properties | Aluminum, Powder-Coated |
| Low Frequency Voice Coil | 1.5 in / 38.1 mm |
| Low Pass Crossover | 12 dB per octave, 2nd order |
| Max SPL @ 1M | 111 dB |
| Network Type: High Pass | 12 dB per octave, 2nd order |
| Tweeter Driver | 1" Titanium Compression Driver with Waveguide» |
| Woofer Driver | 8" Treated Paper Cone w/ Cloth Surround |
The IPD-HP82-EZ is a 1Ó compression horn designed for open-ceiling applications. Hanging hardware is included and features a built-in hanging bracket and screw-on cover plate for fast, easy, and secure installation. The unit may be mounted direct-toconduit via the locking cover plate (see installation instructions for additional information). Power, audio, and control are delivered to the speaker via a CAT5 or CAT6 cable; connection on the other end is made to a PoE or PoE+ switch, or to SoundTubeÕs STNet Switch, which provides 40 W PoE (Power Over Ethernet) to each speaker. Configuration and zoning of the speaker is done via software. Should any problem occur with the speaker during operation, it will be reported immediately via SoundTube monitoring software.
Features:
- IP-addressable, self-powered (PoE) speaker.
- Danteª and AES67 I/O for interconnectivity with Danteª and AES67-enabled audio systems.
- One 1Ó compression horn with BroadBeamHPª technology for high frequency dispersion.
- Fast connection of power, audio, and control functions via one CAT5 or CAT6 cable.
- 40 W PoE provided by SoundTube STNet Switch; also works with standard PoE+ and PoE switches.
- Provides report-back on any problems via SoundTube software.
- Weatherized components for indoor and outdoor applications.
- Includes hanging hardware with galvanized steel cables and hanging bracket for fast, easy, and secure installation. Unit may be hung or mounted direct-to-conduit via locking cover plate.
- Enclosure constructed of injection molded ABS with glass fiber reinforcement for lasting durability in indoor or outdoor applications.
- Aluminum grille with protective powder-coated finish.
- Unit ships in eco-friendly, recyclable packaging.
- UL 60065 listed.
- High-quality black or white paint finish. Speaker is paintable.
- Included accessories: hanging hardware, weather plug, cover plate.
| Color | White |
| UPC | 748252177070 |
| Manufacturer | SoundTube |
| Manufacturer's Category | STNet IP-Addressable and Dante Series |
| Height | 12.9 in / 327.7 mm |
| Width/Diameter | 12.83 in / 325.9 mm |
| Shipping Weight | 16.5 lbs / 7.5 kg |
| Carton Height | 16 in / 406.4 mm |
| Carton Length | 15 in / 381 mm |
| Carton Width | 15 in / 381 mm |
| Certifications | CE, RoHS, UL60065 |
| Enclosure Properties | ABS Glass Fiber Reinforced |
| Included Accessories | Cover Plate, Hanging Hardware, Weather Plug |
| Optional Accessories | Black Grille (GRL-RS82-EZ-BK) | 10' Hanging Cable (AC-RSEZ-HH-10) | 20' Hanging Cable (AC-RSEZ-HH-20) | Black Weatherboot (WEATHERBOOT-L-BK) | Beam Clamp (AC-BC1) | Forged Eye Bolt (AC-FE1) | Black Split Loom Tubing (AC-SLT-10-BK) | Snap Link (AC-SL1) |
| Source Inputs | RJ45 Ethernet Port |
| TAA Compliant (Trade America) | No |
| BAA Compliant (Made in USA) | No |
| Coverage Angle (±6dB @ 2kHz) | 135Á |
| Crossover Frequency | 2.5 kHz |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 3.6 and 3.7 |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 5.6 and 5.7 |
| Frequency Response (± 10 dB) | 80 Hz - 22 kHz |
| Frequency Response (± 3 dB) | 110 Hz - 22 kHz |
| Grille Properties | Aluminum, Powder-Coated |
| Low Frequency Voice Coil | 1.5 in / 38.1 mm |
| Low Pass Crossover | 12 dB per octave, 2nd order |
| Max SPL @ 1M | 111 dB |
| Network Type: High Pass | 12 dB per octave, 2nd order |
| Tweeter Driver | 1" Titanium Compression Driver with Waveguide» |
| Woofer Driver | 8" Treated Paper Cone w/ Cloth Surround |
