DALE SKU # SOTU-IPDHUB2

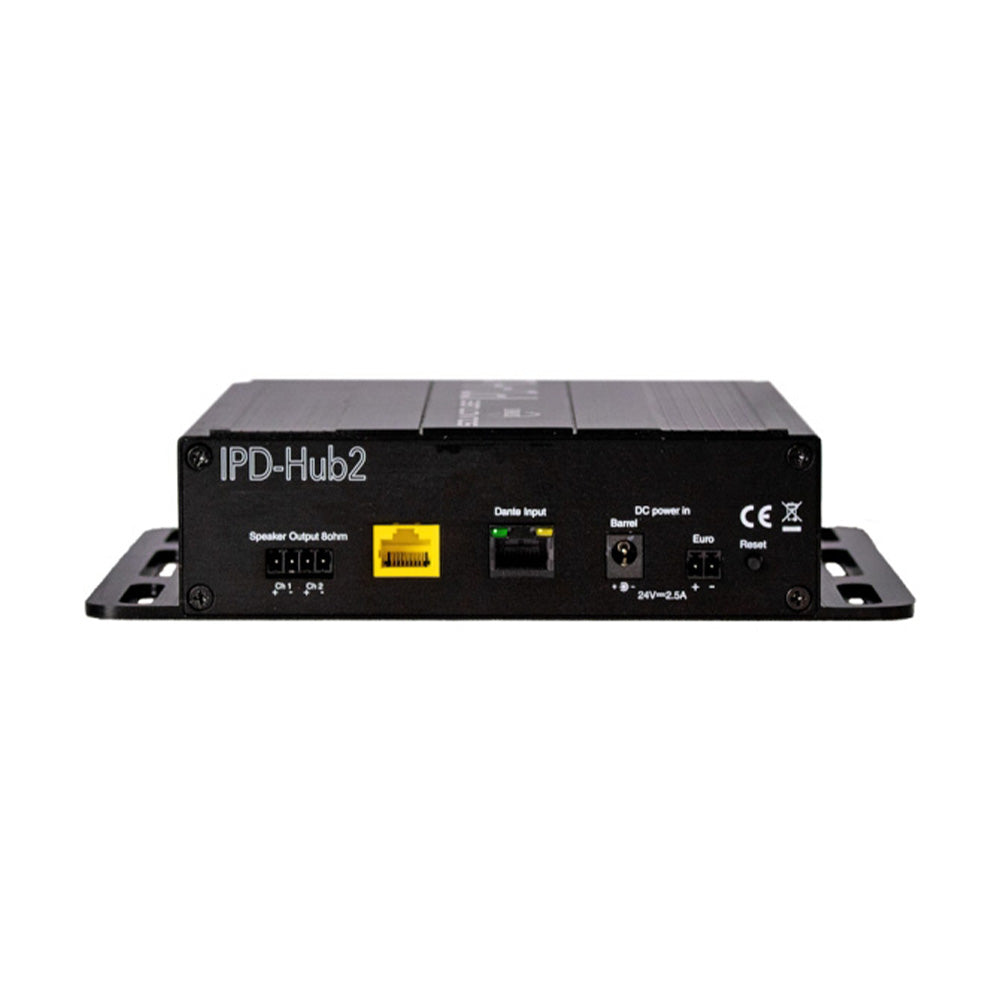

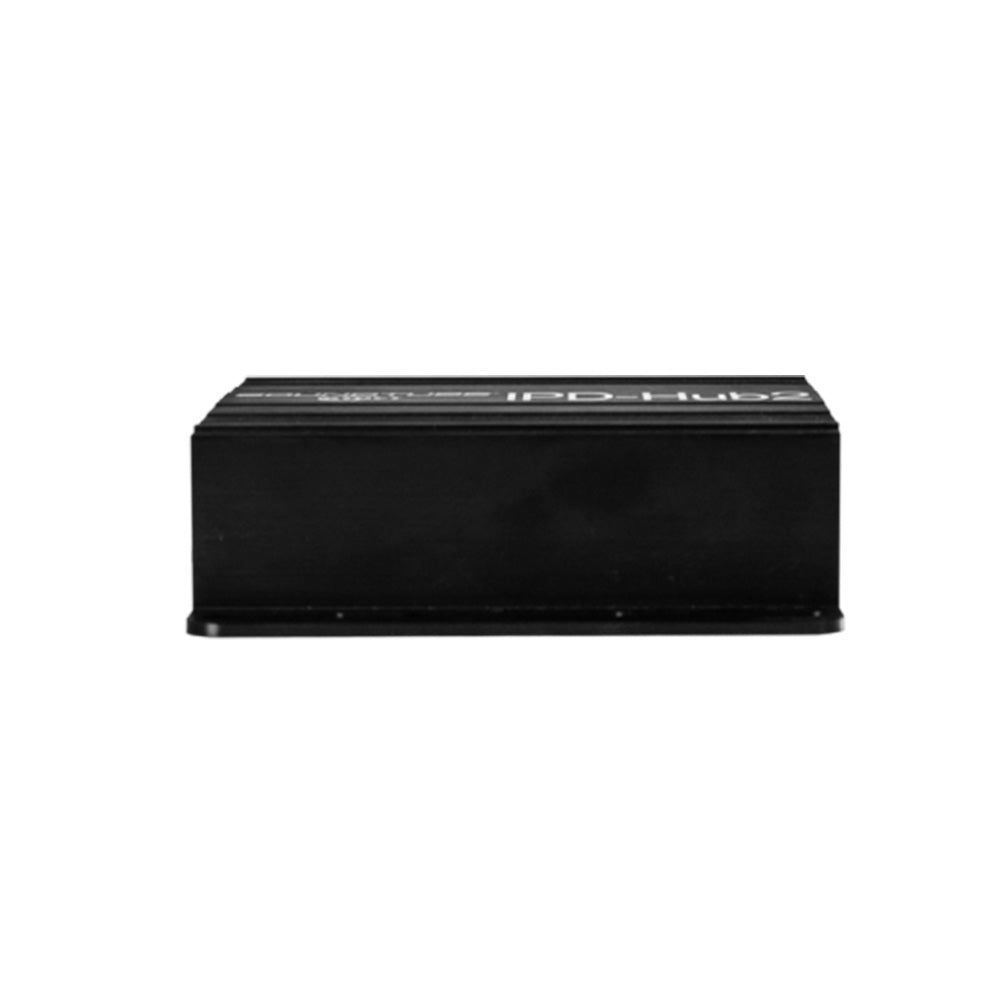

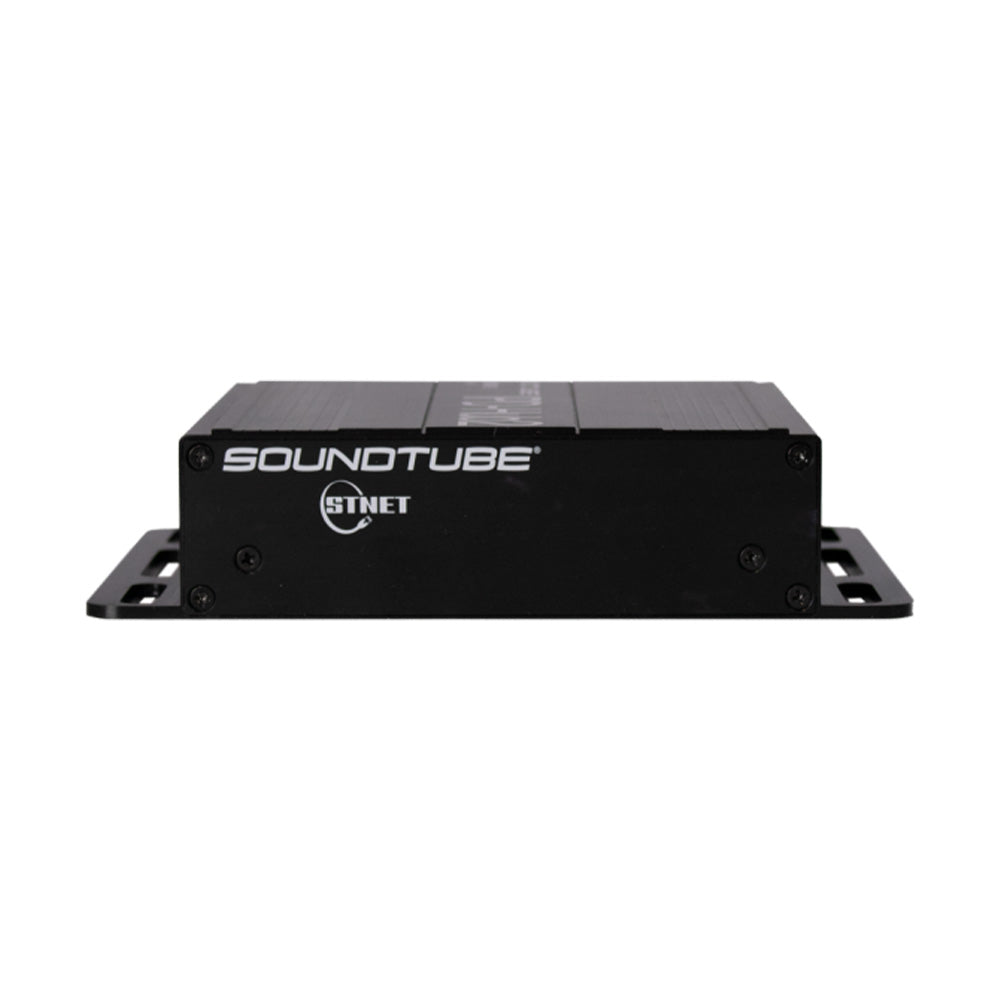

Soundtube IPD-HUB 2 - Compact Dante / AES67 Enabled Amplifier

Sale price$753.00
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    The IPD-Hub 2 DSP amplifier gives designers and installers an IP-based alternative to traditional 70V/100V distributed audio systems in small to mid-size applications. The IPD-Hub 2 utilizes a Dante infrastructure for flexible audio distribution. The amp is complete with local and Dante inputs and local and network control to address requirements for commercial audio connectivity in numerous applications, such as small to medium size retail, bar, restaurants, hospitality, spas, education facilities, and more.

    Features:

    • Feature rich IP-based, Danteª connected option for traditional 70V/100V distributed audio systems in small to mid-size applications.
    • AES67 Compatible
    • Configurable priority paging inputs provided.
    • Remote volume control and selection between two sources is supported on the single IPD-Hub 2 with the SoundTube RVC-1.
    • Integrated DSP provides input mixing and equalization to optimize the performance of any ceiling or in-wall speaker.
    • Software setup through STNet Control Center.
    • Included Accessory: AC-HUB2-CBL-RDL RDL Adapter Cable
    Color Black
    UPC 644216223404
    Manufacturer SoundTube
    Manufacturer's Category STNet IP-Addressable and Dante Series
    Depth 6 in / 152.4 mm
    Height 1.75 in / 44.45 mm
    Width/Diameter 8 in / 203.2 mm
    Shipping Weight 7.71 lbs / 3.5 kg
    Certifications CE, UL2043, UL60065, ETL-C/US
    TAA Compliant (Trade America) No
    BAA Compliant (Made in USA) No
    Input Type 2 x RJ45, 1 Dante, 1 Axiom
    Input Power PoE, PoE+, 40W PoE, 24V DC Power Supply
    Output Type 2 Channel Phoenix
    Output Power 12W per Channel @ 40W PoE
    Speaker Output (2) x 8 _ or (4) x 16 _ speakers

    The IPD-Hub 2 DSP amplifier gives designers and installers an IP-based alternative to traditional 70V/100V distributed audio systems in small to mid-size applications. The IPD-Hub 2 utilizes a Dante infrastructure for flexible audio distribution. The amp is complete with local and Dante inputs and local and network control to address requirements for commercial audio connectivity in numerous applications, such as small to medium size retail, bar, restaurants, hospitality, spas, education facilities, and more.

    Features:

    • Feature rich IP-based, Danteª connected option for traditional 70V/100V distributed audio systems in small to mid-size applications.
    • AES67 Compatible
    • Configurable priority paging inputs provided.
    • Remote volume control and selection between two sources is supported on the single IPD-Hub 2 with the SoundTube RVC-1.
    • Integrated DSP provides input mixing and equalization to optimize the performance of any ceiling or in-wall speaker.
    • Software setup through STNet Control Center.
    • Included Accessory: AC-HUB2-CBL-RDL RDL Adapter Cable
    Color Black
    UPC 644216223404
    Manufacturer SoundTube
    Manufacturer's Category STNet IP-Addressable and Dante Series
    Depth 6 in / 152.4 mm
    Height 1.75 in / 44.45 mm
    Width/Diameter 8 in / 203.2 mm
    Shipping Weight 7.71 lbs / 3.5 kg
    Certifications CE, UL2043, UL60065, ETL-C/US
    TAA Compliant (Trade America) No
    BAA Compliant (Made in USA) No
    Input Type 2 x RJ45, 1 Dante, 1 Axiom
    Input Power PoE, PoE+, 40W PoE, 24V DC Power Supply
    Output Type 2 Channel Phoenix
    Output Power 12W per Channel @ 40W PoE
    Speaker Output (2) x 8 _ or (4) x 16 _ speakers
