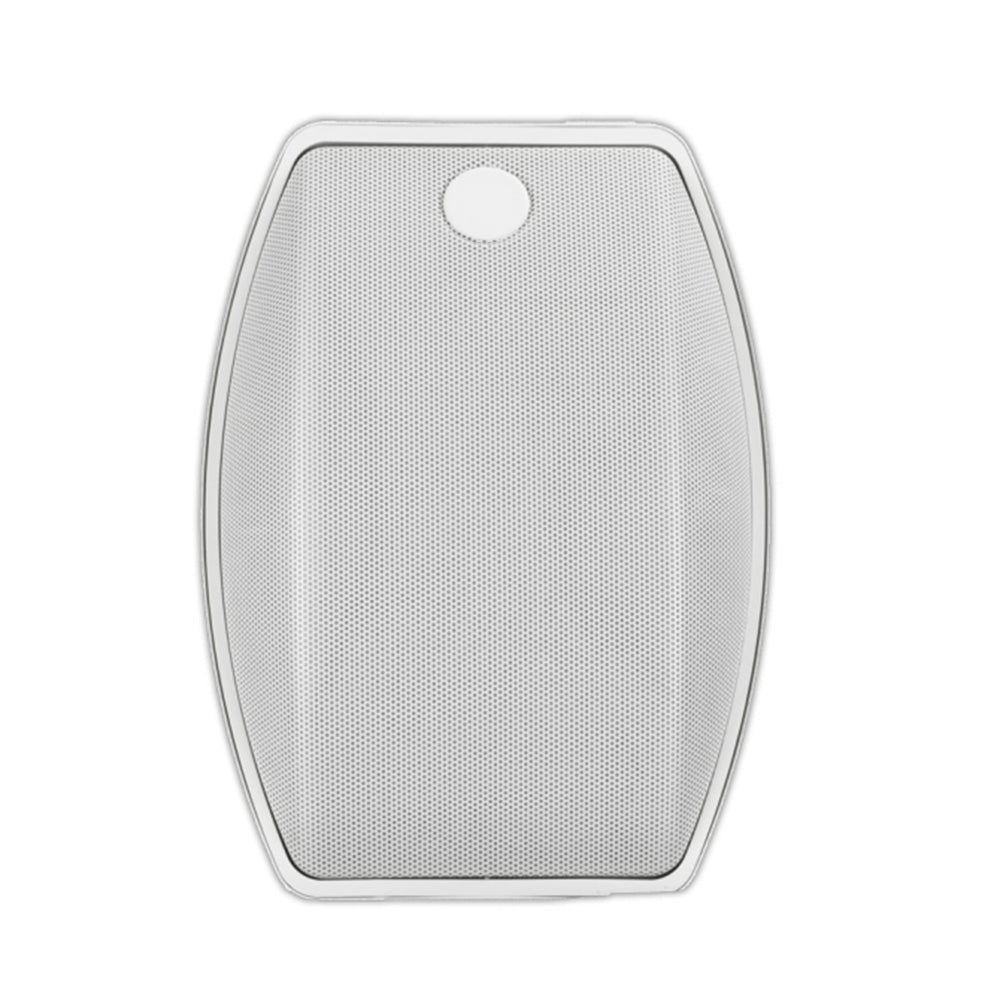

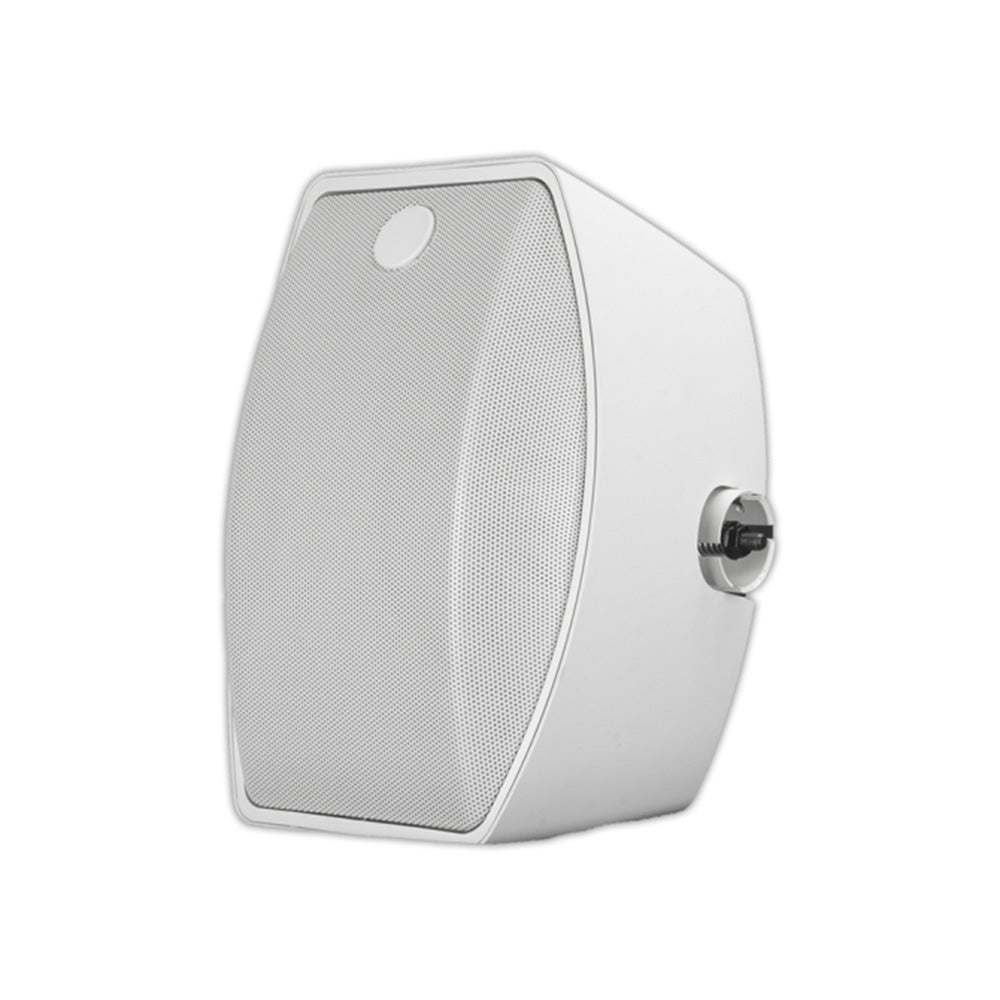

Soundtube IPD-SM500i-II-WH - Two-Way 5.25-Inch Dante-Enabled Surface Mount Loudspeaker (White)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The IPD-SM500i-II is a 5.25Ó two-way, surfacemount speaker for IP-addressable audio networks on the Dante and AES67 platform. It incorporates a 5.25Ó polypropylene woofer and 1Ó convex titanium tweeter with waveguide in an injection-molded, glass fiber reinforced ABS enclosure. The speaker delivers frequency response of 60 Hz - 22 kHz (±10 dB) with consistent, broad high-frequency dispersion supplied through SoundTubeÕs proprietary BroadBeam Ringª technology.

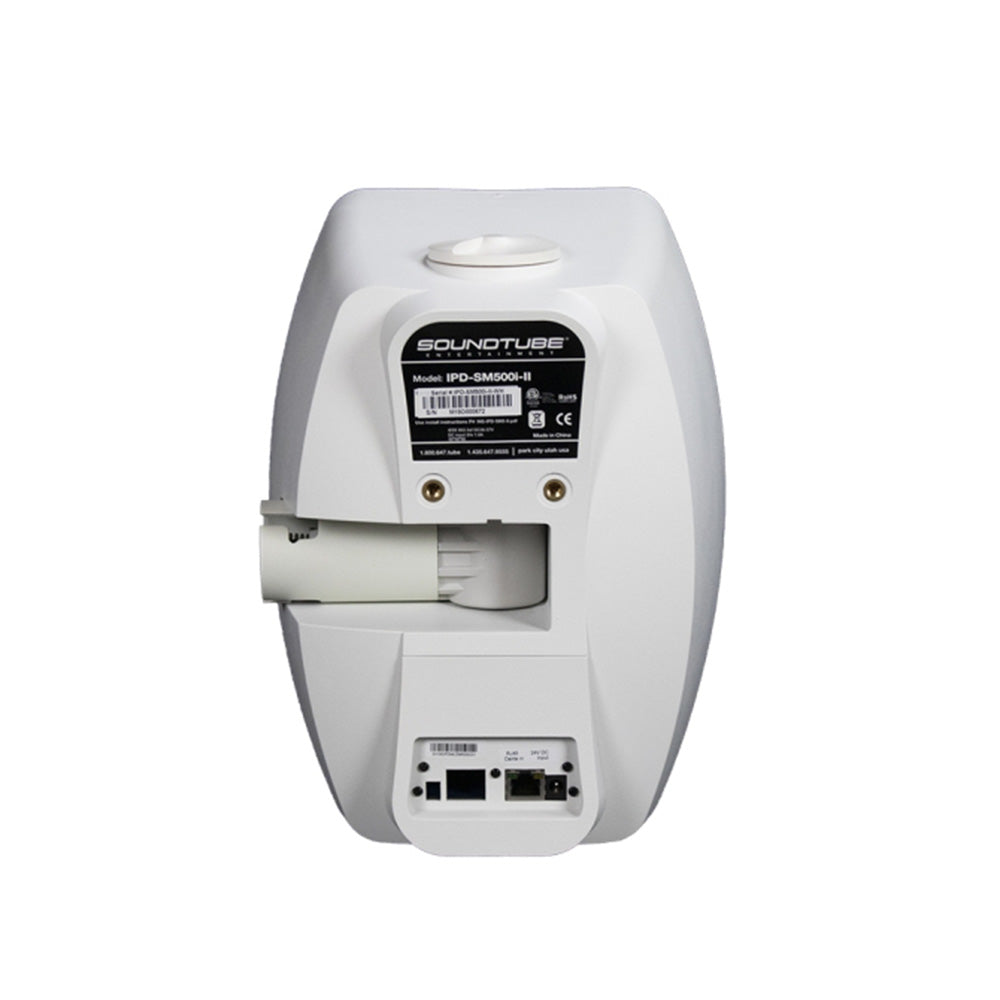

Power, audio, and control are delivered to the speaker via a CAT5 or CAT6 cable; connection on the other end is made to the STNet Switch, which provides 40 W PoE (Power over Ethernet) to each speaker. Configuration and zoning of the speaker is done via software. Should any problem occur with the speaker during operation, it will be reported immediately via SoundTube monitoring software.

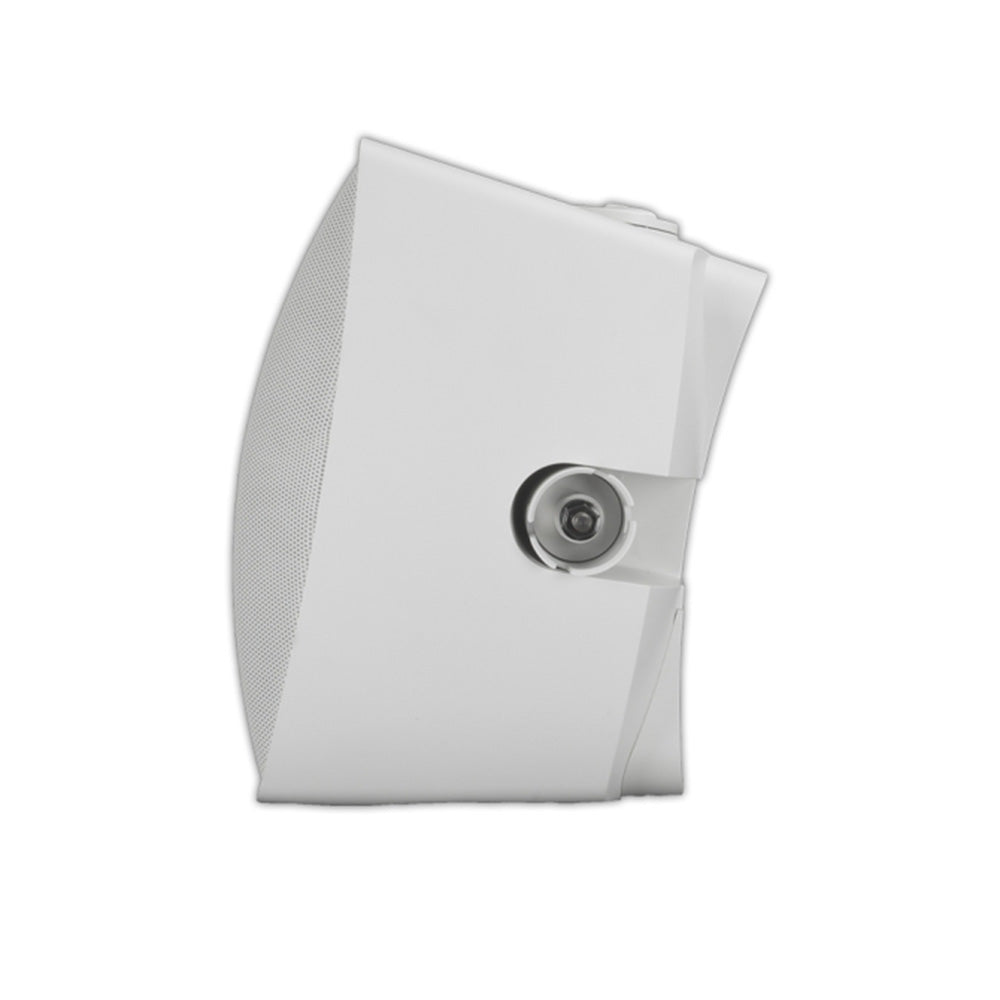

Mounting hardware for the IPD-SM500i-II is included and features SoundTubeÕs proprietary Stealthª bracket mounting system, with a security knob to reduce tampering after placement. The speaker also offers unlimited directional aiming and a low profile. The system includes a detachable mounting plate designed for pre-mounting in either wall or pole applications.
Features:
- IP-addressable, self-powered (PoE) speaker.
- Danteª and AES67 I/O for interconnectivity with Dante and AES67-enabled audio systems.
- BroadBeam¨ waveguide technology delivers a consistent dispersion pattern up to 10 kHz for maximum coverage area per speaker.
- One 5.25Ó (133 mm) polypropylene woofer and one 1Ó (25.4 mm) convex titanium tweeter with FerroFluidª cooling.
- Fast connection of power, audio, and control functions via one CAT5 or CAT6 cable.
- 40 W PoE provided by SoundTube STNet Switch; also works with standard PoE+ and PoE switches.
- Provides report-back on any problems via SoundTube software.
- Aluminum grille with powder-coat finish.
- Includes Stealthª bracket mounting system.
- Vertical and horizontal pivoting allow the IPDSM500i-II to be aimed anywhere within the installation space.
- Low profile enclosure design keeps the speaker close to the wall.
- High-quality black or white paint finish.
- Included accessories: safety cable with speaker mounting bolt and wall mount bracket
| Color | White |
| UPC | 748252172860 |
| Manufacturer | SoundTube |
| Manufacturer's Category | STNet IP-Addressable and Dante Series |
| Depth | 10.48 in / 266.3 mm |
| Height | 11.4 in / 289.56 mm |
| Width/Diameter | 8.36 in / 212.26 mm |
| Shipping Weight | 9.5 lbs / 4.3 kg |
| Carton Height | 12.25 in / 311.15 mm |
| Carton Length | 13.25 in / 336.55 mm |
| Carton Width | 10.75 in / 273.05 mm |
| Certifications | CE, RoHS, UL2043, UL60065 |
| Enclosure Properties | ABS Glass Fiber Reinforced |
| Included Accessories | Mounting Hardware, Safety Cable |
| Optional Accessories | Black Grille (GRL-SM500-II-BK) | 10" Safety Cable (AC-SM-SC10) | Black Mounting Bracket (AC-SM5-II-WP-BK) | Connector (EUROBLOCK) | Black Weatherboot (WEATHERBOOT-S-BK) |
| Source Inputs | RJ45 Ethernet Port |
| TAA Compliant (Trade America) | No |
| BAA Compliant (Made in USA) | No |
| Coverage Angle (±6dB @ 2kHz) | 75Á Horizontal / 90Á Vertical |
| Crossover Frequency | 3.0 kHz |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 4.6 and 9.8 |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 5.6 dB and 9.9 dB |
| Frequency Response (± 10 dB) | 60 Hz - 22 kHz |
| Frequency Response (± 3 dB) | 86 Hz - 22 kHz |
| Grille Properties | Aluminum, Powder-Coated |
| Low Frequency Voice Coil | 1.0 in / 25.4 mm |
| Low Pass Crossover | 12 dB per octave, 2nd order |
| Max SPL @ 1M | 98 dB |
| Network Type: High Pass | 12 dB per octave, 2nd order |
| Tweeter Driver | 1" Convex Titanium w/ BroadBeam¬ Waveguide |
| Woofer Driver | 5.25" Polypropylene Cone w/ Butyl Rubber Surround |
The IPD-SM500i-II is a 5.25Ó two-way, surfacemount speaker for IP-addressable audio networks on the Dante and AES67 platform. It incorporates a 5.25Ó polypropylene woofer and 1Ó convex titanium tweeter with waveguide in an injection-molded, glass fiber reinforced ABS enclosure. The speaker delivers frequency response of 60 Hz - 22 kHz (±10 dB) with consistent, broad high-frequency dispersion supplied through SoundTubeÕs proprietary BroadBeam Ringª technology.
Power, audio, and control are delivered to the speaker via a CAT5 or CAT6 cable; connection on the other end is made to the STNet Switch, which provides 40 W PoE (Power over Ethernet) to each speaker. Configuration and zoning of the speaker is done via software. Should any problem occur with the speaker during operation, it will be reported immediately via SoundTube monitoring software.
Mounting hardware for the IPD-SM500i-II is included and features SoundTubeÕs proprietary Stealthª bracket mounting system, with a security knob to reduce tampering after placement. The speaker also offers unlimited directional aiming and a low profile. The system includes a detachable mounting plate designed for pre-mounting in either wall or pole applications.
Features:
- IP-addressable, self-powered (PoE) speaker.
- Danteª and AES67 I/O for interconnectivity with Dante and AES67-enabled audio systems.
- BroadBeam¨ waveguide technology delivers a consistent dispersion pattern up to 10 kHz for maximum coverage area per speaker.
- One 5.25Ó (133 mm) polypropylene woofer and one 1Ó (25.4 mm) convex titanium tweeter with FerroFluidª cooling.
- Fast connection of power, audio, and control functions via one CAT5 or CAT6 cable.
- 40 W PoE provided by SoundTube STNet Switch; also works with standard PoE+ and PoE switches.
- Provides report-back on any problems via SoundTube software.
- Aluminum grille with powder-coat finish.
- Includes Stealthª bracket mounting system.
- Vertical and horizontal pivoting allow the IPDSM500i-II to be aimed anywhere within the installation space.
- Low profile enclosure design keeps the speaker close to the wall.
- High-quality black or white paint finish.
- Included accessories: safety cable with speaker mounting bolt and wall mount bracket
| Color | White |
| UPC | 748252172860 |
| Manufacturer | SoundTube |
| Manufacturer's Category | STNet IP-Addressable and Dante Series |
| Depth | 10.48 in / 266.3 mm |
| Height | 11.4 in / 289.56 mm |
| Width/Diameter | 8.36 in / 212.26 mm |
| Shipping Weight | 9.5 lbs / 4.3 kg |
| Carton Height | 12.25 in / 311.15 mm |
| Carton Length | 13.25 in / 336.55 mm |
| Carton Width | 10.75 in / 273.05 mm |
| Certifications | CE, RoHS, UL2043, UL60065 |
| Enclosure Properties | ABS Glass Fiber Reinforced |
| Included Accessories | Mounting Hardware, Safety Cable |
| Optional Accessories | Black Grille (GRL-SM500-II-BK) | 10" Safety Cable (AC-SM-SC10) | Black Mounting Bracket (AC-SM5-II-WP-BK) | Connector (EUROBLOCK) | Black Weatherboot (WEATHERBOOT-S-BK) |
| Source Inputs | RJ45 Ethernet Port |
| TAA Compliant (Trade America) | No |
| BAA Compliant (Made in USA) | No |
| Coverage Angle (±6dB @ 2kHz) | 75Á Horizontal / 90Á Vertical |
| Crossover Frequency | 3.0 kHz |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 4.6 and 9.8 |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 5.6 dB and 9.9 dB |
| Frequency Response (± 10 dB) | 60 Hz - 22 kHz |
| Frequency Response (± 3 dB) | 86 Hz - 22 kHz |
| Grille Properties | Aluminum, Powder-Coated |
| Low Frequency Voice Coil | 1.0 in / 25.4 mm |
| Low Pass Crossover | 12 dB per octave, 2nd order |
| Max SPL @ 1M | 98 dB |
| Network Type: High Pass | 12 dB per octave, 2nd order |
| Tweeter Driver | 1" Convex Titanium w/ BroadBeam¬ Waveguide |
| Woofer Driver | 5.25" Polypropylene Cone w/ Butyl Rubber Surround |
