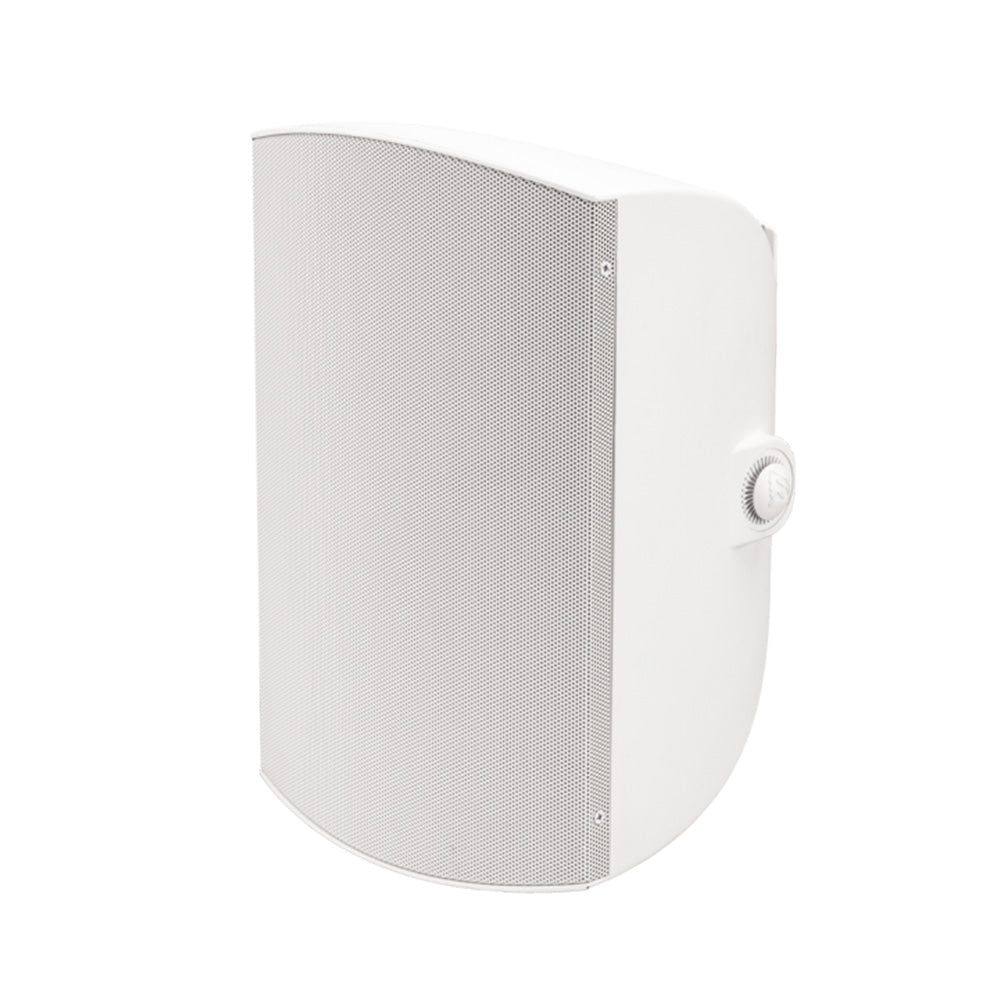

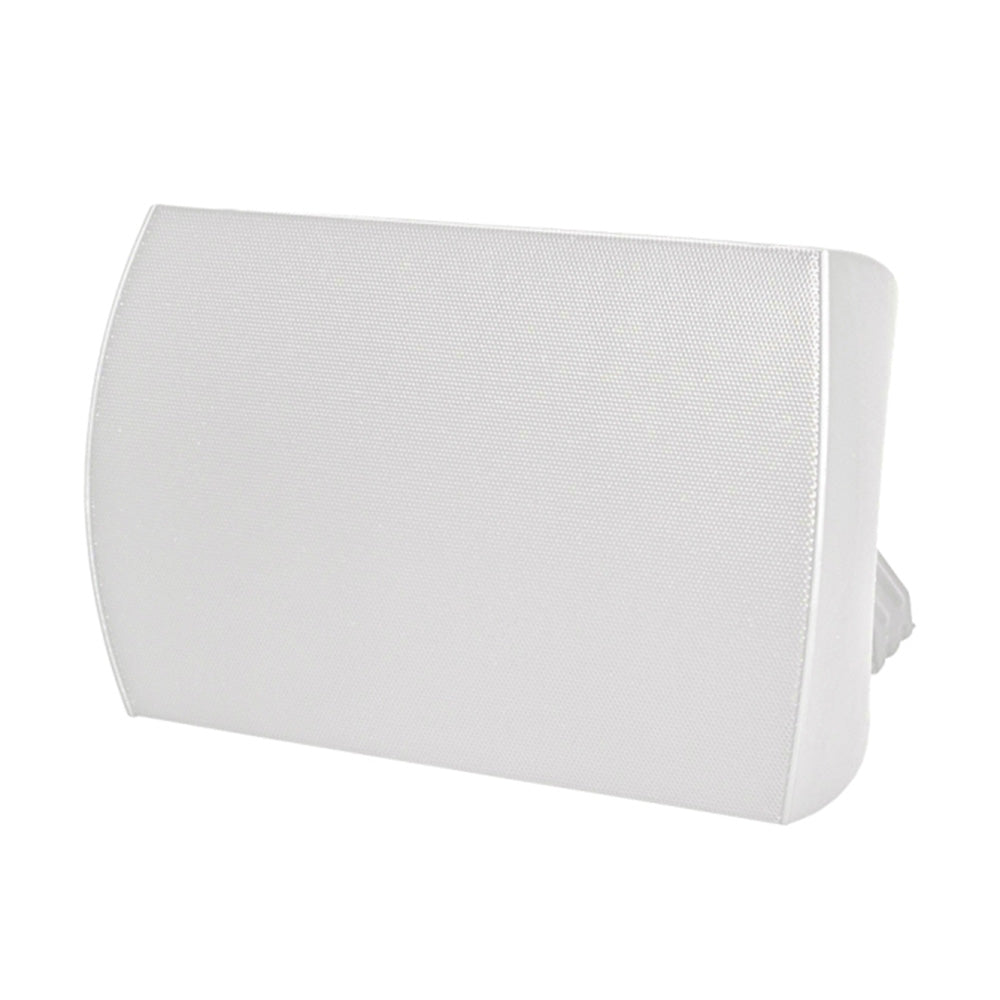

Soundtube IPD-SM82-EZ-II-WX-WH - Two-Way 8-Inch Dante-Enabled Weather Resistant Loudspeaker (White)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The IPD-SM82-EZ-II-WX is an 8Ó, two-way surface mount speaker for IP-addressable audio networks on the Dante and AES67 platform. It incorporates an 8Ó polypropylene woofer and 1Ó soft dome tweeter in an injection-molded enclosure. The speaker delivers a frequency response of 38 Hz - 20 kHz (±10 dB) with consistent, broad high-frequency dispersion supplied through SoundTubeÕs proprietary BroadBeam Ringª technology. Power, audio, and control are delivered to the speaker via a CAT5 or CAT6 cable; connection on the other end is made to the STNet Switch, which provides 40 W PoE (Power over Ethernet) to each speaker. Configuration of the speaker is done via software. Should any problems occur with the speaker during operation, it will be reported immediately via SoundTube monitoring software.
Features:
- STNet IP-addressable, self-powered (PoE) speaker.
- Danteª and AES67 I/O for interconnectivity with Dante and AES67-enabled audio systems.
- BroadBeam Ringª delivers a consistent dispersion pattern up to 10 kHz for maximum coverage area per speaker.
- One 8Ó (203 mm) polypropylene woofer and one 1Ó (25.4 mm) soft dome tweeter.
- Fast connection of power, audio, and control functions via one CAT5 or CAT6 cable.
- 40 W PoE provided by SoundTube STNet Switch; also works with standard PoE+ and PoE switches.
- Provides report-back on any problems via SoundTube software.
- Aluminum grille with powder-coat finish.

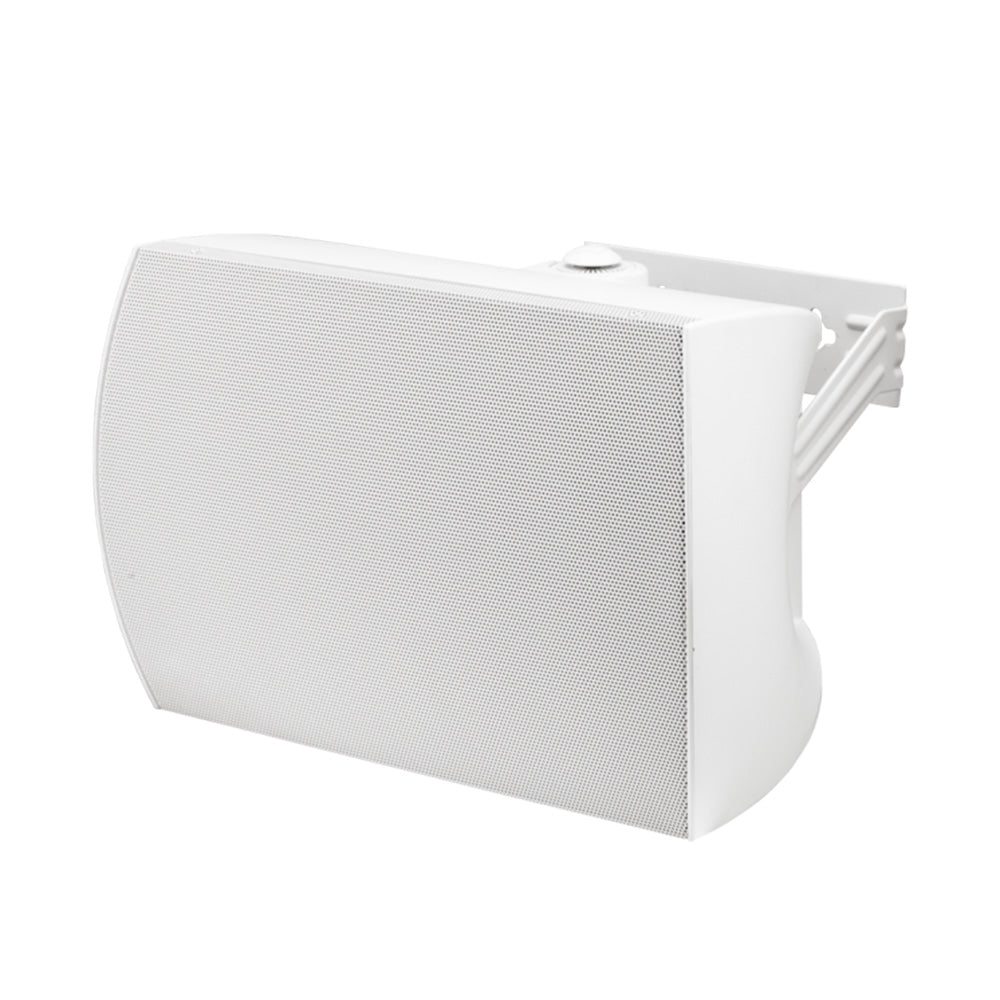

- Vertical and horizontal mounting offer precision aiming for indoor and outdoor applications.
- UL60065 listed.
- High-quality black or white paint finish.
- Included accessories: safety cable, wall-mount bracket, port plug, Allen wrench, and watertight strain-relief bushing.
| Color | White |
| UPC | 644216224005 |
| Manufacturer | SoundTube |
| Manufacturer's Category | STNet IP-Addressable and Dante Series |
| Depth | 9.88 in / 250.95 mm |
| Height | 18 in / 457.2 mm |
| Width/Diameter | 11.5 in / 292.1 mm |
| Shipping Weight | 13.9 lbs / 6.3 kg |
| Carton Height | 17 in / 431.8 mm |
| Carton Length | 21.5 in / 546.1 mm |
| Carton Width | 14.25 in / 361.95 mm |
| Certifications | CE, IP65, RoHS, UL60065 |
| Enclosure Properties | High Impact Polystyrene |
| Included Accessories | Mounting Assembly, Mounting Hardware, Port Plug, Safety Cable, Weather Plug, Weatherproof Strain Relief |
| Optional Accessories | Black Grille (GRL-SM82-BK) | Black Weatherboot (WEATHERBOOT-S-BK) | Port Plug (AC-SM8-PP) |
| Source Inputs | RJ45 Ethernet Port |
| IP Rating | IP65 |
| TAA Compliant (Trade America) | No |
| BAA Compliant (Made in USA) | No |
| Coverage Angle (±6dB @ 2kHz) | 70Á Horizontal / 90Á Vertical |
| Crossover Frequency | 2.5 kHz |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 5.2 and 12.0 |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 6.2 dB and 10.8 dB |
| Frequency Response (± 10 dB) | 38 Hz - 20 kHz | Sealed: 50 Hz - 20 kHz |
| Frequency Response (± 3 dB) | 50 Hz - 20 kHz | Sealed: 70 Hz - 20 kHz |
| Grille Properties | Aluminum, Powder-Coated |
| Low Frequency Voice Coil | 1.5 in / 38.1 mm |
| Low Pass Crossover | 12 dB per octave, 2nd order |
| Max SPL @ 1M | 101 dB |
| Network Type: High Pass | 12 dB per octave, 2nd order |
| Tweeter Driver | 1" Soft Dome |
| Woofer Driver | 8" Polypropylene Cone w/ Butyl Rubber Surround |
| Subwoofer Driver | 8" Polypropylene Cone w/ Butyl Rubber Surround |
