DALE SKU # SOTU-IPDTSB20

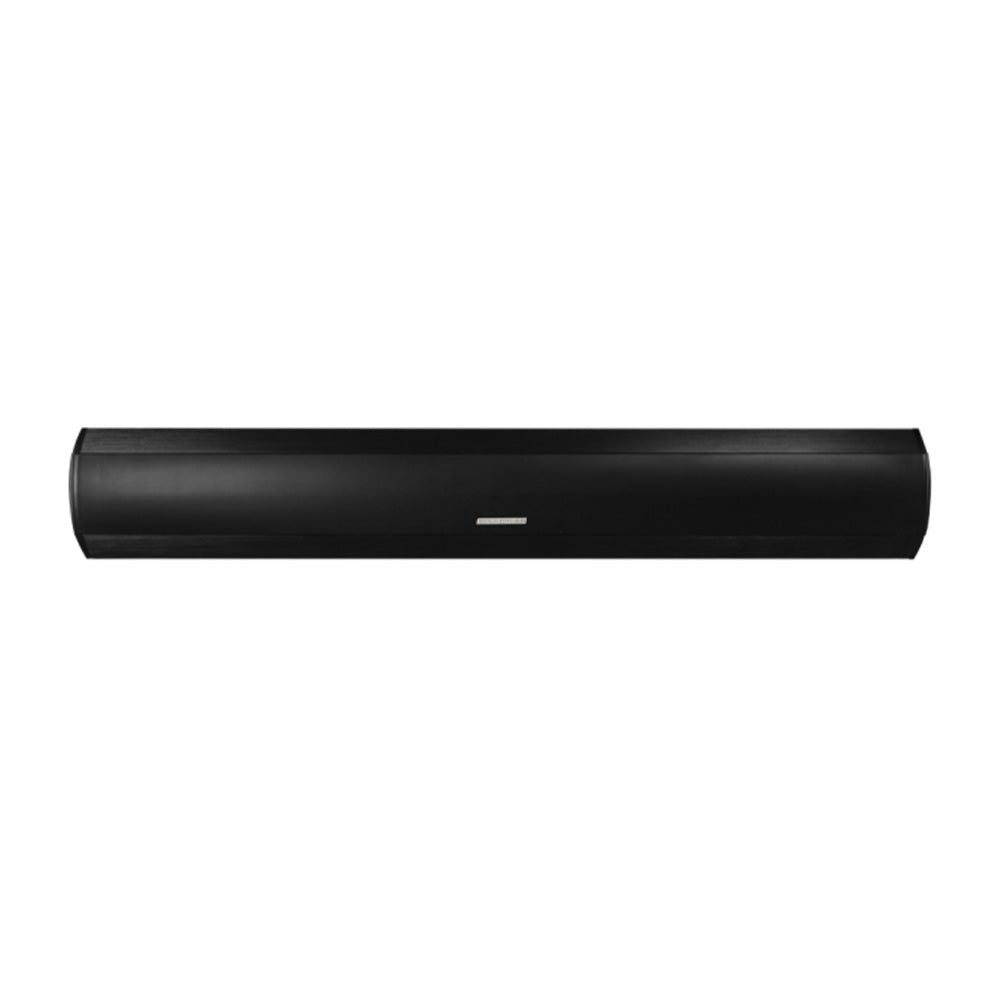

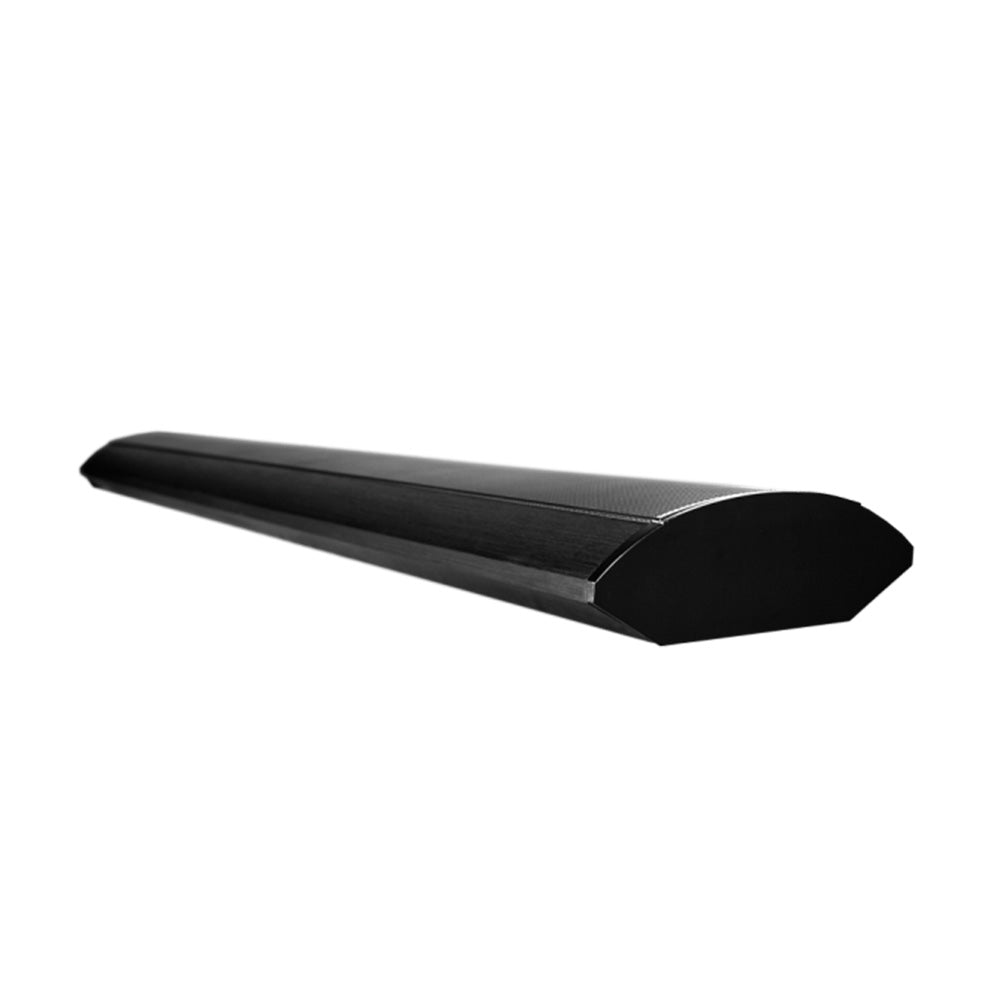

Soundtube IPD-TSB2.0 - Two-Way Ultra-Thin Dante Enabled Conferencing Soundbar

Sale price$1,392.00
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    An ultra-thin 2-way Dante and AES67-enabled digital end-point solution in a soundbar configuration. The IPD-TSB2.0 brings Dante/AES67 connectivity from end to end in conferencing and boardroom video installations. Making the soundbar interoperable with other Dante products gives integrators additional flexibility when designing and installing audio systems.

    Built with high-quality materials and stylish brushed metal cosmetics, the IPD-TSB2.0 Soundbar is a reliable, unrivaled solution for any audio/video system. With digital signals plus PoE power sent directly to the speakers via standard category cable, SoundTubeÕs STNet Soundbar is simple to connect. The intelligent amplifier with DSP monitors the functions of the speaker and can send an alert if there are any problems with the SoundBar.

    Each IPD-TSB2.0 is configurable using SoundTube STNet Control Center software. The software is used to setup the SoundBar via an 8 band parametric EQ, delay and input and output gain using a built in pink noise generator. Because they are on the Dante/ AES67 platform, they are interoperable with a host of other products worldwide. They may be used with SoundTubeÕs ST-Net Switch, offering up to 40 watts PoE to each speaker, or with standard PoE or PoE+ switches.

    Features:

    • Dante/AES67 PoE enabled and fully compatible
    • UL Certified
    • Fits beneath 50-in screen or larger
    • 1.5-in depth where soundbar meets the TV

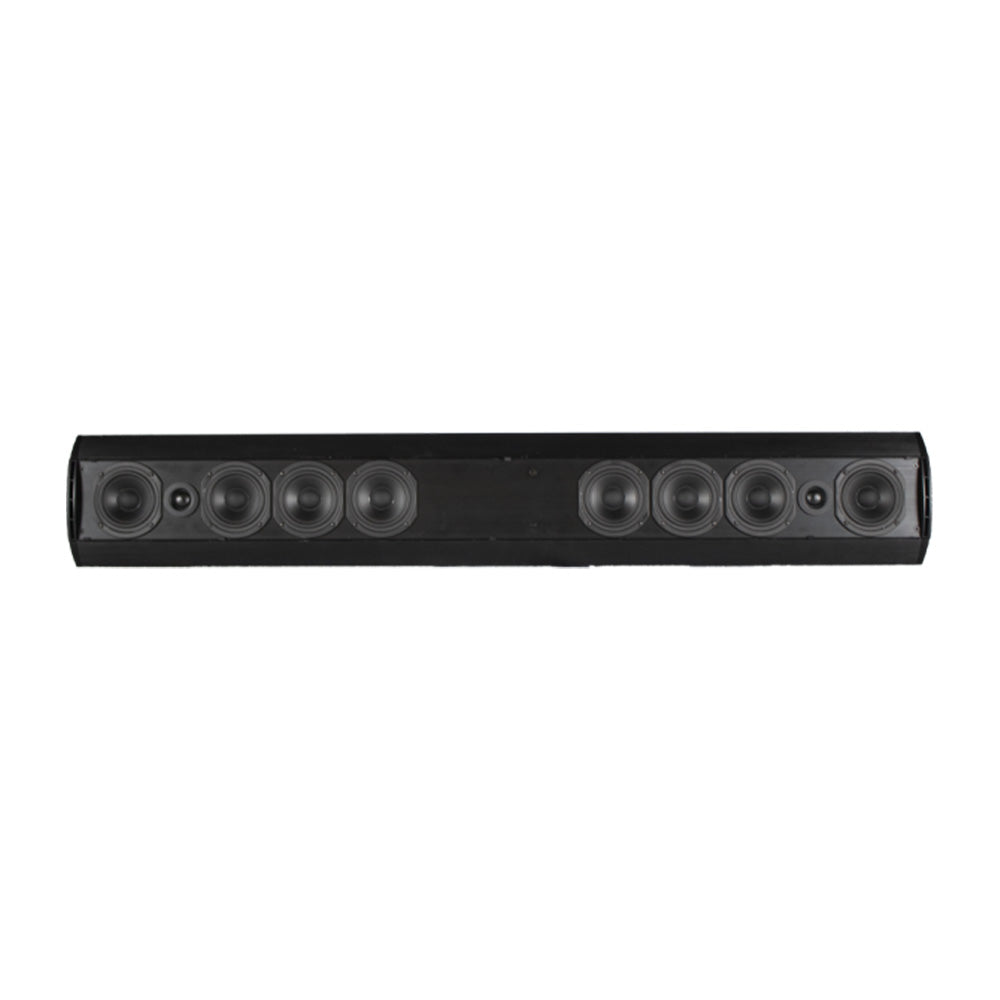

    • L/R with four 3-in ultra-long throw polypropylene woofers with butyl rubber surrounds
    • Four bass radiators
    • Two 0.75-in soft dome tweeters
    • Brushed black finish
    • Wall and surface mount accessories included
    Color Black
    UPC 644216232208
    Manufacturer SoundTube
    Manufacturer's Category STNet IP-Addressable and Dante Series
    Depth 2.5 in / 63.5 mm - (1.5 in where the Soundbar meets the TV)
    Height 6.75 in / 171.45 mm
    Width/Diameter 43 in 1092.2 mm
    Shipping Weight 17.6 lbs / 7.98 kg
    Carton Height 6.75 in / 171.5 mm
    Carton Length 45 in / 1143 mm
    Carton Width 5.75 in / 146.05 mm
    Certifications CE, RoHS, cTUVus, CSA C22.2 No 62368-1 / UL 62368-1 2nd ED
    Enclosure Properties Aluminum
    Included Accessories Grille, Mounting Hardware, Stand/Base

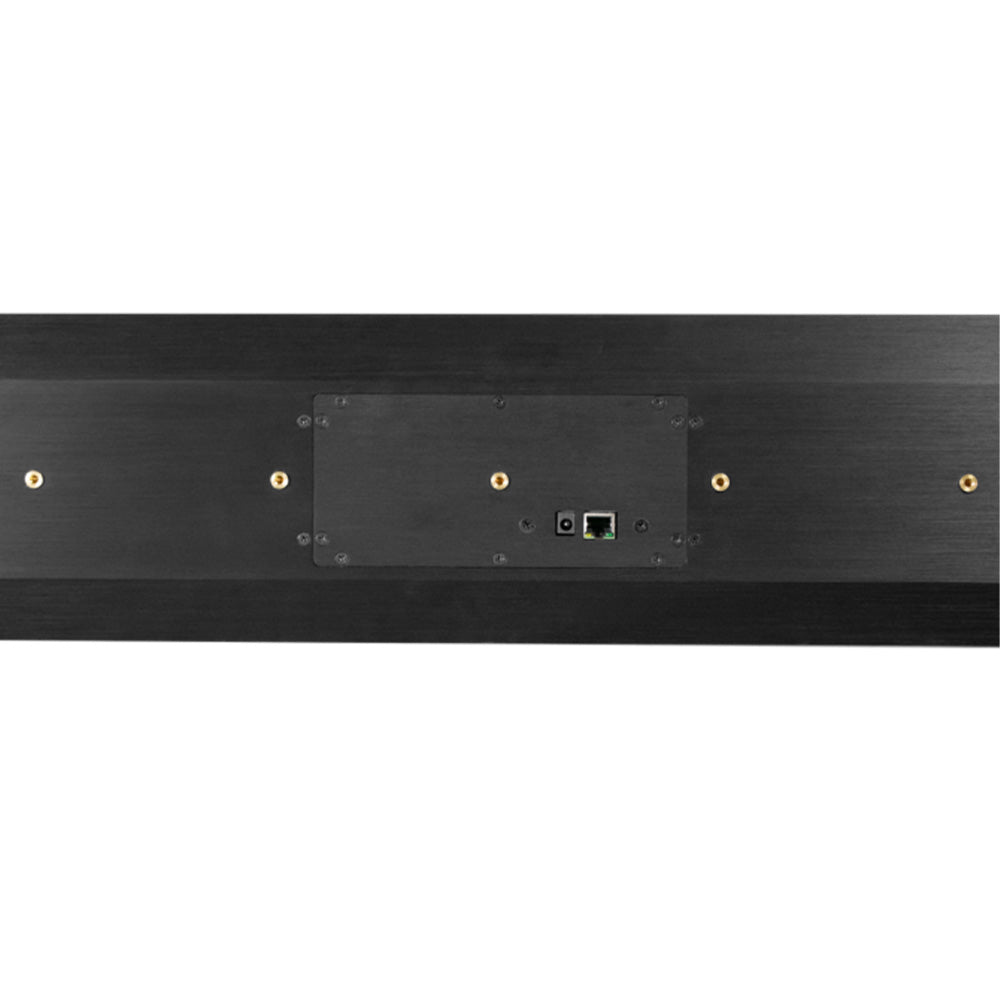

    Source Inputs RJ45 Ethernet Port
    TAA Compliant (Trade America) No
    BAA Compliant (Made in USA) No
    Recommended Power PoE, PoE+, 40W PoE, 24V Barrel Connector
    Coverage Angle (±6dB @ 2kHz) 45Á Horizontal / 120Á Vertical
    Crossover Frequency 3.5 kHz
    Frequency Response (± 10 dB) 65 Hz - 20 kHz
    Frequency Response (± 3 dB) 85 Hz - 20 kHz
    Grille Properties Aluminum, Friction-Fit, Powder-Coated
    Max SPL @ 1M 100 dB
    Network Type: High Pass 12dB per octave, 2nd order
    Tweeter Driver (2) .75" Silk Soft Dome
    Woofer Driver (4) 3" Polypropylene Cones, (4) 3" Bass Radiators w/NBR Surround

    An ultra-thin 2-way Dante and AES67-enabled digital end-point solution in a soundbar configuration. The IPD-TSB2.0 brings Dante/AES67 connectivity from end to end in conferencing and boardroom video installations. Making the soundbar interoperable with other Dante products gives integrators additional flexibility when designing and installing audio systems.

    Built with high-quality materials and stylish brushed metal cosmetics, the IPD-TSB2.0 Soundbar is a reliable, unrivaled solution for any audio/video system. With digital signals plus PoE power sent directly to the speakers via standard category cable, SoundTubeÕs STNet Soundbar is simple to connect. The intelligent amplifier with DSP monitors the functions of the speaker and can send an alert if there are any problems with the SoundBar.

    Each IPD-TSB2.0 is configurable using SoundTube STNet Control Center software. The software is used to setup the SoundBar via an 8 band parametric EQ, delay and input and output gain using a built in pink noise generator. Because they are on the Dante/ AES67 platform, they are interoperable with a host of other products worldwide. They may be used with SoundTubeÕs ST-Net Switch, offering up to 40 watts PoE to each speaker, or with standard PoE or PoE+ switches.

    Features:

    • Dante/AES67 PoE enabled and fully compatible
    • UL Certified
    • Fits beneath 50-in screen or larger
    • 1.5-in depth where soundbar meets the TV
    • L/R with four 3-in ultra-long throw polypropylene woofers with butyl rubber surrounds
    • Four bass radiators
    • Two 0.75-in soft dome tweeters
    • Brushed black finish
    • Wall and surface mount accessories included
    Color Black
    UPC 644216232208
    Manufacturer SoundTube
    Manufacturer's Category STNet IP-Addressable and Dante Series
    Depth 2.5 in / 63.5 mm - (1.5 in where the Soundbar meets the TV)
    Height 6.75 in / 171.45 mm
    Width/Diameter 43 in 1092.2 mm
    Shipping Weight 17.6 lbs / 7.98 kg
    Carton Height 6.75 in / 171.5 mm
    Carton Length 45 in / 1143 mm
    Carton Width 5.75 in / 146.05 mm
    Certifications CE, RoHS, cTUVus, CSA C22.2 No 62368-1 / UL 62368-1 2nd ED
    Enclosure Properties Aluminum
    Included Accessories Grille, Mounting Hardware, Stand/Base
    Source Inputs RJ45 Ethernet Port
    TAA Compliant (Trade America) No
    BAA Compliant (Made in USA) No
    Recommended Power PoE, PoE+, 40W PoE, 24V Barrel Connector
    Coverage Angle (±6dB @ 2kHz) 45Á Horizontal / 120Á Vertical
    Crossover Frequency 3.5 kHz
    Frequency Response (± 10 dB) 65 Hz - 20 kHz
    Frequency Response (± 3 dB) 85 Hz - 20 kHz
    Grille Properties Aluminum, Friction-Fit, Powder-Coated
    Max SPL @ 1M 100 dB
    Network Type: High Pass 12dB per octave, 2nd order
    Tweeter Driver (2) .75" Silk Soft Dome
    Woofer Driver (4) 3" Polypropylene Cones, (4) 3" Bass Radiators w/NBR Surround
