DALE SKU # SOTU-IPDXT850GN

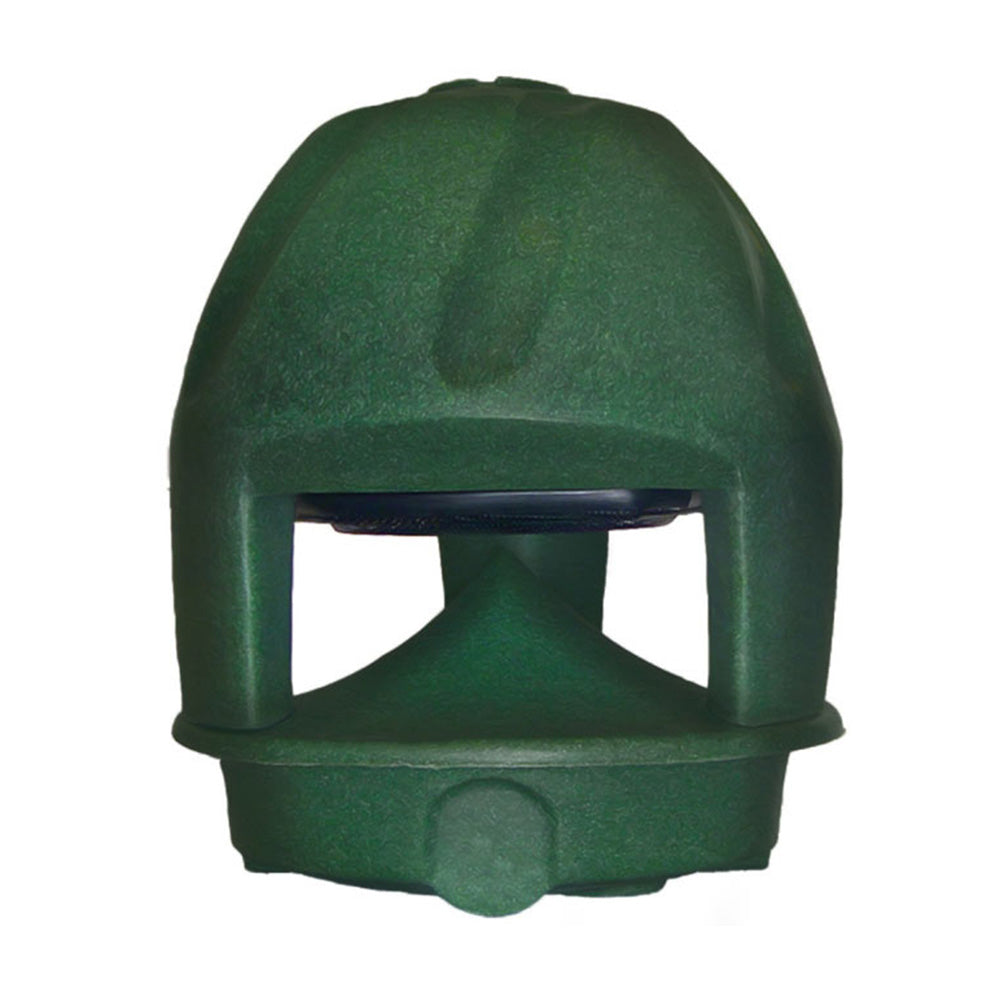

Soundtube IPD-XT850-GN - 2-Way 8-Inch Dante-Enabled Outdoor Speaker (Granite Green)

Sale price$1,250.00
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    The SoundTube IPD-XT850 is a premium 2-way outdoor loudspeaker solution for IP-addressable audio networks on the Danteª and AES67 platform. The IPD-XT850 is designed for installations requiring high performance sound for full-range background/ foreground music and paging. The sealed, in-ground enclosure design delivers true low end response (38 Hz, ±10 dB) and optimal off-axis performance. The IPD-XT850 includes theft-resistant mounting hardware. Power, audio and control are delivered to the speaker via a CAT5 or CAT6 cable. Connection on the other end is made to the STNet Switch, which provides 40 W PoE (Power over Ethernet) to each speaker. Configuration of the speaker is done via software. Should any problems occur with the speaker during operation, it will be reported immediately via SoundTube monitoring software.

    Features:

    • STNet IP-addressable, self-powered (PoE) speaker.
    • Danteª and AES67 I/O for interconnectivity with Dante and AES67-enabled audio systems.
    • AES67 compatible
    • Fast connection of power, audio, and control functions via one CAT5 or CAT6 cable.
    • 40 W PoE provided by SoundTube STNet Switch; also works with standard PoE+ and PoE switches.
    • Provides report-back on any problems via SoundTube software.
    • Patented BroadBeam¨ waveguide technology provides smooth 360¡ horizontal off-axis coverage and reduces overall system costs.
    • One 8Ó (203 mm) weatherproof polypropylene woofer with butyl rubber surround and one 1Ó (25.4 mm) convex aluminum tweeter with integrated horn and mounting bracket.
    • UV-, scratch-, chlorine-, and weather-resistant with professional-grade components for longlasting performance and durability.
    • Patented, durable and weather sealed ZeroReflectionª enclosure.
    • Liquid-tight compression fittings for water-tight protection.
    • Stainless steel fasteners / grille.
    • Color options: granite green
    Color Green
    UPC 644216222100
    Manufacturer SoundTube
    Manufacturer's Category STNet IP-Addressable and Dante Series
    Height 16.42 in / 417.1 mm
    Width/Diameter 14.17 in / 359.9 mm
    Shipping Weight 21.60 lbs / 9.8 kg
    Carton Height 19 in / 482.6 mm
    Carton Length 16.25 in / 412.75 mm
    Carton Width 16.25 in / 412.75 mm
    Certifications IP55, RoHS, UL60065
    Enclosure Properties Roto-Molded Polyethylene Plastic
    Included Accessories Anti-Theft Bracket, Weatherproof Strain Relief
    Optional Accessories Anti-Theft Bracket (ATD-XT) | Grille (GRL-XT8) | Tap Switch Cover (CVR-XT-TAPSW)
    Source Inputs RJ45 Ethernet Port
    IP Rating IP55
    TAA Compliant (Trade America) Yes
    BAA Compliant (Made in USA) No
    Coverage Angle (±6dB @ 2kHz) 360Á Horizontal / 40Á Vertical
    Crossover Frequency 3.0 kHz
    Frequency Response (± 10 dB) 38 Hz - 22 kHz
    Frequency Response (± 3 dB) 51 Hz - 10 kHz
    Grille Properties Powder-Coated, Weatherproof, Stainless Steel
    Low Frequency Voice Coil 1.26 in / 32 mm
    Low Pass Crossover 12 dB per octave, 2nd order
    Max SPL @ 1M 101 dB
    Network Type: High Pass 12 dB per octave, 2nd order
    Tweeter Driver 1" Convex Aluminum w/ BroadBeam¬ Waveguide
    Woofer Driver 8" Polypropylene Cone w/ Butyl Rubber Surround
    Sensitivity dB @ 1W/1M 85 dB
    Sensitivity dB @ 2.83V/1M 88 dB

    The SoundTube IPD-XT850 is a premium 2-way outdoor loudspeaker solution for IP-addressable audio networks on the Danteª and AES67 platform. The IPD-XT850 is designed for installations requiring high performance sound for full-range background/ foreground music and paging. The sealed, in-ground enclosure design delivers true low end response (38 Hz, ±10 dB) and optimal off-axis performance. The IPD-XT850 includes theft-resistant mounting hardware. Power, audio and control are delivered to the speaker via a CAT5 or CAT6 cable. Connection on the other end is made to the STNet Switch, which provides 40 W PoE (Power over Ethernet) to each speaker. Configuration of the speaker is done via software. Should any problems occur with the speaker during operation, it will be reported immediately via SoundTube monitoring software.

    Features:

    • STNet IP-addressable, self-powered (PoE) speaker.
    • Danteª and AES67 I/O for interconnectivity with Dante and AES67-enabled audio systems.
    • AES67 compatible
    • Fast connection of power, audio, and control functions via one CAT5 or CAT6 cable.
    • 40 W PoE provided by SoundTube STNet Switch; also works with standard PoE+ and PoE switches.
    • Provides report-back on any problems via SoundTube software.
    • Patented BroadBeam¨ waveguide technology provides smooth 360¡ horizontal off-axis coverage and reduces overall system costs.
    • One 8Ó (203 mm) weatherproof polypropylene woofer with butyl rubber surround and one 1Ó (25.4 mm) convex aluminum tweeter with integrated horn and mounting bracket.
    • UV-, scratch-, chlorine-, and weather-resistant with professional-grade components for longlasting performance and durability.
    • Patented, durable and weather sealed ZeroReflectionª enclosure.
    • Liquid-tight compression fittings for water-tight protection.
    • Stainless steel fasteners / grille.
    • Color options: granite green
    Color Green
    UPC 644216222100
    Manufacturer SoundTube
    Manufacturer's Category STNet IP-Addressable and Dante Series
    Height 16.42 in / 417.1 mm
    Width/Diameter 14.17 in / 359.9 mm
    Shipping Weight 21.60 lbs / 9.8 kg
    Carton Height 19 in / 482.6 mm
    Carton Length 16.25 in / 412.75 mm
    Carton Width 16.25 in / 412.75 mm
    Certifications IP55, RoHS, UL60065
    Enclosure Properties Roto-Molded Polyethylene Plastic
    Included Accessories Anti-Theft Bracket, Weatherproof Strain Relief
    Optional Accessories Anti-Theft Bracket (ATD-XT) | Grille (GRL-XT8) | Tap Switch Cover (CVR-XT-TAPSW)
    Source Inputs RJ45 Ethernet Port
    IP Rating IP55
    TAA Compliant (Trade America) Yes
    BAA Compliant (Made in USA) No
    Coverage Angle (±6dB @ 2kHz) 360Á Horizontal / 40Á Vertical
    Crossover Frequency 3.0 kHz
    Frequency Response (± 10 dB) 38 Hz - 22 kHz
    Frequency Response (± 3 dB) 51 Hz - 10 kHz
    Grille Properties Powder-Coated, Weatherproof, Stainless Steel
    Low Frequency Voice Coil 1.26 in / 32 mm
    Low Pass Crossover 12 dB per octave, 2nd order
    Max SPL @ 1M 101 dB
    Network Type: High Pass 12 dB per octave, 2nd order
    Tweeter Driver 1" Convex Aluminum w/ BroadBeam¬ Waveguide
    Woofer Driver 8" Polypropylene Cone w/ Butyl Rubber Surround
    Sensitivity dB @ 1W/1M 85 dB
    Sensitivity dB @ 2.83V/1M 88 dB
