DALE SKU # SOTU-IPD4CM62BGMIIWH

Soundtube IPD4-CM62-BGM-II-WH - Coaxial 6.5-Inch Dante-Enabled In-Ceiing Loudspeaker (White)

Sale price$810.00
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

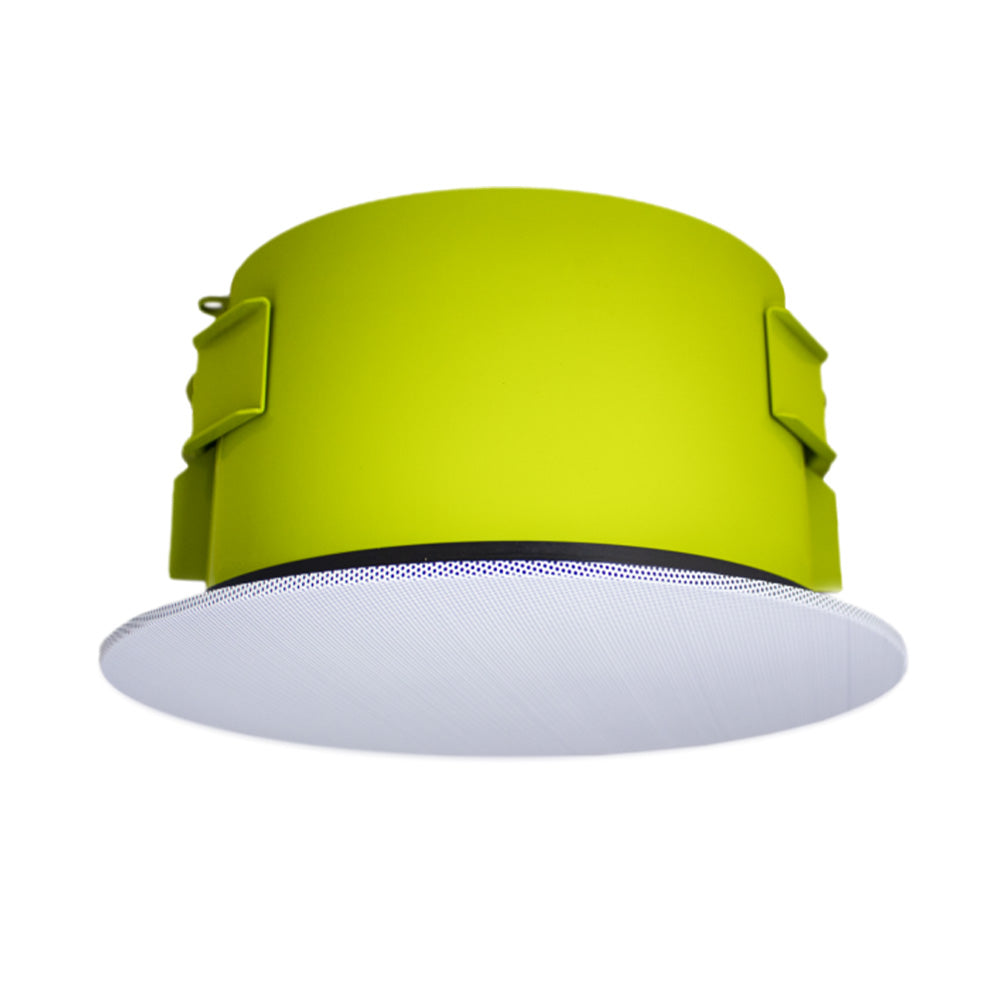

    The IPD4-CM62-BGM-II is a 6.5Ó coaxial in-ceiling speaker for IP-addressable audio networks on the Dante platform which can provide economical system expansion through connection of up to three non-IP SoundTube CM62-BGM-II speakers directly to the IPD4 unit. It incorporates a 6.5Ó polypropylene driver with butyl rubber surround and a 1Ó silk dome tweeter in a sealed drawn steel backcan with a tuned port. The speaker delivers frequency response of 50 Hz - 22 kHz (±10 dB) with consistent, broad highfrequency dispersion supplied through SoundTubeÕs proprietary BroadBeam Ringª technology.

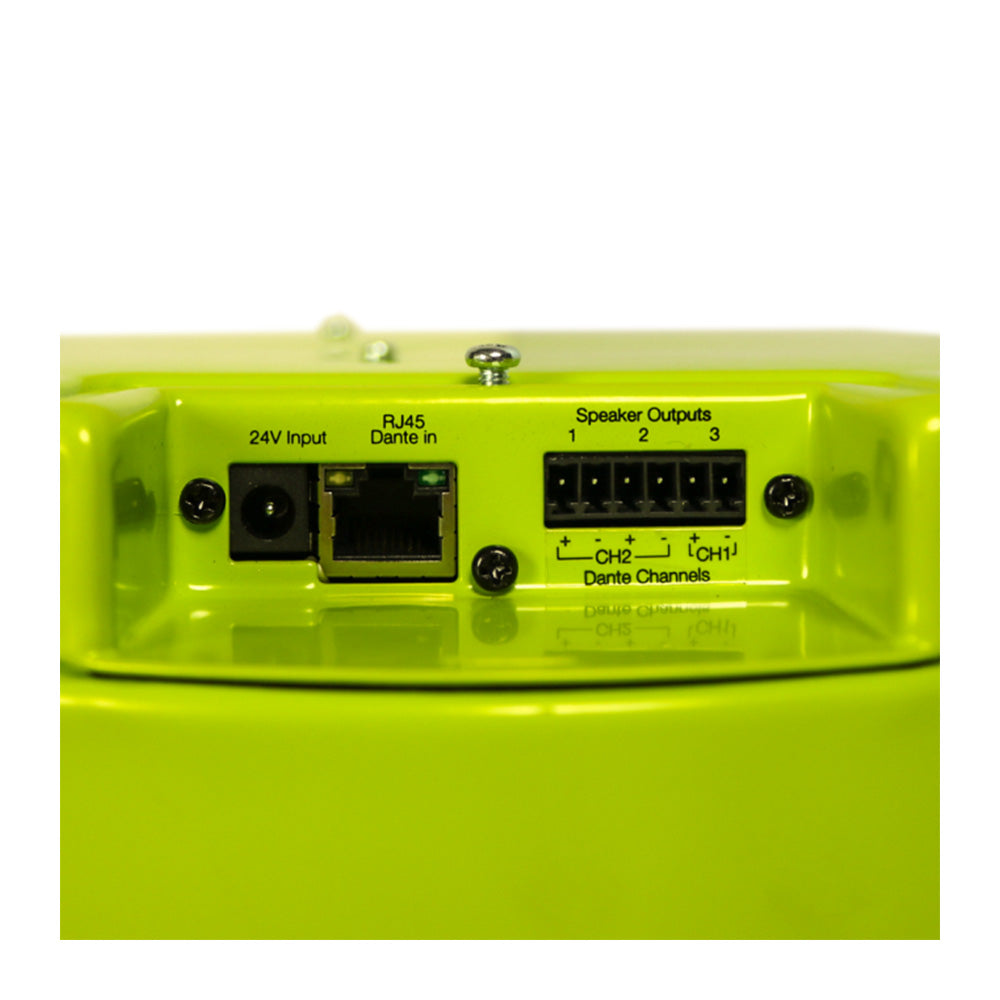

    Power, audio, and control are delivered to the speaker via a CAT5 or CAT6 cable; connection on the other end is made to the STNet Switch, which provides 40 W PoE (Power over Ethernet) to each speaker. The speaker may also be connected to standard PoE or PoE+ switches, which will provide lower input power to the speaker cluster; input power to the IPD4-CM62-BGM-II is shared among all speakers in the master-slave cluster. Audio connection to non-IP speakers in the cluster is made via a terminal strip on the IPD4 speaker; two channels of audio are available at each IPD4-CM62-BGM-II master unit and may be directed to the other speakers as needed.

    Configuration and zoning of the IPD4 master speaker is done via software. Should any problem occur with the speaker during operation, it will be reported immediately via SoundTube monitoring software.

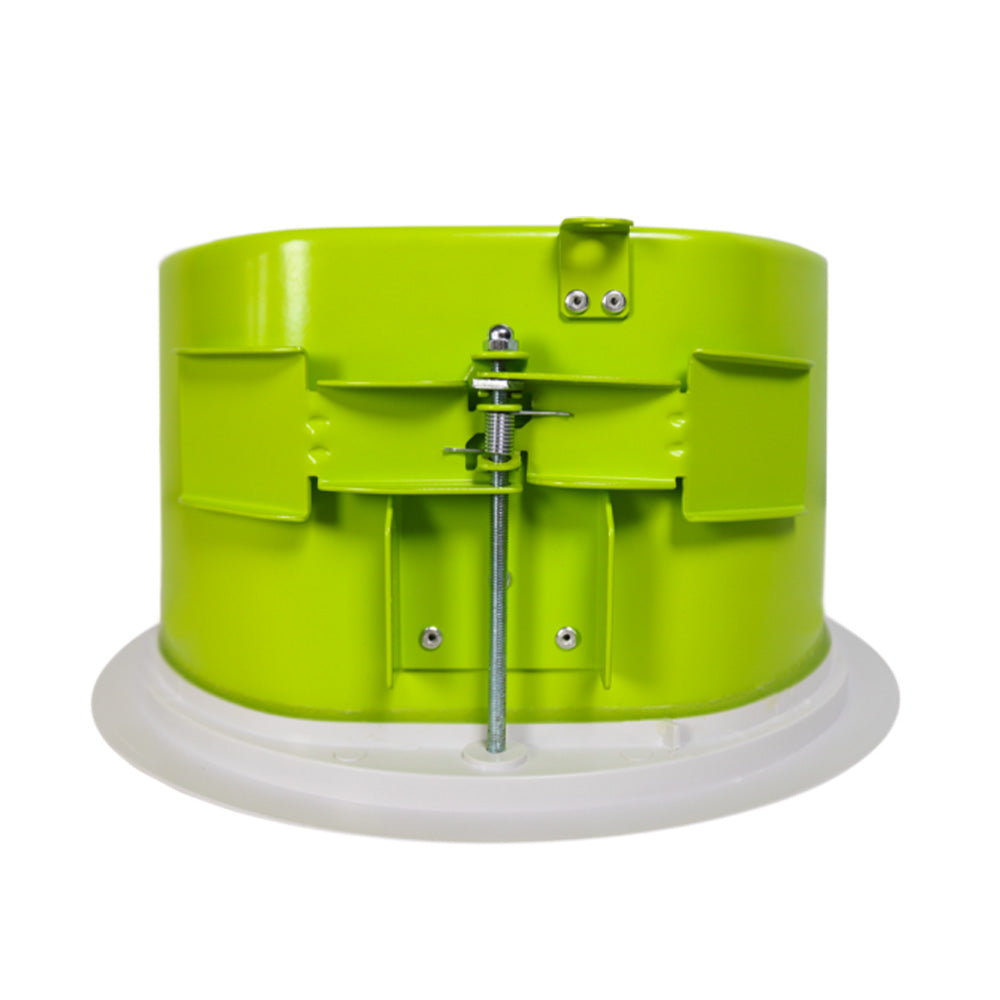

    Mounting hardware for the IPD4-CM62-BGM-II is included and features SoundTubeÕs SpeedWingª constant-tension fixed-wing mounting system, along with a 21-gauge steel tile bridge which ensures rapid and secure installation in any drywall or drop-tile application. The tile bridge is color-coded to match the speaker. An optional pre-construction bracket is also available.

    Features:

    • IP-addressable, self-powered (PoE) speaker with audio and power outputs for three standard CM62-BGM-II speakers.
    • Danteª I/O for interconnectivity with Dante enabled audio systems.
    • One 6.5Ó (165 mm) polypropylene woofer with rubber surround and one 1Ó (25.4 mm) silk dome tweeter.
    • BroadBeam Ring technology for mid-range clarity and smooth off-axis performance.
    • Fast connection of power, audio and control functions via one CAT5 or CAT6 cable.
    • 40 W PoE provided by SoundTube STNet Switch; also works with standard PoE+ and PoE switches.
    • Input power is shared among speakers connected to IPD4 unit.
    • Two output channels available to additional speakers.
    • Provides report-back on any problems via SoundTube software.
    • Tuned port on baffle for added musicality and bass response down to 50 Hz (±10 dB).
    • Incorporates a plated / powder coated steel grille for lasting durability.
    • SpeedWing clamping system is adaptable to material thicknesses ranging from 0.035Ó (0.9 mm) to 2.5Ó (63.5 mm).
    • High-quality white painted finish. Custom colors available.
    • Included accessories: color-coded (green) tile bridge, UL listed 0.5Ó conduit clamp.
    • Optional accessories: color-coded (green) pre-construction bracket (ACCMEZ-6/8-PCB), black grille (GRL-CM-BGM-II-BK).
    Color White
    UPC 644216227006
    Manufacturer SoundTube
    Manufacturer's Category STNet IP-Addressable and Dante Series
    Shipping Weight 11.25 lbs / 5.10 kg
    Carton Height 8 in / 203.2 mm
    Carton Length 13.25 in / 336.55 mm
    Carton Width 13.25 in / 336.55 mm
    Certifications CE, UL2043, UL60065, ETL-C/US
    Enclosure Properties ABS, Steel
    Included Accessories Conduit Clamp, Grille, Tile Bridge
    Optional Accessories Tile Bridge (AC-CMEZ6/8-TB)|Black Grille (GRL-CM-BGM-II-BK)
    Source Inputs 6 Pin 5.08mm Euroblock, RJ45 Ethernet Port
    IP Rating IPX3
    TAA Compliant (Trade America) No
    BAA Compliant (Made in USA) No
    Backcan Diameter 9.67 in / 245.6 mm
    Backcan Height 5.75 in / 146.1 mm
    Crossover Frequency 4.0 kHz
    Cutout Width/Diameter 10.5 in / 266.7 mm
    Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) 5.9 and 8.0
    Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) 4.9 dB and 6.3 dB
    Frequency Response (± 10 dB) 55 Hz - 20 kHz
    Frequency Response (± 3 dB) 60 Hz - 20 kHz
    Grille Properties Standard-Flange, Friction-Fit, White, Paintable, Painted, Steel
    Low Pass Crossover 12 dB per octave 2nd order
    Max. Ceiling Thickness 1.6 in / 40.6 mm
    Max SPL @ 1M 95 dB
    Minimum Ceiling Thickness 0.035 in / 0.89 mm
    Network Type: High Pass 12 dB per octave 2nd order
    Tweeter Driver 1" Silk Dome w/ BroadBeam Ring¬
    Woofer Driver 6.5" Polypropylene Cone w/ Butyl Rubber Surround
    Visible Diameter 11.75 in / 298.5 mm
    Visible Height 0.34 in / 8.6 mm
