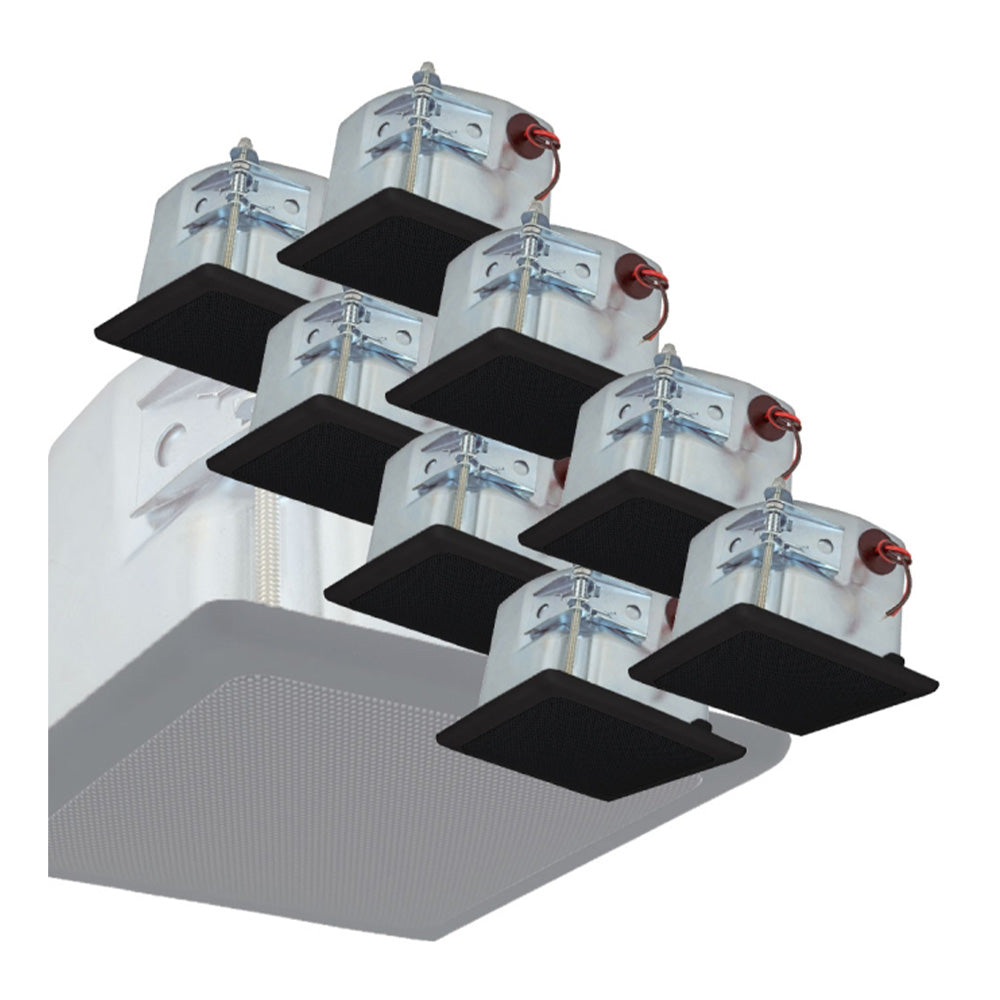

Soundtube IW31-EZ-BK MP - Full-Range 3-Inch In-Wall Loudspeaker (Black / 8-Pack)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The IW31-EZ is a premium full-range 3Ó in-wall speaker for applications requiring 8 ½ or distributed audio solutions. The IW31-EZ incorporates a low-profile grille with a total visible footprint of 5Ó square and an integrated backcan and driver design for ultra compact installations in wall plates. The in-wall speaker includes a six-position tap switch with a transformer bypass position. Mounting hardware is included and features a fast and secure constant tension SpeedWingª mounting system. All components in the IW31-EZ are completely weatherized for indoor and outdoor applications.
Features:

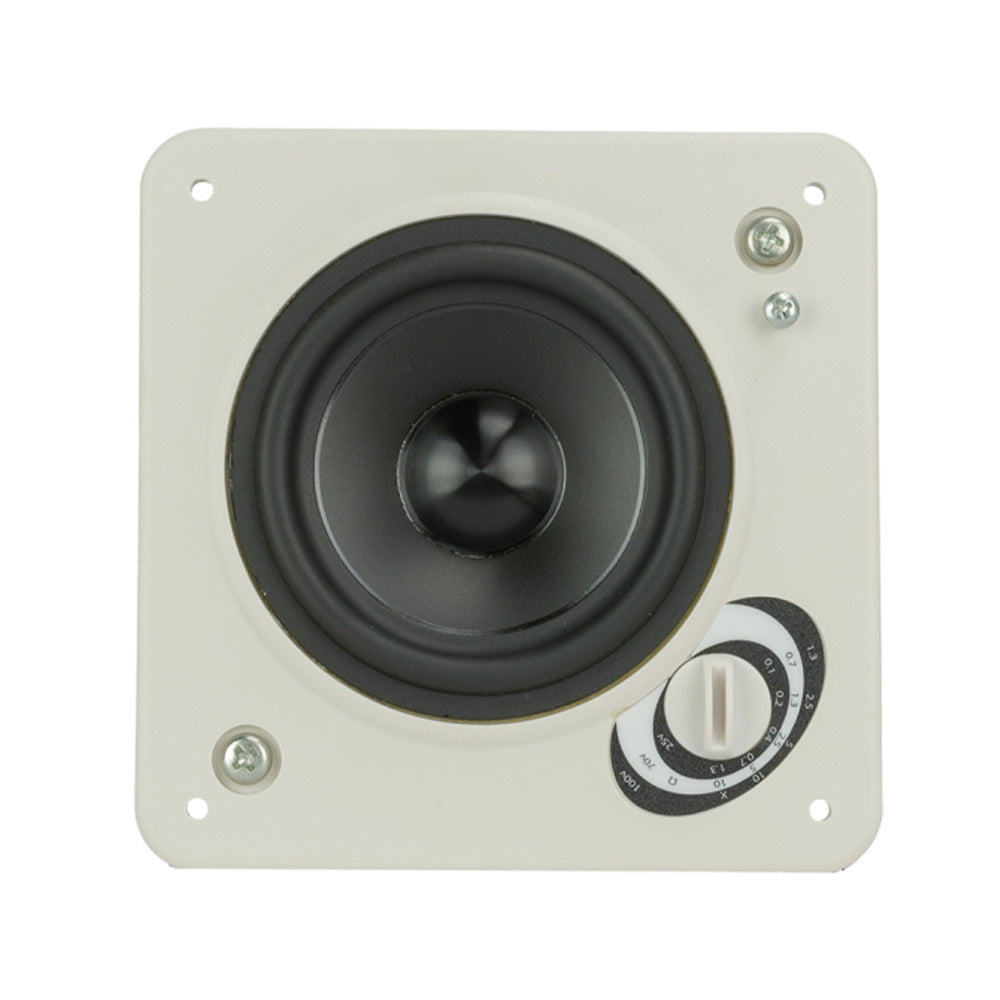

- One 3Ó (76.1 mm) full-range high-extrusion, highfidelity polypropylene driver wtih butyl rubber surround.
- Weatherized components for indoor/outdoor applications.

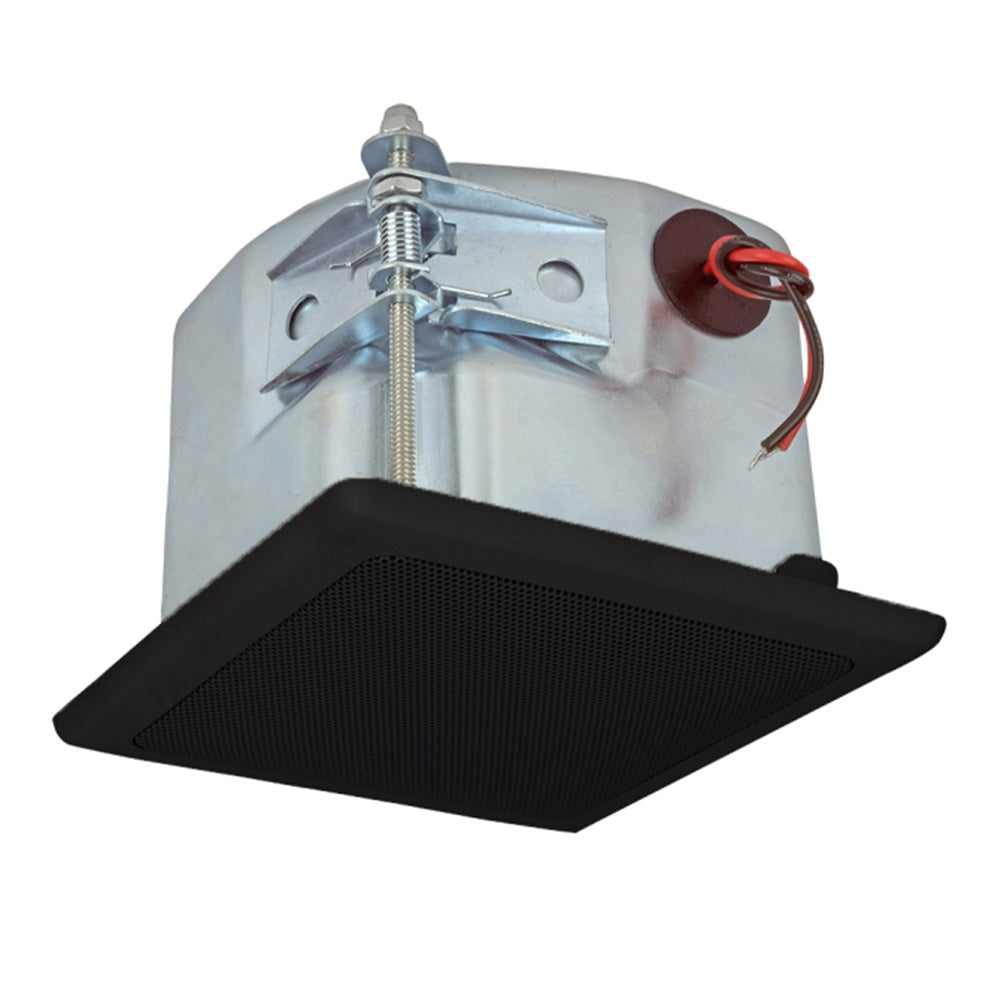

- Rapid installation, blind-mount fixed-wing mounting mechanism with constant tension design affixing to wall thicknesses ranging from 0.1Ó (2.5 mm) to 1.5Ó (38.1 mm).

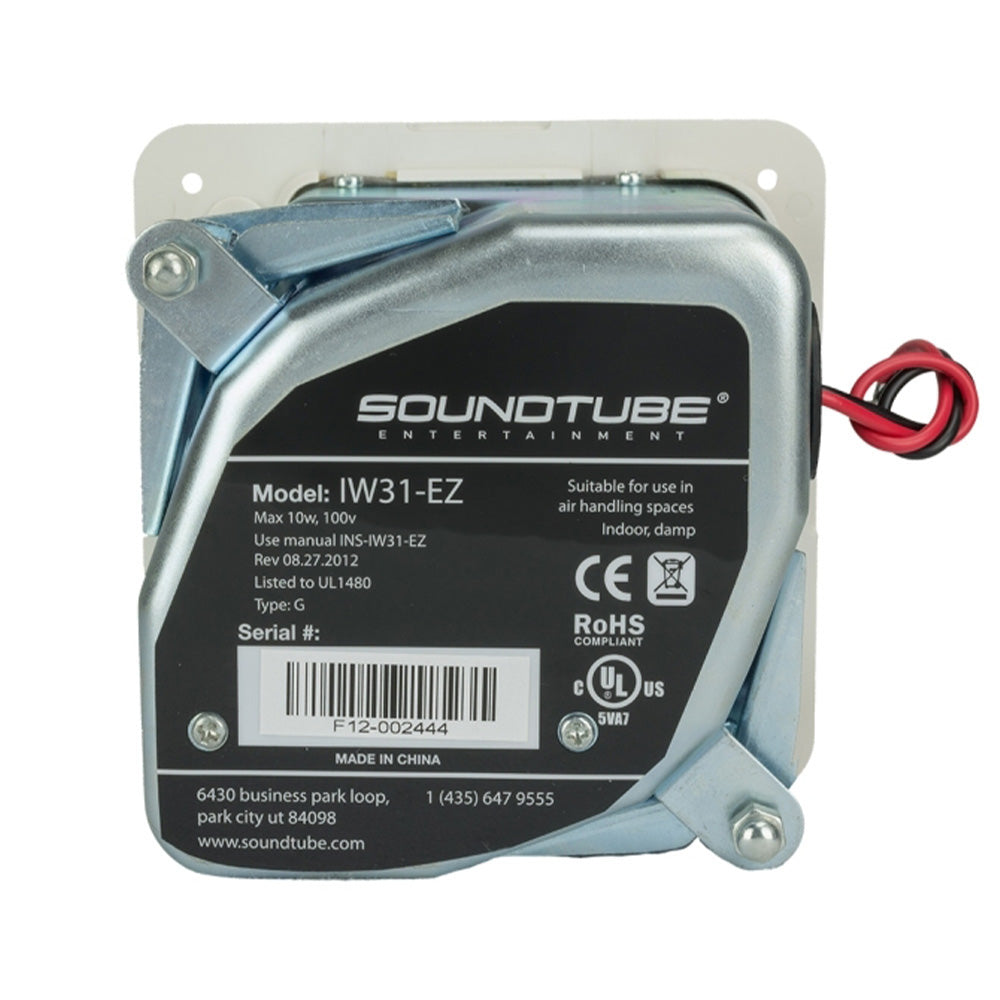

- Shallow 3.5Ó deep all steel backcan with integrated backcan, driver, and baffle configuration.
- Ultra-compact design with a total visible footprint of 5Ó square.

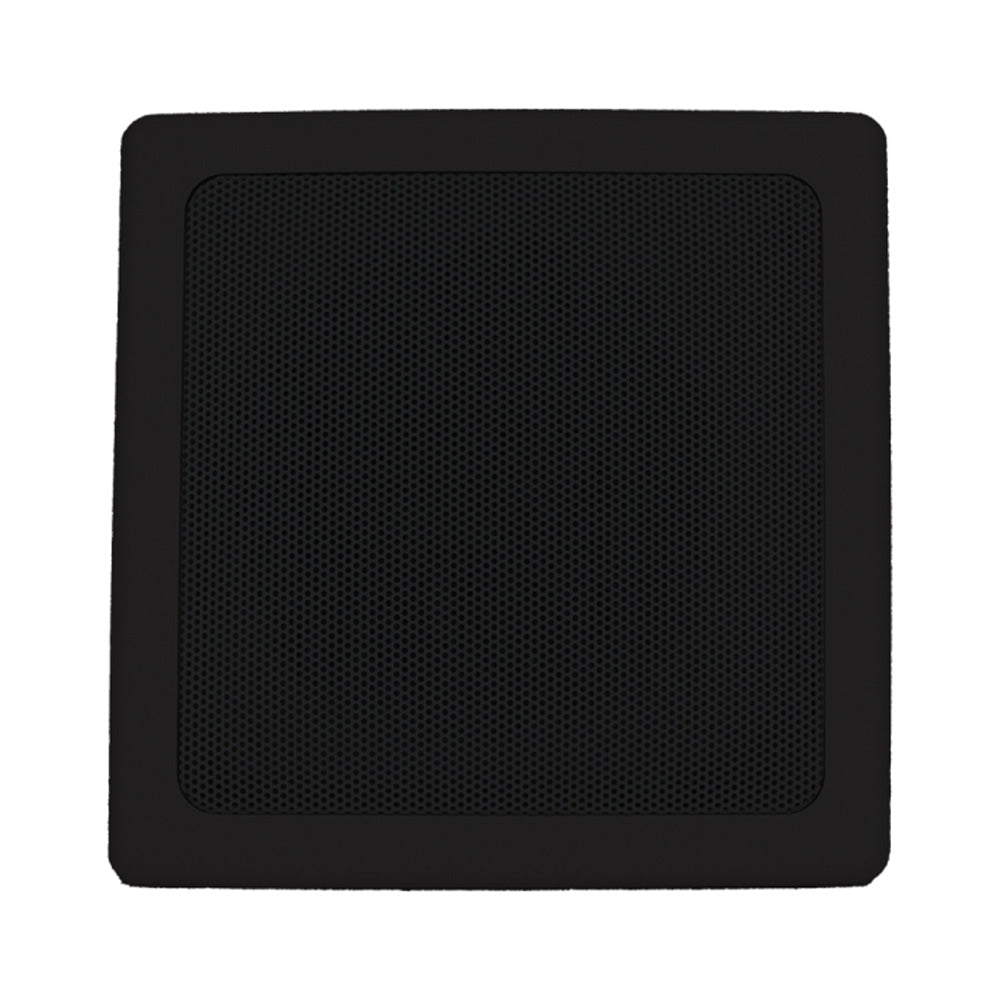

- Corrosion-resistant, powder-coated aluminum grille with snap fit attachment.
- UL 1480A and 2043 approved.
- High-quality black or white paint finish.
- Included accessories: conduit connector, paint mask, and wire nuts.
- Optional accessories: pre-construction bracket (AC-IW3-PCB), theft-resistant stainless steel grille (AC-IW3-TRG)
| Color | Black |
| UPC | 644216199709 |
| Manufacturer | SoundTube |
| Manufacturer's Category | IW In-Wall Series |
| Height | 5 in / 127 mm |
| Width/Diameter | 5 in / 127 mm |
| Shipping Weight | 3.75 lbs / 1.7 kg |
| Carton Height | 8.25 in / 209.55 mm |
| Carton Length | 8 in / 203.2 mm |
| Carton Width | 7.25 in / 184.15 mm |
| Certifications | CE, RoHS, UL1480A, UL2043 |
| Enclosure Properties | ABS Glass Fiber Reinforced, Injection Molded, Sealed |
| Enclosure Volume | 60 cu in / 983.22 cu cm |
| Included Accessories | Conduit Clamp, Grille, Hole Template, Paint Mask, Wire Nuts |
| Optional Accessories | Pre-Construction Bracket (AC-CM31-PCB)|Theft-Resistant Grille (AC-IW31-TRG)|Black Grille (GRL-IW31-BK)|Junction Box (AC-CM-EZ-JBOX) |
| Source Inputs | Wire Leads |
| IP Rating | IP54 |
| TAA Compliant (Trade America) | No |
| BAA Compliant (Made in USA) | No |
| Backcan Height | 3.5 in / 88.9 mm |
| Coverage Angle (±6dB @ 2kHz) | 45Á |
| Cutout Width/Diameter | 4.25 in / 108 mm |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 4.5 and 2.8 |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 5.5dB and 4.4dB |
| Frequency Response (± 10 dB) | 115 Hz - 22 kHz |
| Frequency Response (± 3 dB) | 190 Hz - 14 kHz |
| Grille Properties | Aluminum, Powder-Coated |
| Low Frequency Voice Coil | 0.75 in / 19 mm |
| Max. Ceiling Thickness | 1.5 in / 38.1 mm |
| Max. Continuous Power RMS | 20W |
| Max. Program Power | 40 W |
| Minimum Impedance (_ Ohms) | 8 _ |
| Minimum Ceiling Thickness | 0.1 in / 2.5 mm |
| Mounting Depth | 3.5 in / 88.9 mm |
| Nominal Impedance (_ Ohms) | 8 _ |
| Fullrange Driver | 3" Polypropylene driver with butyl rubber surround |
| Sensitivity dB @ 1W/1M | 85.5 dB |
| Sensitivity dB @ 2.83V/1M | 85.5 dB |
| Tap Selector | Rotary Switch |
| Transformer Options | 25 / 70.7 / 100 V, 8 Ohm direct |
| Transformer Taps Max. Setting (25V/70.7V/100V) | 1.3W/10W/30W |
