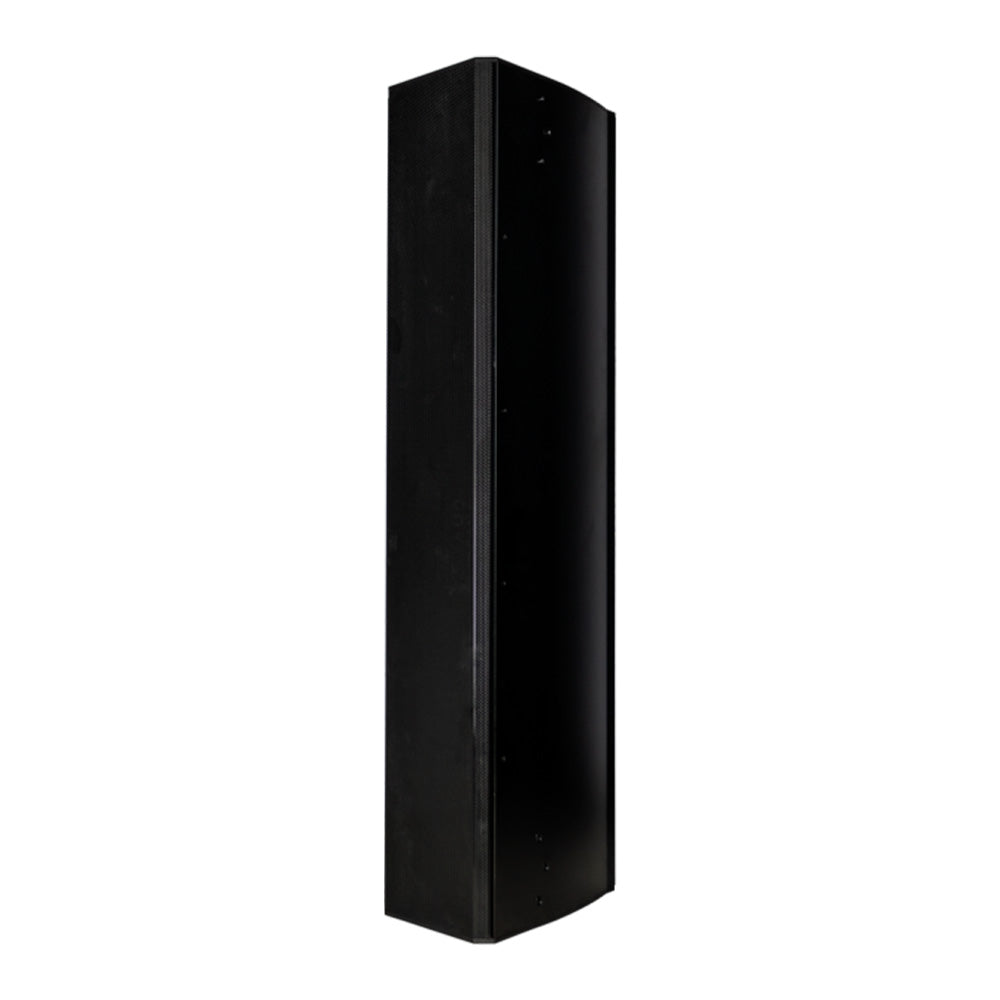

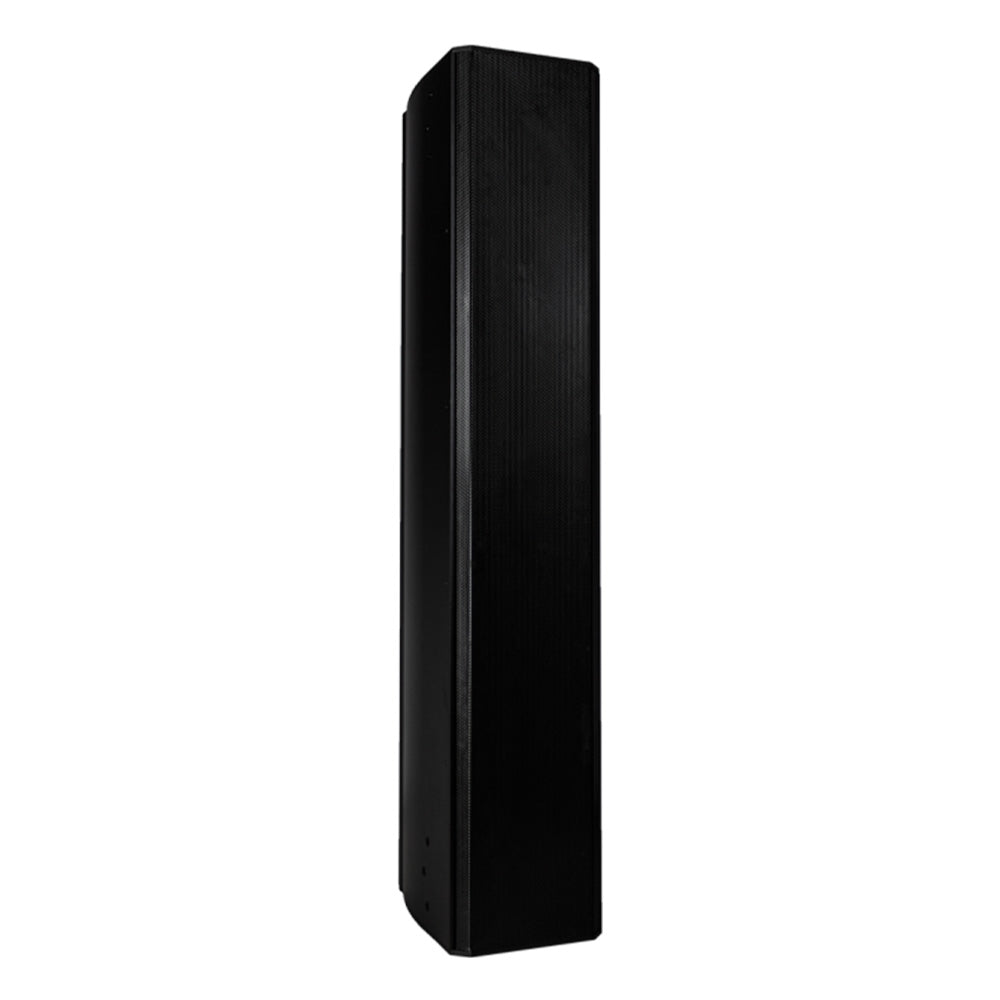

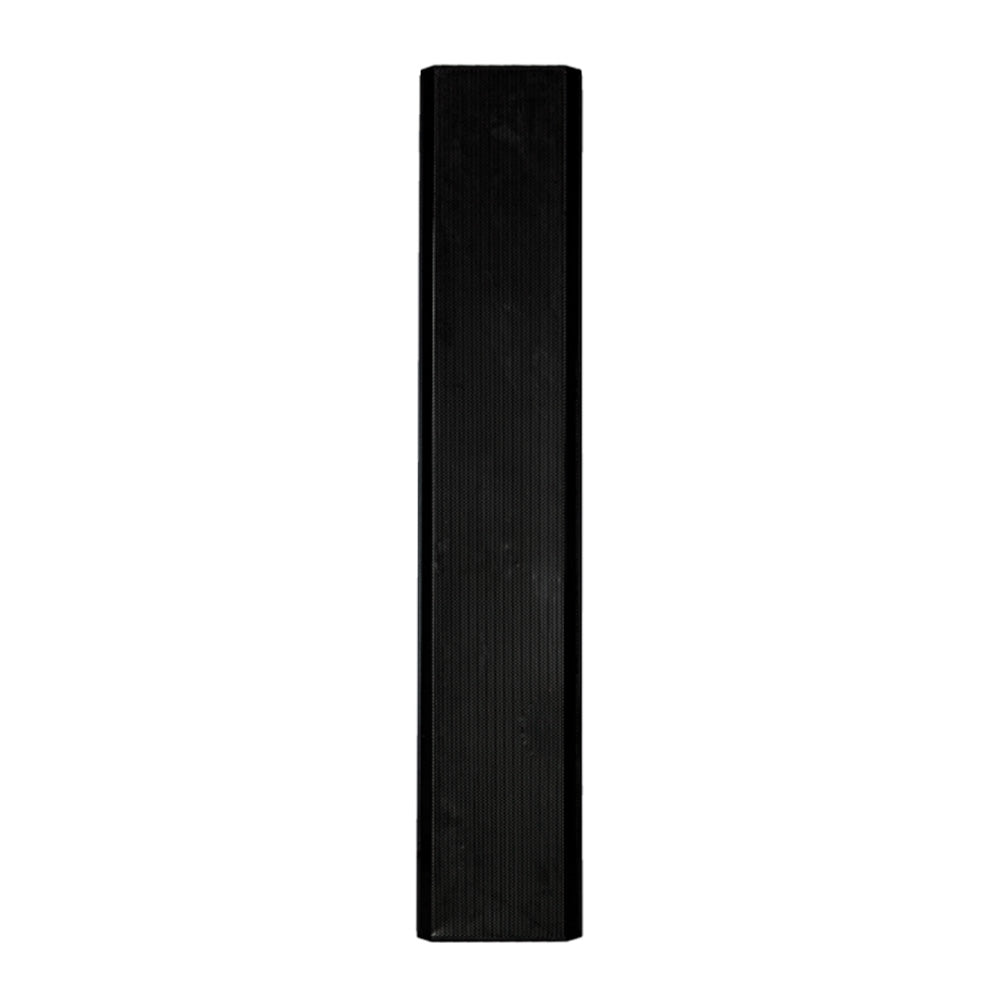

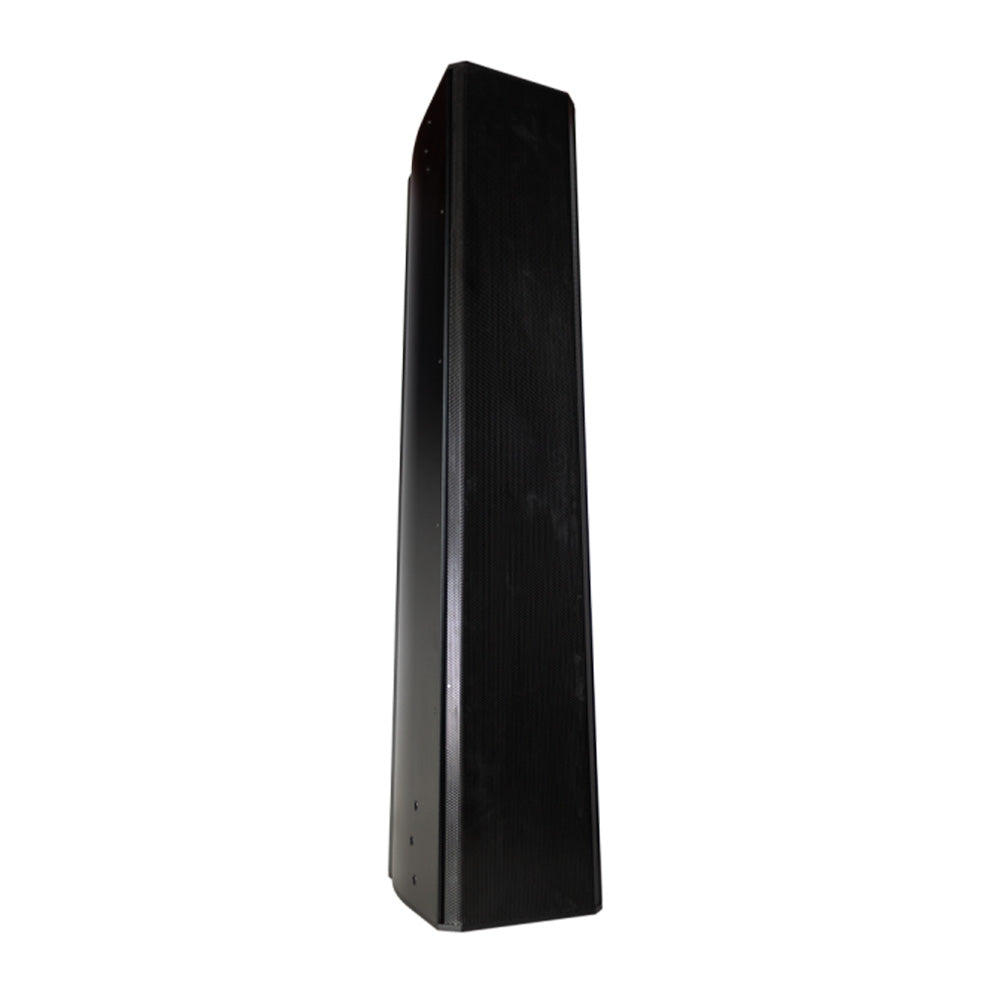

Soundtube LA808i-II-BK - Line Array Low Frequency Extender Speaker for LA880i (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
NOT a subwoofer, the SoundTube LA808i-II is designed to increase the directivity of low frequencies in SoundTubeÕs Line Array system. It can be used only in conjunction with the LA880i-II 3-way line array. The use of the LA808i-II is recommended in spaces that have a large reverberation time. When a single unit is added to the LA880i-II, directivity of low frequencies is increased by up to an octave lower than with the LA880i-II alone. The productÕs dimensions are identical to those of the LA880i-II. The LA808i-II must be placed either directly above or directly below the LA880i-II in order for the system to work properly. If desired, two LA808i-II units can be added: one above the LA880i-II and one below.
Features:
- Passive, fixed length, low-frequency directivity element for SoundTube line array.
- Designed for use only with LA880i-II line array.
- Eight 4.5Ó (114 mm) woofers
- Extends low-frequency directivity of line array systems by up to an octave lower than with the LA880i-II alone.
- Paintable enclosure is constructed of MDF and aluminum with metal threaded mounting points.
- Powder-coated, paintable steel grille.
- Available in black or white paint finish.
- Flexible mounting options include surface-mount, pole-mount, ceiling-mount or suspended (flown). (Adaptive Technologies mounting accessories sold separately).
- Euroblock and SpeakOn connectors allow for fast connections and easy daisy chaining.
- Included accessories: safety cable mounting plate and mounting bolts, Euroblock connector, safety cable.
- NOTE: Mounting brackets not included.
| Color | Black |
| UPC | 644216198801 |
| Manufacturer | SoundTube |
| Manufacturer's Category | LA Line Array |
| Height | 81.8 in / 2077.72 mm |
| Width/Diameter | 8.24 in / 209.3 mm |
| Shipping Weight | 56 lbs / 25.40 kg |
| Carton Height | 12 in / 304.8 mm |
| Carton Length | 44 in / 1117.6 mm |
| Carton Width | 16 in / 406.4 mm |
| Certifications | CE, RoHS |
| Enclosure Properties | MDF, Painted, Plywood |
| Included Accessories | Back Cover, Euroblock, Jumper Cable, LINK Side Plates, Mounting Hardware, Safety Cable |
| Optional Accessories | Black Back Plate (AC-LA8-BACK-BK)|Black Side Connector Plates (AC-LA8-LINK-BK)|Black Top Mounted Fly Point Plates (AC-LA8-FLY-BK)|Pan and Tilt Surface Mount Bracket Kit (MM-024-BT or MM-022-BT)|Pole Mount Adapter (AC-PA-010)|Heavy Duty Pan and Tilt Surface Mount Bracket Kit (MM-120HD)|Fly Bracket (SAS-1WA-20) |
| Source Inputs | 4 Pin 5.08mm Euroblock, SpeakON |
| TAA Compliant (Trade America) | No |
| BAA Compliant (Made in USA) | No |
| Coverage Angle (±6dB @ 2kHz) | 103Á Horizontal 29Á Vertical |
| Crossover Frequency | 500 Hz |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 9.1 |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 12.6dB |
| Frequency Response (± 10 dB) | 75 Hz - 22 kHz |
| Frequency Response (± 3 dB) | 83 Hz - 22 kHz |
| Grille Properties | Powder-Coated, Steel |
| Low Frequency Voice Coil | 1 in / 25.4 mm |
| Low Pass Crossover | 12 dB per octave |
| Max. Continuous Power RMS | 300 W |
| Max. Program Power | 500 W |
| Mounting Depth | 10.8 in / 274.3 mm |
| Network Type: High Pass | 12 dB per octave |
| Nominal Impedance (_ Ohms) | 4 _ |
| Woofer Driver | (8) 4.5" Woofers Paper w/ Rubber Surround |
| Sensitivity dB @ 1W/1M | 87 dB |
| Sensitivity dB @ 2.83V/1M | 90 dB |
