DALE SKU # SOTU-LA880IIIWH

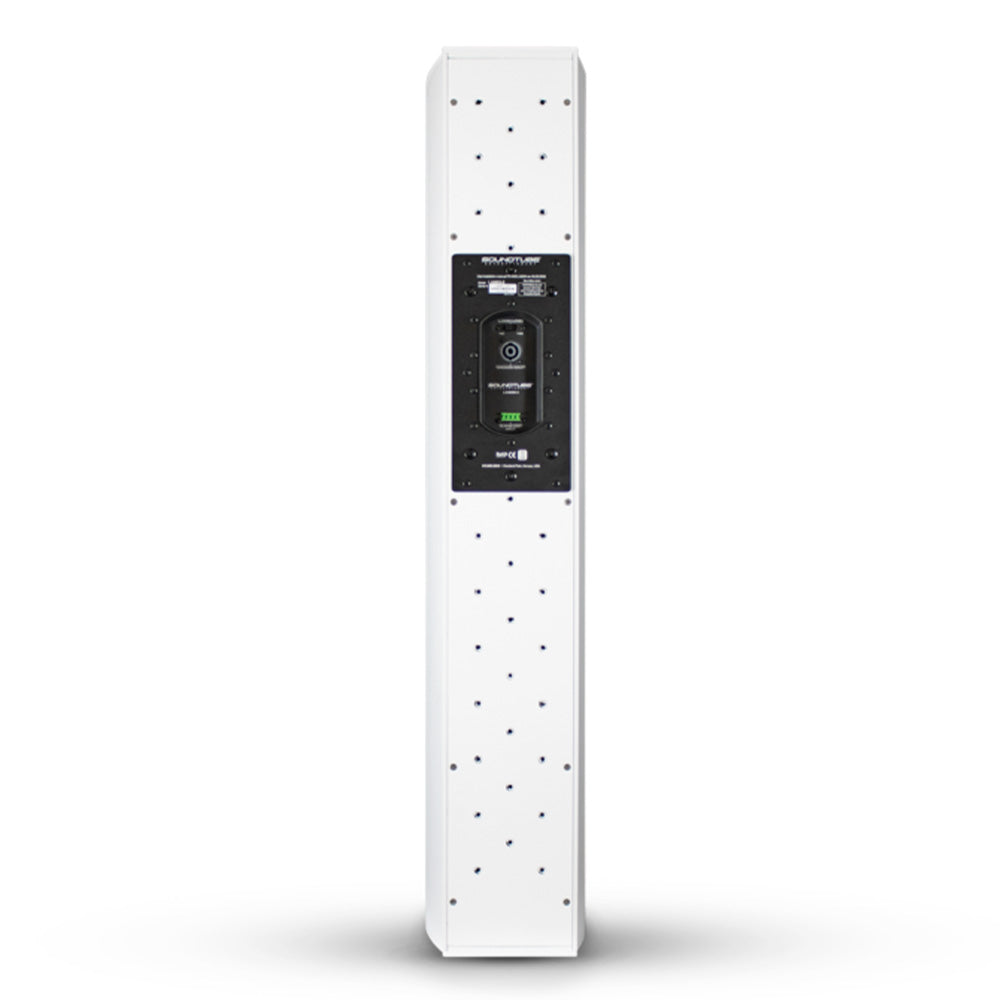

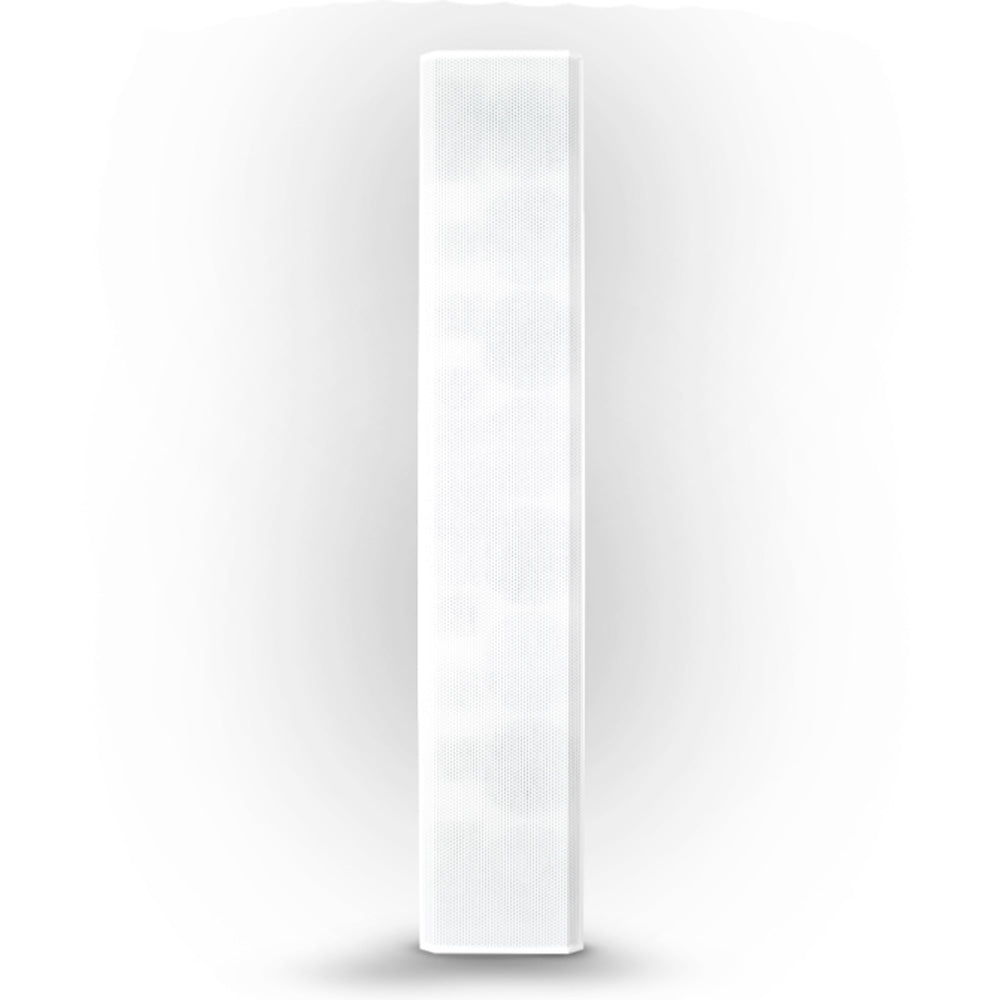

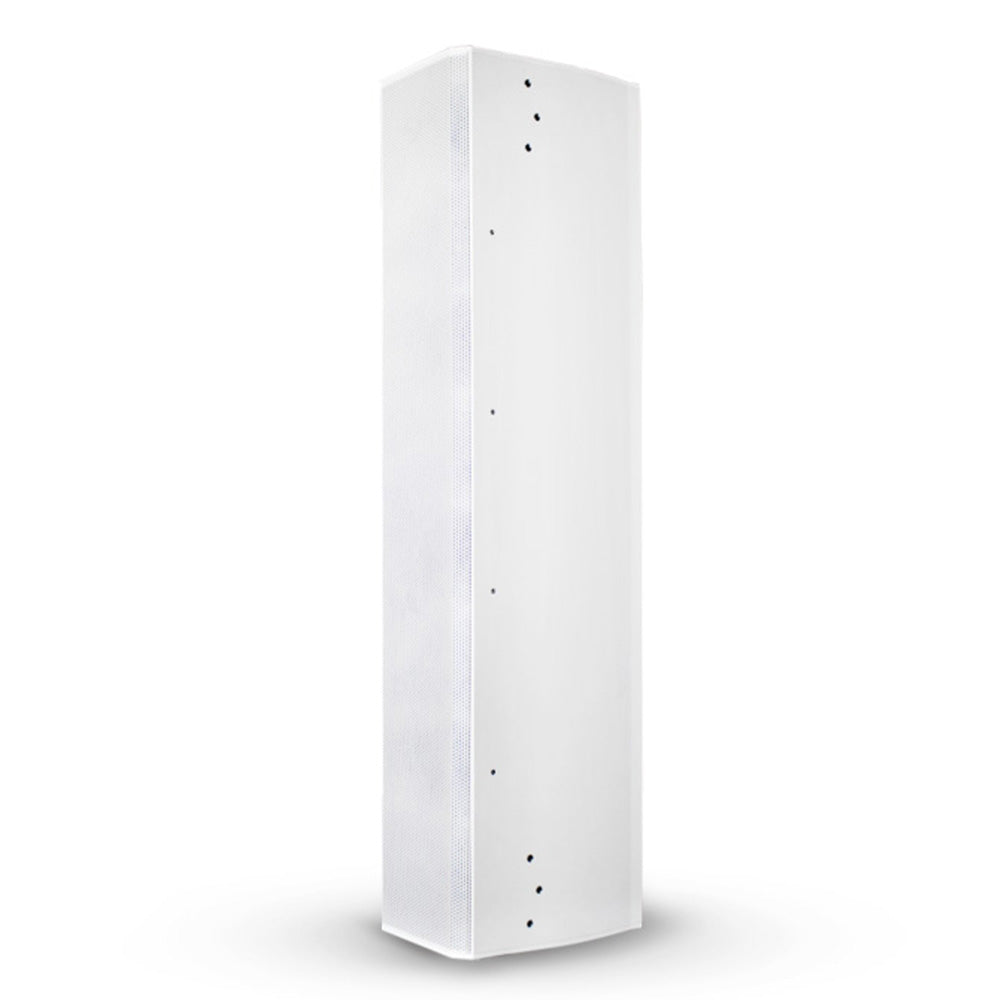

Soundtube LA880i-II-WH - Three-Way Line Array Column Loudspeaker (White)

Sale price$1,927.00
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    The SoundTube LA880i-II is not a typical line array column loudspeaker. It is an advanced LAPS (Line Array-Point Source) 3-way design that provides a very short near-field extent and robust far-field performance. Frequency tapering of low and mid frequency pass bands allows the LA880i-II to maintain a more consistent ratio of array height to radiated wavelength, ensuring a stable vertical beamwidth that out-performs many other single box line arrays. Featuring eight 4.5-inch woofers, eight 2-inch midrange drivers and one 2.5-inch planar magnetics (ribbon) high frequency driver for extremely smooth high frequency response, the LA880i-II achieves superb coverage in an enclosure measuring only 7.91" x 40.87" x 11.99".

    Features:

    • Passive, fixed length, column line array with 3-way design.

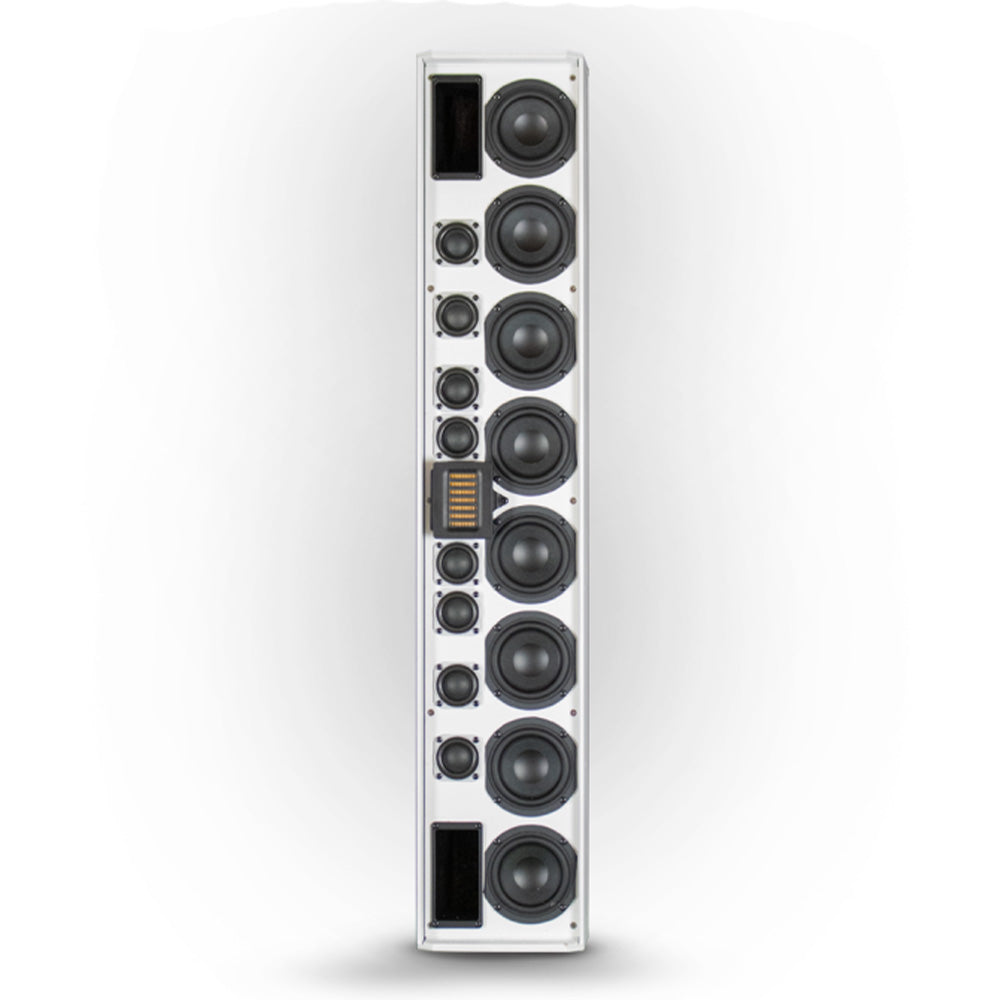

    • Eight 4.5-inch (115 mm) woofers; eight 2.0-inch (55 mm)neodymium-motor midrange drivers; one 2.5 inch (66 mm) planar magnetics (ribbon) high-frequency driver.
    • Line Array - Point Source (LAPS) technology provides short near-field extent and robust farfield performance.
    • Paintable enclosure is constructed of MDF and aluminum with metal threaded mounting points.
    • Powder coated, paintable steel grille.
    • Available in black or white finish.
    • Flexible mounting options include surface-mount, pole-mount, ceiling-mount or suspended (flown). (Adaptive Technologies mounting accessories sold separately.)

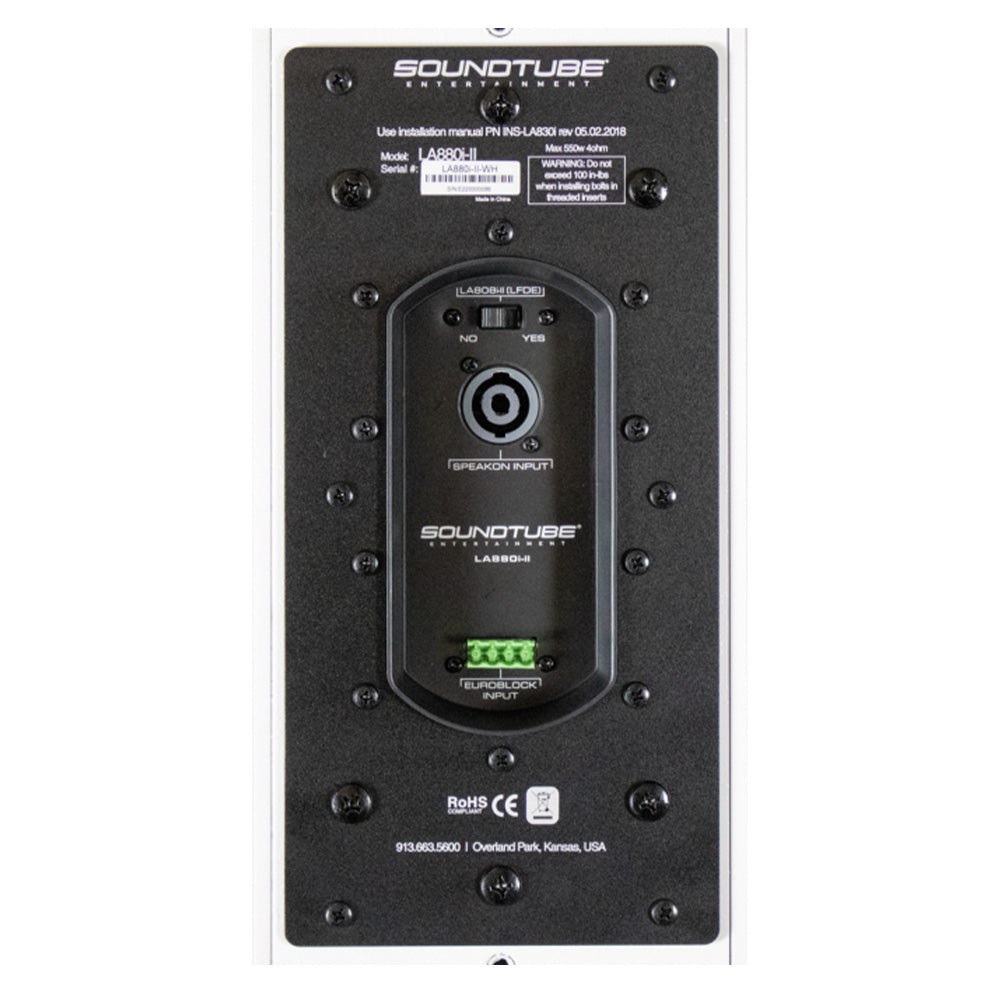

    • Euroblock and SpeakOn connectors allow for fast connections and easy daisy chaining.
    • Additional low frequency directivity control with LA808i-II LFDE.
    • Included accessories: safety cable mounting plate and mounting bolts, Euroblock connector, safety cable.
    • NOTE: Mounting brackets not included.
    Color White
    Manufacturer SoundTube
    Manufacturer's Category LA Line Array
    Depth 10.75 in / 273.05 mm
    Height 41 in / 1041.4 mm
    Width/Diameter 7.5 in / 190.5 mm
    Shipping Weight 61 lbs / 27.67 kg
    Enclosure Properties Aluminum, MDF, Painted, Plywood, Ported
    Included Accessories 4-Pin Euroblock, Back Cover, Mounting Hardware, Safety Cable
    Source Inputs 4 Pin 5.08mm Euroblock, SpeakON
    TAA Compliant (Trade America) No
    BAA Compliant (Made in USA) No
    Crossover Frequency 1.1 kHz 2.5 kHz
    Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) 6.9 and 12.3
    Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) 9.2 dB and 10.9 dB
    Frequency Response (± 10 dB) 58 Hz - 22 kHz
    Frequency Response (± 3 dB) 71 Hz - 22 kHz
    Grille Properties Powder-Coated, Steel
    Low Frequency Voice Coil 1 in / 25.4 mm
    Low Pass Crossover 12 dB per octave
    Max. Continuous Power RMS 300W
    Max. Program Power 500 W
    Minimum Impedance (_ Ohms) 4.3 _
    Mounting Depth 12 in / 304.5 mm
    Network Type: High Pass 12 dB per octave
    Nominal Impedance (_ Ohms) 4 _
    Tweeter Driver 2.5" Planar Magnetic Ribbon Tweeter
    Midrange Driver (8) 2" Midrange Paper w/ Foam Surround
    Woofer Driver (8) 4.5" Woofers Paper w/ Rubber Surround
    Sensitivity dB @ 1W/1M 88 dB
    Sensitivity dB @ 2.83V/1M 91 dB

    The SoundTube LA880i-II is not a typical line array column loudspeaker. It is an advanced LAPS (Line Array-Point Source) 3-way design that provides a very short near-field extent and robust far-field performance. Frequency tapering of low and mid frequency pass bands allows the LA880i-II to maintain a more consistent ratio of array height to radiated wavelength, ensuring a stable vertical beamwidth that out-performs many other single box line arrays. Featuring eight 4.5-inch woofers, eight 2-inch midrange drivers and one 2.5-inch planar magnetics (ribbon) high frequency driver for extremely smooth high frequency response, the LA880i-II achieves superb coverage in an enclosure measuring only 7.91" x 40.87" x 11.99".

    Features:

    • Passive, fixed length, column line array with 3-way design.
    • Eight 4.5-inch (115 mm) woofers; eight 2.0-inch (55 mm)neodymium-motor midrange drivers; one 2.5 inch (66 mm) planar magnetics (ribbon) high-frequency driver.
    • Line Array - Point Source (LAPS) technology provides short near-field extent and robust farfield performance.
    • Paintable enclosure is constructed of MDF and aluminum with metal threaded mounting points.
    • Powder coated, paintable steel grille.
    • Available in black or white finish.
    • Flexible mounting options include surface-mount, pole-mount, ceiling-mount or suspended (flown). (Adaptive Technologies mounting accessories sold separately.)
    • Euroblock and SpeakOn connectors allow for fast connections and easy daisy chaining.
    • Additional low frequency directivity control with LA808i-II LFDE.
    • Included accessories: safety cable mounting plate and mounting bolts, Euroblock connector, safety cable.
    • NOTE: Mounting brackets not included.
    Color White
    Manufacturer SoundTube
    Manufacturer's Category LA Line Array
    Depth 10.75 in / 273.05 mm
    Height 41 in / 1041.4 mm
    Width/Diameter 7.5 in / 190.5 mm
    Shipping Weight 61 lbs / 27.67 kg
    Enclosure Properties Aluminum, MDF, Painted, Plywood, Ported
    Included Accessories 4-Pin Euroblock, Back Cover, Mounting Hardware, Safety Cable
    Source Inputs 4 Pin 5.08mm Euroblock, SpeakON
    TAA Compliant (Trade America) No
    BAA Compliant (Made in USA) No
    Crossover Frequency 1.1 kHz 2.5 kHz
    Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) 6.9 and 12.3
    Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) 9.2 dB and 10.9 dB
    Frequency Response (± 10 dB) 58 Hz - 22 kHz
    Frequency Response (± 3 dB) 71 Hz - 22 kHz
    Grille Properties Powder-Coated, Steel
    Low Frequency Voice Coil 1 in / 25.4 mm
    Low Pass Crossover 12 dB per octave
    Max. Continuous Power RMS 300W
    Max. Program Power 500 W
    Minimum Impedance (_ Ohms) 4.3 _
    Mounting Depth 12 in / 304.5 mm
    Network Type: High Pass 12 dB per octave
    Nominal Impedance (_ Ohms) 4 _
    Tweeter Driver 2.5" Planar Magnetic Ribbon Tweeter
    Midrange Driver (8) 2" Midrange Paper w/ Foam Surround
    Woofer Driver (8) 4.5" Woofers Paper w/ Rubber Surround
    Sensitivity dB @ 1W/1M 88 dB
    Sensitivity dB @ 2.83V/1M 91 dB
