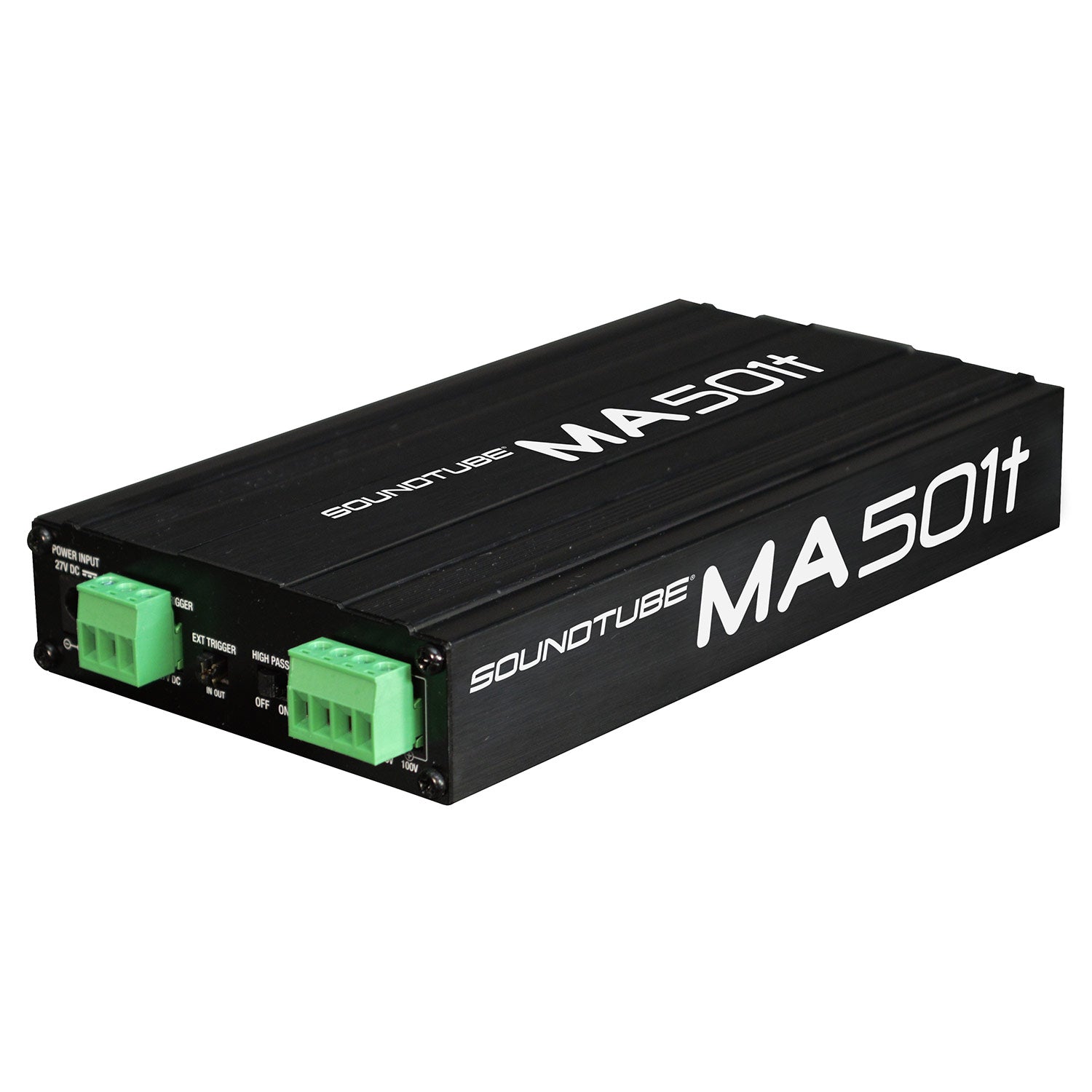

Soundtube MA501T - Compact Low-Voltage Mono Power Amplifier
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The MA501t is a low-voltage mono power amplifier engineered for use in distributed sound applications. Designed for use with SoundTube and other highfidelity speakers, the MA501t provides 50 watts of output power at 25V, 70V or 100 V. A 12 V trigger is provided for auto-on/off functions. Recessed gain control is available via the front panel; this deters unauthorized tampering with levels or other settings.
Features:
- Audio grade toroidal output transformer
- Compact high-output, constant voltage 50 W amplifier
- Rugged extruded aluminum housing
- Taps for 25 V, 70 V, 100 V
- Balanced inputs (Euroblock) and unbalanced inputs (RCA)
- Euroblock outputs
- Signal sensing auto-on or 12 V trigger
- 30 Hz - 20 kHz (±0.5 dB) frequency response
- Peak output detector and indicator (clipping), power LED
- Recessed screw adjust input gain
- 120 Hz high pass switch
- Overload, short circuit, DC and Heat Protection
- Versatile mounting options: pole, rack or chassis
- Small size - 1.2Ó x 3.9Ó x 8Ó
| Color | Black |
| UPC | 748252171870 |
| Manufacturer | SoundTube |
| Manufacturer's Category | Amplifier |
| Depth | 7.9 in / 200.66 mm |
| Height | 1.25 in / 31.75 mm |
| Width/Diameter | 3.9 in / 99.06 mm |
| Shipping Weight | 3.2 lbs / 1.45 kg |
| Carton Height | 3 in / 76.2 mm |
| Carton Length | 10.75 in / 273.05 mm |
| Carton Width | 8.25 in / 209.55 mm |
| Certifications | CCC, CE, RoHS, UL60065, ETL-C/US, FCC |
| Included Accessories | 3-Pin Euroblock, 4-Pin Euroblock, Mounting Hardware, Power Supply |
| Optional Accessories | Rack Plate (AC-SA502-RMA) |
| TAA Compliant (Trade America) | No |
| BAA Compliant (Made in USA) | No |
| Input Impedance | 20K _ Unbalanced, 10K _ Balanced |
| Output Type | Euroblock |
| Power Requirements | 100-240 VAC with approved power supply |
| Voltage Gain | 20 dB |
| Frequency Response (± 3 dB) | 30 Hz - 20 kHz @ 1 watt < 0.2% THD |
The MA501t is a low-voltage mono power amplifier engineered for use in distributed sound applications. Designed for use with SoundTube and other highfidelity speakers, the MA501t provides 50 watts of output power at 25V, 70V or 100 V. A 12 V trigger is provided for auto-on/off functions. Recessed gain control is available via the front panel; this deters unauthorized tampering with levels or other settings.
Features:
- Audio grade toroidal output transformer
- Compact high-output, constant voltage 50 W amplifier
- Rugged extruded aluminum housing
- Taps for 25 V, 70 V, 100 V
- Balanced inputs (Euroblock) and unbalanced inputs (RCA)
- Euroblock outputs
- Signal sensing auto-on or 12 V trigger
- 30 Hz - 20 kHz (±0.5 dB) frequency response
- Peak output detector and indicator (clipping), power LED
- Recessed screw adjust input gain
- 120 Hz high pass switch
- Overload, short circuit, DC and Heat Protection
- Versatile mounting options: pole, rack or chassis
- Small size - 1.2Ó x 3.9Ó x 8Ó
| Color | Black |
| UPC | 748252171870 |
| Manufacturer | SoundTube |
| Manufacturer's Category | Amplifier |
| Depth | 7.9 in / 200.66 mm |
| Height | 1.25 in / 31.75 mm |
| Width/Diameter | 3.9 in / 99.06 mm |
| Shipping Weight | 3.2 lbs / 1.45 kg |
| Carton Height | 3 in / 76.2 mm |
| Carton Length | 10.75 in / 273.05 mm |
| Carton Width | 8.25 in / 209.55 mm |
| Certifications | CCC, CE, RoHS, UL60065, ETL-C/US, FCC |
| Included Accessories | 3-Pin Euroblock, 4-Pin Euroblock, Mounting Hardware, Power Supply |
| Optional Accessories | Rack Plate (AC-SA502-RMA) |
| TAA Compliant (Trade America) | No |
| BAA Compliant (Made in USA) | No |
| Input Impedance | 20K _ Unbalanced, 10K _ Balanced |
| Output Type | Euroblock |
| Power Requirements | 100-240 VAC with approved power supply |
| Voltage Gain | 20 dB |
| Frequency Response (± 3 dB) | 30 Hz - 20 kHz @ 1 watt < 0.2% THD |
